ABB DSQC663 3HAC029818-001 Service-Ready Industrial Spare Part

ABB DSQC663 3HAC029818-001 Service-Ready Industrial Spare Part: Spare Replacement and Downtime Risk Control

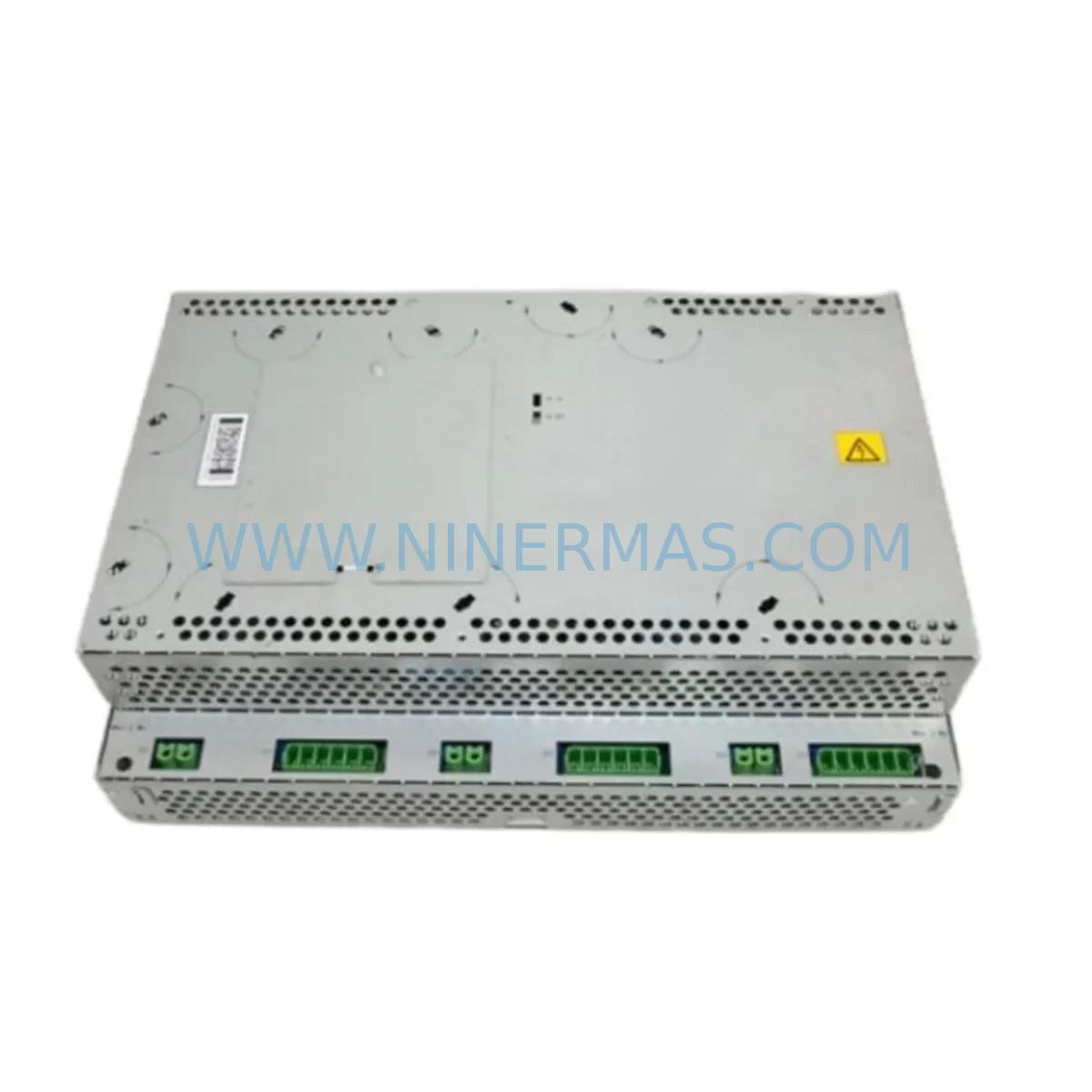

The ABB DSQC663 (3HAC029818-001) is an original relay module designed for use within ABB IRC5 robot controller cabinets. As a critical signal switching and relay interface component, the DSQC663 manages discrete output signals between the robot controller’s logic layer and external field devices, including safety interlocks, solenoid valves, and peripheral actuators. When this module fails or degrades, the entire robot cell may halt, triggering unplanned downtime that directly impacts production throughput and OEE targets.

For maintenance engineers and procurement teams operating in automotive assembly, metal fabrication, electronics manufacturing, and general industrial automation environments, maintaining a verified service-ready DSQC663 in the spare parts inventory is a fundamental risk mitigation strategy. This unit is pre-tested prior to shipment and backed by a 12-month warranty, ensuring that replacement can be executed with confidence during both planned annual shutdowns and emergency breakdown scenarios.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When a DSQC663 relay module fault is identified during routine IRC5 controller diagnostics or a production stoppage event, the replacement procedure should be treated as part of a broader cabinet inspection rather than an isolated swap. Experienced maintenance engineers understand that relay module failures in IRC5 cabinets are frequently accompanied by related stress on adjacent components, and a thorough inspection at the time of replacement significantly reduces the risk of secondary failures within days or weeks.

Begin by verifying the integrity of the IRC5 internal backplane — the 3HAC024488-001 backplane assembly provides the communication and power distribution bus that the DSQC663 relies upon. A damaged or corroded backplane connector can cause recurring relay module faults even after a new DSQC663 is installed. Simultaneously, inspect the DSQC639 (3HAC025097-001) power supply unit, which provides regulated 24 VDC to the I/O and relay modules; voltage ripple or undervoltage conditions are a common root cause of relay contact degradation.

The DSQC652 (3HAC025917-001) digital I/O module, which typically operates alongside the DSQC663 in the same IRC5 cabinet, should be checked for output channel faults and connector pin condition. If the robot program uses both digital outputs from the DSQC652 and relay outputs from the DSQC663 in the same safety or process interlock circuit, a fault in either module can mask the true failure source during troubleshooting.

For IRC5 cabinets with fieldbus communication to external PLCs or DCS systems, inspect the DSQC668 (3HAC029157-001) fieldbus adapter module. Communication interruptions between the IRC5 and the plant-level control system can generate spurious relay output commands that accelerate contact wear on the DSQC663. Verify that the DSQC661 (3HAC026253-001) panel board — which manages operator panel signals and emergency stop relay chains — is functioning correctly, as E-stop relay faults are frequently misdiagnosed as DSQC663 failures.

The DSQC609 (3HAC014178-001) axis computer board and DSQC627 (3HAC020466-001) main computer module should be confirmed as fault-free before completing the relay module replacement, since axis computer errors can generate false I/O fault codes that implicate the DSQC663. Additionally, review the DSQC643 (3HAC024518-001) safety module status — safety circuit integrity is essential before returning the robot cell to automatic operation after any relay module replacement. Finally, confirm that the DSQC679 (3HAC028357-001) FlexPendant is displaying correct system status and that no residual fault codes remain after the DSQC663 swap is complete.

Procurement engineers should consider maintaining a minimum stock of one DSQC663 per IRC5 controller in high-utilization facilities, with a recommended review cycle of 12 months aligned to the warranty period. Long-term supply agreements and reserved inventory programs help mitigate the extended lead times that are common for legacy IRC5 spare parts as the product line matures.

Site Replacement Workflow

The DSQC663 is designed for straightforward field replacement within the IRC5 controller cabinet, enabling maintenance teams to restore robot operation with minimal downtime when a verified spare is available on-site.

Step 1 — Isolation and Lockout: Power down the IRC5 controller using the main disconnect switch and apply LOTO (Lockout/Tagout) procedures in accordance with site safety protocols. Allow the cabinet capacitors to discharge for a minimum of 5 minutes before opening the cabinet door.

Step 2 — Fault Confirmation: Prior to removal, document the fault codes displayed on the FlexPendant (DSQC679) and record the relay channel states from the IRC5 event log. This data supports root cause analysis and confirms that the DSQC663 is the primary fault source rather than a downstream wiring or load issue.

Step 3 — Module Removal: Disconnect the wiring harness connectors from the DSQC663 relay module. Note the connector orientation and cable routing before removal. Release the module from the backplane slot or DIN rail mounting and remove it from the cabinet.

Step 4 — Replacement Installation: Install the service-ready DSQC663 (3HAC029818-001) into the correct backplane slot. Reconnect all wiring harness connectors, verifying that each connector is fully seated and locked. Confirm that the module’s LED indicators are consistent with normal IRC5 power-on behavior after cabinet energization.

Step 5 — System Verification: Power on the IRC5 controller and perform a full system diagnostic from the FlexPendant. Verify that all relay output channels are responding correctly to program commands and that no residual fault codes are present. Conduct a test cycle in manual mode before returning the robot to automatic production operation.

This replacement workflow is compatible with IRC5 Single Cabinet, IRC5 Compact, and IRC5 Panel Mounted Controller variants. No firmware update or parameter reconfiguration is required when replacing a DSQC663 with an identical original spare part.

Spare Parts Support FAQ

Q1: What is the expected service life of the ABB DSQC663 relay module, and when should it be proactively replaced?
The DSQC663 relay module does not have a fixed published service life, but relay contact wear is cumulative and dependent on switching frequency and load current. In high-cycle applications such as welding or press-tending robots, proactive replacement every 3–5 years or at the first sign of intermittent output faults is recommended. Maintaining a service-ready spare on-site eliminates the lead time risk associated with reactive procurement.

Q2: How can I verify compatibility between a replacement DSQC663 and my specific IRC5 controller variant?
The DSQC663 (3HAC029818-001) is compatible with IRC5 Single Cabinet, IRC5 Compact, and IRC5 Panel Mounted Controller configurations. Compatibility can be confirmed by cross-referencing the part number on the existing module label with the replacement unit. If the IRC5 controller software version is RobotWare 5.x or later, no additional compatibility steps are required for a like-for-like relay module replacement.

Q3: What pre-shipment testing is performed on the DSQC663 before delivery, and what does the 12-month warranty cover?
Each DSQC663 unit undergoes functional verification testing prior to shipment, including relay contact continuity checks, backplane interface validation, and power-on self-test confirmation. The 12-month warranty covers manufacturing defects and functional failures under normal operating conditions. Units that fail within the warranty period are eligible for replacement or repair support through our after-sales process.

Q4: Can long-term supply commitments be arranged for the DSQC663 to support multi-site maintenance programs?
Yes. Reserved inventory and long-term supply agreements are available for customers operating multiple IRC5 robot controllers across single or multi-site facilities. These programs provide price stability, guaranteed stock allocation, and priority fulfillment to support annual maintenance schedules and emergency breakdown requirements. Contact our sales team to discuss volume and lead time commitments aligned to your maintenance planning cycle.
