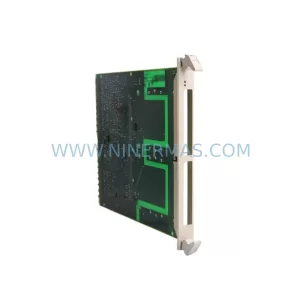

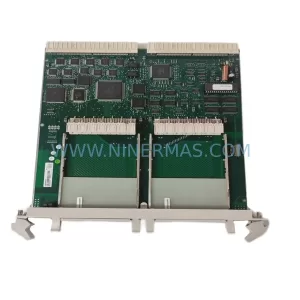

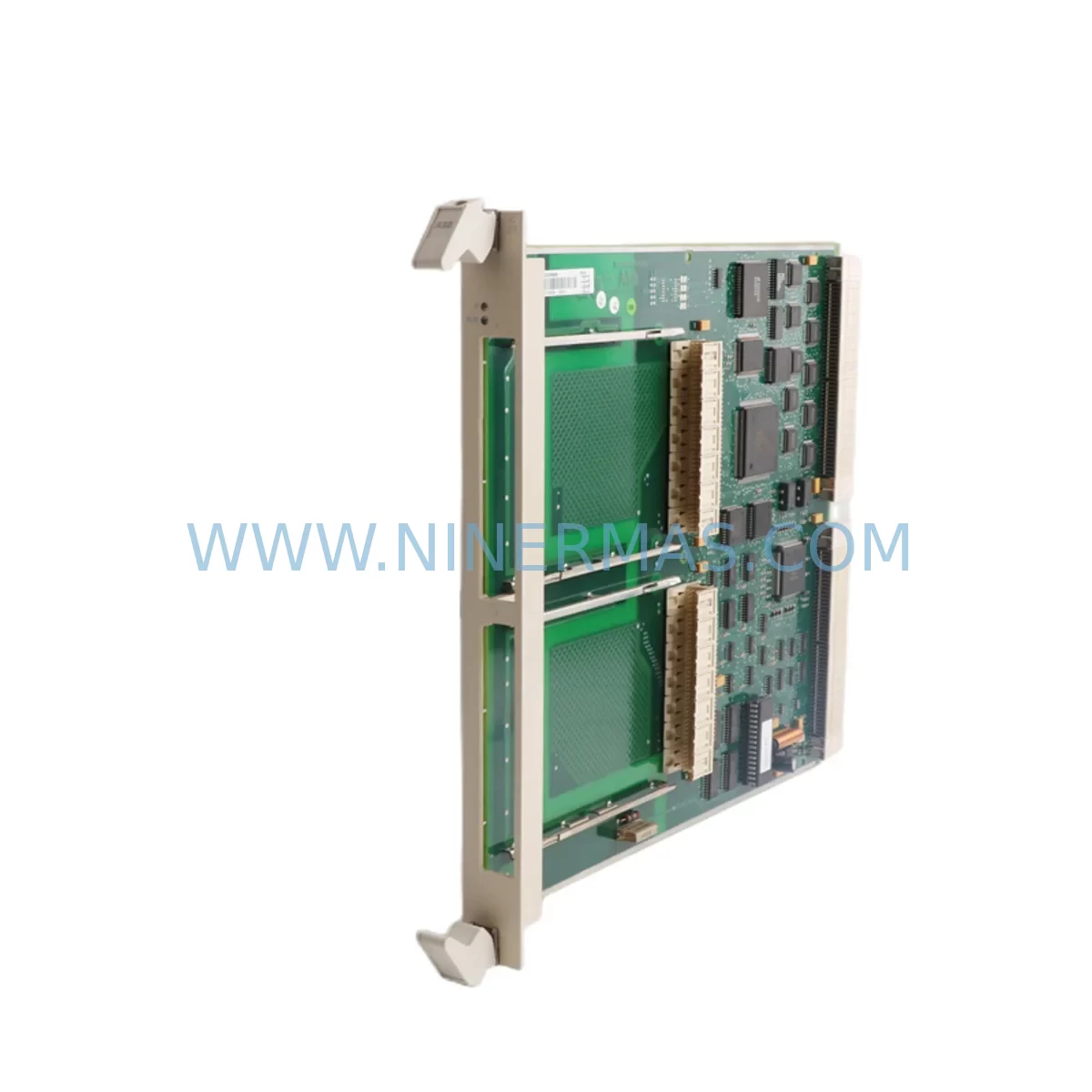

The ABB SC510 3BSE003832R1 is a submodule carrier module designed for use within ABB’s AC500 PLC platform — one of the most widely deployed programmable logic controller families in industrial automation, process control, and critical infrastructure environments. As a structural and electrical interface component, the SC510 carrier module provides the mechanical housing and backplane connectivity required to mount and operate compatible I/O submodules within the AC500 modular architecture. When this component fails or degrades, the entire I/O expansion capability of the affected rack segment can be compromised, leading to unplanned downtime and production loss.

For maintenance engineers managing aging AC500 installations, keeping a verified spare of the 3BSE003832R1 on the shelf is a fundamental risk mitigation strategy. The SC510 is not a high-frequency wear item, but its failure — often triggered by thermal cycling, vibration fatigue, or connector oxidation — can be sudden and difficult to predict. A pre-tested replacement unit allows field teams to restore system functionality within the same maintenance window, avoiding extended outages that escalate into production emergencies.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When a maintenance or procurement engineer schedules a replacement of the ABB SC510 3BSE003832R1, the replacement event should be treated as a broader system health checkpoint — not an isolated swap. The SC510 carrier interfaces directly with the AC500 backplane and the submodules it hosts, meaning any degradation in adjacent components can accelerate wear or cause recurring faults even after the carrier is replaced.

During the same maintenance window, engineers should inspect the ABB TB511 terminal base and TB521 terminal base units connected to the affected rack segment, as loose or corroded terminal connections are a common co-failure point. The ABB PM554 or PM564 CPU module powering the rack should be checked for firmware currency and communication integrity — a degraded carrier can sometimes generate spurious I/O errors that are misdiagnosed as CPU faults. If the installation includes ABB CI501 or CI502 PROFIBUS communication modules, verify that the fieldbus scan cycle has not been disrupted by the carrier fault, as communication timeouts may have triggered downstream process alarms.

On the power supply side, inspect the ABB CP502 or CP504 power supply modules feeding the AC500 rack. Carrier module failures are occasionally preceded by voltage ripple or transient events from an aging power supply, and replacing the SC510 without addressing an unstable power source risks premature failure of the new unit. Similarly, check the 24VDC distribution fusing on the control cabinet’s power rail — blown or weakened fuses in the I/O supply circuit can cause intermittent carrier resets that are difficult to trace without a systematic inspection.

For installations where the SC510 hosts analog I/O submodules such as the ABB AI523 or AO523, signal quality should be verified post-replacement using a calibrated loop tester. Signal drift or offset errors after a carrier swap may indicate that the submodule itself has been affected by the same fault condition. If the control cabinet includes signal isolators or surge protection barriers on field wiring inputs, these should also be inspected — particularly in environments with high electromagnetic interference or frequent lightning exposure.

Procurement engineers sourcing the 3BSE003832R1 as a long-term spare should consider stocking a minimum of one to two units per AC500 rack cluster, particularly in facilities where the AC500 platform is used for safety-critical or continuous-process applications. NINERMAS maintains long-term supply availability for the SC510 and related AC500 components, supporting both emergency replacement orders and planned annual maintenance procurement cycles.

Site Replacement Workflow

Step 1 — Pre-replacement verification: Confirm the SC510 3BSE003832R1 is the correct carrier variant for your rack configuration. Cross-reference the existing unit’s label against the order part number. Verify that the replacement unit’s firmware or hardware revision is compatible with the submodules currently installed.

Step 2 — Safe isolation: Follow your site’s lockout/tagout (LOTO) procedure. De-energize the affected rack segment. If the AC500 system supports hot-swap on adjacent segments, coordinate with the control room to maintain partial system operation during the replacement window.

Step 3 — Submodule removal and documentation: Before removing the SC510, photograph or document the submodule slot assignments and wiring connections on the terminal bases. Remove each submodule in sequence, labeling them to ensure correct reinstallation.

Step 4 — Carrier replacement: Remove the faulty SC510 from the rack. Install the new 3BSE003832R1 unit, ensuring correct seating on the backplane connectors. Reinstall submodules in their original slot positions.

Step 5 — Power-up and verification: Re-energize the rack segment. Monitor the AC500 CPU diagnostic LEDs and engineering workstation for I/O status confirmation. Run a full I/O scan and verify that all field signals are reading correctly before returning the system to automatic operation.

Step 6 — Post-replacement documentation: Record the replacement in the site maintenance log, including the date, part number, serial number of the replaced unit, and the technician’s name. Retain the faulty unit for root cause analysis if required.
