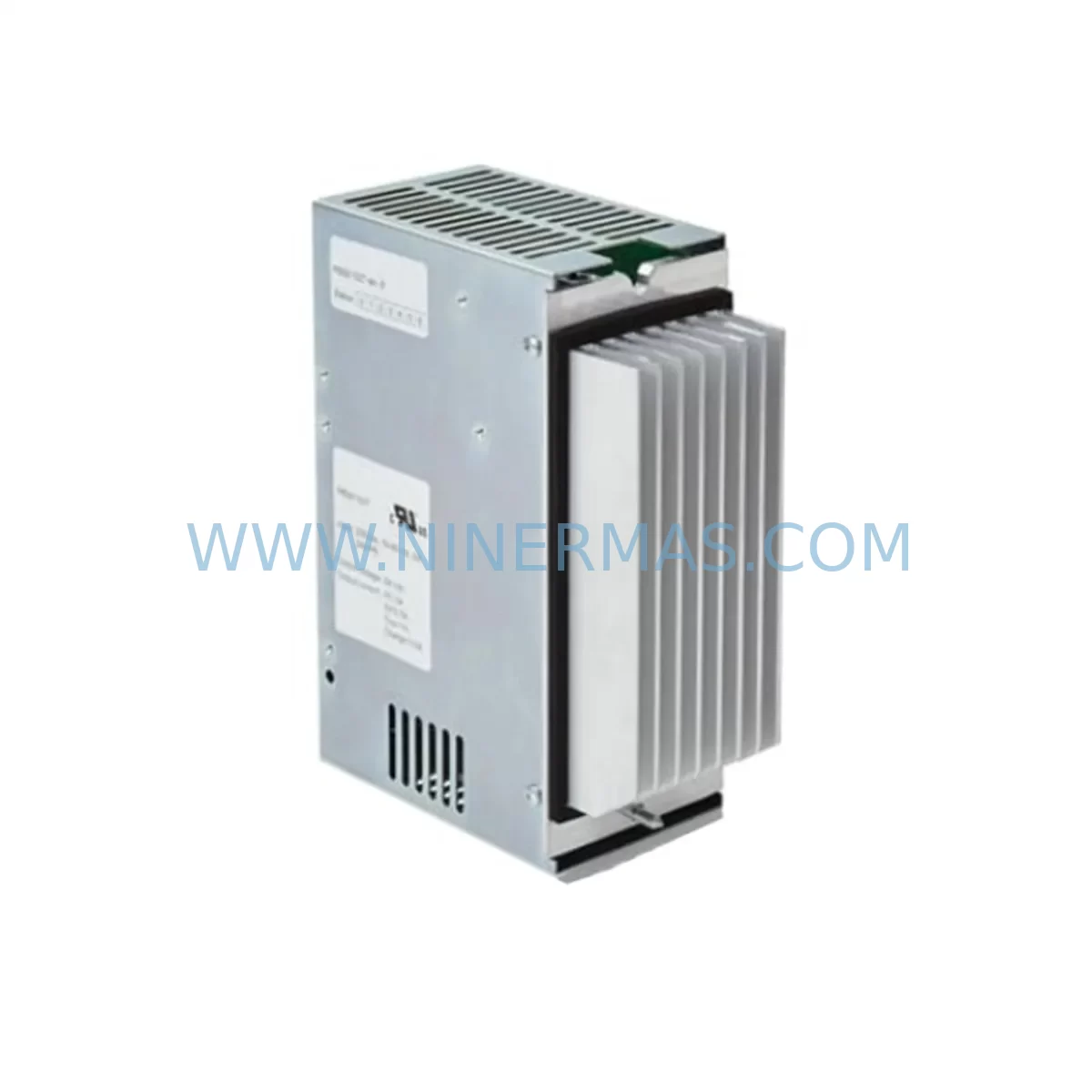

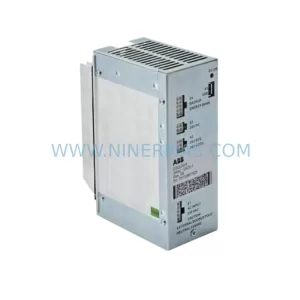

The ABB DSQC604 is a ruggedized power supply module engineered for demanding industrial environments, serving as a critical component within ABB IRC5 robot controller cabinets. For maintenance engineers managing automated production lines, conveyor systems, or robotic welding cells, an unplanned failure of the DSQC604 can trigger immediate line stoppage. Sourcing a verified, service-ready replacement unit is the fastest path to restoring operation and protecting production schedules.

At NINERMAS, every ABB DSQC604 unit is inspected, function-tested, and shipped with a 12-month warranty, giving procurement engineers the confidence to stock this module as a strategic spare. Whether you are responding to an emergency breakdown or building a preventive maintenance inventory, the DSQC604 is a high-priority line item for any facility running ABB IRC5 controller platforms.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When a DSQC604 power supply module is flagged for replacement during a scheduled IRC5 controller inspection or an unplanned fault event, experienced maintenance engineers know that the power supply rarely fails in isolation. A thorough site assessment should extend to the surrounding electrical ecosystem to prevent repeat failures and ensure a clean return to service.

Begin by verifying the integrity of the DSQC652 I/O module and DSQC651 DeviceNet I/O board, both of which draw regulated power from the DSQC604 rails. Voltage irregularities from a degraded power supply can cause latent damage to these I/O nodes that only manifests after the new module is installed. Similarly, inspect the DSQC609 power distribution board, which interfaces directly with the power supply output and routes DC power to downstream controller logic.

Check the DSQC663 axis computer board and DSQC668 drive unit for any fault logs recorded during the period of power instability — these components are sensitive to supply ripple and undervoltage events. If the IRC5 cabinet includes a DSQC679 teach pendant (FlexPendant), confirm that the HMI communication link is stable after power restoration, as pendant connectivity issues are a common symptom of upstream power anomalies.

On the input side, inspect the cabinet’s main circuit breaker, EMC filter, and 24 VDC auxiliary power supply for signs of overload or thermal stress. Loose terminal connections on the Phoenix Contact or Weidmüller terminal blocks within the cabinet are a frequent root cause of intermittent power faults that accelerate module wear. Tighten and re-torque all power terminals as part of the replacement procedure.

For facilities operating multiple IRC5 cells, procurement engineers should consider maintaining at least one DSQC604 unit per controller generation in the on-site spare parts inventory. Pairing this with a stocked DSQC612 serial measurement board and a set of IRC5 controller fuses (6.3 A and 10 A ratings) covers the most common single-point failure modes and supports a sub-four-hour mean time to repair (MTTR) target for critical robot cells.

Site Replacement Workflow

Replacing the ABB DSQC604 in the field follows a structured sequence to minimize downtime and avoid secondary faults. Before beginning, confirm that the IRC5 controller is in a safe state: robot arm parked, drives disabled, and main power isolated at the cabinet disconnect. Document the existing fault codes from the FlexPendant event log — this baseline is essential for post-replacement verification.

Remove the DSQC604 by disconnecting the DC output connectors and the AC input harness in the sequence specified in the ABB IRC5 Product Manual (3HAC021313-001). Note the orientation of all cable looms before disconnection. Install the replacement DSQC604, ensuring the module seats fully on the backplane and all connector locks engage. Restore power and observe the controller startup sequence: the FlexPendant should reach the main menu without axis computer or I/O fault codes within the normal boot window.

Perform a functional verification by jogging each robot axis through its full range and confirming I/O signal integrity on the DSQC652 I/O module. Log the replacement in the site maintenance management system (CMMS) with the new module’s serial number and the date of installation. This record supports warranty claims and provides traceability for future audits.

For facilities transitioning away from legacy IRC5 single-cabinet configurations, the DSQC604 is also compatible with IRC5 Compact controller variants, making it a versatile spare that covers multiple platform generations without requiring separate stock-keeping units. This cross-compatibility reduces inventory carrying costs while maintaining coverage across older and newer robot cell installations.

Spare Parts Support FAQ

Q1: Is the DSQC604 compatible with all IRC5 controller variants?
The DSQC604 is designed for ABB IRC5 single-cabinet and dual-cabinet controllers and is also compatible with IRC5 Compact variants. Before installation, cross-reference the controller’s hardware revision with the ABB spare parts catalog or contact NINERMAS with your controller serial number for a compatibility confirmation. Our technical team can verify fit based on your specific cabinet configuration.

Q2: How is the DSQC604 tested before shipment?
Every DSQC604 unit supplied by NINERMAS undergoes a pre-shipment functional test covering DC output voltage accuracy, load regulation, and connector integrity. Units that do not meet specification are quarantined and not offered for sale. A test report is available upon request for quality-critical procurement processes.

Q3: What is the recommended spare parts stocking strategy for the DSQC604?
For facilities operating three or more IRC5 robot cells, NINERMAS recommends maintaining a minimum of one DSQC604 on the shelf as a hot spare. For high-throughput automotive or electronics assembly lines where robot downtime carries significant production cost, a two-unit buffer is advisable. Combine this with stocked DSQC652 I/O modules and IRC5 fuse sets to cover the most statistically frequent failure modes.

Q4: Does NINERMAS support long-term supply of the DSQC604?
Yes. NINERMAS maintains ongoing sourcing relationships to support long-term supply of ABB IRC5 spare parts, including the DSQC604. All units are covered by a 12-month warranty from the date of shipment. For annual maintenance contracts or volume procurement agreements, contact our sales team directly to discuss pricing, lead times, and consignment stocking options.
