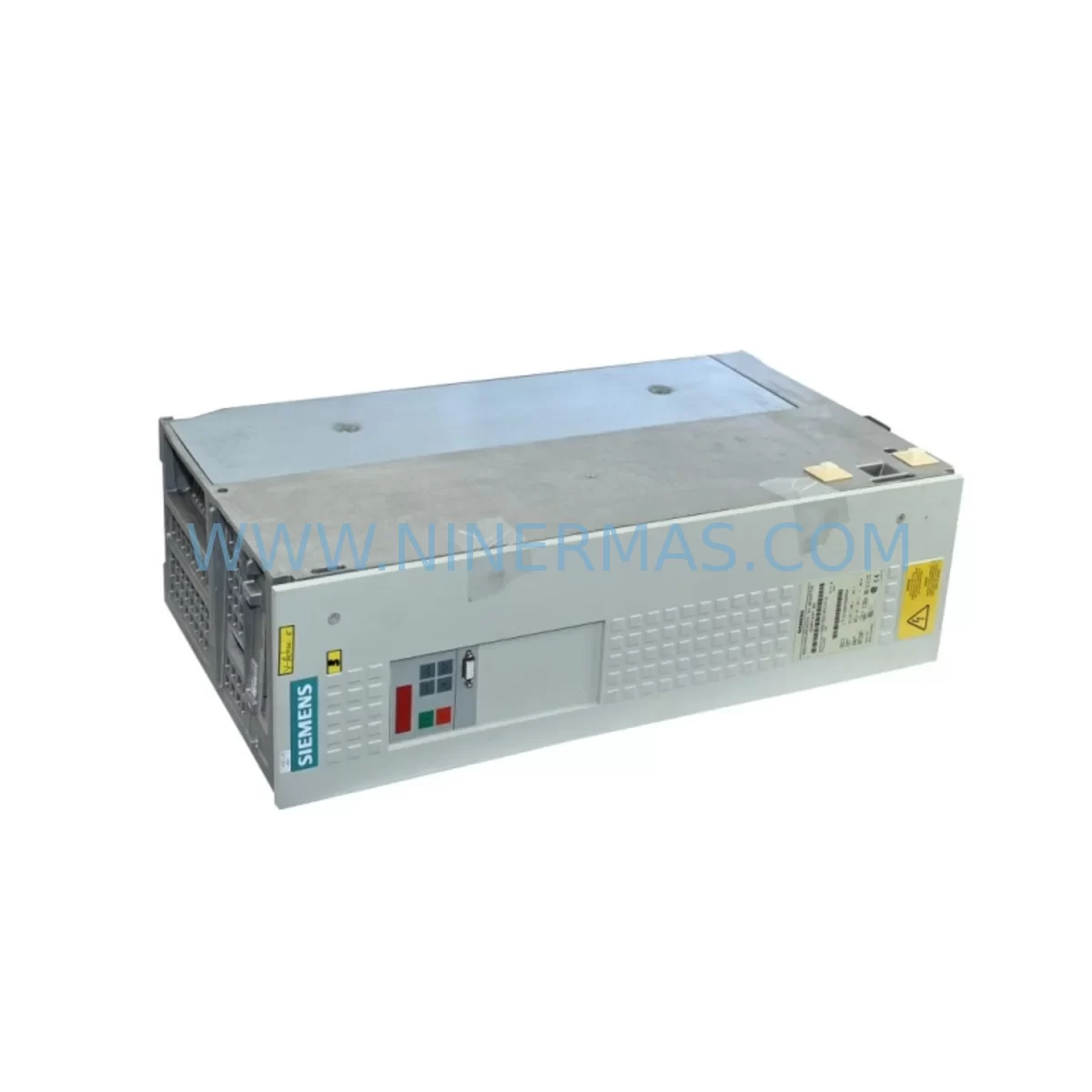

The Siemens 6SE7022-6TC51-Z is a compact AC frequency inverter from the SIMOVERT Masterdrive series, designed for vector control and motion-critical applications in industrial automation. As this model has reached end-of-life status, procurement teams and maintenance engineers across manufacturing, automotive, and process industries are actively seeking verified retrofit-compatible replacements to sustain production continuity without full system overhauls. NINERMAS maintains ready stock of the 6SE7022-6TC51-Z and provides pre-shipment functional testing, ensuring each unit is validated before dispatch.

The SIMOVERT Masterdrive platform — encompassing compact units, chassis units, and cabinet-integrated configurations — was widely deployed across conveyor systems, pump drives, compressor controls, and servo-coordinated production lines. When a 6SE7022-6TC51-Z fails or reaches the end of its service life, the replacement process requires careful attention to power capacity matching, terminal wiring compatibility, backplane interface alignment, and communication protocol continuity. Our technical team supports customers through each stage of this process, from pre-replacement compatibility verification to post-installation commissioning guidance.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Replacing a 6SE7022-6TC51-Z within an operational control cabinet demands a structured approach. Before removing the existing unit, engineers should document all parameter sets using the PMU operator panel or the 6SE7090-0XX84-0AB0 parameter module, which stores drive configuration and can be transferred directly to the replacement unit — significantly reducing recommissioning time.

Terminal wiring must be mapped against the original schematic. The 6SE7022-6TC51-Z uses a standard Masterdrive terminal layout for power (U1/V1/W1 input, U2/V2/W2 output), control terminals (X100–X103 series), and relay outputs. If the original installation included a 6SE7090-0XX84-0FF5 PROFIBUS DP option board, verify that the replacement unit’s option slot is compatible and that the board firmware matches the network master’s GSD file version.

For systems where the 6SE7022-6TC51-Z interfaces with a Simatic S7-300 or S7-400 PLC via PROFIBUS, the drive’s node address and telegram type (e.g., PPO Type 3 or 4) must be preserved. Any change in telegram structure will require corresponding updates to the PLC’s hardware configuration in STEP 7 or TIA Portal. In multi-drive installations, also verify that the 6SE7031-0EE60 or similar higher-power Masterdrive units sharing the same DC bus are not affected by the swap.

If the control cabinet includes a Simatic HMI panel — such as a TP177 or MP277 — connected to the drive via PROFIBUS or MPI, confirm that the HMI screen tags referencing drive status words and setpoint channels remain valid after replacement. Screen variables mapped to drive parameter addresses (e.g., r0002, r0052) should be re-verified during commissioning.

For installations requiring I/O expansion, the 6SE7022-6TC51-Z supports additional terminal boards. If the original system used a 6SN1123-1AA00-0DA2 or similar I/O expansion module within the same control enclosure, ensure that the signal routing to the replacement drive’s control terminals is re-established correctly. Analog setpoint channels (0–10 V or 4–20 mA) and digital enable signals must be tested under no-load conditions before energizing the motor.

In retrofit scenarios involving older 6SE7016-1EA51 or 6SE7021-0TP50 compact units being upgraded to the 6SE7022-6TC51-Z, the power section footprint and cooling requirements may differ. Measure the available installation space carefully — the 6SE7022-6TC51-Z requires adequate clearance on all sides for thermal management. If the cabinet layout is constrained, consider whether a 6SE7023-4TC51 or 6SE7024-7TD61 from the same Masterdrive family offers a more suitable power-to-footprint ratio for the application.

Where the original drive was connected to a braking resistor or a regenerative feedback unit, verify that the DC link voltage rating and chopper threshold settings are correctly configured in the replacement unit. Incorrect braking resistor sizing is a common cause of overvoltage trips during deceleration ramps.

Downtime Control During System Migration

Minimizing production downtime during a 6SE7022-6TC51-Z replacement requires advance preparation. The most effective strategy is to have the replacement unit pre-configured off-line using a laptop running STARTER or DriveMonitor, with the parameter file loaded from the 6SE7090-0XX84-0AB0 backup module or a saved project archive. This allows the swap to proceed as a direct hardware exchange, with commissioning reduced to a final parameter verification and a supervised test run.

Before the maintenance window, prepare a wiring checklist covering all power terminals, control terminals, encoder connections (if applicable), and communication cables. Label each wire clearly before disconnection. If the system uses a shared DC bus with adjacent Masterdrive units such as a 6SE7024-7TD61 or a 6SE7031-0EE60, coordinate the shutdown sequence to avoid uncontrolled regeneration or bus overvoltage events.

During the swap, retain the original program logic in the PLC — no changes to the S7 project should be necessary if the replacement drive is configured identically. After reconnection, perform a no-load motor test at reduced speed before resuming full production. Monitor the drive’s diagnostic buffer (r0947/r0949) for any fault codes during the initial run-up, and confirm that all analog and digital I/O signals are responding correctly.

NINERMAS ships the 6SE7022-6TC51-Z with a pre-shipment functional test report, confirming that the unit has been powered up, parameter-loaded, and verified against key performance indicators before dispatch. This reduces the risk of receiving a non-functional unit during a critical maintenance window. Standard lead time from confirmed order to dispatch is 1–3 business days for in-stock units, with express shipping options available for urgent requirements.

Retrofit Support FAQ

Q: Is the 6SE7022-6TC51-Z a direct drop-in replacement for other SIMOVERT Masterdrive compact units?
A: The 6SE7022-6TC51-Z is dimensionally and electrically compatible with other Masterdrive compact units of the same power class. However, always verify the power rating, control mode (VC vs. FC), and option board configuration before installation. Units with different option boards (e.g., PROFIBUS vs. DeviceNet) are not interchangeable without board replacement.

Q: Can I transfer parameters from the failed unit to the replacement?
A: Yes. If the original unit’s PMU is functional, use the 6SE7090-0XX84-0AB0 parameter module to upload the parameter set. Alternatively, if a DriveMonitor or STARTER project file was saved during the original commissioning, this can be downloaded directly to the replacement unit via the serial interface or PROFIBUS connection.

Q: What wiring changes are required when replacing the 6SE7022-6TC51-Z?
A: In most cases, no wiring changes are required if the replacement unit is from the same Masterdrive compact family. Power terminals (U1/V1/W1, U2/V2/W2), control terminals (X100–X103), and option board connectors follow the same layout. Always verify against the original wiring diagram and check for any site-specific modifications made during the original installation.

Q: Does NINERMAS provide a warranty on the 6SE7022-6TC51-Z?
A: Yes. All units supplied by NINERMAS carry a 12-month warranty from the date of shipment. Each unit undergoes pre-shipment functional testing to verify power-up, parameter integrity, and basic drive operation. Warranty claims are supported by our technical team, with replacement or repair options available depending on the fault condition.
