ABB DSQC572 3HAC023242-001 Retrofit DeviceNet Board IRC5 Series

ABB DSQC572 3HAC023242-001 Retrofit DeviceNet Board IRC5 Series

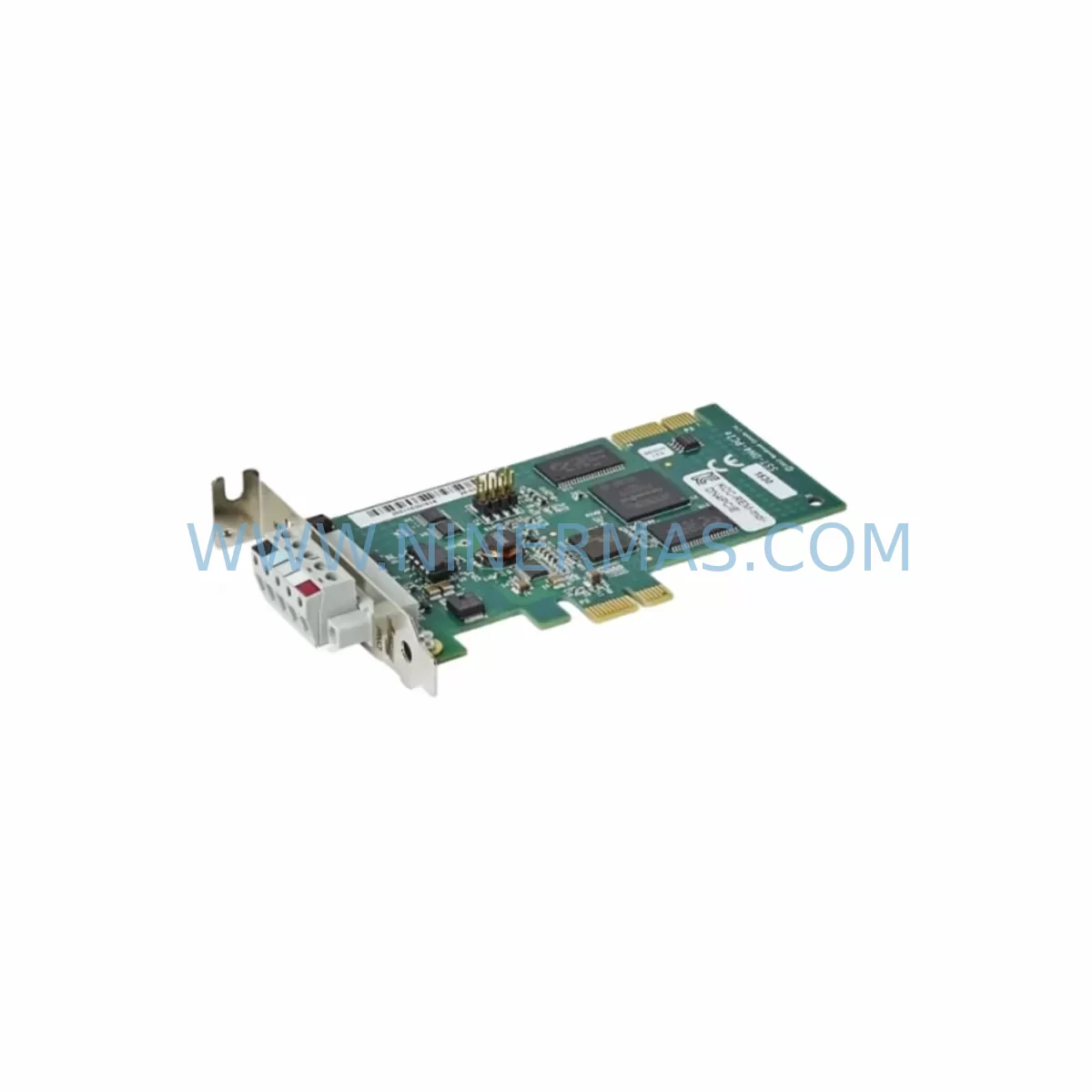

The ABB DSQC572 (part number 3HAC023242-001) is a DeviceNet communication board designed for integration within the ABB IRC5 robot controller cabinet. As ABB’s industrial automation ecosystem continues to evolve, many facilities operating legacy IRC5 systems face the challenge of sourcing discontinued or end-of-life communication modules. The DSQC572 remains a critical interface component for plants that rely on DeviceNet fieldbus topology to coordinate robot motion, I/O exchange, and process signaling across the production line. Replacing or retrofitting this board without disrupting existing program logic or fieldbus addressing requires careful planning, verified compatibility, and a tested, original spare part — all of which NINERMAS supplies with a 12-month warranty and pre-shipment functional testing.

For maintenance engineers managing ABB robot cells, the DSQC572 serves as the primary DeviceNet master or slave interface within the IRC5 main computer assembly. When this board fails or becomes unavailable through standard channels, the entire robot cell may lose communication with peripheral I/O devices, safety relays, conveyor controllers, or upstream PLC systems. Procurement engineers sourcing this component must confirm the board revision, firmware compatibility, and slot position within the IRC5 drive module or controller cabinet before placing an order. NINERMAS provides full technical support to assist with compatibility verification prior to shipment.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

When replacing the DSQC572 in an active IRC5 robot cell, the retrofit scope extends well beyond the board itself. Maintenance teams should conduct a full cabinet inspection before and after the swap to ensure system integrity. Begin by auditing the IRC5 main computer unit — typically a DSQC639 or the newer DSQC1000 — to confirm the internal slot configuration and board seating requirements. The DSQC572 connects to the DeviceNet network via an external D-sub connector on the cabinet panel; inspect this connector and the associated DeviceNet trunk cable for corrosion, pin damage, or impedance mismatch before reinstalling.

The DeviceNet network itself should be verified for correct termination resistance (typically 121 Ω at each end of the trunk) using a network analyzer or multimeter. If the robot cell shares a DeviceNet segment with other devices — such as a Pilz safety relay, a Cognex vision system, a Balluff I/O block, or a Turck DeviceNet node — each device’s node address and baud rate must be confirmed to remain consistent after the board replacement. Node address conflicts are a common commissioning error that can prevent the IRC5 from establishing communication with downstream I/O.

On the software side, the RobotWare I/O configuration must be reviewed. After installing the replacement DSQC572, engineers should open RobotStudio or use the FlexPendant to navigate to the I/O configuration panel and verify that the DeviceNet unit is recognized and that all mapped signals — digital inputs, digital outputs, analog channels, and group signals — are correctly assigned. If the original RAPID program references specific I/O signal names tied to the DeviceNet board, these must be preserved or remapped to avoid runtime faults.

For facilities running older IRC5 systems with legacy DSQC540 Profibus boards or DSQC577 Ethernet/IP modules alongside the DSQC572, this retrofit is also an opportunity to audit the full communication stack. Check the 24 VDC power supply feeding the DeviceNet network — typically sourced from the IRC5 panel power supply or an external SITOP or Phoenix Contact PSU — and confirm that the supply voltage is within tolerance under load. Inspect the SMB (Serial Measurement Board) and axis computer connections for any loose connectors that may have been disturbed during the board removal process.

Procurement engineers should also consider stocking a secondary DSQC572 as a cold standby spare, particularly for multi-robot lines where a single board failure can halt an entire welding, assembly, or palletizing cell. NINERMAS maintains long-term inventory of DSQC-series boards and can support scheduled procurement cycles aligned with annual maintenance budgets.

Downtime Control During System Migration

Minimizing downtime during a DSQC572 replacement requires a structured pre-swap checklist. Before powering down the IRC5 cabinet, back up the full system configuration using RobotStudio’s backup function — this captures the RAPID programs, I/O configuration, system parameters, and safety settings. Store the backup on an external USB drive and verify its integrity before proceeding.

During the physical swap, follow ABB’s ESD handling procedures: ground yourself and the replacement board before handling. The DSQC572 is sensitive to electrostatic discharge, and improper handling can damage the DeviceNet ASIC or CAN transceiver. After seating the new board, perform a controlled power-up and monitor the IRC5 startup sequence on the FlexPendant for any fault codes related to the DeviceNet unit (e.g., 71xxx series I/O faults in RobotWare).

Once the board is recognized, restore the I/O configuration from backup and run a dry-cycle test with the robot in manual mode before returning to automatic production. Verify that all DeviceNet nodes — including any remote I/O racks, safety PLCs, or HMI panels connected via the DeviceNet segment — are communicating correctly. Document the replacement date, board serial number, and post-swap test results in the maintenance log for warranty and audit purposes.

For plants with strict OEE targets, NINERMAS recommends pre-ordering the DSQC572 as part of a planned maintenance kit alongside other high-wear IRC5 components such as the DSQC643 I/O board, the DSQC662 fieldbus adapter, or the IRC5 teach pendant cable assembly. This proactive approach reduces mean time to repair (MTTR) and supports continuous operation targets.

Retrofit Support FAQ

Q1: Is the DSQC572 (3HAC023242-001) a direct replacement for all IRC5 controller variants?
The DSQC572 is compatible with the standard IRC5 single-cabinet and dual-cabinet configurations using the DSQC639 main computer. Compatibility with IRC5 Compact or IRC5 Panel Mounted Controller variants should be verified against the specific RobotWare version and cabinet layout. NINERMAS provides pre-shipment compatibility consultation at no additional charge.

Q2: Does NINERMAS test the DSQC572 before shipment?
Yes. All DSQC572 units are functionally tested prior to dispatch. Each board undergoes power-on verification and communication interface checks. A 12-month warranty is included, covering manufacturing defects and functional failures under normal operating conditions.

Q3: What information should I provide to confirm compatibility before ordering?
Please provide your IRC5 cabinet serial number, RobotWare version, and current DSQC572 board revision (visible on the board label). This allows NINERMAS to confirm the correct hardware revision and advise on any firmware or configuration considerations before shipment.

Q4: Can NINERMAS support long-term or scheduled procurement of DSQC572 boards?
Yes. NINERMAS maintains standing inventory of DSQC-series communication boards and supports annual or quarterly procurement agreements. For facilities managing multiple IRC5 robot cells, bulk pricing and priority allocation are available. Contact our team to discuss a supply agreement aligned with your maintenance calendar.
