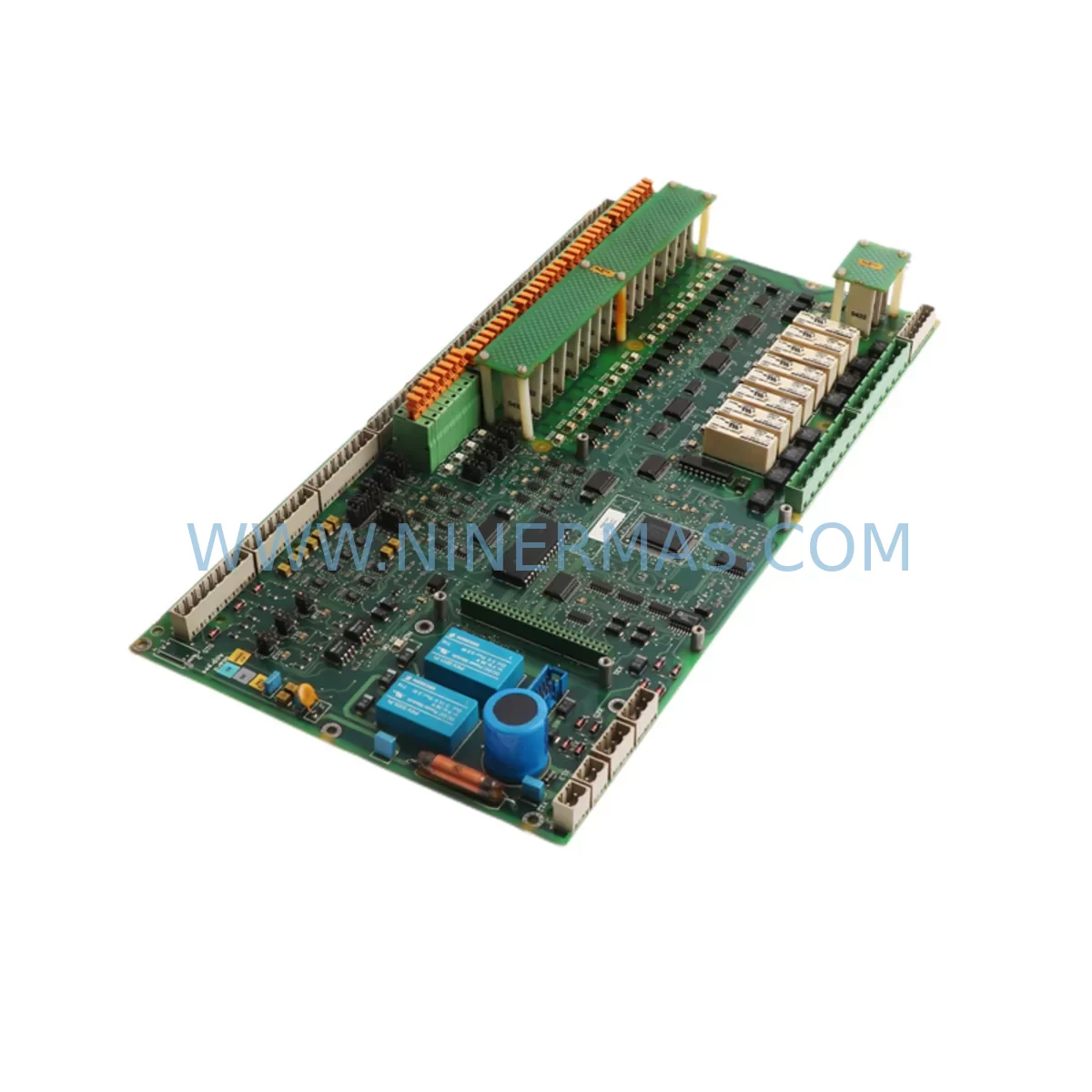

ABB DATX110 3ASC25H209 Retrofit I/O Board for Advant Drive

ABB DATX110 3ASC25H209 Retrofit I/O Board for Advant Drive

When a legacy Advant Drive system goes down, every minute of unplanned downtime translates directly into lost production and mounting pressure on maintenance teams. The ABB DATX110 3ASC25H209 — paired with its companion power supply interface DAPU100 3ASC25H204 — is the retrofit-compatible I/O board engineered to restore your Advant Drive AC70 or AC80 series drive to full operational status without requiring a full drive replacement or costly control system overhaul. For maintenance engineers managing aging automation infrastructure, sourcing a verified, service-ready DATX110 3ASC25H209 is the fastest path back to production continuity.

The DATX110 board serves as the primary digital and analog I/O interface within the Advant Drive control architecture. It handles signal routing between the drive’s internal control logic and external field devices, including speed references, torque commands, digital status outputs, and fault relay signals. When this board fails — whether due to component aging, voltage transients, or environmental stress — the entire drive loses its ability to communicate with the process control layer, triggering an immediate production stop. Replacing the DATX110 3ASC25H209 with a verified original unit is the most reliable way to restore drive functionality while preserving the existing control program and parameter set.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful DATX110 3ASC25H209 retrofit begins well before the replacement board arrives on site. Maintenance engineers should start by pulling the existing drive parameter backup from the SAMI or AC80 control unit — if no backup exists, the drive’s keypad or the DDCS communication link to the upper-level DCS can sometimes be used to extract current parameter values before the board is removed. This step is critical: without a parameter backup, commissioning after the board swap will require a full re-parameterization, significantly extending downtime.

Next, document the terminal wiring on the DATX110’s I/O connector block. The board interfaces with field devices through a series of screw-terminal connections carrying analog speed references (typically 0–10 V or 4–20 mA), digital run/stop commands, fault relay outputs, and encoder feedback signals. Before removing the old board, photograph or sketch the wiring layout and verify signal levels with a multimeter. Pay particular attention to the 24 VDC control supply rail — if the DAPU100 3ASC25H204 power interface board is also being replaced simultaneously, confirm that the new unit’s output voltage is within tolerance before energizing the DATX110.

During the retrofit, engineers frequently discover that adjacent components in the same control cabinet also require attention. The DDCS fiber optic communication module — often a DDCS board or NDCO module — should be inspected for connector contamination or fiber bend radius violations, as a degraded fiber link will prevent the new DATX110 from communicating with the master controller even after a successful board swap. Similarly, the drive’s main control board (such as the DSCB or DSQC series in integrated Advant systems) should be checked for firmware compatibility with the replacement DATX110 revision level.

For sites running the Advant Drive within a larger ABB Master or Advant Controller 110/160 environment, the retrofit window is also an ideal time to inspect the AC110 or AC160 I/O modules connected to the same control loop. Terminal blocks, fuse holders, and signal isolators in the same cabinet section should be verified for continuity and insulation resistance. If the drive communicates via a PROFIBUS DP or Modbus RTU link to a SCADA or DCS system, confirm that the communication parameters — baud rate, node address, and parity settings — are correctly restored after the board replacement. An incorrectly configured communication address is one of the most common causes of extended commissioning time following an I/O board retrofit.

Procurement engineers sourcing the DATX110 3ASC25H209 and DAPU100 3ASC25H204 as part of a planned maintenance stock strategy should also consider holding inventory of the DSTD board series, DSMB memory backup modules, and DSPC processor cards that share the same Advant Drive control rack. Maintaining a small buffer stock of these complementary modules — along with spare DDCS fiber patch cables and 24 VDC panel power supplies — ensures that a single board failure does not cascade into a multi-week procurement delay.

Downtime Control During System Migration

The most effective way to minimize downtime during a DATX110 3ASC25H209 replacement is to complete all preparatory work — parameter backup, wiring documentation, spare parts staging, and communication configuration verification — before the drive is taken offline. With thorough preparation, the physical board swap itself typically takes less than 30 minutes; it is the commissioning and verification phase that consumes the most time when preparation is inadequate.

For sites where the Advant Drive controls a critical process — such as a main conveyor, compressor, pump, or extruder — consider scheduling the retrofit during a planned maintenance window rather than responding reactively to a board failure. A proactive replacement strategy, triggered by early fault indicators such as intermittent I/O errors, communication timeouts, or erratic analog signal behavior, allows the maintenance team to control the timing and duration of the outage rather than being forced into an emergency repair under production pressure.

During the board swap, keep the original DATX110 3ASC25H209 on the bench rather than immediately returning it for disposal. In some cases, a board that appears failed can be restored by cleaning connector contacts, replacing a blown protection fuse, or reseating ribbon cable connectors — providing a potential backup unit at no additional cost. Once the new board is installed and the drive has been successfully commissioned, run a full I/O verification cycle: confirm each digital input and output, verify analog signal scaling, and perform a test run at reduced load before returning the drive to full production service.

For legacy Advant Drive systems approaching end-of-life, the DATX110 retrofit is often the first step in a phased modernization strategy. Rather than replacing the entire drive immediately, many facilities extend the operational life of their AC70 or AC80 drives by 5–10 years through targeted board-level replacements, buying time for a planned migration to a current-generation ABB ACS880 or ACS580 platform without disrupting ongoing production schedules.

Retrofit Support FAQ

Q: Is the DATX110 3ASC25H209 a direct drop-in replacement for all Advant Drive I/O board variants?
A: The DATX110 3ASC25H209 is designed for the Advant Drive AC70 and AC80 series. Before installation, verify the board revision level and backplane slot assignment against your drive’s documentation. The DAPU100 3ASC25H204 is the corresponding power interface board and should be evaluated for simultaneous replacement if the original unit shows signs of aging.

Q: What testing is performed before shipment?
A: Every DATX110 3ASC25H209 and DAPU100 3ASC25H204 unit is functionally tested prior to dispatch. Boards are inspected for component integrity, connector condition, and electrical performance. A test report is available upon request. All units ship with a 12-month warranty covering manufacturing defects and functional failures under normal operating conditions.

Q: How do I verify compatibility with my existing Advant Drive system before ordering?
A: Provide your drive’s nameplate data (model, serial number, and firmware version) along with the existing board part number from the drive’s internal label. Our technical team will confirm compatibility and advise on any wiring or configuration differences between board revisions before shipment.

Q: Can you support long-term supply for ongoing maintenance programs?
A: Yes. We maintain stock of DATX110 3ASC25H209, DAPU100 3ASC25H204, and related Advant Drive spare parts to support both emergency replacement and planned maintenance inventory programs. Long-term supply agreements are available for facilities managing multiple Advant Drive installations, ensuring consistent access to verified spare parts throughout the system’s operational life.
