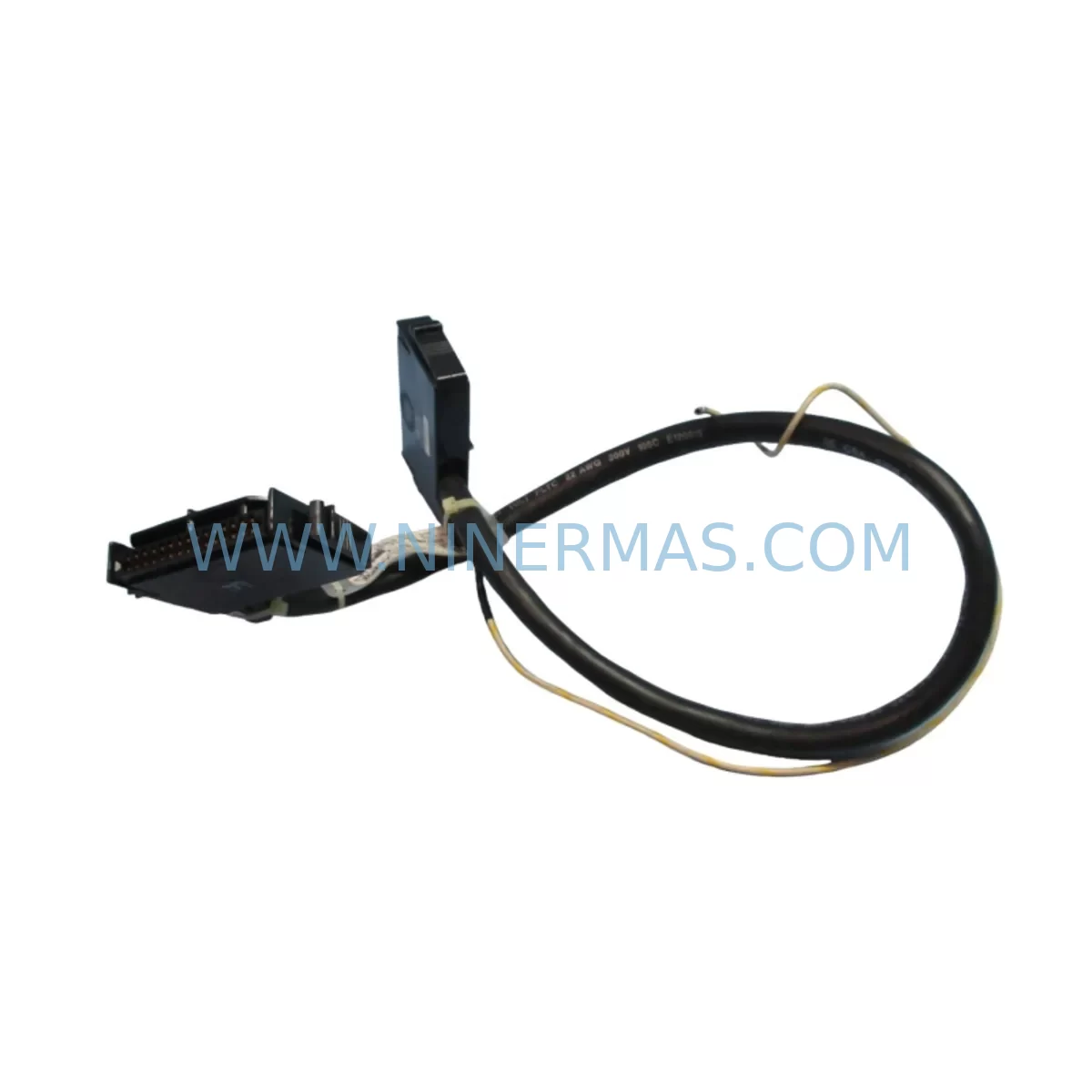

ABB Bailey L700743A3-10 Retrofit-Compatible Terminal Cable

ABB Bailey L700743A3-10 Retrofit-Compatible Terminal Cable for Legacy Control Systems

The ABB Bailey L700743A3-10 is a retrofit-compatible terminal cable engineered for integration within the ABB Bailey INFI 90 and Network 90 distributed control system (DCS) platforms. As legacy automation infrastructure ages and original spare parts become increasingly scarce, the L700743A3-10 serves as a critical interconnect component for engineers and maintenance teams tasked with sustaining, upgrading, or migrating aging control architectures without full system replacement.

This terminal cable is designed to bridge I/O modules, termination units, and field wiring assemblies within the Bailey control cabinet environment. Its role becomes especially significant during partial panel retrofits, where maintaining backward compatibility with existing backplane connectors, terminal block layouts, and signal routing is essential to minimizing engineering rework and downtime exposure.

For facilities operating legacy Bailey INFI 90 controllers — including the IMMFP12 multi-function processor and associated IMFEC12 field equipment controllers — the L700743A3-10 provides a verified interconnect path that preserves existing wiring infrastructure. When upgrading from older INFI 90 I/O modules to current-generation equivalents, engineers must confirm that terminal pitch, connector keying, and cable shielding specifications remain consistent with the replacement module’s termination requirements. The L700743A3-10 satisfies these constraints in standard retrofit configurations.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Successful integration of the L700743A3-10 into an existing Bailey control system requires a structured pre-installation assessment. Before scheduling a maintenance window, engineers should audit the current cabinet layout to confirm available cable routing paths, verify that the termination unit — typically a NTAI05 or NTAI23 analog input termination assembly — is mechanically compatible, and document the existing field wiring color codes and shield grounding points.

Power supply capacity is a foundational check. Bailey cabinets running NPSM01 or NPSM02 power supply modules must be evaluated for available current headroom, particularly when the retrofit involves adding new I/O modules alongside the cable replacement. Overloading the 24 VDC bus during a partial upgrade is a common source of post-commissioning instability.

Backplane interface verification is equally critical. When the L700743A3-10 is used to connect an I/O module such as the IMASI23 analog input module or the IMASO14 analog output module to its corresponding termination unit, the installer must confirm that the backplane slot address assigned in the Bailey configuration tool matches the physical slot position. Address mismatches will cause the controller to report a module fault without generating a wiring alarm, making diagnosis unnecessarily complex.

For systems undergoing communication protocol migration — for example, transitioning from the legacy INFI-NET loop to an Ethernet-based supervisory layer — the L700743A3-10 remains relevant at the field I/O level even as the upper communication architecture changes. The cable’s role is confined to the physical termination layer, meaning it is unaffected by changes to the IMCIS02 communication interface module or the introduction of an OPC gateway server into the control network.

Where HMI screen updates are part of the broader modernization scope, maintenance teams should note that field I/O tag names bound to the L700743A3-10’s associated modules must be preserved in the HMI database to avoid display errors after the cable swap. Coordinate with the SCADA or DCS configuration team before the maintenance window to freeze tag mapping changes until post-commissioning verification is complete.

Signal isolators — such as DIN-rail-mounted loop-powered isolators used on thermocouple or RTD inputs — should be inspected for calibration drift if they have been in service for more than five years. Replacing the terminal cable without recalibrating associated signal conditioning hardware can introduce measurement offsets that are difficult to distinguish from wiring faults during loop checks.

Programming cable access is another practical consideration. If the retrofit requires downloading a revised control module configuration to the IMMFP12 processor, ensure that the Bailey engineering workstation and its RS-232 or USB programming cable are available on-site before the maintenance window begins. Configuration downloads cannot be performed remotely on older INFI 90 architectures without additional communication infrastructure.

Downtime Control During System Migration

Minimizing production interruption during a terminal cable replacement requires disciplined pre-work. The most effective approach is to complete all mechanical preparation — cable routing, connector pre-assembly, and label printing — before the planned shutdown begins. This reduces the active outage window to the time required for physical disconnection, reconnection, and loop verification only.

Where process conditions permit, a hot-standby strategy using redundant I/O modules can allow the L700743A3-10 to be installed on the standby channel while the primary channel remains in service. After installation and loop verification on the standby side, a controlled switchover transfers control to the newly cabled channel, and the primary side is then serviced without a full process shutdown.

Original program logic stored in the Bailey controller should be backed up to the engineering workstation before any physical work begins. Even a cable replacement that does not involve software changes carries a risk of accidental module reset if power is interrupted unexpectedly. A verified configuration backup ensures that recovery from an unplanned event does not extend the outage beyond the planned window.

Field control continuity during the transition can be maintained by placing affected control loops in manual mode at the operator station before disconnecting the terminal cable. Operators should be briefed on the expected duration of manual operation and the criteria for returning loops to automatic control after commissioning is confirmed. Clear communication between the maintenance team and the control room is the single most effective tool for keeping unplanned downtime to a minimum.

Post-installation, a full loop check on every signal connected through the L700743A3-10 should be completed before returning the system to automatic operation. Document the as-found and as-left readings for each loop to provide a baseline for future maintenance reference and to satisfy any site quality management requirements.

Retrofit Support FAQ

Q1: Is the L700743A3-10 a direct replacement for the original ABB Bailey cable assembly?
Yes. The L700743A3-10 is manufactured to the original ABB Bailey specification and is intended as a functional drop-in replacement for the discontinued OEM assembly. No modification to the termination unit, backplane, or field wiring is required for standard retrofit applications.

Q2: What commissioning steps are required after installation?
After physical installation, perform a full loop check on all signals routed through the cable. Verify that the controller recognizes the associated I/O module without fault, confirm signal values at the operator station match field instrument readings, and document as-left loop data. No software reconfiguration is required unless the module slot address has changed.

Q3: How is wiring compatibility confirmed before ordering?
Provide your existing termination unit model number, the associated I/O module type, and the cabinet drawing reference to our technical team. We will confirm connector compatibility and cable length requirements before shipment. Pre-shipment functional testing is performed on all units prior to dispatch.

Q4: What does the 12-month warranty cover?
The 12-month warranty covers manufacturing defects, connector integrity, and electrical continuity under normal operating conditions. Units that fail within the warranty period are replaced or refunded. In-stock inventory is maintained to support rapid dispatch for urgent retrofit and breakdown recovery requirements.
