ABB AO810V2 3BSE038415R1 | Retrofit & System Modernization Module

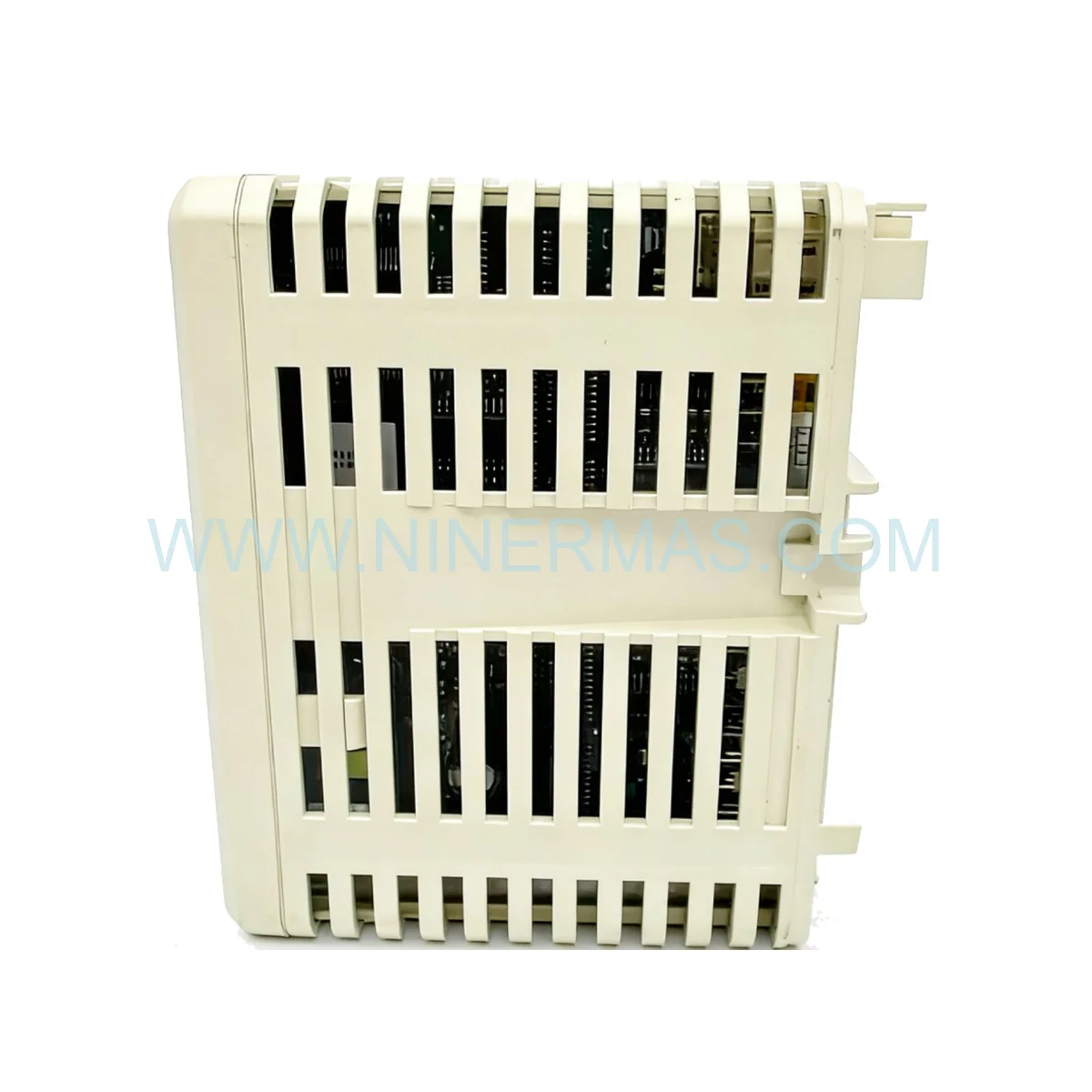

ABB AO810V2 3BSE038415R1 – Professional Retrofit & System Upgrade Component

System Modernization & Migration Analysis

As a Retrofit Project Lead overseeing industrial control system upgrades across global manufacturing and power generation facilities, I consistently identify the ABB AO810V2 (3BSE038415R1) as a cornerstone component in performance enhancement initiatives. This 8-channel analog output module plays a pivotal role in elevating aging process control architectures — replacing worn or obsolete I/O hardware without requiring a full DCS overhaul. Its 14-bit resolution and sub-2ms update cycle deliver measurable gains in output precision, directly translating to tighter process control and reduced product variability in retrofit deployments.

The ABB AO810V2 3BSE038415R1 is engineered for seamless integration within ABB’s S800 I/O ecosystem, making it an ideal upgrade path component for facilities still operating legacy AC 800M or System 800xA configurations. Its backward-compatible ModuleBus interface and support for TU810, TU812, TU814, TU830, and TU833 MTUs mean that existing wiring infrastructure and termination hardware can be retained — dramatically reducing retrofit labor costs and system downtime during migration windows.

From a migration risk management perspective, the AO810V2’s built-in Output Set Point (OSP) fail-safe function and continuous readback diagnostics provide a critical safety net during phased system transitions. Engineers can commission new I/O segments while legacy systems remain partially operational, enabling a controlled, low-risk cutover strategy that protects both production continuity and capital investment.

Upgrade Highlights & Compatibility

• Drop-in Legacy Compatibility: Replaces AO810 (original version) with identical MTU footprint — zero panel modification required
• ✅ Performance Leap: 14-bit resolution (0.006% full scale) vs. older 12-bit modules — 4 finer output granularity for precision valve and drive control
• Future-Proof Architecture: Fully supported in ABB System 800xA v6.x and later — ensures long-term software compatibility post-migration
• ✅ Efficiency Gains: 2ms update cycle and 0.35ms rise time enable dynamic process response previously unachievable with legacy analog I/O
• Reduced Rewiring Cost: 600-meter cable reach preserves existing field wiring runs during DCS modernization projects
• ✅ Certifications for Harsh Environments: ATEX Zone 2, ABS, DNV, LR, BV — suitable for offshore, marine, and hazardous area retrofit projects

Modernization Use Cases & Success Stories

DCS Modernization — Chemical Processing Plant: A regional petrochemical facility operating a 15-year-old distributed control system faced increasing I/O module failures and spare parts scarcity. By deploying the AO810V2 3BSE038415R1 as a direct hardware upgrade within their existing S800 I/O racks, the engineering team restored full 8-channel analog output capacity without modifying field wiring or controller logic. The retrofit reduced unplanned downtime by an estimated 40% in the first operational year.

Turbine Supervisory Instrumentation (TSI) Upgrade — Power Generation: A combined-cycle power plant required enhanced analog output accuracy for turbine governor control loops. The legacy AO810 modules were exhibiting drift beyond acceptable tolerance. Replacing them with AO810V2 3BSE038415R1 units — leveraging the identical MTU interface — delivered a 4 improvement in output resolution, tightening governor response and improving heat rate efficiency. The phased retrofit was completed during scheduled maintenance windows with zero forced outages.

Water Treatment Facility Modernization: Municipal water authority engineers integrated AO810V2 modules into an aging SCADA-linked DCS to upgrade chemical dosing pump control. The Retrofit Solution enabled seamless integration of new variable-frequency drives while retaining the existing 4-20mA field loop infrastructure — a textbook example of Performance Enhancement through targeted hardware upgrade rather than full system replacement.

Migration Technical Data Sheet

Supply Chain & Deployment Support

• Original & Factory Sealed: All AO810V2 3BSE038415R1 units are sourced as genuine ABB hardware — factory sealed with full traceability documentation, ensuring authenticity for critical retrofit deployments
• Expedited Global Logistics: Priority shipping available to support urgent retrofit timelines and unplanned outage recovery scenarios worldwide
• Technical Support for Legacy Hardware: Our engineering team provides configuration guidance, MTU compatibility verification, and migration planning support for obsolete and end-of-life S800 I/O environments
• Documentation Package: Datasheet, installation manual, and ABB Control Builder configuration guide available upon request
• Warranty: 12-month coverage on all units against manufacturing defects

Retrofit FAQ — Upgrade Guide

Q: Is the AO810V2 3BSE038415R1 a direct drop-in replacement for the original AO810 in existing S800 racks?
A: Yes. The AO810V2 uses the identical mechanical form factor and ModuleBus interface as the original AO810. It mounts to the same TU810/TU812/TU814/TU830/TU833 MTUs without panel modification. The keying code AE is preserved, ensuring correct module-to-MTU pairing during the retrofit swap.

Q: How does the AO810V2 3BSE038415R1 handle communication with legacy AC 800M controllers during a phased migration?
A: The module communicates via standard ModuleBus protocol, fully compatible with AC 800M PM851, PM856, PM860, and PM866 processors. No firmware changes are required on the controller side. Existing I/O configuration in ABB Control Builder can be retained, with only the hardware module physically replaced — minimizing migration risk and engineering rework.

Q: What installation space is required when retrofitting AO810V2 into an existing S800 I/O station?
A: The AO810V2 occupies a single S800 module slot (45mm width). It is dimensionally identical to the original AO810, so no additional rack space or mechanical modification is needed. This makes it suitable for high-density cabinet retrofits where space constraints are a primary concern.

Q: Can the AO810V2 3BSE038415R1 support both new HART-enabled field devices and legacy 4-20mA instruments simultaneously during a migration?
A: The AO810V2 outputs standard 4-20mA signals compatible with all legacy analog field devices. Note that HART protocol is not supported on this module. For new HART-enabled device integration within the same retrofit project, the ABB AO845A (HART-capable) module should be specified for those specific channels, while AO810V2 handles standard 4-20mA loops.

Q: What happens to analog outputs during a controller failover or communication fault in a redundant retrofit architecture?
A: Each channel’s Output Set Point (OSP) function activates automatically upon loss of communication. OSP values are pre-configured per channel — options include hold last value, drive to zero, or move to a defined safe position. This behavior is critical for retrofit projects where process safety must be maintained during controller switchover events.

Q: Are there alternative ABB modules that can serve as upgrade paths if the AO810V2 3BSE038415R1 is required for a higher-channel-count modernization?
A: For applications requiring HART diagnostics, the AO845A provides 8-channel HART-enabled output on the same S800 platform. For mixed analog I/O consolidation, the AX521 offers a combined input/output solution. Both represent forward migration options within the same S800 I/O architecture, preserving your existing MTU and wiring infrastructure investment.
