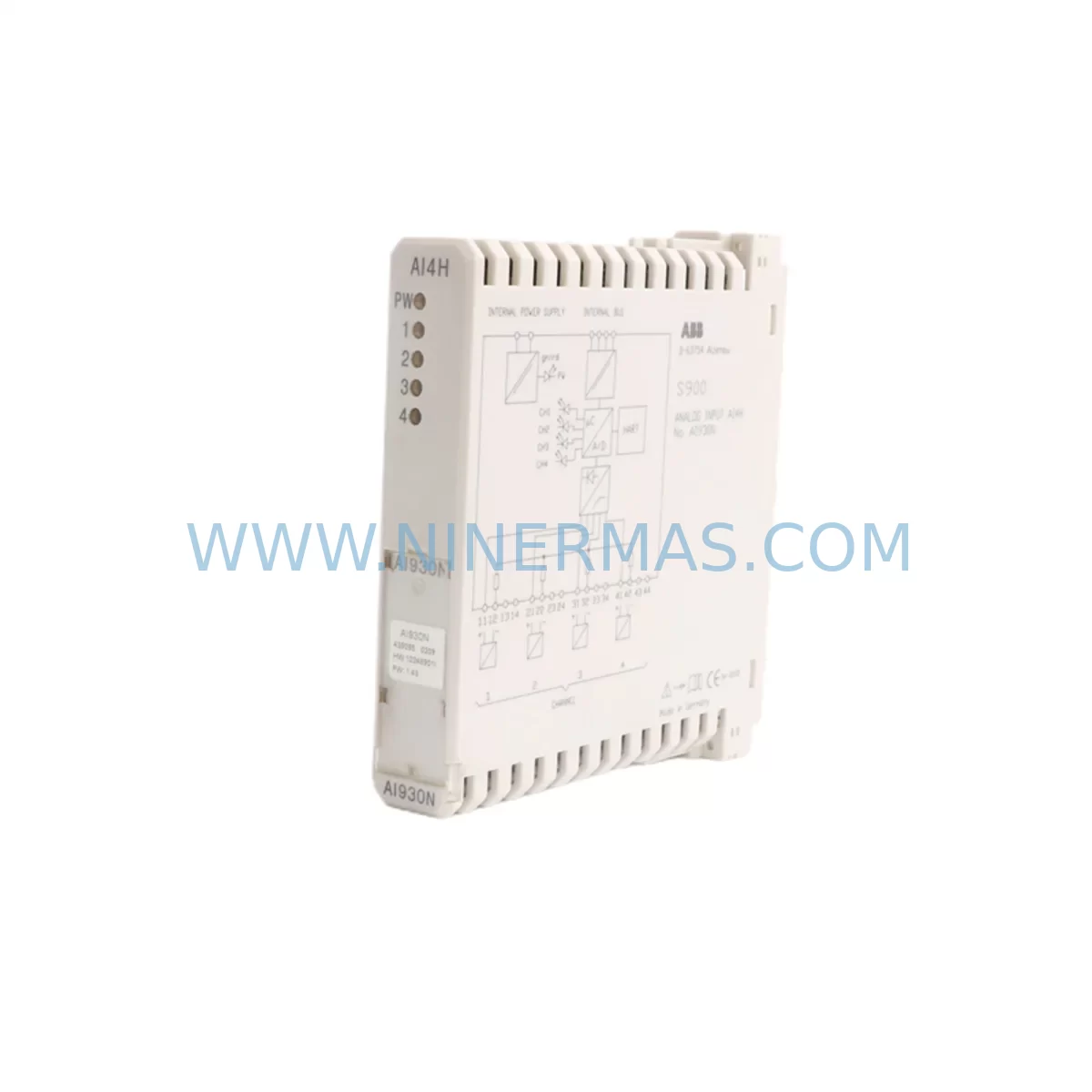

The ABB AI930N 3KDE175513L9300 is a HART-enabled analog input module designed for the ABB S800 I/O system — one of the most widely deployed distributed I/O platforms in process automation and DCS environments worldwide. As a service-ready spare part, this module is essential for maintenance engineers managing ABB System 800xA, Freelance, or Symphony Plus control architectures where unplanned downtime carries significant operational and financial risk.

In industrial facilities running continuous processes — chemical plants, oil & gas terminals, power generation, pulp & paper, and water treatment — the AI930N handles critical analog signal acquisition from field transmitters using the HART protocol. Its failure or degradation directly impacts process visibility, regulatory compliance, and safety interlock integrity. Stocking a verified replacement unit of the ABB AI930N 3KDE175513L9300 is a fundamental element of any responsible spare parts strategy for S800-based control cabinets.

At NINERMAS, every AI930N 3KDE175513L9300 unit is sourced, inspected, and dispatched with full traceability. We support maintenance teams and procurement engineers with fast lead times, pre-shipment functional verification, and a 12-month warranty — ensuring your replacement module performs to original ABB specifications from the moment it is installed.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When a maintenance or reliability engineer schedules replacement of the ABB AI930N 3KDE175513L9300, the scope of inspection should extend beyond the module itself. The S800 I/O station is an integrated ecosystem, and a single degraded component can mask or accelerate failure in adjacent hardware.

Begin with the S800 I/O base unit (TB820V2 or equivalent) — the mechanical and electrical interface between the AI930N and the ModuleBus backplane. Worn or corroded base unit contacts are a common root cause of intermittent analog signal faults that are incorrectly attributed to the input module. Simultaneously, inspect the CI854A or CI858 communication interface module that bridges the S800 I/O station to the 800xA controller network; a degraded communication interface will cause the replacement AI930N to appear offline even after correct installation.

Field wiring termination should be reviewed at the TB807 or TB811 terminal base level. Loose or oxidized screw terminals on the analog input wiring are a frequent source of 4–20 mA signal drift that mimics module failure. If the facility uses HART multiplexers or HART modems for asset management integration, verify that the HART pass-through configuration is correctly set after module swap, as firmware or address conflicts can suppress HART communication on the new unit.

For cabinet-level maintenance, check the SD802F or SD831 power supply modules that feed the S800 I/O station. Voltage sag or ripple from an aging power supply will cause erratic analog readings across all channels of the AI930N and neighboring modules such as the AO910S analog output module or DI910 digital input module. Including these modules in your annual inspection cycle significantly reduces the risk of cascade failures during production.

In facilities where the S800 I/O system interfaces with safety instrumented systems, also verify the status of any signal isolators or galvanic separators installed in the field loop. Degraded isolation barriers can introduce ground loops that corrupt HART communication and analog accuracy. Finally, for older installations approaching end-of-life, consider proactively stocking the AI910S analog input module (non-HART variant) as a cross-reference backup, and confirm that your 800xA system software version supports the AI930N firmware revision installed on your replacement unit before commissioning.

Site Replacement Workflow

Replacing the ABB AI930N 3KDE175513L9300 in a live S800 I/O station requires a structured approach to minimize process disruption and ensure signal integrity is restored without introducing new faults.

Step 1 — Pre-Replacement Verification: Confirm the replacement unit’s part number (AI930N / 3KDE175513L9300) matches the installed module exactly. Verify firmware compatibility with your 800xA system version using ABB’s hardware compatibility matrix. Document all current channel configurations, HART device addresses, and alarm setpoints before removal.

Step 2 — Safe Isolation: Place affected control loops in manual mode at the DCS operator station. Notify process operators of the planned maintenance window. If the station supports hot-swap (redundant power configuration), confirm redundancy is active before proceeding. For non-redundant stations, coordinate a brief process hold.

Step 3 — Module Removal and Installation: Release the module locking mechanism on the S800 base unit and extract the AI930N. Insert the replacement module firmly until the locking tab engages. The S800 I/O system will automatically detect the new module and begin initialization via the ModuleBus.

Step 4 — Configuration Restore and Commissioning: Using ABB Control Builder or 800xA Engineering Workplace, download the saved I/O configuration to the replacement module. Verify all 8 analog input channels return to expected mA readings. Perform a HART communication test on each channel to confirm device recognition. Check diagnostic LEDs on the module face for fault-free status.

Step 5 — Return to Service: Return control loops to automatic mode sequentially, monitoring process values for stability. Log the replacement in your CMMS with the new module’s serial number and installation date to initiate the 12-month warranty tracking period.

This workflow applies equally to emergency breakdown replacements and planned annual maintenance shutdowns, and is compatible with ABB’s recommended hot-swap procedures for S800 I/O stations equipped with redundant base units.

Spare Parts Support FAQ

Q1: Is the ABB AI930N 3KDE175513L9300 compatible with all versions of ABB System 800xA?
The AI930N is designed for the S800 I/O platform and is compatible with ABB System 800xA across multiple software generations. However, specific firmware revisions of the module may require a minimum 800xA system software version. NINERMAS recommends confirming your installed 800xA version against ABB’s hardware compatibility documentation before ordering. Our technical team can assist with compatibility verification prior to purchase.

Q2: How does NINERMAS verify the AI930N 3KDE175513L9300 before shipment?
Every unit undergoes pre-shipment functional inspection covering physical condition, connector integrity, and where test equipment permits, basic electrical verification. Units are packaged in anti-static protective packaging with traceability documentation. Our 12-month warranty covers functional defects identified after installation under normal operating conditions.

Q3: What is the recommended spare parts holding strategy for S800 I/O analog input modules?
For facilities with 10 or more AI930N modules installed, industry best practice recommends holding a minimum of 10% of installed quantity as on-site cold spares, with at least one additional unit sourced from a reliable distributor such as NINERMAS for emergency replenishment. For critical process lines with no redundancy, consider holding one unit per control cabinet. Annual review of spare parts consumption data helps refine holding quantities and reduce both stockout risk and excess inventory cost.

Q4: Can NINERMAS support long-term supply of the ABB AI930N 3KDE175513L9300 for multi-year maintenance contracts?
Yes. NINERMAS specializes in long-term spare parts supply for industrial automation components, including legacy and discontinued ABB S800 I/O modules. We support procurement engineers with blanket order arrangements, reserved inventory allocation, and consistent lead times. Contact our team at sale@ninermas.com to discuss your annual maintenance volume and establish a supply agreement that protects your production continuity.
