ABB AI86-16 57087196 Service-Ready Spare Part for Industrial Maintenance

ABB AI86-16 57087196 Service-Ready Spare Part for Industrial Maintenance

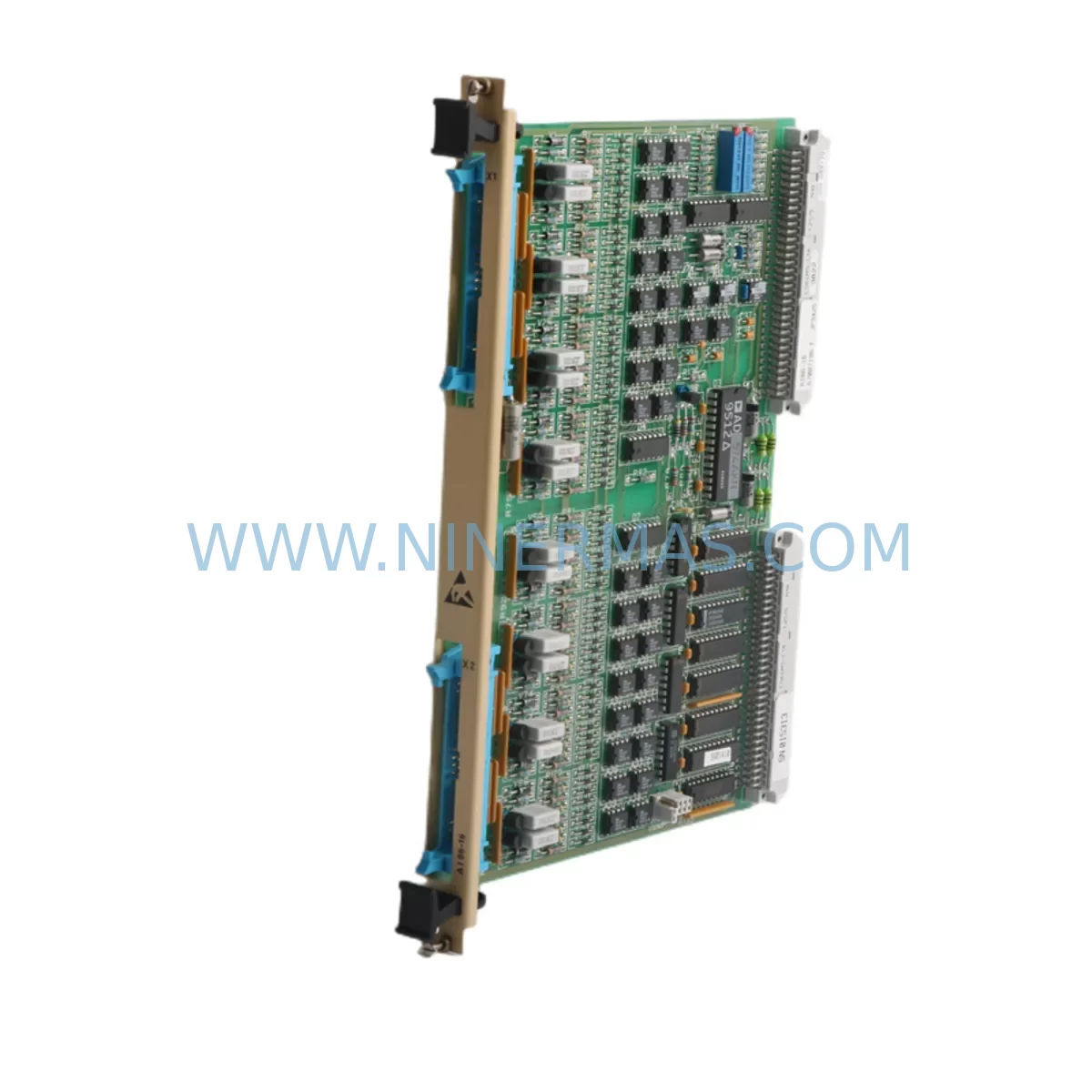

The ABB AI86-16 (57087196) is an original analog input card designed for the ABB S800 I/O system, widely deployed in process automation, DCS architectures, and continuous manufacturing environments. As a 16-channel analog input module, it acquires field-level signals from transmitters, sensors, and transducers, converting them into digital values for processing by the AC800M controller or compatible ABB Freelance DCS platforms. When this module fails or degrades, the consequences extend beyond a single I/O point — entire process loops, interlock chains, and safety-critical measurements can be compromised, making rapid spare part availability a non-negotiable element of any maintenance strategy.

At NINERMAS, we supply the AI86-16 57087196 as a tested, service-ready spare with a 12-month warranty, supporting maintenance engineers and procurement teams who need reliable sourcing for both emergency replacements and planned inventory replenishment.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

Replacing the ABB AI86-16 57087196 in a live control cabinet requires more than a module swap. Experienced maintenance engineers treat this event as an opportunity to audit the surrounding electrical environment and prevent secondary failures that could trigger another unplanned shutdown within weeks.

Begin with the TB82 terminal base — the mechanical and electrical interface between the AI86-16 and field wiring. Terminal bases accumulate oxidation and micro-arcing over years of service; if the AI86-16 has failed due to signal corruption rather than internal fault, the TB82 is often the root cause. Inspect and replace it alongside the module.

Next, verify the S800 ModuleBus communication path. The AI86-16 communicates via the internal ModuleBus; a degraded CI854 or CI858 communication interface module can cause intermittent read errors that mimic analog input card failure. Confirm bus integrity before closing the cabinet.

Evaluate the SD802 or SD831 power distribution module supplying the I/O station. Voltage sags or ripple on the 24 VDC rail can cause analog measurement drift across all channels — not just the failed card. A calibrated power quality check at this stage prevents repeat failures.

For field wiring, inspect the shielded signal cables connecting transmitters to the AI86-16 input terminals. Damaged cable shields introduce common-mode noise that degrades 4–20 mA signal integrity, particularly in high-EMI environments such as motor control centers or variable frequency drive (VFD) enclosures. Replace any cables showing insulation wear or shield continuity loss.

If the process loop includes HART-capable transmitters, confirm that the AI86-16 replacement supports HART pass-through if your DCS configuration relies on secondary variable or diagnostic data. Cross-reference the firmware version of the AC800M controller to ensure full HART compatibility with the new module revision.

During the replacement window, also inspect adjacent AO820 or AO845 analog output modules in the same I/O station. Analog output modules share the same power rail and ModuleBus segment; a failing output module can introduce ground loops that affect input accuracy on the AI86-16. Thermal imaging of the I/O station during normal operation is a low-cost method to identify modules running above rated temperature before they fail.

For sites running ABB AC800M with S800 I/O in redundant configurations, verify that the redundant I/O path via a second CI854A communication interface is active and error-free before taking the primary path offline for module replacement. Redundancy switchover testing should be part of the post-replacement commissioning checklist.

Procurement engineers should also consider stocking the AI810 or AI820 analog input modules as cross-compatible spares where system configuration permits. While the AI86-16 is a 16-channel high-density module, having lower-channel-count alternatives in inventory provides flexibility during extended lead-time situations for the primary SKU.

Finally, ensure that fuse holders and channel-level protection components on the terminal base are intact. Overcurrent events from field wiring faults can damage input protection circuits on the AI86-16 without triggering a module-level fault code — a subtle failure mode that only becomes apparent after replacement when the new module also shows degraded accuracy on the same channels.

Site Replacement Workflow

Step 1 — Pre-replacement verification: Confirm the AI86-16 57087196 part number against the physical label on the installed module and the S800 I/O station configuration in your AC800M engineering tool (Control Builder M). Verify that the replacement module carries the same hardware revision or a confirmed compatible revision per ABB’s spare part compatibility matrix.

Step 2 — Safe isolation: Place the affected I/O station in forced manual mode at the DCS operator station. Notify process operators of the affected measurement points. For safety-instrumented loops, follow your site’s Management of Change (MOC) procedure before proceeding.

Step 3 — Module extraction: The AI86-16 is hot-swappable in most S800 I/O configurations. Confirm hot-swap capability in your system documentation before removing the module under power. If hot-swap is not enabled, de-energize the I/O station following your site’s lockout/tagout (LOTO) procedure.

Step 4 — Installation and address configuration: Insert the replacement AI86-16 into the TB82 terminal base. The module address is set automatically via the ModuleBus topology — no manual DIP switch configuration is required. Allow 30–60 seconds for the module to initialize and appear in the AC800M I/O tree.

Step 5 — Signal verification: Using Control Builder M or the DCS operator station, verify that all 16 channels are reading within expected engineering unit ranges. Apply a known reference signal (loop calibrator) to at least two channels to confirm measurement accuracy before returning the loop to automatic control.

Step 6 — Documentation: Record the replacement in your CMMS (Computerized Maintenance Management System) with the new module’s serial number, installation date, and post-replacement calibration results. Update your spare parts inventory to trigger reorder of the consumed AI86-16 unit.

Spare Parts Support FAQ

Q1: Is the AI86-16 57087196 compatible with all AC800M controller versions?
The AI86-16 is designed for the ABB S800 I/O system and is compatible with AC800M controllers running Control Builder M software. Compatibility with specific firmware versions should be verified against ABB’s hardware compatibility guide. NINERMAS can provide technical documentation to support your compatibility assessment prior to purchase.

Q2: What is included in the 12-month warranty for this spare part?
All AI86-16 57087196 units supplied by NINERMAS carry a 12-month warranty from the date of shipment. The warranty covers manufacturing defects and functional failures under normal operating conditions. Each unit undergoes pre-shipment functional testing. Warranty claims are supported by our technical team at sale@ninermas.com.

Q3: Can NINERMAS support long-term or blanket purchase orders for the AI86-16?
Yes. NINERMAS supports long-term supply agreements for critical spare parts including the AI86-16 57087196. For maintenance teams managing multi-site ABB S800 I/O installations, we offer inventory reservation, scheduled delivery, and priority allocation during periods of market shortage. Contact our procurement team to discuss volume pricing and supply continuity arrangements.

Q4: How do I verify the authenticity of the AI86-16 57087196 before installation?
Authentic ABB S800 I/O modules carry a manufacturer label with the full part number, serial number, hardware revision, and CE/UL markings. Upon receipt, cross-reference the label against your purchase order and ABB’s product documentation. NINERMAS supplies only original-source modules with full traceability documentation available on request. If you have concerns about a unit received, contact us before installation for verification support.
