ABB AI635 3BHT300032R1 Service-Ready Spare Part for Industrial Maintenance

ABB AI635 3BHT300032R1 Service-Ready Spare Part for Industrial Maintenance

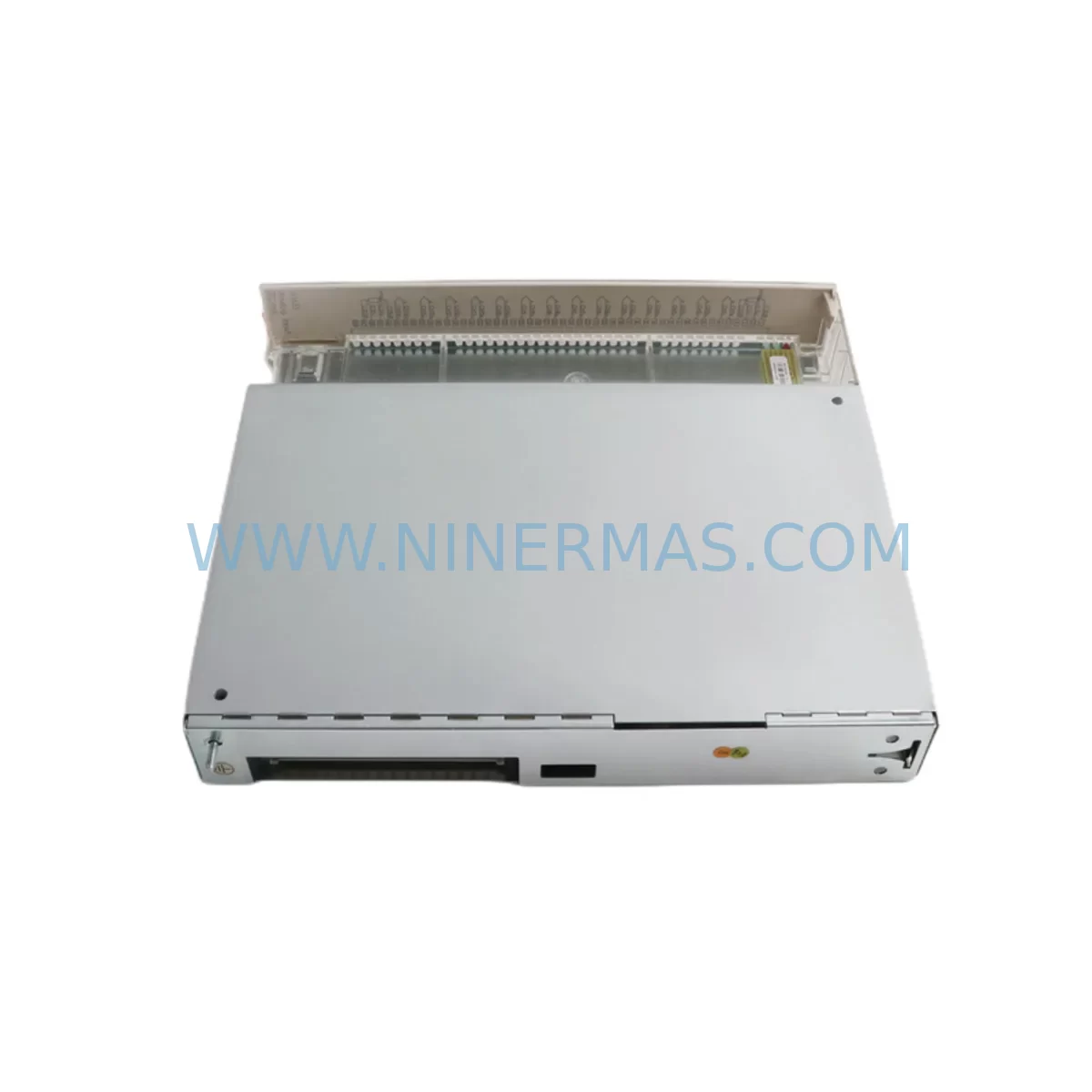

The ABB AI635 (3BHT300032R1) is a high-integrity analog input module designed for use within the ABB AC800M High Integrity controller platform and compatible S900 I/O systems. As a critical signal acquisition component in distributed control system (DCS) architectures, the AI635 handles analog process signals from field transmitters — including pressure, temperature, flow, and level sensors — converting them into reliable digital values for the AC800M controller. When this module fails or degrades, the consequences can range from erratic process readings to full production shutdown.

At NINERMAS, we maintain ready stock of the ABB AI635 3BHT300032R1 to support emergency replacement, planned annual maintenance, and long-term spare parts inventory programs. Every unit is sourced from verified supply channels, pre-shipment tested, and backed by a 12-month warranty.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

Replacing the ABB AI635 3BHT300032R1 is rarely an isolated task. In a well-maintained AC800M or S900 I/O control cabinet, the analog input module sits at the center of a broader signal chain — and a failure here often signals stress or wear in adjacent components. Maintenance engineers and procurement teams should treat an AI635 replacement as an opportunity to audit the full I/O loop.

Begin with the S900 I/O carrier module and backplane connectors. Oxidized or loose backplane contacts are a common root cause of intermittent analog channel faults that are incorrectly attributed to the module itself. Inspect the TB820 or TB840 communication interface module that links the S900 I/O station to the AC800M controller — a degraded communication module can cause false diagnostics on otherwise healthy analog inputs.

On the field side, verify the 4–20 mA signal cables and field junction boxes. Corroded terminals, moisture ingress, or shielding failures in the signal wiring will cause the replacement AI635 to report the same erratic readings as the failed unit. Check the 24 VDC field power supply feeding the transmitter loop — an undersized or aging power supply unit (PSU) can introduce ripple that corrupts analog readings across multiple channels.

If the AI635 is part of a safety instrumented system (SIS), also verify the status of the ABB AI801 or AI810 analog input modules in the standard I/O rack, as these often share the same field transmitter signals in a redundant voting architecture. The ABB DO810 or DO820 digital output modules in the same cabinet should be inspected for contact wear if the process loop includes solenoid valve control triggered by the analog measurement.

For cabinets with ABB CI854 or CI857 PROFIBUS/PROFINET communication modules, confirm that fieldbus segment health is not contributing to I/O scan delays that mimic analog module faults. Similarly, inspect any signal isolators or loop-powered barriers installed between the field transmitters and the AI635 input terminals — these components age independently and can introduce offset errors that are difficult to distinguish from module failure.

Finally, review the AC800M controller CPU module (PM860 or PM865) diagnostic logs before and after replacement. If the controller was logging persistent I/O errors prior to the AI635 failure, the CPU’s internal diagnostics may have flagged related issues in the SM810 or SM811 system memory modules or in the redundancy switchover logic. A complete cabinet inspection at the time of AI635 replacement reduces the risk of repeat failures and unplanned downtime within the same maintenance cycle.

Site Replacement Workflow

The ABB AI635 3BHT300032R1 is a direct replacement for the original factory-installed module in AC800M High Integrity and S900 I/O systems. No firmware re-flashing or hardware reconfiguration is required in most standard replacement scenarios — the module adopts the slot address and configuration stored in the AC800M controller project.

Step 1 — Pre-replacement verification: Confirm the replacement AI635 part number (3BHT300032R1) matches the installed module label exactly. Cross-check the S900 I/O station slot assignment in the AC800M Control Builder project file.

Step 2 — Safe isolation: Place the affected I/O loop in manual mode at the DCS operator station. Notify the field operator to monitor the process variable manually during replacement. If the loop is part of a safety function, follow the site’s Management of Change (MOC) and bypass authorization procedure.

Step 3 — Module extraction: Release the S900 carrier locking mechanism and slide the AI635 out of the carrier. Inspect the carrier connector pins for damage or contamination before inserting the replacement unit.

Step 4 — Insertion and verification: Insert the new AI635 3BHT300032R1 into the carrier until the locking tab engages. Observe the module LED status — a solid green RUN indicator confirms successful initialization and communication with the AC800M controller.

Step 5 — Loop check and return to auto: Verify all analog channel readings against field transmitter values. Confirm signal scaling and engineering unit conversion in the AC800M project. Return the loop to automatic control and document the replacement in the site maintenance management system (CMMS).

This workflow minimizes process interruption and ensures the replacement module is fully validated before returning the loop to service — reducing the risk of a second unplanned shutdown caused by an incomplete replacement procedure.

Spare Parts Support FAQ

Q1: Is the ABB AI635 3BHT300032R1 still available as a new original spare part?
Yes. NINERMAS maintains stock of the AI635 3BHT300032R1 sourced from verified ABB supply channels. Although ABB has introduced successor platforms, the AI635 remains available as a service spare for installed AC800M High Integrity systems. We recommend procuring at least one spare unit per S900 I/O station to support emergency replacement without lead-time risk.

Q2: How do I confirm compatibility before ordering?
Provide your AC800M project version, S900 I/O station configuration, and the exact part number from the installed module label (3BHT300032R1). Our technical team will verify compatibility with your system revision and confirm whether any firmware or carrier module constraints apply before shipment.

Q3: What pre-shipment testing does NINERMAS perform on the AI635?
Every AI635 3BHT300032R1 unit undergoes functional verification prior to dispatch, including power-on self-test, communication interface check, and analog channel continuity verification. Units are shipped in anti-static packaging with a test report. The 12-month warranty covers manufacturing defects and functional failure under normal operating conditions.

Q4: Can NINERMAS support long-term supply for multi-year maintenance contracts?
Yes. NINERMAS offers long-term supply agreements for critical spare parts including the ABB AI635 3BHT300032R1. We support annual blanket orders, consignment stock programs, and emergency same-day dispatch for customers with active maintenance contracts. Contact our team to discuss a customized spare parts support plan for your facility.
