ABB 6204BZ10100 Retrofit-Compatible CPU for Legacy Systems

ABB 6204BZ10100 Retrofit-Compatible CPU for Legacy Systems: Seamless Upgrade for Aging Automation Infrastructure

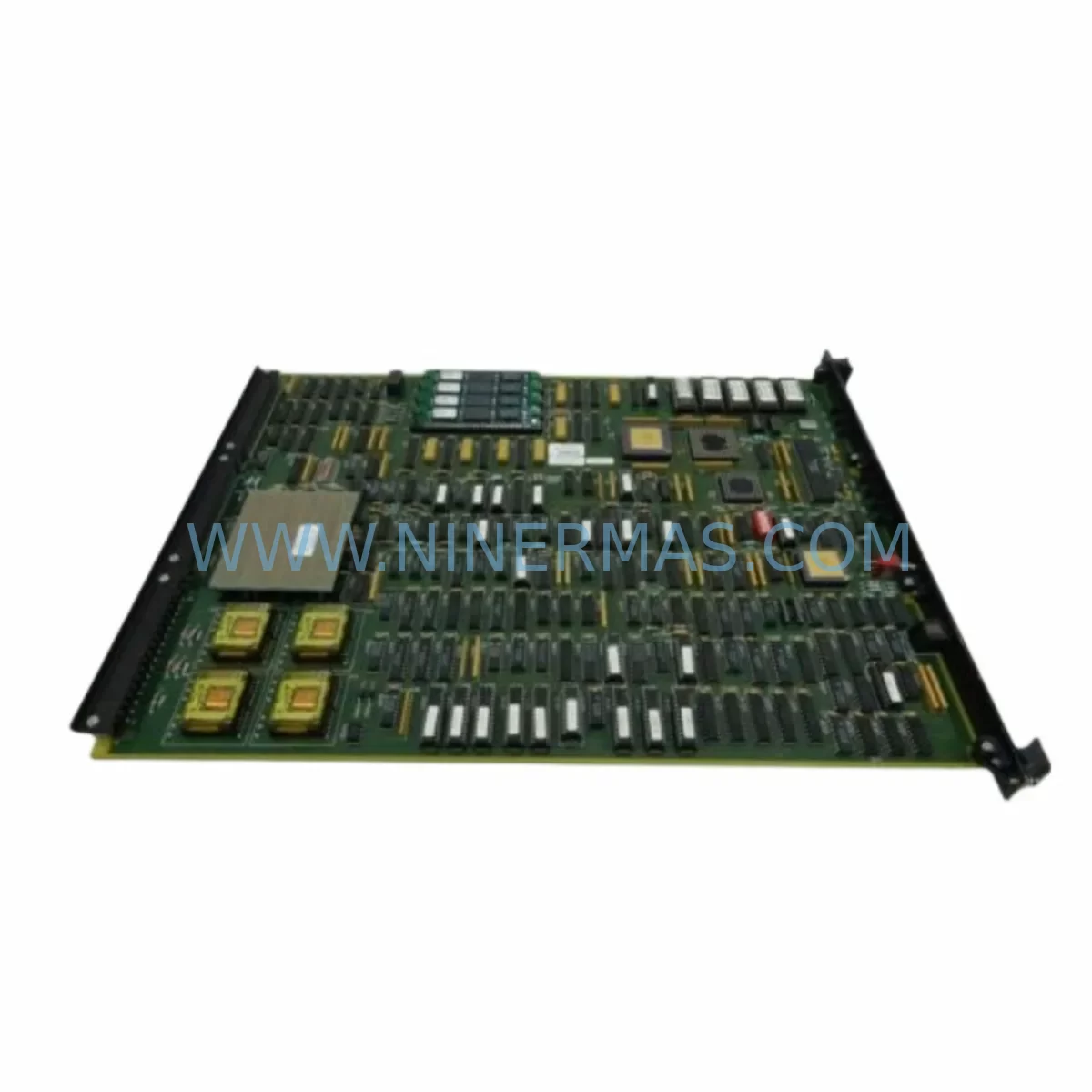

The ABB 6204BZ10100 Ruggedized SC Controller CPU Module is a high-reliability central processing unit designed for demanding industrial environments where legacy ABB control platforms remain in active service. As automation engineers and maintenance teams face the growing challenge of sustaining aging distributed control systems (DCS) and programmable logic controllers (PLC), the 6204BZ10100 serves as a critical retrofit-compatible solution — enabling facilities to extend operational life, reduce unplanned downtime, and defer costly full-system replacements.

Whether you are managing a brownfield upgrade, replacing a discontinued CPU in an existing control cabinet, or migrating from an obsolete ABB Advant or Master series platform to a more maintainable architecture, the 6204BZ10100 provides the processing backbone required to maintain control continuity. Its ruggedized design makes it particularly suited for environments with elevated vibration, temperature variation, or electromagnetic interference — common in power generation, oil and gas, pulp and paper, and heavy manufacturing facilities.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Successful integration of the ABB 6204BZ10100 into an existing control system requires careful pre-engineering. Before removing the failed or aging CPU, maintenance teams should document the current rack configuration, including the positions of all installed I/O modules such as the ABB AI810 analog input module and ABB DI810 digital input module, which share the same S800 I/O bus architecture. Any changes to the CPU slot or node addressing will directly affect how these modules are polled during the scan cycle.

Power budget verification is a non-negotiable step. The existing ABB SD821 or SD822 power supply module must be confirmed to provide sufficient current headroom for the replacement CPU, particularly in racks that are fully populated with communication modules and I/O cards. Overloaded power rails are a common root cause of intermittent CPU faults in legacy systems and should be measured under full load before commissioning the replacement unit.

For facilities running communication-intensive architectures, the ABB CI854 PROFIBUS DP communication interface module and ABB CI801 AF 100 fieldbus interface are frequently found in the same control cabinet as the 6204BZ10100. When replacing the CPU, engineers must verify that the communication module firmware versions remain compatible with the restored application program. In some cases, a firmware update to the CI854 or CI801 may be required to maintain fieldbus integrity after the CPU swap.

Terminal wiring on the I/O side typically does not require modification during a CPU-only replacement, but it is best practice to photograph and label all terminal connections before beginning work. If the retrofit scope extends to replacing aging ABB TB820 or TB825 termination boards, wiring documentation becomes even more critical to avoid signal inversion or channel offset errors during recommissioning.

For plants considering a broader migration from the Advant Controller platform to the AC 800M architecture, the 6204BZ10100 can serve as an interim stabilization measure while the migration is planned. The ABB PM856 processor module, used in the AC 800M platform, represents a common upgrade target in such migrations, and early-stage planning should account for differences in rack form factor, I/O module compatibility, and application program conversion requirements. HMI screens built on ABB Operate IT or legacy ABB Master View 850 operator stations will also require tag remapping as part of any platform migration.

Where signal isolation is required between legacy field devices and the new CPU environment, signal isolators and loop-powered barriers compatible with the existing terminal rail system should be pre-staged before the cutover window begins. This is particularly relevant in hazardous area installations where intrinsic safety barriers must be recertified after any control system modification.

Downtime Control During System Migration

Minimizing production interruption during a CPU replacement or control system retrofit is a primary concern for plant operations teams. For the ABB 6204BZ10100, the recommended approach is to prepare a fully configured and tested spare unit offline before scheduling the maintenance window. This includes loading the current application program backup, setting the correct node address, and verifying communication parameters against the live system documentation.

Where the control system architecture permits, a parallel run strategy can be employed — bringing the replacement CPU online in a shadow configuration while the original unit continues to control the process. This approach is particularly effective in redundant controller architectures where the standby CPU can be swapped and validated without interrupting the active control path.

For non-redundant systems, the cutover window should be planned during a scheduled maintenance shutdown. The sequence should follow a structured checklist: save and export the current application program, record all I/O module addresses and communication node assignments, power down the rack in the correct sequence, replace the CPU module, restore power, re-download the application, and perform a systematic I/O check before returning the system to automatic mode. Field technicians should have direct communication with the control room throughout the process to monitor process variable responses as each I/O group is re-enabled.

Pre-shipment testing of the 6204BZ10100 unit — including power-on self-test, communication link verification, and I/O scan confirmation — reduces the risk of receiving a non-functional module during a live maintenance window. All units supplied by NINERMAS are tested prior to dispatch, with test records available on request.

Retrofit Support FAQ

Q1: Is the ABB 6204BZ10100 a direct drop-in replacement for the existing CPU in my Advant Controller rack?
In most cases, yes — the 6204BZ10100 is designed for the ABB SC Controller platform and fits standard S100 rack slots. However, you should confirm the rack generation, backplane bus version, and power supply capacity before installation. If your existing rack uses a different bus variant, a bus adapter or rack modification may be required. Contact our technical team with your rack model and current CPU part number for a pre-sale compatibility check.

Q2: Will my existing application program run on the replacement 6204BZ10100 without modification?
In a like-for-like CPU replacement, the application program should be restorable from backup without modification, provided the firmware version on the replacement unit matches or is compatible with the version used during the original program compilation. If the firmware version differs, a recompile and re-download may be required. Always verify the program checksum after re-download and perform a full I/O functional test before returning to automatic control.

Q3: What is included in the 12-month warranty, and what does the pre-shipment test cover?
All ABB 6204BZ10100 units supplied by NINERMAS carry a 12-month warranty covering manufacturing defects and functional failures under normal operating conditions. Pre-shipment testing includes power-on self-test, communication port verification, and where applicable, a functional I/O scan using a test rack. Test records and inspection reports are available upon request. Warranty claims are processed directly through NINERMAS with a target response time of 48 hours.

Q4: How quickly can the ABB 6204BZ10100 be shipped, and do you maintain stock?
NINERMAS maintains inventory of the ABB 6204BZ10100 to support urgent replacement and planned retrofit projects. Standard lead time for in-stock units is 3–7 business days for international shipments. For time-critical plant shutdowns, expedited shipping options are available. Contact our sales team at sale@ninermas.com or +0086 187 5021 5667 to confirm current stock availability and delivery schedule.
