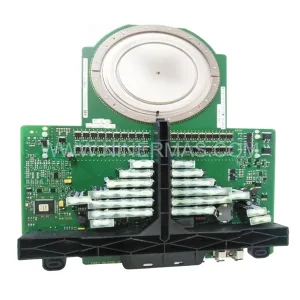

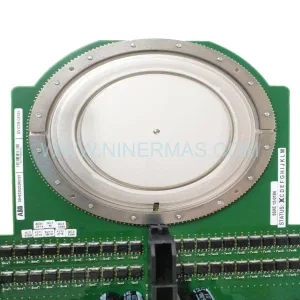

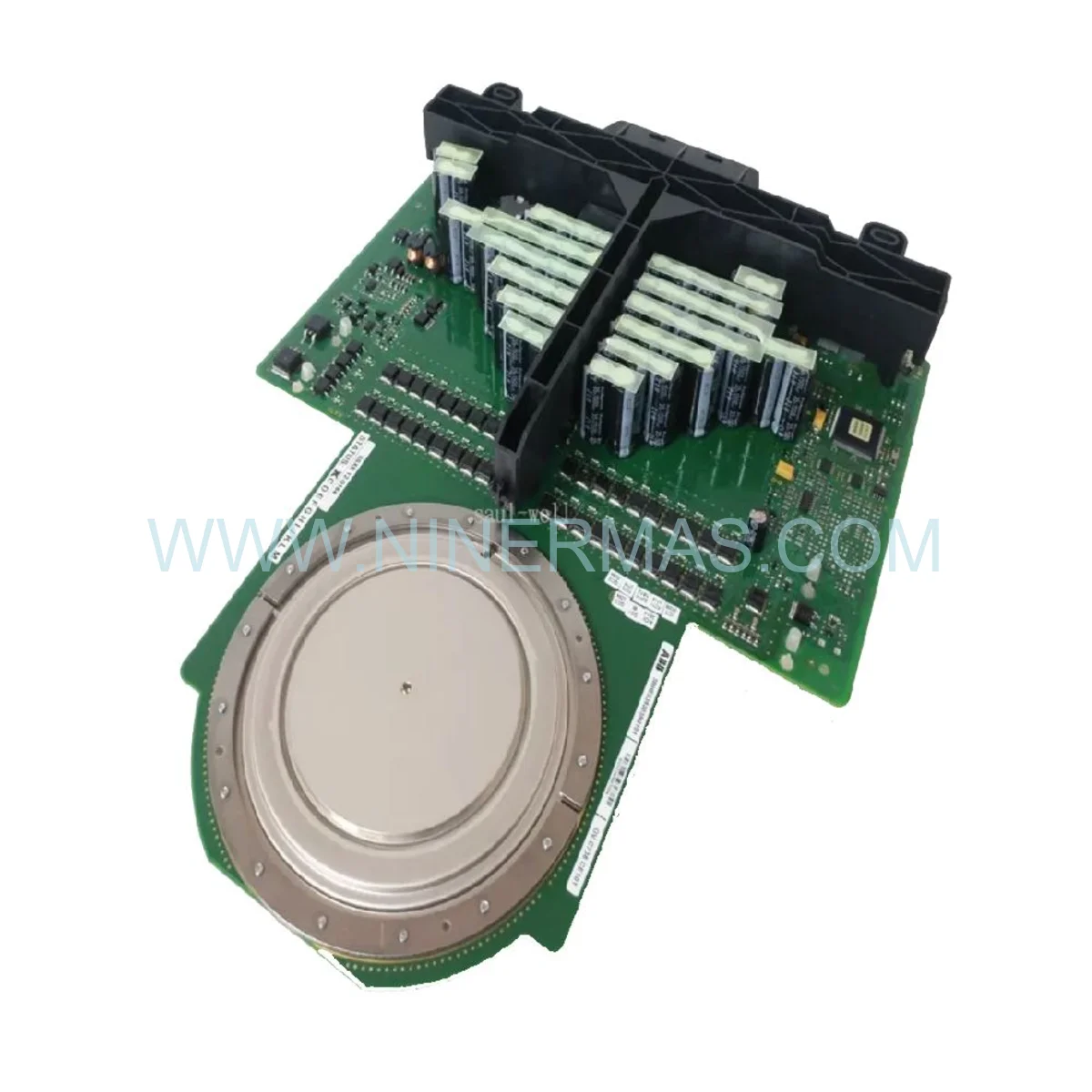

ABB 5SHY 4045L0006 (3BHB030310R0001) IGCT Module – New & Original

ABB 5SHY 4045L0006 (3BHB030310R0001) | Reliable Automation Component for Mission-Critical Drives

Field Application & Operational Analysis

From the perspective of a Site Reliability Engineer managing continuous-process facilities, few components carry as much operational weight as the ABB 5SHY 4045L0006 (3BHB030310R0001). This Integrated Gate-Commutated Thyristor (IGCT) module sits at the heart of medium-voltage drive architectures — specifically ABB’s ACS5000 and ACS6000 platforms — where it governs megawatt-level power conversion with sub-millisecond switching precision. Its role in sustaining system availability is direct: a degraded or failed IGCT translates immediately into unplanned downtime, making proactive sourcing of the ABB 5SHY 4045L0006 (3BHB030310R0001) a non-negotiable element of any serious spare-parts strategy.

Engineered for harsh industrial environments, this 91MM press-pack module tolerates wide thermal cycling ranges, high-vibration mounting conditions, and the electrical stress of repetitive hard-switching at up to 1 kHz. The press-pack construction ensures direct silicon-to-heatsink thermal coupling, keeping junction temperatures within safe operating margins even under sustained full-load conditions. During installation, engineers must apply a controlled clamping force of 30-40 kN and verify cooling-circuit flow rates (6-10 L/min per module) before energizing — deviations from these parameters are the leading cause of premature device failure in the field.

Maintaining a certified stock of this module is the cornerstone of any reliability-centered maintenance (RCM) program for plants running ABB medium-voltage drives. With original lead times from the factory often stretching 12-20 weeks, having a verified, original-packaging unit on the shelf is the only way to guarantee a same-shift swap during an emergency outage.

Key Operational Features

Hard-Switching Capability: Eliminates snubber circuits; supports clean PWM waveforms at 500-1000 Hz with minimal tail current and reduced EMI.
High Availability Design: 91MM press-pack housing enables hot-swap replacement during scheduled maintenance without draining the cooling loop.
Seamless System Integration: Plug-compatible with ABB ACS5000 / ACS6000 gate driver fiber-optic interfaces; no firmware reconfiguration required.
Redundancy-Ready Architecture: Supports parallel module configurations for N+1 redundancy in critical process drives exceeding 10 MW.
Superior Thermal Performance: Junction-to-case thermal resistance <0.015 K/W; sustains rated current with <2°C rise per kW dissipated.
Integrated Gate Unit (GCT): Monolithic gate driver on-chip reduces parasitic inductance and achieves turn-off times under 2 µs for precise Process Optimization control loops.

Maintenance & Performance Benchmarks

The ABB 5SHY 4045L0006 (3BHB030310R0001) is architected to slot into both small-scale industrial networks (single-drive, 3.3 kV bus) and large-scale multi-drive System Integration topologies operating at 6.6 kV with distributed control architectures. Its gate driver interface uses fiber-optic isolation, making it immune to ground-loop noise in electrically noisy environments such as steel mills, mining conveyors, and offshore platforms.

Recommended Maintenance Schedule:

• Every 12 months: Visual inspection, torque verification on press-pack clamp hardware, cooling-circuit particulate check.
• Every 24 months: Thermal imaging under load, insulation resistance test ( 100 MΩ @ 1000 V DC), gate driver signal integrity verification.
• Every 36 months: Full electrical parameter sweep — forward voltage drop, gate trigger threshold, thermal impedance — to benchmark against factory test certificates.

Operational benchmarks confirm >98% conversion efficiency at rated load, with power cycling qualification exceeding 100,000 cycles — a figure that underpins the module’s reputation for Operational Excellence in continuous-process industries.

Comprehensive Data Sheet

Professional Logistics & Sourcing Excellence

Every ABB 5SHY 4045L0006 (3BHB030310R0001) unit dispatched from our facility ships in Original Factory Packaging — the same anti-static press-pack cradle and sealed moisture-barrier bag used by ABB’s Swiss manufacturing lines. This preserves the silicon junction’s integrity during transit and provides an unbroken chain of custody from factory floor to your maintenance bay.

• Same-Day Dispatch: Available for in-stock units ordered before 14:00 CST — critical for emergency outage scenarios where every hour of downtime carries measurable production loss.
• Global Supply for EOL / Legacy Modules: As ABB transitions product lines, we maintain strategic buffer stock of end-of-life and legacy I/O Modules and power semiconductors to support installed base equipment beyond standard catalog availability.
• Worldwide Express Logistics: DHL Express, FedEx Priority, and UPS Worldwide services to 180+ countries; customs documentation and HS code (8541.30.0000) pre-prepared for rapid clearance.
• Full Traceability: Each unit ships with ABB factory test certificate, date code, and batch traceability records — essential for regulated industries (nuclear, pharma, offshore).

Engineering Support & FAQ

Q1: What is the correct installation torque sequence for the 91MM press-pack housing?
A: Apply clamping force incrementally in a cross-pattern sequence to reach 30-40 kN total. Use a calibrated hydraulic press fixture; never use impact tools. Verify contact resistance <10 µΩ post-installation using a micro-ohmmeter before connecting the cooling circuit.

Q2: Which firmware versions of the ACS5000 / ACS6000 are compatible with this IGCT module?
A: The 5SHY 4045L0006 (3BHB030310R0001) is hardware-compatible across all ACS5000 / ACS6000 firmware revisions. No firmware update is required for a like-for-like replacement. However, ABB recommends running the latest drive firmware to benefit from updated gate driver protection algorithms.

Q3: How do I verify the module is genuine and not a counterfeit?
A: Authentic units carry a laser-etched ABB logo, full model string (5SHY 4045L0006), and a unique serial number on the press-pack housing. Cross-reference the serial number against ABB’s factory test certificate supplied with the unit. Our sourcing process includes incoming inspection with electrical parameter verification.

Q4: What is the warranty claim process?
A: Units are covered by a 1-year warranty from the date of dispatch. To initiate a claim, contact sale@ninermas.com with your order number, serial number, and a brief fault description. DOA (Dead on Arrival) units are replaced within 5 business days; field-failure claims are assessed within 10 business days with a replacement or credit issued upon confirmation.

Q5: Can this module be used in a parallel redundant configuration for drives above 10 MW?
A: Yes. ABB’s ACS6000 platform supports parallel IGCT configurations for Automation Components rated above 10 MW. Current sharing is managed by the drive’s gate driver unit; no external balancing reactors are required. Consult ABB application note 3BHS135024 for detailed parallel commissioning procedures.

Q6: What are the storage requirements for long-term spare inventory?
A: Store in original factory packaging in a climate-controlled environment: 15°C 35°C, relative humidity <60% non-condensing. Avoid proximity to strong magnetic fields or corrosive atmospheres. Inspect annually for packaging integrity; perform a full electrical parameter check before installation if stored >3 years.
