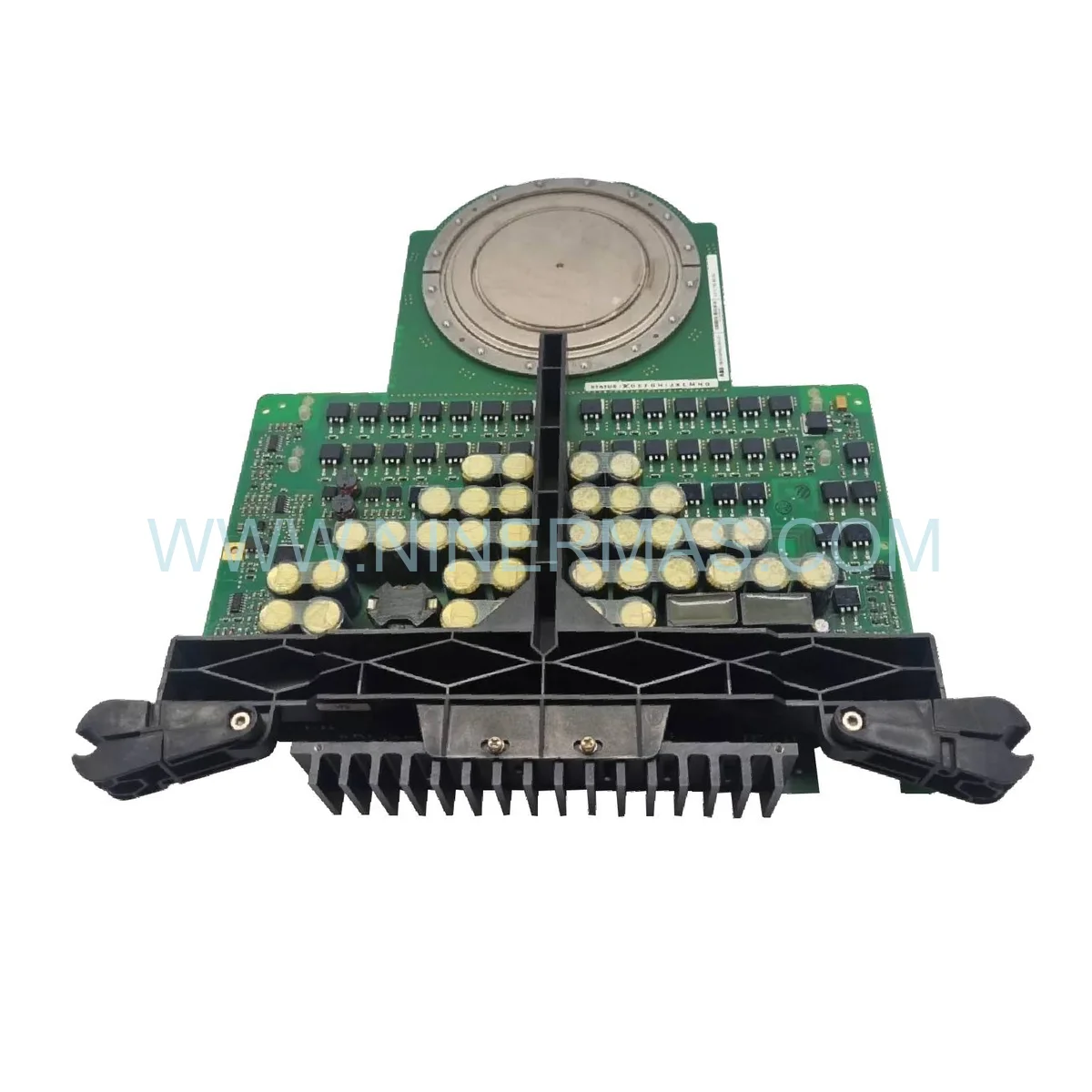

ABB 5SHY 3545L0010 | 3BHB013088R0001 IGCT Retrofit & Upgrade Module

ABB 5SHY 3545L0010 – Professional Retrofit & System Upgrade Component

System Modernization & Migration Analysis

As a Retrofit Project Lead overseeing medium-voltage drive upgrades across global industrial facilities, I can confirm that the ABB 5SHY 3545L0010 (3BHB013088R0001) stands as a cornerstone component in any ACS6000 system modernization initiative. Whether you are extending the operational lifespan of aging power conversion infrastructure or executing a phased hardware upgrade, this Swiss-engineered IGCT module delivers the switching precision and thermal resilience required to sustain megawatt-class performance without a full system overhaul.

The ABB 5SHY 3545L0010 (3BHB013088R0001) offers exceptional legacy compatibility, functioning as a direct drop-in replacement for the earlier HB013088R0001 designation and fully interchangeable with the successor 3BHE023784R0001. This bidirectional upgrade path makes it the ideal bridge component for facilities transitioning from first-generation ACS6000 platforms to current-generation configurations — eliminating the need for costly bus bar redesigns or gate driver board replacements.

From a migration risk and cost perspective, deploying this IGCT module as part of a structured retrofit strategy reduces unplanned downtime exposure by enabling like-for-like hardware substitution. Procurement teams benefit from a single SKU that spans multiple drive generations, while maintenance engineers gain confidence from a component with a documented MTBF exceeding 100,000 hours under proper thermal management conditions.

Upgrade Highlights & Compatibility

• ✅ Direct Legacy Replacement: Fully interchangeable with HB013088R0001 and 3BHE023784R0001 — zero bus bar or gate driver modifications required
• 3.3kV / 3600A Ratings: Sustains full medium-voltage performance in ACS6000 drives from 315kW to 27MW across 2.3kV 11kV voltage classes
• ✅ Future-Proof Architecture: Compatible with ACS6000, ACS6000SD, and ACS6000c compact retrofit cabinet variants
• Switching Efficiency: Sub-2µs turn-on / sub-4µs turn-off times minimize switching losses and support high-frequency PWM operation
• ✅ Thermal Resilience: Liquid-cooled press-pack design rated 40°C to +125°C junction temperature for harsh industrial environments
• Seamless Integration: Fiber optic status output on newer production batches is non-functional in ACS6000 — no firmware changes needed

Modernization Use Cases & Success Stories

DCS-Integrated Mining Hoist Retrofit (8 MW): A copper mining operation in South America replaced aging IGCT stacks in their ACS6000SD hoist drives using the 3BHB013088R0001 module. The retrofit was completed during a scheduled 72-hour maintenance window, restoring full torque control capability and integrating seamlessly with the site’s ABB 800xA DCS platform — achieving zero-modification commissioning and a 15% reduction in switching losses versus the original hardware generation.

TSI-Linked Marine Propulsion Upgrade (18 MW per shaft): An LNG carrier operator upgraded four azimuth thruster drives during drydock, substituting end-of-life IGCT modules with the 5SHY 3545L0010. The turbine supervisory instrumentation (TSI) interface remained unchanged, and the drives returned to service with enhanced thermal headroom and improved fault diagnostics — extending the projected service interval from 3 years to 5 years.

Cement Kiln Drive Performance Enhancement (12 MW): A European cement group executed a phased IGCT replacement across six kiln drives, using the 3BHB013088R0001 as the standardized retrofit component. The hardware upgrade delivered measurable performance gains in torque linearity and reduced gate driver fault events by over 40% compared to the previous component generation.

Migration Technical Data Sheet

Supply Chain & Deployment Support

• Original & Factory Sealed: Every 3BHB013088R0001 unit ships in original ABB packaging with full factory test certification and serialized traceability documentation
• Expedited Global Logistics: Priority air freight available to all major industrial hubs — typical transit 3-7 business days for critical retrofit projects requiring rapid hardware deployment
• Legacy & Obsolete Hardware Expertise: Our engineering team specializes in sourcing and validating IGCT modules for aging ACS6000 fleets, including cross-referencing superseded part numbers and confirming gate driver compatibility
• Technical Pre-Sales Support: Application engineers available to confirm compatibility with your specific drive serial number, firmware version, and cooling system configuration before purchase
• Post-Installation Assistance: Remote commissioning guidance and fault analysis support available for retrofit projects — reducing on-site specialist requirements and accelerating return-to-service timelines

Retrofit FAQ — Upgrade Guide

Q1: Will the ABB 5SHY 3545L0010 (3BHB013088R0001) fit the existing mounting space in my ACS6000 cabinet without mechanical modifications?
A: Yes. The 5SHY 3545L0010 maintains the same press-pack form factor and mounting footprint as the original HB013088R0001. No cabinet modifications, bus bar repositioning, or heatsink changes are required. The clamping hardware and torque specifications remain identical, enabling a direct mechanical swap during scheduled maintenance windows.

Q2: Does replacing the IGCT module affect communication between the gate driver board and the ACS6000 control system?
A: No. The gate driver interface — including fiber optic trigger and feedback signals — is fully preserved. The newer production batch of the 3BHB013088R0001 includes an additional fiber optic status output, but this port is not connected or utilized in ACS6000 drive architectures. No firmware updates or parameter changes are required on the drive control unit following IGCT replacement.

Q3: What is the recommended spare part strategy for facilities operating legacy ACS6000 fleets with multiple IGCT positions?
A: For facilities with 6 or more IGCT positions per drive, we recommend maintaining a minimum of 2 units of the 3BHB013088R0001 as critical on-site spares. Given the 3-7 day global logistics lead time, this buffer eliminates production risk during unplanned failures. For multi-drive sites, a centralized spare pool strategy with cross-drive compatibility (ACS6000, ACS6000SD, ACS6000c) maximizes inventory efficiency.

Q4: Can the 5SHY 3545L0010 be used as an upgrade path in drives currently running the 3BHE023784R0001 successor module?
A: Yes. The two modules are fully bidirectionally interchangeable. Facilities that have already migrated to the 3BHE023784R0001 can revert to the 3BHB013088R0001 without any system-level changes. This flexibility is particularly valuable for procurement teams managing multi-site spare part standardization across mixed-generation ACS6000 fleets.

Q5: What pre-installation verification steps are critical for a successful IGCT retrofit in a live industrial environment?
A: Prior to installation, confirm DC bus voltage is below 50 VDC (minimum 15-minute discharge wait after de-energization), verify cooling water inlet temperature is within 15-40°C and flow rate exceeds 15 L/min, and perform an insulation resistance test (>100 MΩ @ 1kV DC) on the new module before energizing. Gate driver board firmware version should also be confirmed against the drive’s compatibility matrix to ensure optimal switching performance with the 5SHY 3545L0010.

Q6: Is there a risk of performance degradation when mixing 3BHB013088R0001 and 3BHE023784R0001 modules within the same drive phase leg?
A: ABB’s official compatibility documentation confirms that mixing these two module generations within the same drive is not recommended for series-connected phase leg configurations, as minor differences in switching characteristics could affect current sharing balance. For retrofit projects, we recommend replacing all IGCT modules within a phase leg simultaneously using the same part number to ensure uniform performance and thermal distribution.
