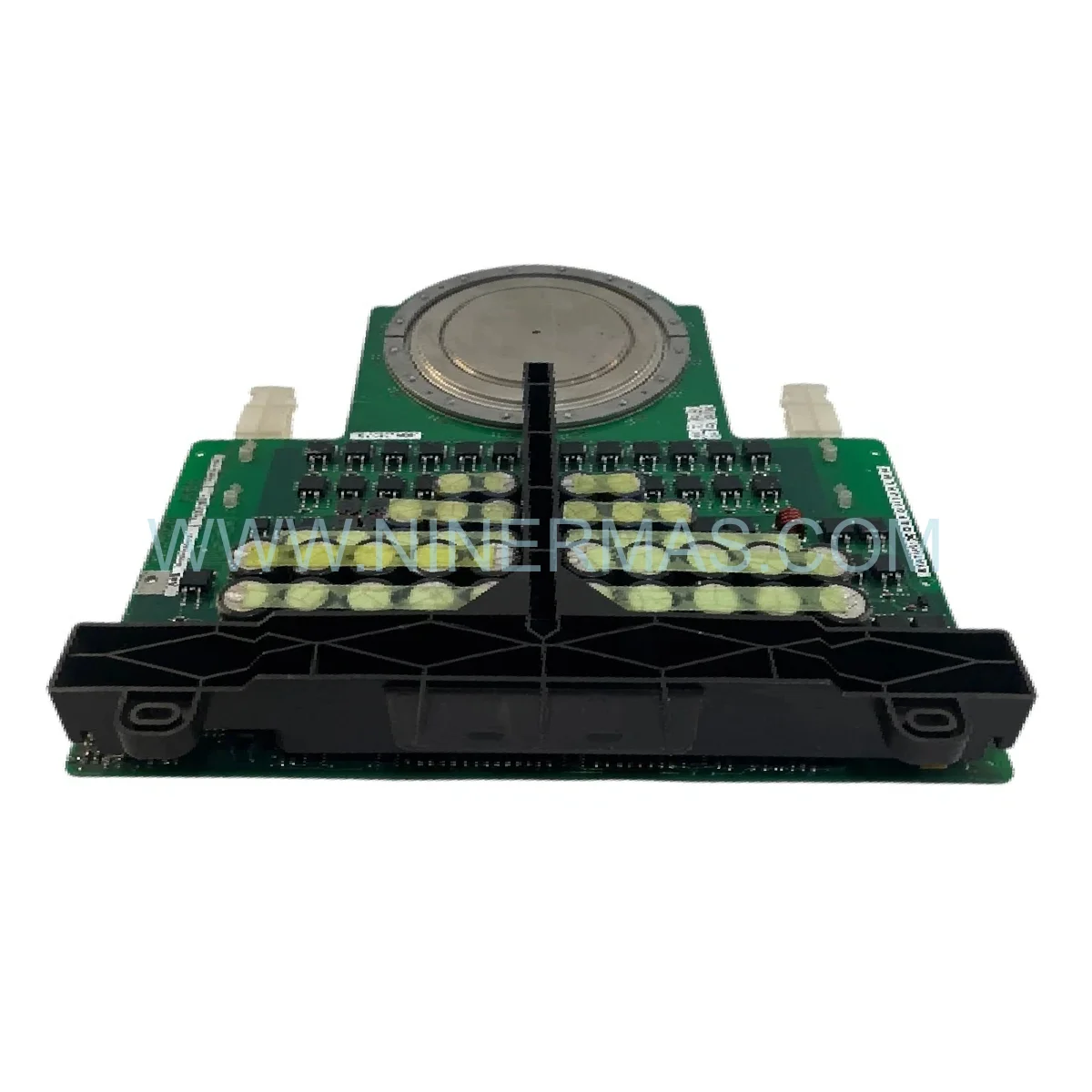

ABB 5SHX1960L0004 RC-IGCT Module (3BHB003154R0101) — 5500V Industrial-Grade Power Semiconductor

Sourced directly from authorized channels and verified as 100% Brand New and Factory Sealed, the ABB 5SHX1960L0004 is a Reverse-Conducting Integrated Gate-Commutated Thyristor (RC-IGCT) engineered for the most demanding high-power switching environments. Carrying the factory reference 3BHB003154R0101, this module operates at a 5500V blocking voltage with a continuous current rating of 1960A RMS — purpose-built as the core switching element in ABB ACS1000 medium-voltage variable-frequency drives. Designed and manufactured in Switzerland, it embodies ABB’s legacy of precision in Industrial Automation and PLC System infrastructure.

Procurement managers and site engineers across Oil & Gas, steel production, and marine propulsion sectors rely on the ABB 5SHX1960L0004 (3BHB003154R0101) to sustain uptime in mission-critical Control Module environments. Its press-pack housing enables double-sided cooling, while the integrated anti-parallel diode eliminates the need for external freewheeling components — reducing system complexity and improving overall drive reliability. Whether you are sourcing Original New Spare Parts for a planned overhaul or an emergency replacement, this RC-IGCT delivers the performance and traceability your operation demands.

As a certified Original New component within the ABB ACS1000 ecosystem, the 5SHX1960L0004 is the preferred choice for engineers who cannot compromise on switching precision, thermal stability, or long-term availability. Contact our team today for a fast quotation and lead-time confirmation.

Technical Specifications & Selection Guide

Selection Note: The 5SHX1960L0004 is a direct replacement for earlier L0001 and L0002 variants. Verify gate unit compatibility (5SXE05-0158 or 5SXE08-0167) against your ACS1000 drive revision before ordering.

Core Features & Technical Advantages

• Integrated RC Architecture: Anti-parallel diode built into the thyristor structure — eliminates external freewheeling diodes, cutting conduction losses by up to 30% versus conventional IGBT modules.
• Robust Press-Pack Housing: Direct copper-to-heatsink contact delivers superior thermal management, sustaining heavy-duty operation at rated junction temperatures without derating.
• Precision Hard-Switching: Snubber-free commutation reduces EMI and simplifies drive topology in three-level NPC inverter configurations.
• Fault-Tolerant Gate Control: Compatible with ABB 5SXE gate units for clean, controlled turn-off even under short-circuit fault conditions.
• Extended Service Life: Rated for >100,000 operating hours under nominal conditions; integrated temperature sensor enables predictive maintenance via gate unit telemetry.
• 100% Original and Brand New: Factory-sealed with full ABB traceability documentation — meets E-E-A-T standards for industrial procurement compliance.

Typical Application Scenarios

Mining & Mineral Processing: SAG mills, conveyor drives, and crusher motors operating at 1-40 MW demand uninterrupted switching performance. The 5SHX1960L0004 sustains continuous duty cycles in dusty, high-vibration environments where IGBT-based alternatives frequently derate.

✅ Marine Propulsion Systems: Cruise ships, icebreakers, and offshore supply vessels rely on ACS1000 drives for electric propulsion. The RC-IGCT’s low-loss commutation directly reduces fuel consumption and heat generation in confined engine room installations.

✅ Steel & Rolling Mills: Rolling mill main drives and arc furnace electrode regulators require millisecond-level torque response. The module’s hard-switching capability and robust gate control deliver the dynamic precision these processes demand.

✅ Oil & Gas Infrastructure: Pipeline compressors, LNG transfer pumps, and drilling rig motors in Zone 2 hazardous areas benefit from the module’s sealed press-pack design and proven reliability in ABB ACS1000 PLC System-integrated drive trains.

✅ Water & Desalination Plants: Large-capacity pump drives (5-20 MW) for municipal water treatment and seawater desalination require spare parts with long-term OEM availability — a key strength of sourcing Original New 3BHB003154R0101 units through certified channels.

Logistics & Professional Service

• ✅ 2-Day Express Shipping Available: Emergency stock dispatched within 24-48 hours for critical plant shutdowns. Standard air freight to major global hubs in 3-7 business days.
• ✅ 1-Year Warranty: Full coverage against manufacturing defects in materials and workmanship, backed by ABB factory documentation.
• ✅ EOL & Legacy System Support: We specialize in sourcing discontinued and end-of-life ABB power semiconductor Spare Parts, including earlier 5SHX1960L0001 and L0002 variants for legacy ACS1000 installations.
• ✅ Full Traceability: Every unit ships with original ABB packaging, batch certificates, and test reports upon request — essential for regulated industries and insurance compliance.
• ✅ Global Export Compliance: Experienced in export documentation for CN, EU, US, and Middle East destinations. HS Code and Certificate of Origin provided on request.

FAQ — Frequently Asked Questions

Q1: What is the price of the ABB 5SHX1960L0004 (3BHB003154R0101), and do you offer volume discounts?
A: Pricing for the 5SHX1960L0004 varies based on order quantity, delivery urgency, and current market availability of this high-demand RC-IGCT module. We offer competitive tiered pricing for orders of 2 or more units — common for planned maintenance kits covering a full ACS1000 drive phase set. Contact sale@ninermas.com with your required quantity and delivery location for a firm quotation within 24 hours.

Q2: What is the lead time for the 3BHB003154R0101 if not in stock?
A: In-stock units ship within 1-2 business days. For factory-order quantities, lead time is typically 6-10 weeks depending on ABB production scheduling. We recommend maintaining at least one spare 5SHX1960L0004 on-site for drives operating in continuous-duty applications.

Q3: Can you provide a Datasheet or technical documentation for the 5SHX1960L0004?
A: Yes. The official ABB datasheet for the 5SHX1960L0004 RC-IGCT, including gate unit pairing tables, thermal resistance curves, and clamping force specifications, is available upon request. Email sale@ninermas.com with your inquiry reference.

Q4: How do I confirm this is a genuine ABB Original New module and not a counterfeit?
A: All units supplied are 100% Original and Brand New, sourced through authorized ABB distribution channels. Each module includes original ABB holographic labeling, batch traceability codes, and factory test certification. We provide a Certificate of Authenticity and can arrange third-party inspection for high-value orders.

Q5: Is the 5SHX1960L0004 compatible with all ACS1000 drive revisions?
A: The 3BHB003154R0101 is the current production variant and is backward-compatible with ACS1000 drives originally fitted with 5SHX1960L0001 and L0002 modules. Gate unit firmware revision should be verified with ABB service documentation for drives manufactured before 2010.

Q6: Do you support Industrial Automation integrators and EPC contractors with blanket orders?
A: Yes. We work with EPC firms, OEM integrators, and plant maintenance teams across the Industrial Automation and PLC System sectors. Blanket purchase orders, consignment stock arrangements, and annual supply agreements are available for qualified buyers.
