ABB 3HNA024941-001 Spare Part for Industrial Maintenance

ABB 3HNA024941-001 Spare Part for Industrial Maintenance: Minimizing Downtime in Paint Robot Systems

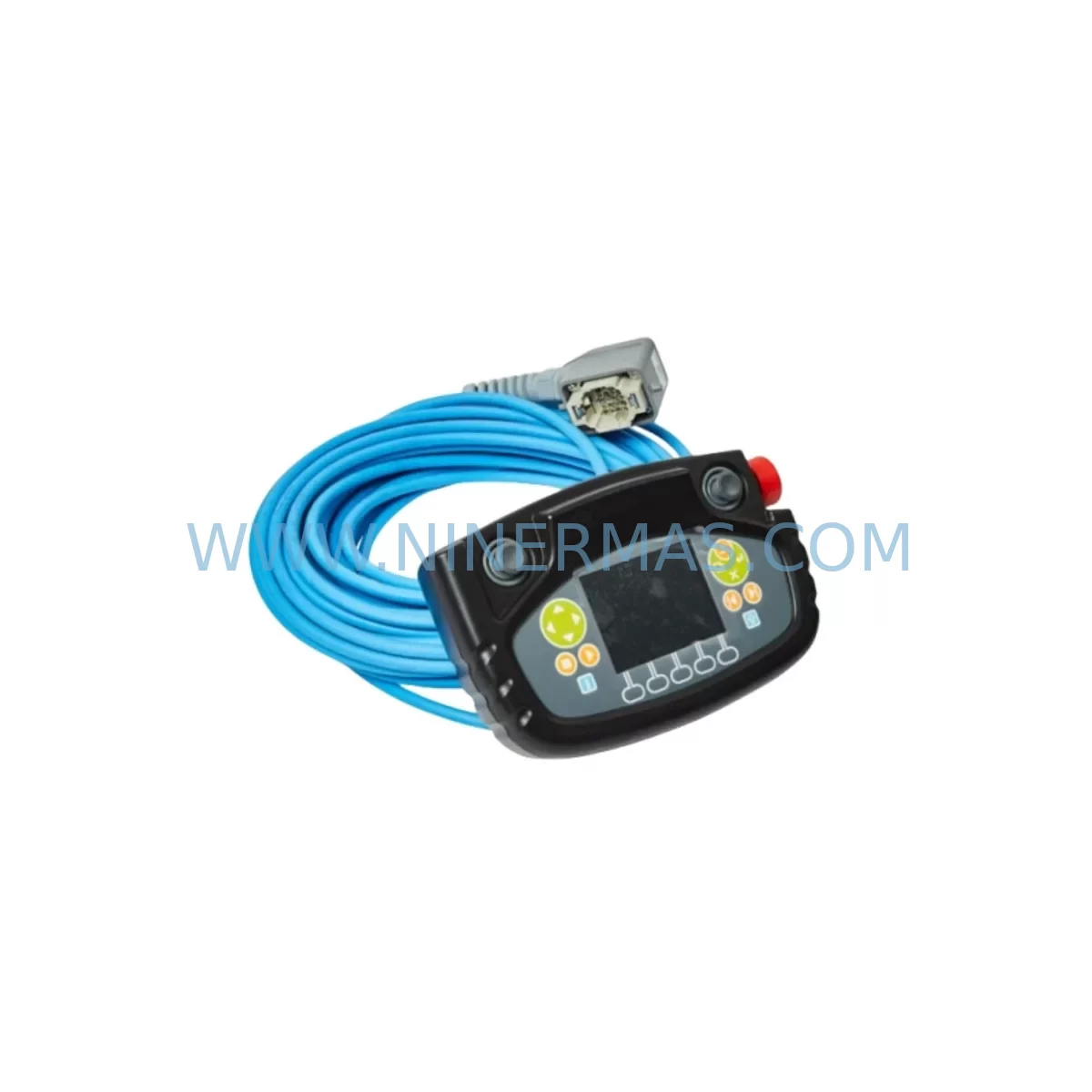

The ABB 3HNA024941-001 is an original teach pendant (FlexPendant operator panel) designed for ABB IRC5 and S4C+ paint robot controllers. As a critical human-machine interface component, this unit enables operators to program, jog, and monitor robot motion directly at the cell level. When this component fails or degrades, the entire paint line halts — making rapid, verified spare part replacement the single most effective downtime-recovery action available to maintenance and procurement engineers.

NINERMAS maintains ready stock of the ABB 3HNA024941-001 sourced from verified supply channels, fully tested prior to dispatch, and backed by a 12-month warranty. Each unit undergoes functional verification covering display integrity, emergency stop circuit continuity, joystick response, USB interface, and cable connector seating before shipment.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

Replacing the ABB 3HNA024941-001 teach pendant is rarely an isolated task. In a paint robot cell, the teach pendant interfaces directly with the IRC5 main computer board and the axis computer modules. Before declaring the pendant as the root cause of a fault, maintenance engineers should verify the IRC5 controller main computer (DSQC 639) is functioning correctly, as communication errors between the main computer and the pendant can mimic pendant hardware failure.

The pendant cable — a frequent wear point in high-cycle paint environments — should be inspected alongside the pendant itself. The ABB FlexPendant cable assembly (3HAC031683-001) is a common co-replacement item, particularly in cells where the cable runs through a drag chain or is subject to repeated flexing. A degraded cable can cause intermittent touchscreen dropouts or E-Stop faults that are incorrectly attributed to the pendant unit.

Within the IRC5 cabinet, the power distribution board (DSQC 661) supplies regulated voltage to the pendant port. If the replacement pendant does not power on, engineers should measure the pendant port supply voltage before assuming the new unit is defective. Similarly, the I/O unit (DSQC 652) handles digital signal routing between the robot controller and field devices; any I/O faults active at the time of pendant failure should be cleared and re-verified after pendant replacement to confirm they were not masking a deeper system fault.

For paint robot applications specifically, the process interface board (DSQC 377B) manages paint process signals including atomizer speed, shaping air, and paint flow. This board communicates with the IRC5 main computer independently of the teach pendant, but a full system restart following pendant replacement is recommended to ensure all process parameters are correctly re-initialized. Maintenance teams should also check the safety module (DSQC 400) for any latched safety faults that may have been triggered during the pendant failure event.

In multi-robot paint cells, the DeviceNet or Ethernet/IP communication module connecting the IRC5 to the line PLC should be verified after any controller-level maintenance. Pendant replacement sometimes requires a controller restart, which can cause the communication module to re-initialize and temporarily drop from the network scan. Procurement engineers building annual spare parts kits for paint lines should consider stocking the ABB DSQC 1000 controller unit alongside the teach pendant, as both are high-impact, long-lead items when sourced reactively.

Finally, for older S4C+ installations where the 3HNA024941-001 is used as an upgrade or cross-compatible replacement, engineers should confirm the teach pendant software version is compatible with the installed robot system software. The ABB RobotWare license dongle and system software version should be documented before any pendant swap to ensure post-replacement commissioning proceeds without software mismatch errors.

Site Replacement Workflow

Step 1 — Fault Isolation: Before ordering a replacement, confirm the fault is pendant-specific. Use the IRC5 FlexPendant diagnostic menu (if accessible) or connect a known-good pendant to the controller to isolate whether the fault follows the pendant or stays with the controller.

Step 2 — Safe Shutdown: Place the robot in manual mode, engage the mechanical brake, and power down the IRC5 controller following ABB lockout/tagout procedures. Do not hot-swap the teach pendant — always power down first to protect the pendant port electronics.

Step 3 — Cable Inspection: Before connecting the replacement 3HNA024941-001, inspect the pendant port on the controller for bent pins or corrosion. Clean with dry compressed air if necessary. Inspect the cable assembly for jacket damage, particularly at the strain relief points.

Step 4 — Pendant Connection and Power-Up: Connect the replacement pendant, restore power to the IRC5 controller, and observe the boot sequence. The pendant should display the ABB startup screen within 60–90 seconds. If the pendant does not initialize, check the pendant port supply voltage at the power distribution board.

Step 5 — System Verification: After successful boot, verify all robot programs are intact, confirm I/O status in the pendant’s I/O monitor, and perform a slow-speed jog test on all axes before returning the robot to automatic mode. Document the replacement in the maintenance log with the date, technician name, and new unit serial number.

Step 6 — Spare Stock Update: After consuming a stocked pendant, immediately initiate a replenishment order to maintain minimum spare coverage. For high-utilization paint lines, a minimum of one spare ABB 3HNA024941-001 per robot cell is recommended to support rapid recovery from future failures.

Spare Parts Support FAQ

Q1: Is the ABB 3HNA024941-001 compatible with both IRC5 and S4C+ controllers?
The 3HNA024941-001 is primarily designed for IRC5 paint robot controllers. Compatibility with S4C+ installations depends on the specific system software version and hardware revision. NINERMAS recommends providing your controller serial number and RobotWare version when ordering to allow our technical team to confirm compatibility before shipment. We do not ship units where compatibility cannot be verified.

Q2: What does the 12-month warranty cover, and what is the claims process?
The 12-month warranty covers manufacturing defects and functional failure under normal operating conditions, including display failure, E-Stop circuit malfunction, joystick failure, and USB port defects. Physical damage caused by incorrect installation, overvoltage, or environmental exposure beyond IP54 rating is excluded. To initiate a warranty claim, contact sale@ninermas.com with your order number, fault description, and photographic evidence. Replacement units are dispatched within 5 business days of claim approval.

Q3: How do you ensure the unit is functional before shipment?
Every ABB 3HNA024941-001 unit dispatched by NINERMAS undergoes a pre-shipment functional test covering: touchscreen display integrity, emergency stop circuit continuity (measured at the connector), joystick axis response, USB interface detection, and cable connector pin seating. A test report is available upon request for customers with quality management system requirements.

Q4: Can NINERMAS support long-term supply agreements for this part?
Yes. For customers managing multi-robot paint lines or operating in regions with long customs lead times, NINERMAS offers long-term supply agreements for the ABB 3HNA024941-001 and associated IRC5 spare parts. These agreements include reserved stock allocation, priority dispatch, fixed pricing for the agreement term, and quarterly inventory reporting. Contact sale@ninermas.com or call +0086 187 5021 5667 to discuss terms.
