ABB 3HAC037638-001 3HAC066785-001 RV Gear for IRB Legacy Systems

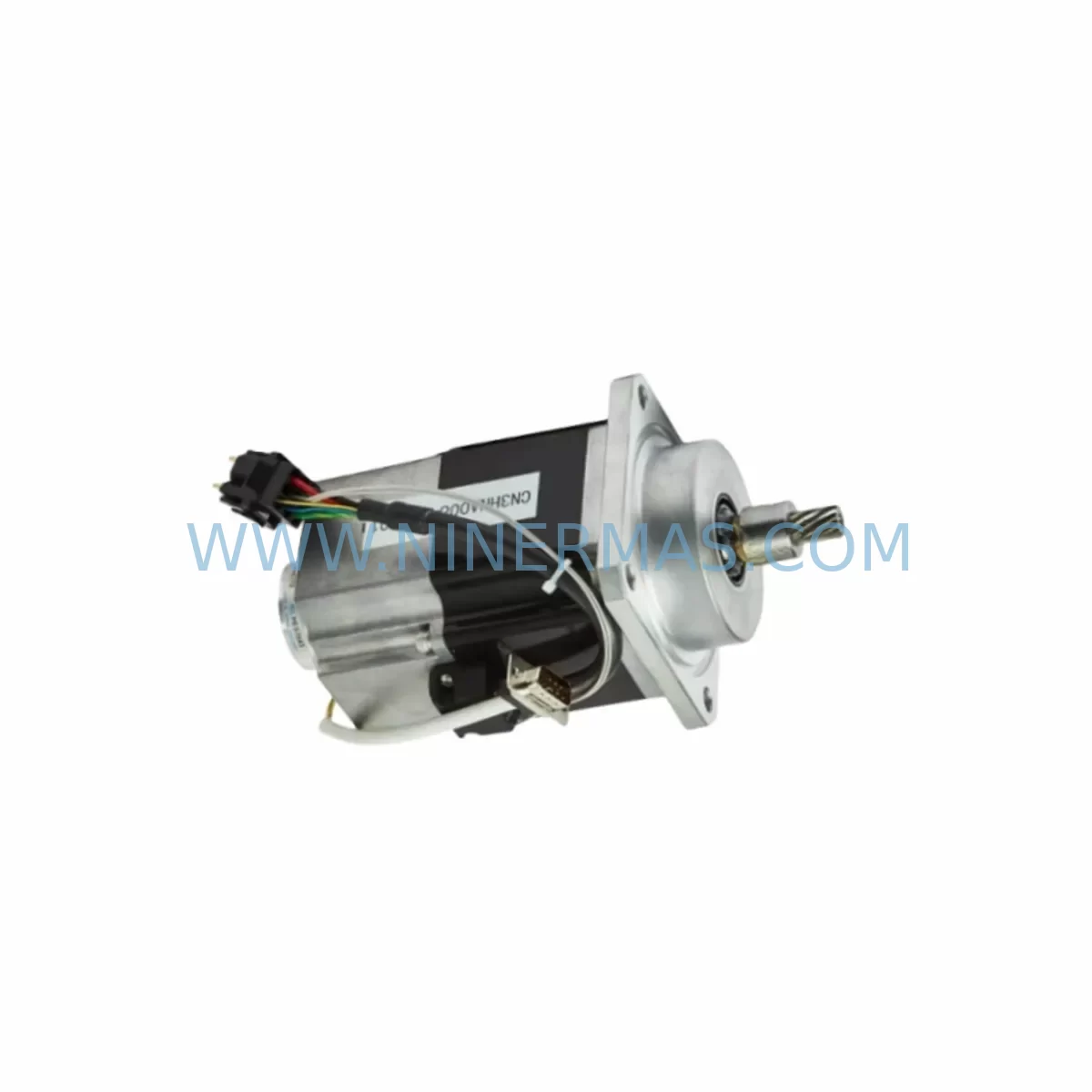

ABB 3HAC037638-001 3HAC066785-001 RV Gear for IRB Legacy Systems: Retrofit-Compatible Upgrade for Aging Robot Platforms

When an IRB robot arm begins to exhibit joint backlash, positioning drift, or abnormal vibration during path execution, the root cause is frequently a worn or failed RV gear unit. The ABB 3HAC037638-001 and its paired counterpart 3HAC066785-001 are precision-engineered cycloidal reduction gear assemblies designed for use in the wrist and axis joints of ABB’s IRB industrial robot series. These components are critical to maintaining the sub-millimeter repeatability that modern automated production lines demand. For plants operating legacy IRB 6600, IRB 6640, IRB 7600, or IRB 4600 platforms, sourcing a verified replacement RV gear unit is often the fastest path to restoring full robot capability without committing to a full arm replacement or controller upgrade.

NINERMAS maintains verified stock of both the 3HAC037638-001 and 3HAC066785-001 RV gear assemblies, pre-tested and ready for immediate dispatch. Each unit ships with a 12-month warranty covering manufacturing defects and functional performance under normal operating conditions.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Replacing an RV gear unit on a legacy IRB robot is a structured mechanical and software process that requires careful coordination across multiple system layers. Before removing the failed 3HAC037638-001 or 3HAC066785-001 unit, maintenance engineers should first back up the current robot program using RobotStudio or the IRC5 FlexPendant teach pendant, ensuring that all tool data, work object frames, and payload configurations are saved. This step is non-negotiable — axis mastering data is stored in the controller’s IRC5 main computer (DSQC 639) or the newer OmniCore C30 controller, and any loss of calibration reference will require a full mastering sequence post-installation.

During the physical replacement, engineers should confirm that the SMB (Serial Measurement Board) — typically the DSQC 233 or DSQC 377B — is intact and that resolver or encoder signals are not interrupted. The SMB communicates axis position data back to the drive system, and any connector damage during gear removal can introduce ghost faults in the axis supervision logic. It is also advisable to inspect the axis drive module (such as the DSQC 601 or DSQC 617 drive unit) for signs of overcurrent events that may have contributed to the gear failure in the first place.

For robots integrated into a production cell with a PROFIBUS DP or DeviceNet fieldbus network, the gear replacement itself does not affect communication topology. However, if the robot has been offline for an extended period, engineers should verify that the DSQC 652 digital I/O board and any connected DSQC 658 analog I/O modules are still correctly addressed within the IRC5 panel. Fieldbus node addresses can occasionally shift after a controller power cycle if the configuration was not saved to the system parameters file.

Lubrication is a critical step often overlooked during RV gear retrofits. Both the 3HAC037638-001 and 3HAC066785-001 units require the correct grease volume applied to the gear cavity before reassembly. Over-greasing can cause seal failure and contamination of the motor housing, while under-greasing accelerates wear on the cycloidal disc surfaces. Refer to the ABB product manual for the specific grease volume in cubic centimeters for each axis position. A grease injection kit compatible with the IRB series fittings should be prepared in advance.

If the retrofit is being performed on a robot that also requires a wrist rebuild, it may be efficient to simultaneously inspect the 3HAC14550-1 wrist housing and the associated motor units. Robots that have been in continuous service for more than 40,000 hours frequently require concurrent replacement of the axis 5 and axis 6 motor assemblies alongside the RV gear units, reducing total downtime compared to sequential repairs.

Downtime Control During System Migration

Minimizing production downtime during an RV gear replacement on a legacy IRB robot requires a pre-planned execution sequence. The most effective approach is to prepare the replacement 3HAC037638-001 or 3HAC066785-001 unit off-site or at a staging area before the robot is taken offline. This includes verifying the gear unit’s physical dimensions, confirming the flange bolt pattern matches the robot’s axis housing, and performing a visual inspection for any transit damage.

Once the robot is powered down and locked out, the gear replacement should proceed in a single continuous maintenance window. Splitting the work across multiple shifts increases the risk of reassembly errors and extends the period during which the production cell is non-operational. A typical RV gear swap on an IRB 6640 axis 5 joint, performed by an experienced ABB-certified technician, can be completed in four to six hours including the post-installation mastering sequence.

After mechanical reassembly, the axis mastering procedure must be performed using the IRC5 FlexPendant or via RobotStudio in online mode. The mastering process involves moving each affected axis to its calibration position and recording the resolver offset values. If the original mastering data was backed up prior to the repair, the restoration process is significantly faster. Once mastering is confirmed, a slow-speed test cycle should be run through the robot’s full working envelope to verify smooth motion, absence of vibration, and correct path accuracy before returning the cell to production speed.

For plants with tight production schedules, NINERMAS recommends maintaining at least one spare 3HAC037638-001 and one 3HAC066785-001 unit in the on-site spare parts inventory. This eliminates lead time as a variable in the downtime equation and allows maintenance teams to respond to gear failures within hours rather than days.

Retrofit Support FAQ

Q: Is the 3HAC037638-001 a direct replacement for the original ABB RV gear unit on the IRB 6640?
A: Yes. The 3HAC037638-001 is the OEM-specified RV gear unit for the IRB 6640 axis 4/5 joint. It is a direct mechanical replacement requiring no modification to the robot’s housing or motor interface. Post-installation axis mastering via the IRC5 controller is required.

Q: Can the 3HAC066785-001 be used on both IRB 4600 and IRB 6700 platforms?
A: The 3HAC066785-001 is compatible with multiple IRB platforms including the IRB 4600 and IRB 6700. However, engineers should verify the specific axis position and torque rating against the robot’s product manual before installation, as minor variants exist across production years.

Q: What pre-shipment testing is performed on these RV gear units?
A: Each 3HAC037638-001 and 3HAC066785-001 unit supplied by NINERMAS undergoes dimensional verification, rotational resistance testing, and seal integrity inspection before dispatch. Units are packaged in anti-static, shock-resistant packaging to prevent transit damage.

Q: What does the 12-month warranty cover?
A: The 12-month warranty covers manufacturing defects, premature seal failure, and functional performance deviations under normal operating conditions. It does not cover damage resulting from incorrect installation, over-greasing, or operation outside the robot’s rated load envelope. Warranty claims are supported directly through NINERMAS with replacement unit dispatch upon confirmation.
