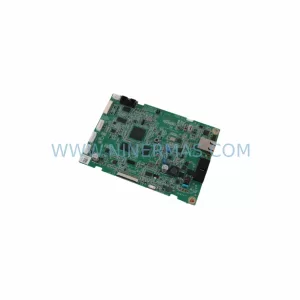

ABB 3HAC033624-001 Retrofit-Compatible Drive Unit for IRC5

ABB 3HAC033624-001 Retrofit-Compatible Drive Unit for IRC5 Legacy Systems

The ABB 3HAC033624-001 is a drive unit module designed for use within the IRC5 robot controller platform — one of ABB’s most widely deployed industrial robot control architectures across automotive, electronics, and general manufacturing environments. As production lines age and original components reach end-of-life, the 3HAC033624-001 serves as a critical retrofit-compatible replacement that allows engineering teams to restore full robot functionality without committing to a full controller overhaul or new robot procurement.

This drive unit is engineered to interface directly with the IRC5 single-cabinet and dual-cabinet controller configurations. When replacing a failed or degraded drive unit, engineers must verify the axis configuration, confirm the drive module slot position on the drive system backplane, and ensure that the DSQC series communication boards — such as the DSQC 663 or DSQC 679 — remain correctly addressed within the controller’s internal network. The 3HAC033624-001 is compatible with ABB’s standard drive system architecture and supports the axis computer communication chain that links the drive unit to the main computer module.

Before installation, it is essential to document the existing axis calibration data stored in the SMB (Serial Measurement Board), typically the 3HAC14550-1 or equivalent, as calibration offsets must be preserved or re-entered post-replacement. Failure to back up this data prior to drive unit swap can result in extended commissioning time and potential axis referencing errors during restart.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Integrating the ABB 3HAC033624-001 into an existing production line requires a structured retrofit plan that accounts for the full scope of the IRC5 controller ecosystem. The drive unit does not operate in isolation — it is part of a tightly coupled system that includes the main computer module (commonly the DSQC 1000 or legacy DSQC 602), the axis computer, the I/O system, and the power supply chain.

The IRC5 controller’s internal power distribution relies on a dedicated power supply unit — such as the 3HAC024488-001 — which feeds regulated DC voltage to the drive modules. Before replacing the 3HAC033624-001, engineers should measure the supply rail voltages at the drive bay to confirm the power supply is delivering within specification. An underperforming or aging power supply can cause intermittent drive faults that mimic drive unit failure, leading to unnecessary module replacement.

On the I/O side, the IRC5 platform typically uses DSQC 651 or DSQC 652 digital I/O modules mounted in the controller’s I/O bay. These modules communicate over the internal DeviceNet or Ethernet/IP backbone depending on the controller revision. When performing a drive unit replacement, it is good practice to audit the I/O module addresses and verify that no address conflicts have been introduced — particularly if the controller has undergone previous partial upgrades or if third-party I/O expansion modules have been added to the rack.

For systems that have been in service for more than five years, the SMB unit (3HAC14550-1 or 3HAC031670-001 depending on robot model) should be inspected for battery condition. The SMB battery maintains resolver offset data and calibration values; a depleted battery can cause axis referencing failures immediately after a drive unit swap, which is often misdiagnosed as a drive fault. Replacing the SMB battery as part of the planned maintenance window during the drive unit retrofit is strongly recommended.

Communication continuity is another key consideration. If the robot is integrated into a larger cell via PROFIBUS, EtherNet/IP, or PROFINET — using interface modules such as the DSQC 667 or DSQC 688 — the fieldbus configuration must be verified post-replacement to ensure the robot controller re-establishes communication with the PLC or SCADA system without requiring a full network re-scan. In many cases, the fieldbus node address is stored in the controller’s system parameters and is unaffected by a drive unit swap, but this should be confirmed during the commissioning checklist.

For robot models that use a dual-axis drive configuration — where a single drive unit controls two axes simultaneously — the replacement unit must match the original axis pairing. Mismatched axis assignments at the drive level will result in motion errors during the first test cycle and will require correction via the robot’s axis configuration parameters in RobotStudio before production can resume.

Finally, if the retrofit is being performed as part of a broader control cabinet upgrade — for example, migrating from an older S4C+ controller to the IRC5 platform — additional components such as the teach pendant cable adapter, the FlexPendant interface unit, and updated RAPID motion programs may be required to complete the migration. In these cross-generation upgrade scenarios, the 3HAC033624-001 serves as the drive-layer foundation upon which the rest of the modernized control architecture is built.

Downtime Control During System Migration

Minimizing unplanned downtime during a drive unit replacement is a primary concern for any production environment. The ABB 3HAC033624-001 is designed for module-level swap, which means the replacement procedure — when properly planned — can be completed within a single maintenance window without requiring full controller reconfiguration.

The recommended approach is to perform a full system backup via RobotStudio or the FlexPendant before any hardware is touched. This backup captures the RAPID program, system parameters, I/O configuration, motion settings, and calibration data in a single archive that can be restored in minutes if any issue arises during the swap. With a verified backup in place, the risk of extended downtime due to configuration loss is effectively eliminated.

During the physical swap, the drive unit should be removed and reinstalled with the controller in a powered-down, locked-out state. After reinstallation, the controller should be powered up in manual mode with reduced speed enabled on the FlexPendant before any automatic cycle is attempted. This allows the commissioning engineer to verify axis movement, check for drive fault codes, and confirm that all six axes respond correctly to jog commands before releasing the cell to production.

If the replacement is being performed on a robot that is part of a multi-robot cell, the remaining robots in the cell can often continue operating in a degraded or single-robot mode during the maintenance window, reducing the overall production impact. Coordinating the replacement schedule with the production planning team to align with a scheduled low-volume period further reduces the business impact of the downtime event.

For customers managing multiple IRC5 controllers across a facility, maintaining a small buffer stock of critical spare modules — including drive units, power supply modules, and SMB units — is the most effective strategy for minimizing mean time to repair (MTTR) when unexpected failures occur. NINERMAS supports long-term spare parts programs with committed stock allocation for high-priority SKUs, ensuring that critical components are available when needed without requiring emergency procurement lead times.

Retrofit Support FAQ

Q1: Is the ABB 3HAC033624-001 a direct drop-in replacement for the original drive unit in my IRC5 controller?
In most IRC5 single-cabinet and dual-cabinet configurations, yes. The 3HAC033624-001 is designed to fit the standard drive module bay and interface with the existing backplane connectors. However, you should confirm the axis count and drive slot assignment in your specific controller revision before ordering. Our technical team can assist with compatibility verification based on your controller serial number and robot model.

Q2: What commissioning steps are required after installing the replacement drive unit?
After physical installation, power up the controller in manual mode and check for active fault codes on the FlexPendant. Verify that all axes respond to jog commands at reduced speed. Confirm that the SMB calibration data is intact — if calibration values have been lost, axis referencing will be required before the robot can return to automatic operation. A full I/O check and communication link verification with the upstream PLC should also be completed before releasing the cell.

Q3: Does NINERMAS provide pre-shipment testing for the 3HAC033624-001?
Yes. All units supplied by NINERMAS undergo functional verification prior to dispatch. Each unit is inspected for physical integrity and electrical function before packaging. Units are shipped with documentation confirming the pre-shipment test status. The 12-month warranty covers manufacturing defects and functional failure under normal operating conditions from the date of delivery.

Q4: What is the typical lead time and stock availability for the ABB 3HAC033624-001?
NINERMAS maintains in-stock inventory of the 3HAC033624-001 to support urgent replacement requirements. Standard orders are processed and dispatched within 1–3 business days. For customers requiring guaranteed stock allocation over a 6–12 month horizon as part of a planned maintenance or retrofit program, we offer long-term supply agreements with committed inventory reservation. Contact our sales team at sale@ninermas.com or +0086 187 5021 5667 to discuss your requirements.
