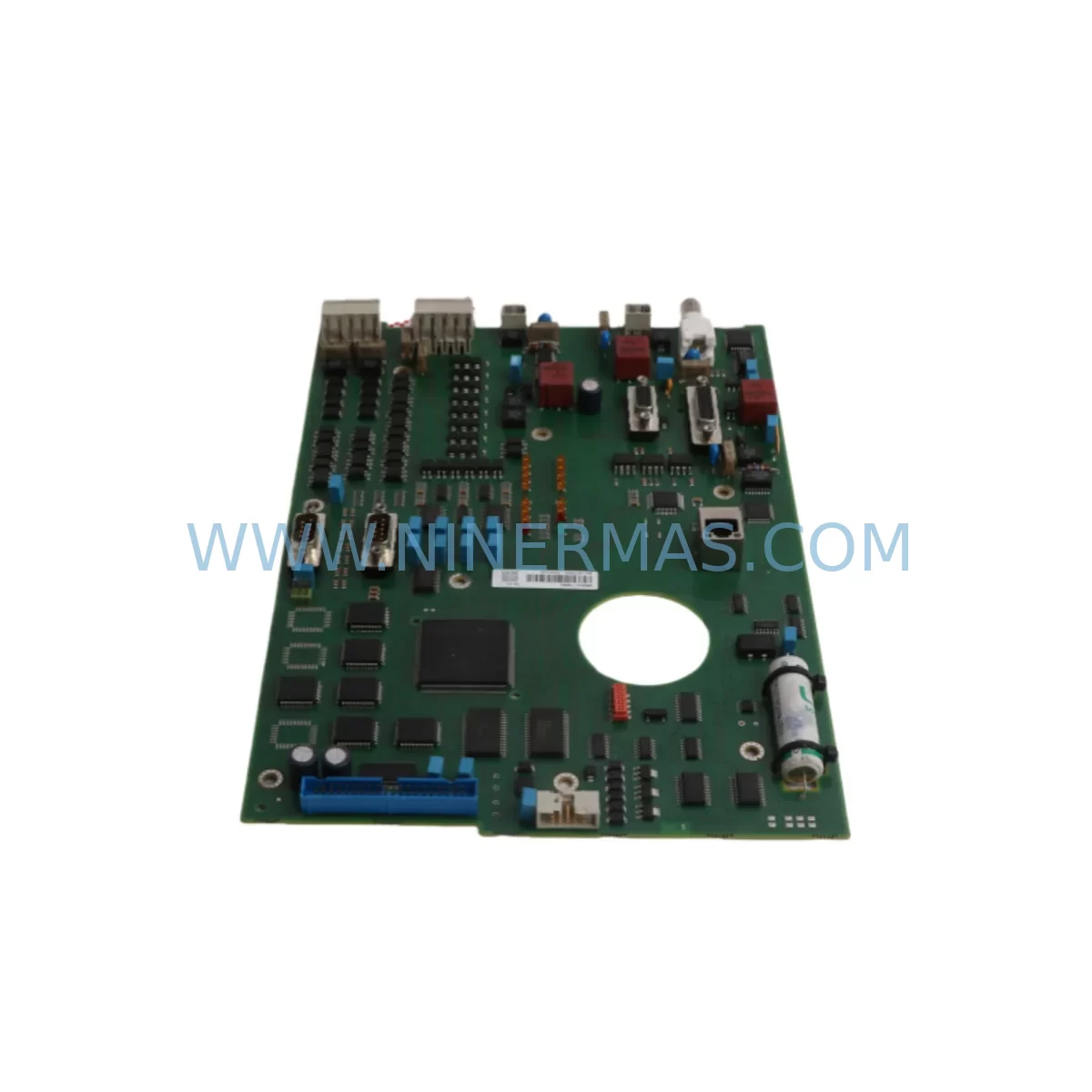

ABB 3BSE011789R1 PXAK402 Service-Ready Spare Part

ABB 3BSE011789R1 PXAK402 Service-Ready Spare Part: Minimizing Downtime in Industrial Control Systems

The ABB 3BSE011789R1 PXAK402 is a ruggedized control module engineered for demanding industrial environments within the ABB AC800M distributed control system (DCS) architecture. When a PXAK402 module fails or reaches end-of-service life, every minute of unplanned downtime translates directly into production loss. Sourcing a verified, pre-tested replacement is the fastest path to restoring normal operation — and the most reliable way to protect your control system investment.

This spare part listing covers the ABB 3BSE011789R1 PXAK402 as a direct field-replacement unit. Each unit is inspected and functionally tested prior to shipment, backed by a 12-month warranty, and supported by long-term supply continuity from NINERMAS COMPANY LIMITED. Whether you are responding to an emergency fault, executing a planned annual overhaul, or building a strategic spare parts buffer for your control cabinet, the 3BSE011789R1 PXAK402 is available for immediate dispatch.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

Replacing the ABB 3BSE011789R1 PXAK402 in the field is rarely an isolated task. Maintenance engineers and procurement teams working on AC800M-based control systems should treat a PXAK402 replacement as an opportunity to audit the surrounding electrical and control infrastructure. Undetected degradation in adjacent components is a leading cause of repeat faults after a module swap.

During a PXAK402 replacement, it is good practice to inspect the PM861 or PM864 processor module seated in the same controller rack — a failing processor can cause erratic behavior that mimics a faulty I/O or communication module. Verify that the SD821 or SD822 power supply module is delivering stable 24 VDC to the backplane; voltage sag under load is a common root cause of ruggedized module failures in high-vibration environments.

Check the TB820 or TB840 PROFIBUS DP communication module for bus termination integrity and cable shielding continuity. A degraded fieldbus connection will cause the replacement PXAK402 to report communication errors immediately after installation, leading to misdiagnosis. Similarly, inspect the CI854 or CI858 fieldbus interface module if the system uses Foundation Fieldbus or HART integration — these modules share the same backplane power rail and are subject to the same environmental stresses.

On the I/O side, review the AI810 analog input module and AO810 analog output module channel-by-channel for drift or open-circuit faults. Loose wiring on TB807 or TB811 terminal base units is a frequent source of intermittent signal errors that surface during post-replacement commissioning. If the control cabinet includes DP820 or DP840 digital I/O modules, verify that all field wiring terminations are torqued to specification.

For systems with legacy S100 I/O or DSAI 130 analog input boards still in service alongside the AC800M, confirm that the signal isolation barriers and surge protection devices on shared signal loops are functioning correctly. A single failed isolator can inject noise into multiple channels simultaneously. Finally, check the BC810 battery-backed communication module battery status — a depleted backup battery will cause configuration loss during a power cycle following the module replacement.

Procurement engineers should consider holding at least one PXAK402 (3BSE011789R1) as a dedicated cold-standby spare, particularly for plants operating continuous processes where a 48-hour lead time for emergency sourcing is unacceptable. Pairing this with a stocked PM861 processor module and an SD822 power supply module covers the three most common single-point failure modes in an AC800M controller cabinet.

Site Replacement Workflow

Step 1 — Pre-replacement verification: Confirm the fault is isolated to the PXAK402 module using the AC800M diagnostic tool (Control Builder M). Document the current module configuration, firmware version, and I/O assignment before powering down the slot.

Step 2 — Safe isolation: Follow your site’s lockout/tagout (LOTO) procedure. The AC800M supports hot-swap on certain module types, but the PXAK402 should be replaced with the controller in a safe, non-executing state to prevent unintended output changes during the swap.

Step 3 — Physical replacement: Remove the faulty 3BSE011789R1 PXAK402 by releasing the module latch and sliding it clear of the backplane connector. Inspect the backplane connector pins for corrosion or mechanical damage before inserting the replacement unit. Seat the new module firmly until the latch engages.

Step 4 — Configuration restore: Using Control Builder M, download the saved application and I/O configuration to the replacement module. Verify that the firmware version on the new unit matches the project baseline — a firmware mismatch is the most common cause of post-replacement communication faults.

Step 5 — Functional test: Bring the controller back online in a supervised state. Confirm all I/O channels report correctly, fieldbus communication is re-established, and no diagnostic alarms are active. Log the replacement in your maintenance management system (CMMS) with the new module serial number and warranty start date.

This workflow applies equally to planned annual maintenance replacements and emergency fault recovery scenarios. The 3BSE011789R1 PXAK402 is a direct form-fit-function replacement for the original module, requiring no hardware modification to the controller rack or field wiring.

Spare Parts Support FAQ

Q1: Is the 3BSE011789R1 PXAK402 compatible with all AC800M controller versions?
The PXAK402 module is designed for the ABB AC800M platform. Compatibility depends on the specific controller generation (PM860, PM861, PM864, PM866) and the firmware baseline in use. We recommend confirming your controller hardware revision and Control Builder M project version before ordering. Our technical team can assist with compatibility verification prior to shipment.

Q2: What pre-shipment testing is performed on each unit?
Every 3BSE011789R1 PXAK402 unit is functionally tested before dispatch. Testing covers power-on self-test (POST) completion, communication interface integrity, and visual inspection of the backplane connector and module housing. A test report is available on request. The 12-month warranty covers manufacturing defects and functional failures under normal operating conditions.

Q3: Can you support long-term supply for this part number?
Yes. NINERMAS maintains ongoing sourcing relationships for ABB AC800M series spare parts, including the 3BSE011789R1 PXAK402. For plants with multi-year maintenance contracts or annual shutdown schedules, we can arrange forward-stocking agreements or blanket purchase orders to guarantee availability and price stability over a 12–36 month horizon.

Q4: What is the recommended spare parts holding strategy for AC800M systems?
For a typical AC800M-based process control system, we recommend holding a minimum of one PXAK402 (3BSE011789R1) per controller rack as a cold-standby spare, alongside one processor module (PM861 or PM864) and one power supply module (SD822). This three-part kit covers the majority of unplanned outage scenarios and can be sourced as a bundled spare parts package. Contact our team for a customized bill-of-materials recommendation based on your installed base.
