ABB 3BHE024820R0101 PPD234 A101 Service-Ready Spare Part

ABB 3BHE024820R0101 PPD234 A101 Service-Ready Spare Part for Industrial Maintenance

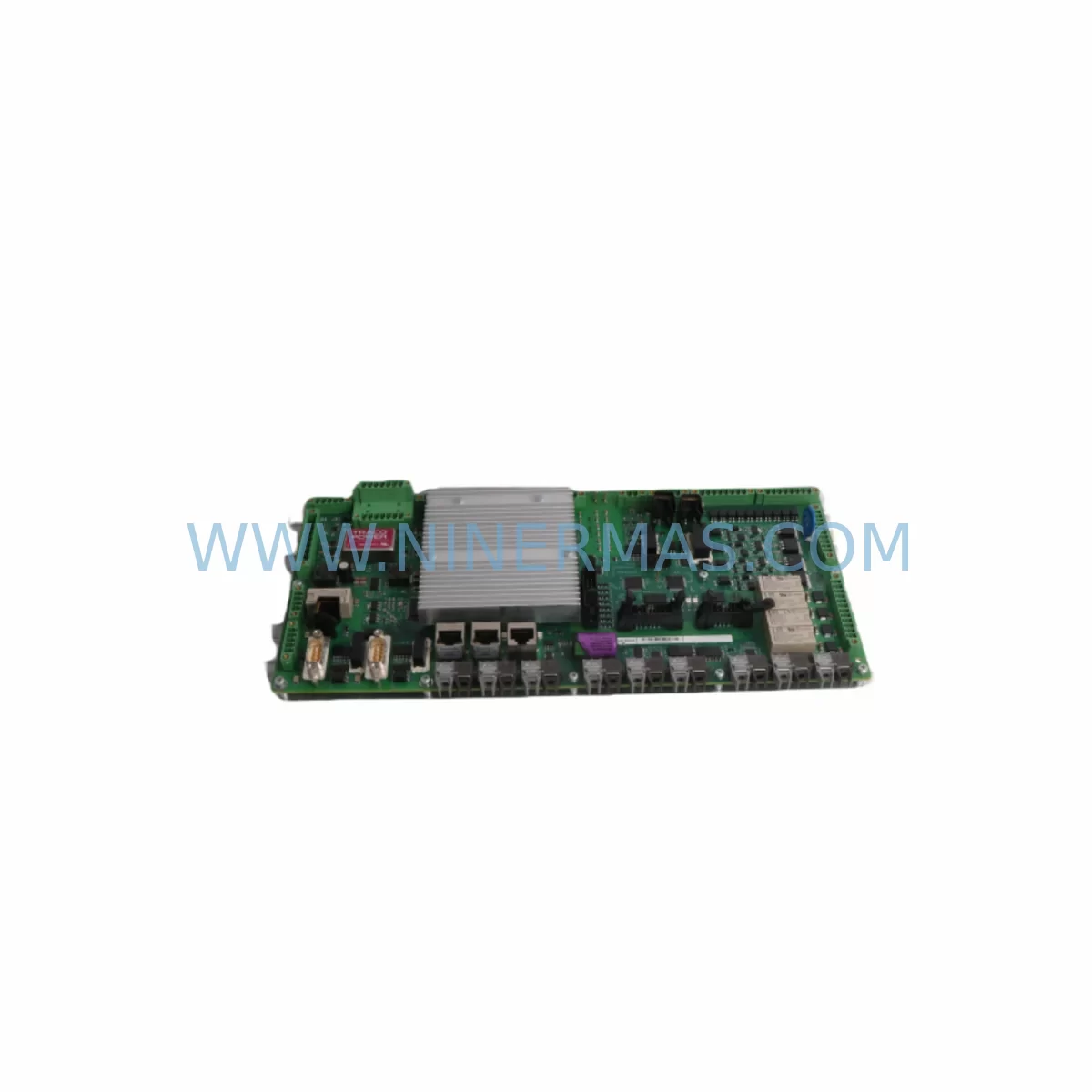

The ABB 3BHE024820R0101 PPD234 A101 is a critical excitation control board used within ABB’s Unitrol exciter series — a platform widely deployed in power generation, heavy industrial drives, and large synchronous machine applications. When this component fails or degrades, the consequences extend far beyond a single board: uncontrolled excitation loss can trigger generator trips, cascade protection faults, and extended unplanned downtime that disrupts entire production lines or power supply systems.

At NINERMAS, we maintain verified service-ready stock of the 3BHE024820R0101 PPD234 A101 to support maintenance engineers and procurement teams who cannot afford delays. Every unit undergoes pre-shipment functional inspection, and all orders are backed by a 12-month warranty. Whether you are responding to an emergency shutdown, executing a planned annual overhaul, or building a strategic spare parts inventory, this board is available for immediate dispatch.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

Replacing the 3BHE024820R0101 PPD234 A101 in isolation is rarely sufficient for a complete and reliable excitation system restoration. Experienced maintenance engineers understand that this board operates within a tightly coupled electrical environment — and a failure here often signals stress or degradation in adjacent components. A thorough site inspection and proactive replacement strategy should address the full excitation control loop.

When servicing the Unitrol exciter cabinet housing this board, maintenance teams should simultaneously inspect and consider stocking the following related components:

• ABB SDCS-CON-2 / SDCS-CON-4 control boards — the primary control interface for DC drive and excitation regulation; often paired with PPD-series pulse distribution boards in the same cabinet.
• ABB SDCS-POW-1 / SDCS-POW-4 power supply modules — provide regulated DC supply to the control electronics; a degraded power supply can cause intermittent faults that mimic board-level failures.
• ABB SDCS-FEX-2 field excitation modules — directly responsible for field current regulation; should be inspected for thyristor degradation and gate drive integrity whenever the PPD234 board is replaced.
• Pulse transformer assemblies and gate drive cables — the PPD234 A101 distributes firing pulses to thyristor bridges; worn or damaged pulse cables introduce timing errors that can damage both the board and the power bridge.
• ABB Unitrol 5000 / 6000 AVR main processor boards — the upstream controller that issues setpoints to the excitation loop; firmware version compatibility with the replacement PPD234 board should be confirmed before commissioning.
• 24 VDC and 48 VDC auxiliary power supply units — cabinet-level power rails feeding logic circuits; measure rail stability under load before and after board replacement to rule out supply-induced faults.
• I/O interface modules and terminal blocks — signal wiring to feedback circuits (voltage transformers, current transformers, PT/CT inputs) should be inspected for loose terminations, insulation breakdown, or corrosion, particularly in high-humidity or high-vibration environments.
• Protection relay modules (overcurrent, overvoltage, loss-of-excitation) — verify relay setpoints and trip logic remain correctly configured after excitation board replacement to prevent nuisance trips during recommissioning.
• Communication interface modules (PROFIBUS, Modbus, or ABB DDCS fiber optic links) — if the Unitrol system communicates with a DCS or SCADA platform, confirm that communication links are intact and that the replacement board is correctly addressed within the network topology.
• HMI operator panels and local display units — used for parameter monitoring and fault diagnostics; ensure the HMI firmware is compatible with the restored excitation configuration and that alarm histories are reviewed post-replacement.

Building a structured spare parts inventory that covers these interconnected components — rather than stocking only the PPD234 A101 in isolation — significantly reduces mean time to repair (MTTR) and protects against cascading failures during critical production periods. NINERMAS supports procurement engineers in sourcing complete excitation system spare kits, with consistent long-term supply and documented traceability for each component.

Site Replacement Workflow

The 3BHE024820R0101 PPD234 A101 is a direct replacement for the original ABB factory-installed board in compatible Unitrol exciter cabinets. The following workflow is recommended to minimize downtime and ensure a safe, verified restoration:

Step 1 — Pre-Replacement Verification: Before de-energizing the excitation cabinet, record all active parameter settings from the AVR and Unitrol controller (voltage setpoints, PID tuning values, protection thresholds, and communication addresses). Capture a fault log snapshot from the HMI or DCS interface to understand the failure mode that necessitated the replacement.

Step 2 — Safe Isolation: Follow site-specific lockout/tagout (LOTO) procedures. Discharge all capacitor banks and verify zero-energy state on the DC bus before opening the cabinet. The PPD234 A101 board is located within the pulse distribution section of the excitation rack — confirm the correct slot position against the Unitrol cabinet layout drawing before removal.

Step 3 — Physical Replacement: Remove the faulty board by releasing the front panel locking mechanism and carefully disconnecting all ribbon cables and connector blocks. Note the orientation and labeling of each connector before disconnection. Install the replacement 3BHE024820R0101 board, ensuring all connectors are fully seated and locking tabs are engaged. Inspect the board slot for signs of heat damage, contamination, or mechanical stress that may indicate a root cause beyond the board itself.

Step 4 — Parameter Restore and Commissioning: Re-enter all previously recorded parameters into the AVR and Unitrol controller. Perform a no-load excitation test before reconnecting the generator to the grid or load bus. Monitor field current response, voltage regulation accuracy, and protection relay behavior during the initial energization sequence. Confirm that all DCS/SCADA communication links are re-established and that the HMI displays correct operational status.

Step 5 — Post-Replacement Documentation: Record the replacement date, new board serial number, and commissioning test results in the site maintenance management system (CMMS). Update the spare parts inventory to reflect the consumed stock and initiate a replenishment order to maintain minimum buffer levels for future maintenance cycles.

This structured approach — applicable whether replacing an end-of-life board, recovering from an emergency fault, or upgrading an aging Unitrol system — ensures that the restored excitation system meets original performance specifications and that the site is protected against repeat failures.

Spare Parts Support FAQ

Q1: Is the 3BHE024820R0101 PPD234 A101 an original ABB spare part, and how is it tested before shipment?
Yes. NINERMAS supplies original ABB spare parts sourced through verified industrial channels. Each 3BHE024820R0101 PPD234 A101 unit undergoes a pre-shipment functional inspection covering visual integrity, connector condition, and board-level electrical checks. Units that do not meet our quality standards are not dispatched. All shipments include documentation supporting traceability, and every order is covered by a 12-month warranty from the date of shipment.

Q2: Which Unitrol excitation systems are compatible with the 3BHE024820R0101 PPD234 A101?
The PPD234 A101 board is designed for use within ABB’s Unitrol exciter platform, with primary compatibility confirmed for Unitrol 5000 and Unitrol 6000 series excitation systems. It functions as a pulse power distribution board within the thyristor firing circuit. Before installation, maintenance engineers should verify the cabinet revision level and firmware version of the Unitrol AVR controller to ensure full compatibility. If you require compatibility confirmation for a specific system configuration, contact our technical team with your cabinet nameplate data.

Q3: What is the recommended spare parts inventory strategy for Unitrol excitation systems to minimize unplanned downtime?
For sites operating synchronous generators or large industrial drives with ABB Unitrol excitation systems, we recommend maintaining a minimum buffer stock of the 3BHE024820R0101 PPD234 A101 alongside the associated SDCS control board, power supply module, and field excitation module. Excitation system failures are high-impact events — a single unplanned outage can cost far more than the value of a complete spare board set. Annual review of spare parts consumption data, combined with a proactive replacement schedule for boards exceeding 10 years of service, is the most effective strategy for long-term system reliability.

Q4: Can NINERMAS support long-term supply of the 3BHE024820R0101 for multi-site maintenance programs?
Yes. NINERMAS maintains ongoing stock and long-term sourcing relationships to support multi-site industrial maintenance programs. We can provide volume pricing, reserved stock arrangements, and consistent supply for customers managing fleets of Unitrol excitation systems across multiple facilities. All orders — whether single-unit emergency replacements or bulk procurement for annual maintenance contracts — are processed with the same pre-shipment testing standard and 12-month warranty coverage. Contact us at sale@ninermas.com or +0086 187 5021 5667 to discuss your supply requirements.
