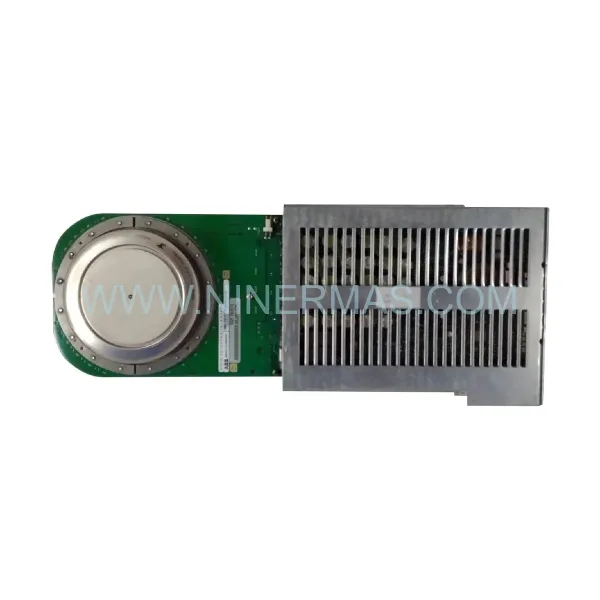

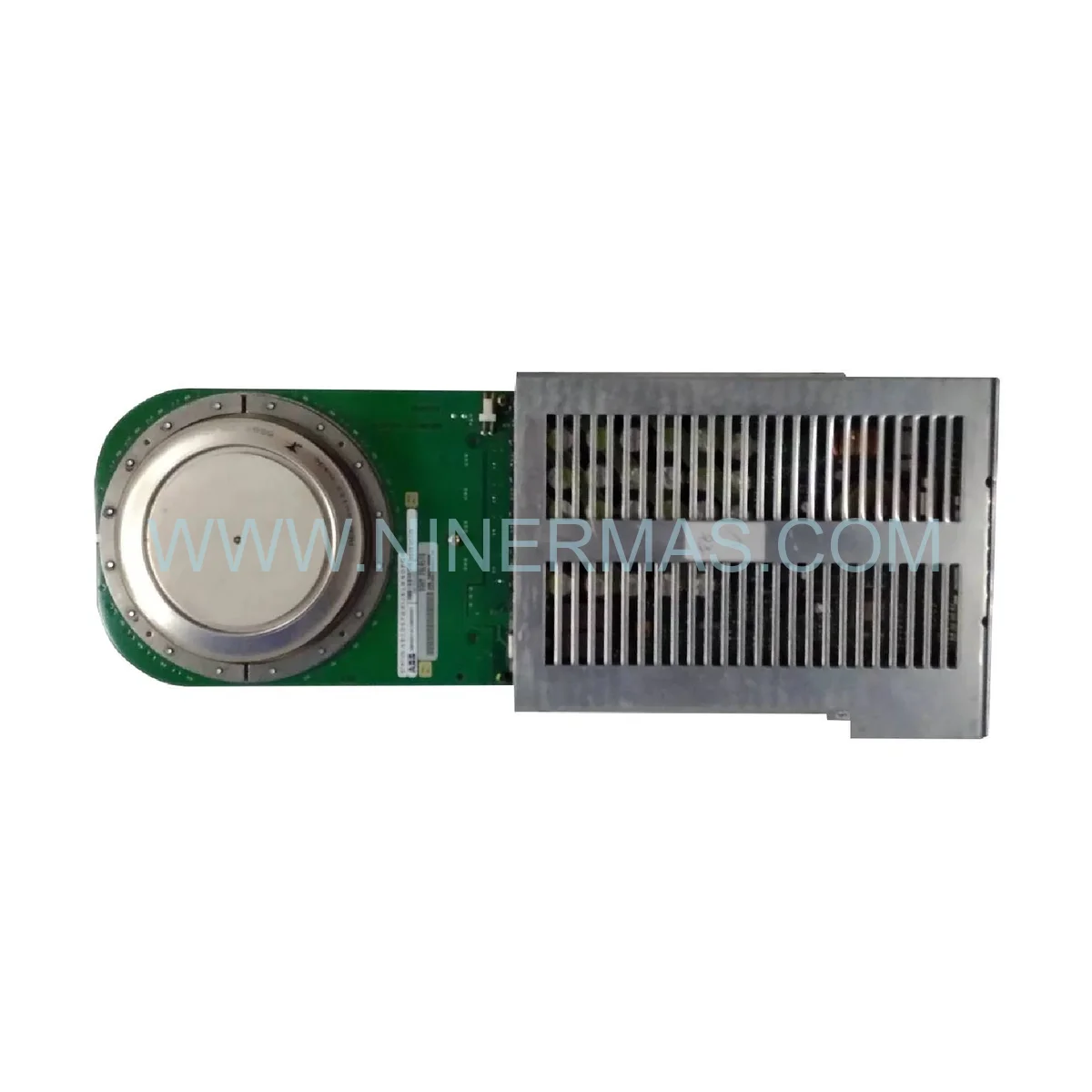

ABB 3BHE014105R0001 IGCT Retrofit & System Upgrade Module

ABB 3BHE014105R0001 – Professional Retrofit & System Upgrade Component

System Modernization & Migration Analysis

As a Retrofit Project Lead overseeing industrial power conversion upgrades, the ABB 3BHE014105R0001 stands out as a cornerstone component for extending the operational lifespan of aging high-power drive and converter infrastructure. Whether you are modernizing a decade-old HVDC station or revitalizing a medium-voltage motor drive system, the ABB 3BHE014105R0001 — integrating the 5SHY3545L0020 IGCT and the matched 5SXE05-0154 gate driver — delivers the switching precision and thermal resilience required to breathe new life into existing power architectures without a full system overhaul.

Legacy systems built around earlier-generation thyristor or GTO topologies often face escalating maintenance costs, diminishing spare parts availability, and widening performance gaps versus modern benchmarks. The 3BHE014105R0001 addresses these challenges head-on: its press-pack construction and double-sided cooling interface are dimensionally compatible with a broad range of legacy converter cabinets, making it a viable Hardware Upgrade path that avoids costly civil and structural modifications. Its gate driver integration further simplifies the migration by reducing external wiring complexity during the Retrofit Solution deployment.

From a migration risk perspective, adopting the 3BHE014105R0001 as a drop-in or near-drop-in replacement dramatically reduces commissioning downtime. The module’s proven 4500V-class voltage rating and high-current switching capability align with the electrical envelopes of most installed medium-voltage converter platforms, enabling a Seamless Integration strategy that protects existing capital investment while delivering measurable Performance Enhancement gains.

Upgrade Highlights & Compatibility

✅ Legacy Compatibility: Press-pack form factor aligns with GTO and early IGCT converter footprints — minimal mechanical rework required.
Performance Enhancement: Conduction losses reduced vs. GTO predecessors; typical system efficiency >98%, translating to lower operating costs.
? Integrated Gate Driver: 5SXE05-0154 included — eliminates third-party driver sourcing risk and ensures factory-matched switching characteristics.
Future-Proofing: 4500V-class rating supports evolving grid voltage standards and expanded load profiles without further hardware changes.
? Thermal Resilience: Double-sided cooling design sustains performance under continuous high-load cycles — critical for 24/7 industrial operations.
Fault Tolerance: Built-in short-circuit protection reduces cascading failure risk during system migration commissioning phases.

Modernization Use Cases & Success Stories

DCS-Integrated Drive Modernization: In steel mill environments where distributed control systems (DCS) govern multi-drive coordination, aging GTO-based medium-voltage drives frequently become the bottleneck for production throughput. Replacing the power semiconductor stack with the 3BHE014105R0001 restores switching speed margins, reduces harmonic distortion fed back to the DCS analog I/O, and enables tighter speed regulation loops — directly improving rolling mill product quality and yield.

Turbine Supervisory Instrumentation (TSI) System Upgrades: Power generation facilities running legacy turbine control and excitation systems often depend on converter modules that are no longer manufactured. The 3BHE014105R0001 serves as a Performance Upgrade anchor in excitation rectifier retrofit projects, where its low turn-off losses translate to reduced thermal stress on adjacent components and extended mean time between failures (MTBF) for the overall excitation chain.

HVDC Converter Station Refurbishment: Long-distance HVDC links commissioned in the 1990s and 2000s face valve group obsolescence. Integrating the 3BHE014105R0001 into valve group refurbishment programs allows operators to achieve System Migration objectives — upgrading switching performance and control bandwidth — while reusing existing valve hall infrastructure, transformers, and protection relay systems.

Wind Farm Converter Retrofit: Offshore and onshore wind turbine converters operating beyond their original design life benefit from the 3BHE014105R0001’s robust press-pack reliability. Its Seamless Integration into existing converter platforms minimizes turbine downtime during the retrofit window, protecting annual energy production targets.

Migration Technical Data Sheet

Supply Chain & Deployment Support

Original & Factory Sealed: Every ABB 3BHE014105R0001 unit is sourced through authorized channels and supplied in original factory packaging with full traceability documentation — critical for regulated industries and quality audit compliance.

Expedited Global Logistics: Recognizing that unplanned outages in retrofit projects carry significant production loss costs, we maintain strategic inventory and offer expedited international shipping to minimize your system downtime window. Export documentation, customs classification support, and DDP delivery options are available upon request.

Technical Support for Obsolete & Legacy Hardware: Our engineering team provides pre-shipment compatibility assessments, installation guidance, and post-commissioning technical support specifically tailored to legacy system environments. Whether you are replacing a failed unit under emergency conditions or executing a planned Hardware Upgrade program, we are equipped to support your retrofit timeline.

Retrofit FAQ — Upgrade Guide

Q1: Is the ABB 3BHE014105R0001 mechanically compatible with older GTO-based converter cabinets?
A: The press-pack construction of the 3BHE014105R0001 shares dimensional characteristics with many legacy GTO and first-generation IGCT press-pack modules. In most cases, the mounting flange pattern, clamping force requirements, and busbar connection geometry are compatible with existing converter cabinet structures. We recommend sharing your existing module datasheet with our technical team for a formal dimensional compatibility assessment before ordering.

Q2: How does the 5SXE05-0154 gate driver communicate with legacy control systems?
A: The 5SXE05-0154 gate driver uses fiber-optic signal interfaces for gate command and status feedback, which are electrically isolated from the power circuit. This interface is compatible with most ABB ACS/ACS6000/PCS6000 control platforms and can be adapted to third-party DCS or PLC control systems via fiber-optic signal converters. Our team can advise on interface adaptation for your specific legacy control architecture.

Q3: What are the cooling infrastructure requirements when retrofitting with the 3BHE014105R0001?
A: The module requires double-sided cooling — either liquid (deionized water) or forced-air depending on your converter design. Thermal resistance specifications are provided in the ABB technical datasheet. In most retrofit scenarios, the existing cooling infrastructure is retained; only the thermal interface material (TIM) between the module and heat sink may need renewal to ensure optimal thermal contact.

Q4: Can the 3BHE014105R0001 serve as a direct replacement for the 5SHY3545L0016 or other 5SHY-series variants?
A: While the 5SHY3545L0020 (within the 3BHE014105R0001) and the 5SHY3545L0016 share the same voltage class and press-pack form factor, they differ in current rating and gate charge characteristics. Direct substitution requires a detailed electrical compatibility review. Contact our technical team with your system’s rated current, switching frequency, and gate driver specifications for a formal cross-reference analysis.

Q5: What documentation is provided to support the retrofit commissioning process?
A: Each unit ships with the original ABB factory test report, product datasheet, and traceability certificate. Upon request, we can provide application notes covering installation torque specifications, clamping force requirements, and initial commissioning checklists tailored to common retrofit scenarios.

Q6: Is this module suitable for emergency replacement in an unplanned outage situation?
A: Yes. The 3BHE014105R0001 is held in stock for expedited dispatch. For emergency retrofit situations, contact us directly with your system details and required delivery location — we will prioritize shipment and provide remote technical support to minimize your production downtime.
