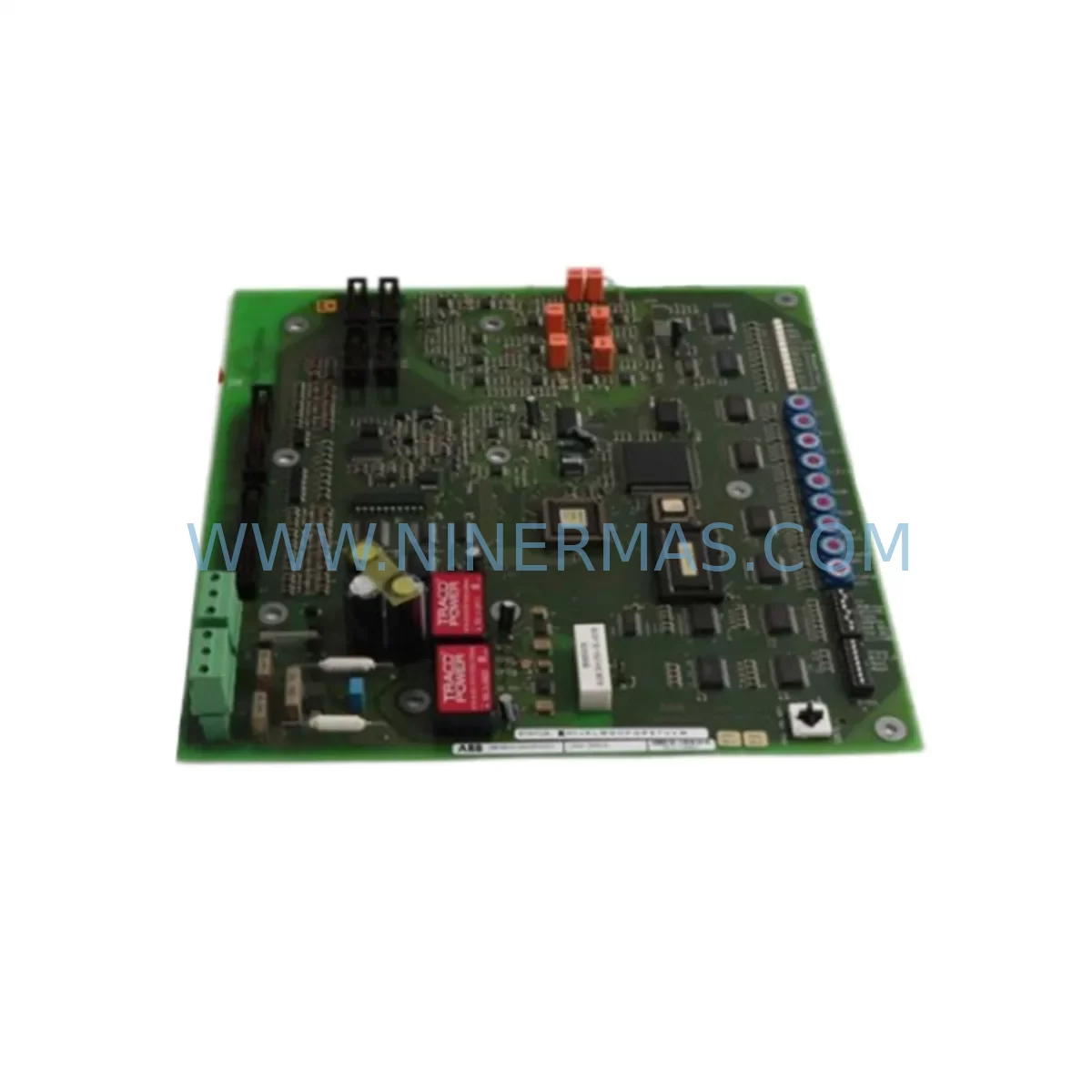

ABB 3BHE014023R0101 UFC789 AE101 Spare Part

ABB 3BHE014023R0101 UFC789 AE101 Spare Part: Reliable Replacement for Industrial Maintenance

The ABB 3BHE014023R0101 UFC789 AE101 is a critical control processor module designed for ABB’s high-performance UFC series automation platforms, widely deployed in power generation, petrochemical refining, metallurgical processing, and continuous manufacturing environments. When this module fails or degrades, the consequences extend far beyond a single cabinet — entire production lines, safety interlocks, and process control loops can be compromised. NINERMAS maintains verified stock of the ABB 3BHE014023R0101 UFC789 AE101 to support maintenance engineers and procurement teams who cannot afford extended lead times or unplanned downtime.

For maintenance engineers managing aging ABB AC800M or AC800PEC-based control systems, the UFC789 AE101 processor module is one of the most strategically important spare parts to keep on hand. Its role in coordinating I/O scanning, program execution, and communication bus management means that any degradation — whether from thermal cycling, capacitor aging, or firmware corruption — can manifest as erratic PID loop behavior, communication timeouts, or complete controller failure. Proactive replacement during scheduled shutdowns is far preferable to emergency sourcing during a production crisis.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

Replacing the ABB 3BHE014023R0101 UFC789 AE101 in a live control cabinet is rarely an isolated task. Experienced maintenance engineers know that when a processor module shows signs of failure — intermittent watchdog resets, communication dropouts on the PROFIBUS DP segment, or unexplained I/O scan delays — the surrounding components deserve equal scrutiny. Before completing the replacement, it is advisable to inspect the ABB S800 I/O modules connected to the same backplane, particularly AI810 analog input modules and DO810 digital output modules, which can develop contact oxidation or calibration drift that masks the true source of process anomalies.

The 24 VDC backplane power supply feeding the UFC789 AE101 should be load-tested and its output ripple measured; a degraded ABB SD802 or SD803 power supply module can cause processor resets that are incorrectly attributed to the CPU itself. Similarly, the CI854 PROFIBUS communication interface module and any CI840 PROFIBUS DP slave adapters in the rack should be checked for firmware version compatibility and connector integrity before the new 3BHE014023R0101 is commissioned.

For systems using ABB’s Freelance or Symphony Plus DCS architecture alongside the UFC series, the AF100 fieldbus interface modules and the TB820 ModuleBus modem modules are common co-failure components worth inspecting during the same maintenance window. Terminal blocks and wiring ferrules on the I/O marshalling panels should also be torqued to specification, as loose connections in high-vibration environments can generate spurious signals that stress the new processor module from day one.

Procurement engineers sourcing the ABB 3BHE014023R0101 UFC789 AE101 should also consider holding one additional unit as a cold standby spare, particularly in facilities where the UFC series controller manages safety-critical loops such as emergency shutdown (ESD) sequences, burner management, or compressor anti-surge control. The cost of a single unplanned shutdown in a petrochemical or power plant environment typically exceeds the value of an entire spare parts inventory many times over.

Site Replacement Workflow

Replacing the ABB 3BHE014023R0101 UFC789 AE101 follows a structured workflow that minimizes system exposure time and reduces the risk of configuration loss. The process begins with a full backup of the controller application program, hardware configuration, and communication parameters using ABB’s Control Builder M or Control Builder Plus engineering software. This backup should be stored on an isolated engineering workstation and verified before any hardware is disturbed.

With the backup confirmed, the controller should be placed in STOP mode and the backplane power isolated. The UFC789 AE101 module is extracted from its slot using the standard ABB module release mechanism, taking care to note the slot position and any jumper or DIP switch settings on the outgoing module. The replacement 3BHE014023R0101 should be inspected for physical damage, firmware label, and hardware revision compatibility before insertion.

After seating the new module, power is restored and the controller is allowed to complete its self-test sequence. The application program is then downloaded from the engineering workstation, and I/O channel verification is performed loop by loop before the controller is returned to AUTO mode. This systematic approach — rather than a rushed hot-swap — ensures that the replacement does not introduce new faults and that the system is returned to full operational status with documented evidence of successful commissioning.

For older installations where the UFC789 AE101 has been in service for more than seven years, this replacement window is also an appropriate time to evaluate whether adjacent modules — including the CI854 communication interface, the SD802 power supply, and any AI810 or AO810 analog I/O modules — should be replaced preventively rather than reactively. NINERMAS can supply these components as a coordinated spare parts package, reducing the number of separate procurement transactions and ensuring all parts arrive together before the maintenance window begins.

Spare Parts Support FAQ

Q1: What is the warranty coverage for the ABB 3BHE014023R0101 UFC789 AE101 supplied by NINERMAS?
All units supplied by NINERMAS carry a 12-month warranty from the date of shipment. Each module undergoes functional testing and inspection prior to dispatch. If a unit fails within the warranty period under normal operating conditions, NINERMAS will arrange replacement or repair at no additional cost to the customer.

Q2: How do I verify compatibility between the 3BHE014023R0101 and my existing UFC series controller rack?
Compatibility is determined by the hardware revision of the UFC789 AE101 module and the firmware version of the controller rack. NINERMAS technical support can assist with compatibility verification if you provide your existing module’s hardware revision label and the ABB Control Builder project version. In most cases, the 3BHE014023R0101 is a direct drop-in replacement for earlier UFC789 revisions without requiring firmware changes.

Q3: Can NINERMAS guarantee long-term supply of the ABB 3BHE014023R0101 for multi-year maintenance contracts?
Yes. NINERMAS maintains strategic inventory of ABB UFC series modules, including the 3BHE014023R0101 UFC789 AE101, to support customers with long-term maintenance agreements. For facilities requiring guaranteed availability over a 2–5 year horizon, NINERMAS can arrange reserved stock allocations with agreed pricing and delivery lead times, reducing procurement risk for critical spare parts.

Q4: What pre-shipment testing does NINERMAS perform on the UFC789 AE101 before delivery?
Each ABB 3BHE014023R0101 UFC789 AE101 unit is powered up and subjected to functional verification testing before shipment. This includes backplane communication checks, self-diagnostic pass confirmation, and visual inspection for component condition. Units are packed in anti-static bags with protective foam inserts to prevent transit damage. A test report is available upon request for quality-critical procurement processes.
