ABB 3AXD50000037997P/ZINT-571 Service-Ready Spare Part: Minimizing Downtime Risk in Industrial Drive Systems

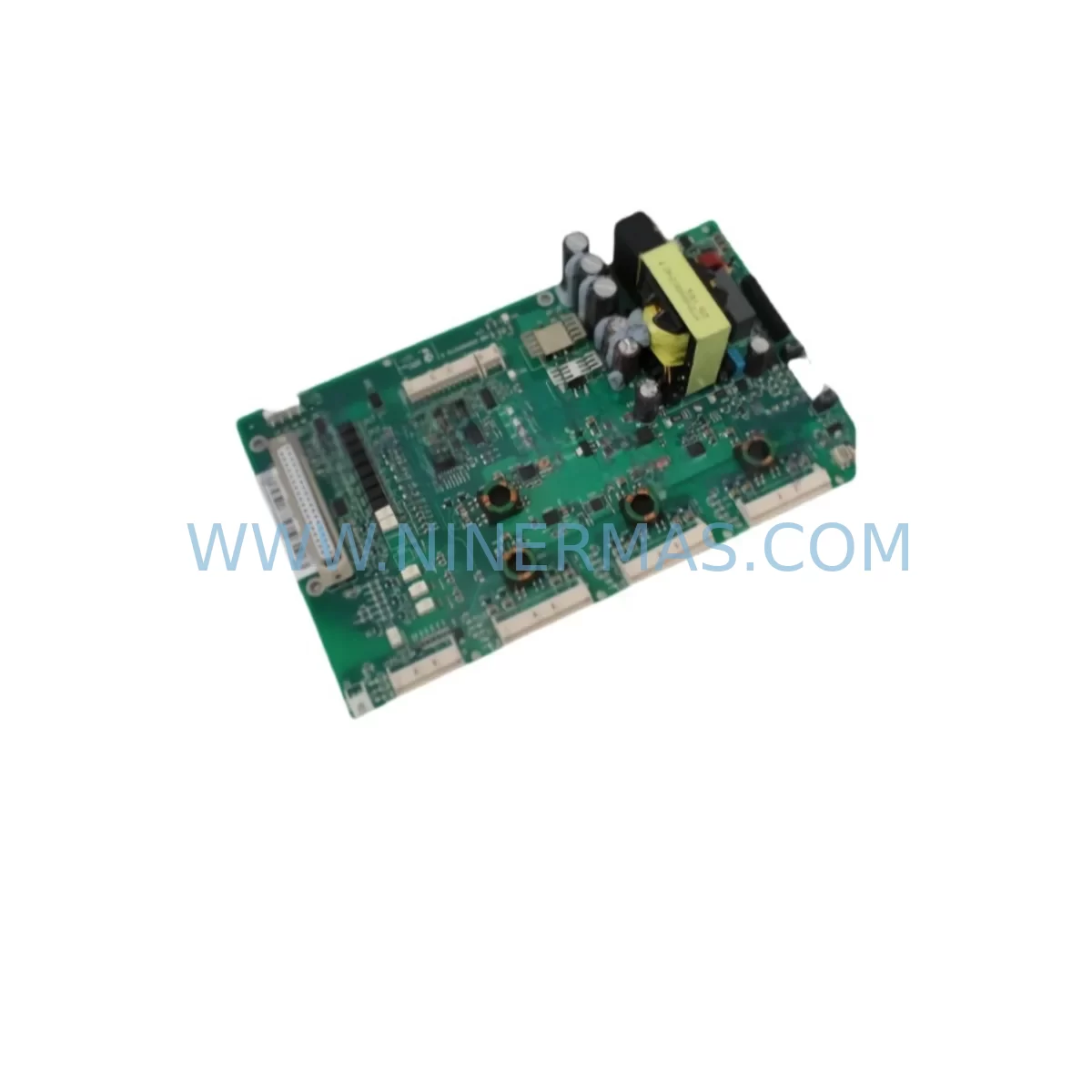

The ABB 3AXD50000037997P/ZINT-571 is an original interface board designed for ABB ACS880 series industrial drives, serving as a critical communication and signal routing component within the drive control architecture. For maintenance engineers managing high-availability production lines, having a verified, service-ready spare of the ZINT-571 on hand is one of the most effective strategies to eliminate unplanned downtime caused by interface board failure. NINERMAS supplies this part with full functional testing, original packaging verification, and a 12-month warranty, ensuring your replacement unit is ready for immediate installation when the need arises.

In modern industrial automation environments, the interface board within an ACS880 drive unit acts as the nerve center for I/O signal exchange, fieldbus communication, and control feedback loops. A degraded or failed ZINT-571 board can manifest as erratic drive behavior, loss of fieldbus communication, unexplained fault codes, or complete drive shutdown — all of which translate directly into production losses. Proactive spare parts stocking of the 3AXD50000037997P/ZINT-571 is therefore not merely a maintenance best practice; it is a risk management imperative for any facility running ABB ACS880 drives in critical process roles.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When a maintenance or procurement engineer schedules a replacement of the ABB ZINT-571 interface board (3AXD50000037997P), the scope of inspection should extend well beyond the board itself. The ACS880 drive ecosystem is deeply integrated, and a board-level fault is frequently accompanied by — or caused by — degradation in adjacent components. A thorough site inspection during the replacement window should include the following areas:

Power Supply and DC Bus: Verify the ACS880 internal power supply module (APBU or equivalent) is delivering stable DC rail voltages. A fluctuating supply is a common root cause of interface board damage. Inspect the DC bus capacitor bank for bulging or elevated ESR readings, particularly in drives with more than five years of continuous service.

I/O Terminal Blocks and Wiring: Inspect all digital and analog I/O terminal connections on the ZINT-571 and adjacent I/O extension modules such as the AIMA-01 or FIO-11 I/O extension boards. Loose terminals, corroded contacts, or incorrect signal levels can cause repeated interface board failures if not corrected before installing the replacement unit.

Fieldbus Communication Modules: If the ACS880 drive communicates via PROFIBUS, PROFINET, EtherNet/IP, or Modbus TCP, inspect the corresponding fieldbus adapter module (e.g., FPBA-01 PROFIBUS adapter, FENA-21 Ethernet adapter) for firmware compatibility with the replacement ZINT-571 board. A firmware mismatch between the interface board and the fieldbus adapter is a frequently overlooked cause of post-replacement communication faults.

Control Panel and HMI: Confirm that the ACS-AP-I or ACS-AP-W control panel is reading drive parameters correctly after board replacement. If the panel displays parameter loss or communication errors, a panel firmware update or parameter restore from backup may be required.

Relay Output and Signal Isolation: Check relay output modules and any signal isolators connected to the drive’s digital output chain. Relay contacts that have experienced excessive switching cycles may exhibit contact resistance that interferes with the new interface board’s output signal integrity. Signal isolators in the 4–20 mA analog loop should also be verified for calibration drift.

Fuses and Circuit Protection: Inspect all control circuit fuses, particularly those protecting the 24 VDC control supply to the ZINT-571 board. A blown or weakened fuse is often the first indicator of a transient overcurrent event that may have damaged the original board.

Backplane and Drive Frame: Examine the ACS880 drive frame backplane connector for bent pins, oxidation, or mechanical damage. A damaged backplane connector will cause intermittent faults on the replacement board and is a common source of misdiagnosis in the field.

Encoder and Feedback Cables: If the drive is operating in closed-loop speed or torque control, inspect the encoder interface module (e.g., FEN-31 HTL/TTL encoder interface) and associated feedback cables for shielding integrity and connector seating. Poor encoder signal quality can generate fault codes that are incorrectly attributed to the interface board.

By addressing these surrounding components during the ZINT-571 replacement, maintenance teams can significantly reduce the risk of repeat failures and maximize the service life of the replacement board.

Site Replacement Workflow

Step 1 — Pre-Replacement Preparation: Before powering down the drive, record all active parameter sets using the ACS-AP panel or DriveComposer PC tool. Back up the parameter file to a USB drive or engineering laptop. Confirm the replacement 3AXD50000037997P/ZINT-571 board firmware version is compatible with the drive’s current software revision. If a firmware update is required, prepare the update file in advance to avoid extending the maintenance window.

Step 2 — Safe Isolation: Follow the ACS880 lockout/tagout procedure. Discharge the DC bus fully (minimum 5 minutes after power-off, or verify with a calibrated DC voltmeter that bus voltage is below 50 VDC) before opening the drive cabinet. Failure to observe this step creates a serious electrical hazard.

Step 3 — Board Removal and Installation: Carefully disconnect all ribbon cables, I/O connectors, and fieldbus adapter connections from the existing ZINT-571 board. Note the connector positions with photographs before removal. Install the replacement 3AXD50000037997P board, ensuring all connectors are fully seated and locking tabs are engaged. Reconnect the fieldbus adapter and I/O extension modules in the original configuration.

Step 4 — Parameter Restore and Commissioning: Power up the drive and restore the parameter backup via the ACS-AP panel or DriveComposer. Verify that all I/O signals, fieldbus communication, and encoder feedback are functioning correctly before returning the drive to production. Run a no-load test cycle to confirm drive response before reconnecting the mechanical load.

Step 5 — Documentation and Spare Stock Update: Record the replacement in the maintenance log, including the date, replaced part number, drive serial number, and post-replacement test results. Update the spare parts inventory to reorder a replacement ZINT-571 board, maintaining at least one unit in stock for each critical drive in the facility.

This workflow is applicable to all ACS880 single drive, multidrive, and regenerative drive configurations where the ZINT-571 interface board is installed. The same procedure applies when upgrading from an older interface board revision to the current 3AXD50000037997P variant, ensuring backward compatibility and system continuity.

Spare Parts Support FAQ

Q1: Is the ABB 3AXD50000037997P/ZINT-571 compatible with all ACS880 drive variants?
The ZINT-571 interface board is designed for the ABB ACS880 series and is compatible with the majority of ACS880 single drive and multidrive cabinet configurations. Compatibility depends on the drive’s hardware revision and firmware version. NINERMAS recommends providing your drive’s full nameplate data (type code, serial number, and firmware version) when placing an order so our technical team can confirm compatibility before shipment. This eliminates the risk of receiving an incompatible board revision.

Q2: What pre-shipment testing does NINERMAS perform on the 3AXD50000037997P/ZINT-571?
Every unit undergoes a full functional inspection prior to dispatch, including visual inspection for physical damage, connector integrity check, and continuity testing of all signal paths. Units are shipped in anti-static packaging with original ABB labeling where available. A 12-month warranty covers manufacturing defects and functional failure under normal operating conditions from the date of delivery.

Q3: Can NINERMAS support long-term or blanket purchase orders for the ZINT-571 board?
Yes. NINERMAS offers long-term supply agreements for maintenance teams and procurement engineers who require guaranteed stock availability for critical spare parts. This is particularly valuable for facilities operating multiple ACS880 drives or managing aging drive fleets where OEM supply lead times are unpredictable. Contact our sales team at sale@ninermas.com to discuss volume pricing and scheduled delivery arrangements.

Q4: What should I do if the replacement ZINT-571 board does not resolve the original drive fault?
If installing the 3AXD50000037997P/ZINT-571 does not clear the fault, the root cause is likely in an adjacent component rather than the interface board itself. Common culprits include a degraded internal power supply module, a damaged backplane connector, a firmware incompatibility with the fieldbus adapter, or a wiring fault on the I/O terminal block. NINERMAS technical support can assist with fault diagnosis remotely. Contact us at sale@ninermas.com or +0086 187 5021 5667 with the drive fault code history and a description of the symptoms for guided troubleshooting.
