ABB 3AUA0000043722/RDCU-12C Service-Ready Spare Part

ABB 3AUA0000043722/RDCU-12C Service-Ready Spare Part for Industrial Maintenance

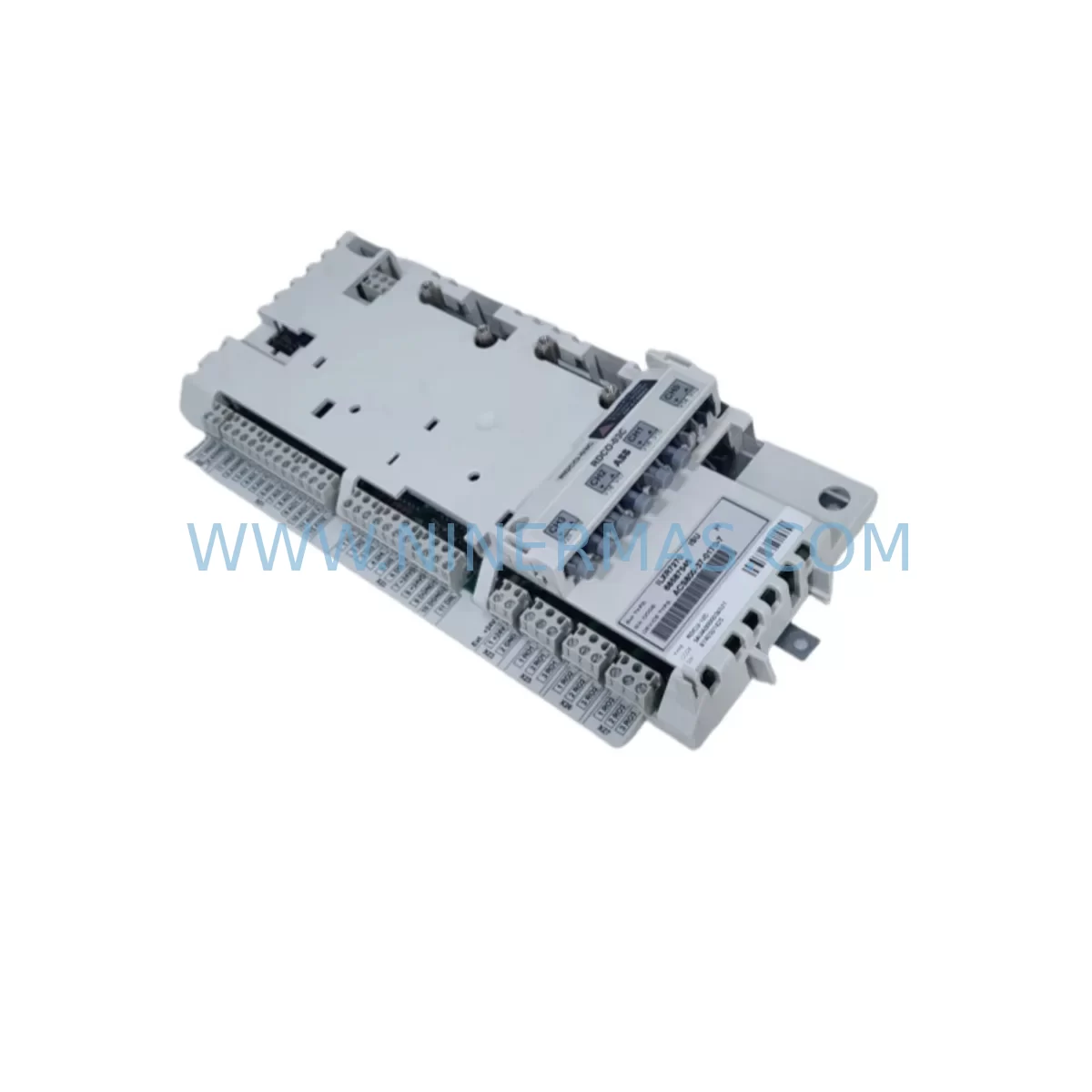

The ABB 3AUA0000043722/RDCU-12C is a Drive Control Unit (DCU) designed for the ACS880 series of industrial AC drives. As a core intelligence module governing drive logic, speed reference processing, fieldbus communication, and I/O coordination, this control unit is one of the most critical components in any ACS880-based automation system. When this unit fails or degrades, the entire drive becomes inoperable — making rapid, verified replacement essential to minimizing unplanned downtime and protecting production continuity.

At NINERMAS, we supply the RDCU-12C as a service-ready spare part, fully tested prior to shipment and backed by a 12-month warranty. Whether you are responding to an emergency fault, executing a planned annual overhaul, or building a strategic spare parts inventory for a multi-drive installation, this unit is available for immediate dispatch.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

Replacing the RDCU-12C control unit is rarely an isolated task. In practice, maintenance engineers working on ACS880 drives encounter this module during fault investigations triggered by communication loss, parameter corruption, or drive trip events that cannot be cleared by standard reset procedures. When the RDCU-12C is identified as the root cause, a structured replacement workflow should also include inspection and potential replacement of adjacent components to prevent repeat failures and ensure full system restoration.

The APBU-44C or APBU-12C branching unit, which distributes DDCS fiber optic signals between the RDCU-12C and inverter modules, should be inspected for fiber connector contamination and signal integrity. A degraded branching unit can cause intermittent communication faults that mimic RDCU-12C failure. Similarly, the AINT-02C inverter control interface board connects the control unit to the power stage — any damage here will prevent the replacement RDCU-12C from communicating correctly with the inverter.

On the power supply side, the APOW-01C auxiliary power supply module provides the 24 VDC rail that feeds the RDCU-12C. If this supply has been operating under marginal conditions — evidenced by voltage ripple or thermal stress — it should be replaced concurrently to protect the new control unit. Procurement engineers should also consider stocking the AIMA-01C inverter module as part of the same spare parts order, particularly in high-utilization installations where the inverter stage is subject to thermal cycling.

For installations using fieldbus communication, the FPBA-01 PROFIBUS adapter or FENA-21 EtherNet/IP adapter modules mounted on the RDCU-12C option slots should be removed carefully during replacement and inspected for connector wear. These modules retain their own firmware and configuration, but their physical connectors are a common point of failure in high-vibration environments. If the drive cabinet includes an ACH580 or ACS580 unit in the same electrical panel, cross-referencing the spare parts list for those drives is advisable, as some I/O expansion modules such as the RDIO-01 digital I/O module are shared across product families.

Terminal block integrity on the control wiring side — particularly the X1 and X2 connector rows interfacing with the RDCU-12C — should be verified for secure seating and absence of oxidation. In older installations, the RDCO-04C DDCS communication option module may also be present and should be tested independently before concluding that the control unit itself is the failed component. Fuse inspection on the 24 VDC auxiliary circuit, along with a review of the drive’s fault history log via the ACS880 control panel (ACS-AP-I), provides essential diagnostic context before and after replacement.

Site Replacement Workflow

Before removing the 3AUA0000043722/RDCU-12C, ensure the drive is fully de-energized and that the DC bus has discharged to safe levels — typically below 50 VDC as confirmed by a calibrated multimeter. Document the existing parameter set by uploading a full parameter backup to the ACS-AP-I control panel or via Drive Composer PC tool. This backup is critical: the replacement RDCU-12C ships without application-specific parameters and must be restored to match the original drive configuration.

Disconnect all fiber optic DDCS cables, fieldbus adapter modules, and the 24 VDC power connector before extracting the control unit. The RDCU-12C is secured by a locking lever mechanism — release it carefully to avoid damaging the backplane connector. Insert the replacement unit, reconnect all cables in reverse order, and restore power to the auxiliary 24 VDC circuit before applying main power. Perform a parameter restore from the saved backup, verify I/O mapping, confirm fieldbus node address settings, and execute a no-load test run before returning the drive to production service.

This workflow reduces mean time to repair (MTTR) significantly compared to ad-hoc replacement procedures and ensures that the restored drive meets the same operational specification as before the fault. For sites managing multiple ACS880 units, maintaining one RDCU-12C per drive frame size in the on-site spare parts cabinet is the recommended inventory strategy to eliminate lead-time dependency during emergency events.

Spare Parts Support FAQ

Q1: Is the 3AUA0000043722/RDCU-12C compatible with all ACS880 frame sizes?
The RDCU-12C is the standard control unit for the ACS880 single drive series across multiple frame sizes. Compatibility depends on the specific drive variant and firmware revision. We recommend confirming the drive’s type designation plate and existing control unit part number before ordering. Our technical team can assist with compatibility verification prior to shipment.

Q2: How is the unit tested before shipment?
Each RDCU-12C unit undergoes functional verification at our facility before dispatch. This includes power-on self-test confirmation, communication interface checks, and visual inspection for physical damage. A test report is available upon request. The 12-month warranty covers manufacturing defects and functional failures under normal operating conditions.

Q3: Can you supply this part on a long-term or recurring basis?
Yes. NINERMAS maintains stock of ACS880 series spare parts including the RDCU-12C and associated modules. For customers managing large drive fleets or executing multi-year maintenance contracts, we offer long-term supply agreements with reserved stock allocation. Contact our sales team to discuss volume pricing and scheduled delivery arrangements.

Q4: What is your lead time and shipping policy?
In-stock units are typically dispatched within 1–3 business days. Express shipping options are available for emergency maintenance situations. All units are packaged in anti-static, shock-protected packaging suitable for international freight. Import documentation and commercial invoices are provided as standard.
