ABB 1SBP260010R1001 | AC31 07KR51 Retrofit & System Upgrade PLC

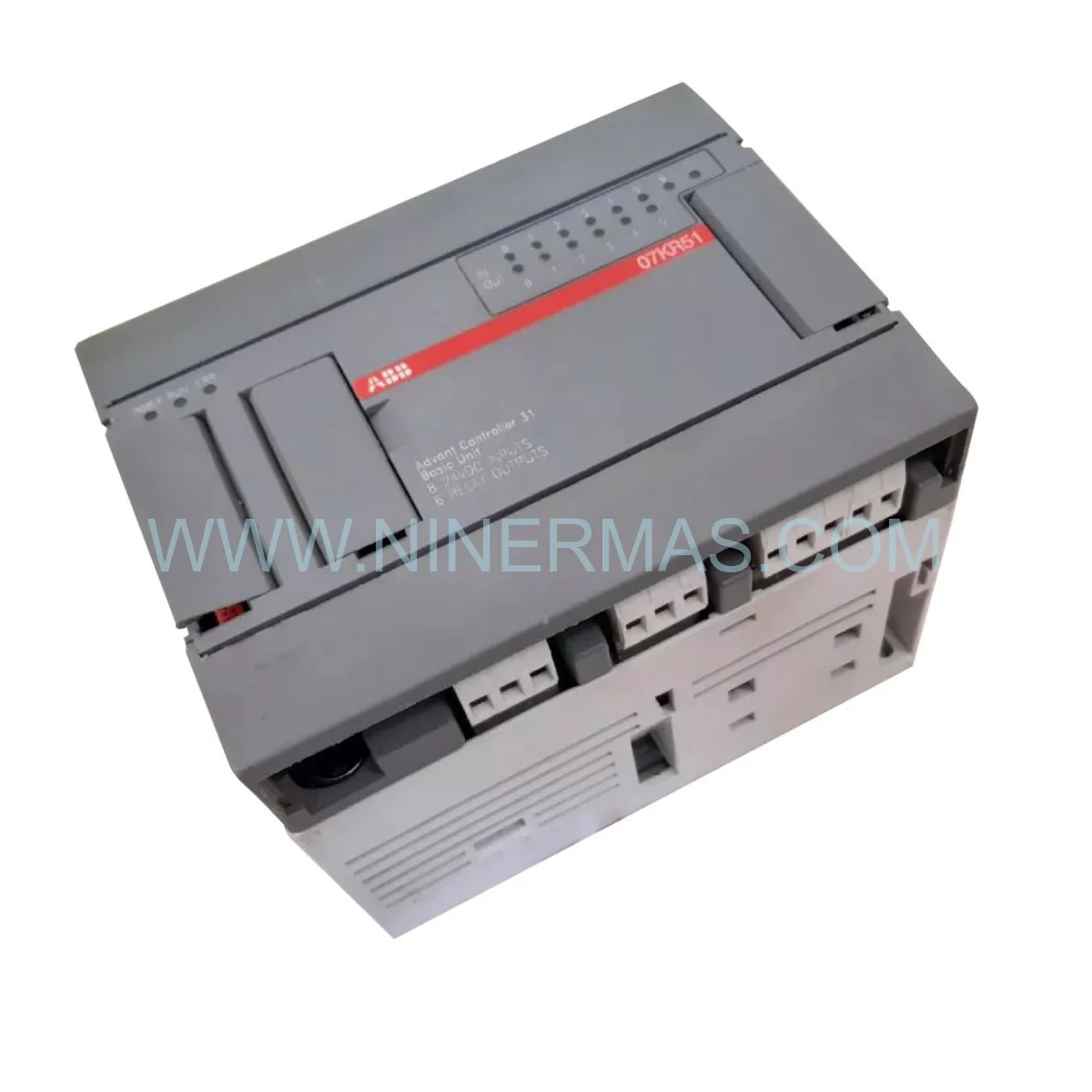

ABB 1SBP260010R1001 – Professional Retrofit & System Upgrade Component

System Modernization & Migration Analysis

As a Retrofit Project Lead overseeing industrial control system upgrades across global manufacturing and energy facilities, the ABB 1SBP260010R1001 consistently proves its value as a cornerstone hardware component in system modernization initiatives. This Swiss-engineered AC31 series PLC module delivers the processing reliability and I/O flexibility required to breathe new life into aging automation infrastructures — extending equipment service life while measurably improving throughput, diagnostics, and operational efficiency. Whether deployed as a direct replacement in a degraded control cabinet or integrated as part of a phased DCS migration, the ABB 1SBP260010R1001 provides the performance headroom that legacy controllers simply cannot offer.

One of the most compelling advantages of this module in retrofit scenarios is its backward compatibility with the broader AC31 I/O ecosystem. Existing field wiring, terminal blocks, and expansion modules can often be retained without modification, dramatically reducing the scope — and cost — of a migration project. The 07KR51 architecture supports IEC 61131-3 programming languages, enabling engineering teams to port legacy ladder logic or function block programs with minimal rework, preserving institutional knowledge while modernizing the control layer.

From a risk management perspective, deploying the 1SBP260010R1001 as a retrofit solution significantly lowers migration risk compared to full platform replacements. Phased implementation is straightforward: the module can be commissioned in parallel with existing hardware, validated under live process conditions, and cut over during a planned maintenance window — minimizing unplanned downtime and protecting production continuity throughout the transition.

Upgrade Highlights & Compatibility

✅ Seamless Integration: Direct drop-in compatibility with AC31 I/O expansion modules — retain existing field wiring and reduce retrofit labor costs by up to 40%.

Performance Enhancement: Faster scan cycle times and improved diagnostic resolution versus first-generation AC31 controllers, enabling tighter process control loops.

✅ Legacy Compatibility: Supports Modbus RTU and proprietary AC31 communication protocols — bridges legacy field devices to modern SCADA and HMI platforms without protocol converters.

Future-Proofing: IEC 61131-3 compliant programming environment ensures long-term supportability and eases eventual migration to ABB System 800xA or AC800M platforms.

✅ Hardware Upgrade Path: Modular architecture supports incremental I/O expansion — scale from 8DI/6DO baseline to complex multi-zone automation without controller replacement.

Rugged Reliability: Conformal-coated PCB rated for 0°C to +55°C operation; IP20 panel-mount design suits harsh factory floor and substation environments.

Modernization Use Cases & Success Stories

DCS Modernization — Chemical Processing Plant: A regional chemical manufacturer replaced 12 aging first-generation AC31 nodes with 1SBP260010R1001 modules across their distributed control network. By retaining existing I/O wiring and migrating ladder logic programs, the project was completed 35% under budget. The retrofit delivered a 22% improvement in alarm response latency and eliminated chronic communication dropouts that had plagued the legacy system for years.

Turbine Supervisory Instrumentation (TSI) Upgrade — Power Generation: A combined-cycle power plant integrated the 1SBP260010R1001 into their turbine monitoring and protection logic as part of a phased TSI modernization. The module’s relay output capability directly interfaced with existing trip relay panels, eliminating the need for intermediate signal conditioning hardware. Commissioning was completed during a scheduled outage window with zero unplanned extensions.

Building Automation Retrofit — Commercial Real Estate: A facilities management team standardized on the 1SBP260010R1001 for HVAC and lighting control upgrades across a portfolio of commercial properties. The module’s compact DIN-rail form factor fit existing panel enclosures without modification, and Modbus RTU connectivity enabled seamless integration with the building’s upgraded BMS platform.

Water Infrastructure Upgrade — Municipal Utility: A municipal water authority deployed 1SBP260010R1001 units at remote pump stations as part of a SCADA modernization program. The module’s wide operating temperature range and conformal coating ensured reliable operation in unheated field enclosures, while its distributed intelligence architecture reduced polling load on the central SCADA server.

Migration Technical Data Sheet

| Feature / Property | Upgrade Value | |—|—| | **Full Model Number** | ABB 1SBP260010R1001 (07KR51) | | **Product Series** | AC31 Advant Controller | | **Manufacturer** | ABB Switzerland | | **Lifecycle Status** | Active / Available for Retrofit Supply | | **Digital Inputs** | 8 channels, 24VDC, optically isolated | | **Relay Outputs** | 6 channels, 250VAC/5A, normally open | | **Power Supply** | 24VDC nominal (18-30VDC range) | | **Current Consumption** | 150mA typical | | **Operating Temperature** | 0°C to +55°C | | **Storage Temperature** | -25°C to +70°C | | **Protection Rating** | IP20 (panel mount) | | **Mounting** | 35mm DIN rail or panel mount | | **Programming Standard** | IEC 61131-3 (LD, FBD, ST) | | **Communication Protocols** | Modbus RTU, AC31 proprietary | | **User Program Memory** | 16KB | | **Data Memory** | 8KB | | **Weight** | 0.92 kg | | **Certifications** | CE, UL, cUL | | **Country of Origin** | Switzerland | | **Retrofit Compatibility** | AC31 I/O expansion modules, legacy field wiring | | **Warranty** | 12 months |

Supply Chain & Deployment Support

Original & Factory Sealed Stock: All 1SBP260010R1001 units are sourced as genuine ABB components — original packaging, factory-sealed, with full traceability documentation available upon request. No refurbished or counterfeit risk.

Expedited Global Logistics: Priority shipping available to support urgent retrofit and emergency replacement requirements. We maintain ready stock to support unplanned outage recovery and time-critical commissioning schedules across North America, Europe, Asia-Pacific, and the Middle East.

Technical Support for Legacy & Obsolete Hardware: Our engineering support team specializes in AC31 platform migrations. We provide application guidance for program porting, I/O compatibility verification, and communication protocol mapping — reducing your internal engineering burden during retrofit projects.

Documentation Package: Datasheet, wiring diagrams, and IEC 61131-3 programming reference available. Custom integration documentation can be prepared for large-volume retrofit programs.

Retrofit FAQ (Upgrade Guide)

Q1: Will the 1SBP260010R1001 fit in the same panel space as my existing AC31 controller?
A: The 07KR51 module uses a standard DIN-rail form factor consistent with the AC31 product family. In most retrofit scenarios, the physical footprint is identical or smaller than first-generation AC31 units, allowing direct installation in existing panel enclosures without mechanical modification. Always verify DIN rail spacing and terminal block clearance against your specific enclosure layout before ordering.

Q2: Can the 1SBP260010R1001 communicate with my existing legacy field devices and SCADA system simultaneously?
A: Yes. The module supports Modbus RTU for field device communication and AC31 proprietary protocols for integration with supervisory systems. In mixed-protocol environments, a communication gateway or protocol converter may be required to bridge non-standard legacy interfaces. Our technical team can advise on the optimal integration architecture for your specific SCADA platform.

Q3: What is the recommended spare parts strategy for a retrofit using this module?
A: For critical applications, we recommend maintaining a minimum of one hot-spare 1SBP260010R1001 unit per control zone. Given the module’s active availability status, replenishment lead times are typically short — however, for facilities with extended maintenance intervals or remote locations, holding two to three units on-site provides optimal operational resilience.

Q4: Can I migrate my existing ladder logic program to the 1SBP260010R1001 without a full rewrite?
A: In most cases, yes. Programs written for compatible AC31 controllers can be ported to the 07KR51 using ABB’s Control Builder software with minimal modification. The primary considerations are memory capacity (16KB user program, 8KB data) and I/O point mapping. Our team can assist with program compatibility assessment and migration planning as part of our retrofit support service.

Q5: Is the 1SBP260010R1001 suitable as a long-term replacement, or should I plan for a further upgrade to a newer platform?
A: The 1SBP260010R1001 is well-suited for applications where the AC31 I/O infrastructure is being retained and the control requirements fall within the module’s capability envelope. For applications requiring advanced process control, redundancy, or high-speed communication, a migration path to ABB AC800M or System 800xA should be evaluated. We can provide a comparative analysis to help determine the most cost-effective long-term strategy for your facility.

Q6: What documentation is required to verify authenticity of the 1SBP260010R1001 for regulatory compliance purposes?
A: We provide full traceability documentation including manufacturer certificates of conformity, CE/UL certification references, and country of origin declarations (Switzerland). For regulated industries such as nuclear, pharmaceutical, or aerospace, additional factory test records can be requested at the time of order.
