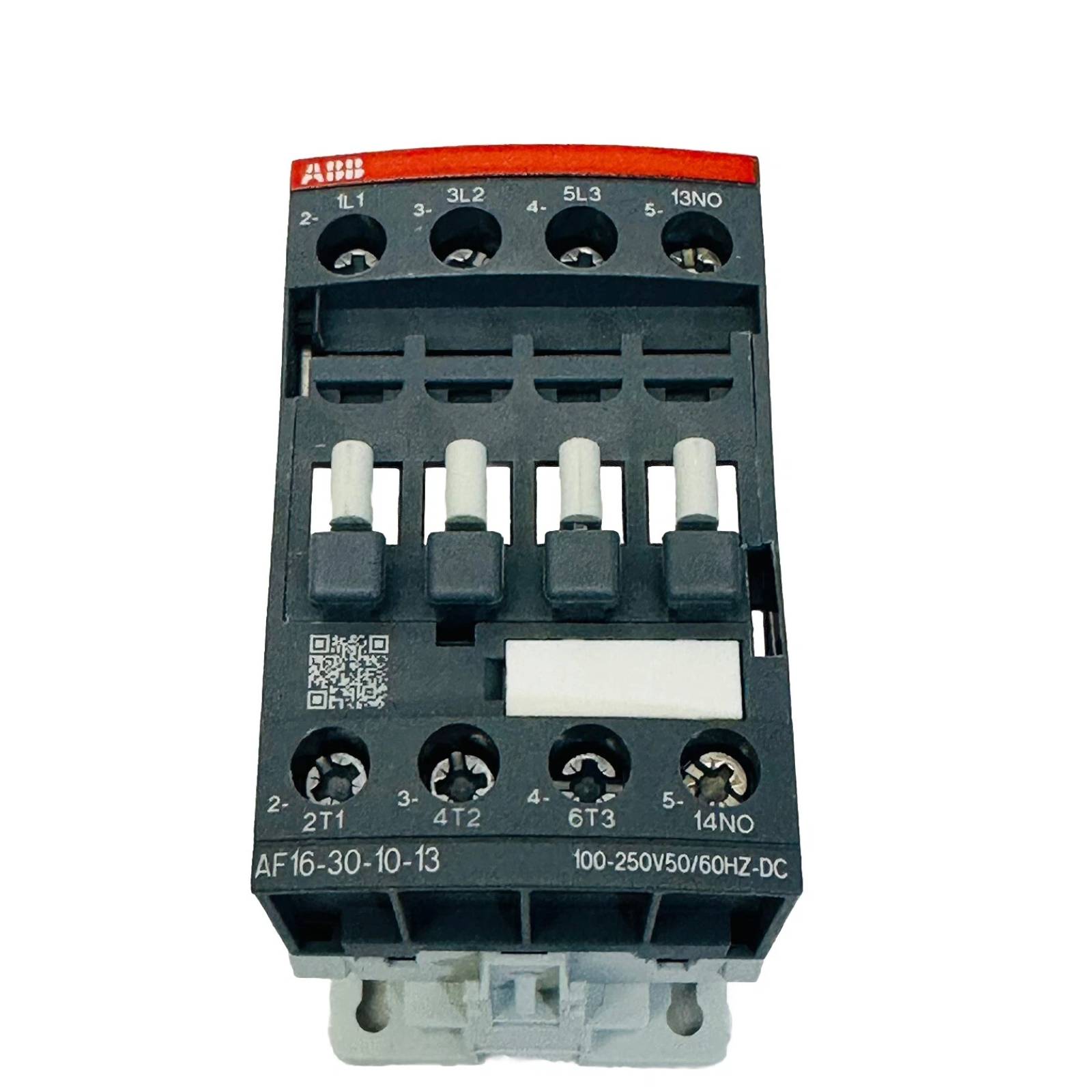

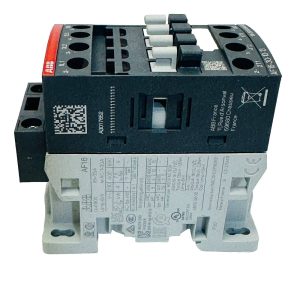

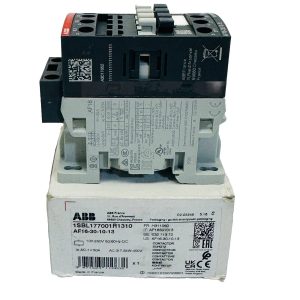

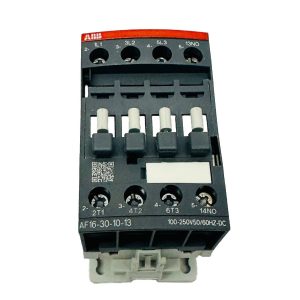

ABB 1SBL177001R1310 AF16-30-10-13 Contactor 16A 3-Pole Original

1SBL177001R1310 — ABB AF16-30-10-13 Contactor | Industrial-Grade 3-Pole Motor Switching

Sourced directly from ABB’s certified supply chain, the 1SBL177001R1310 is a 16A, 3-pole contactor belonging to ABB’s advanced AF series — a benchmark in Industrial Automation and PLC System integration. This unit is 100% Brand New and Factory Sealed, ensuring full traceability and compliance with OEM specifications. Designed for demanding control environments, the 1SBL177001R1310 features ABB’s proprietary electronic coil interface that accepts a wide input range of 24-500V AC/DC, making it one of the most versatile Original Spare Parts available for modern Control Module architectures.

Procurement managers and site engineers working in industries where downtime is not an option rely on this contactor to replace aging components in legacy PLC System panels without redesigning the control circuit. Whether you’re maintaining a Spare Parts inventory for a distributed control network or commissioning a new automation cell, the AF16-30-10-13 delivers the switching reliability and compact footprint that industrial environments demand.

With a mechanical life of 10 million operations and IEC 60947-4-1 certification, this Original New component is engineered to outlast conventional alternatives — backed by our 1-year warranty and fast global logistics.

Technical Specifications & Selection Guide

Selection Tip: The “-13” suffix in AF16-30-10-13 designates the universal electronic coil variant. If your panel operates on a fixed 24V DC or 230V AC bus, this single SKU eliminates the need to stock multiple coil-specific versions — a significant advantage for Spare Parts rationalization programs.

Core Features & Technical Advantages

• Universal Electronic Coil (24-500V AC/DC): A single contactor covers virtually every control voltage scenario — reducing procurement complexity and warehouse SKU count.
• Robust Switching Performance: Rated for 16A continuous duty under AC-3 conditions; handles motor inrush currents without contact welding or premature wear.
• Precision Compact Design: Up to 40% smaller footprint than legacy contactors of equivalent rating — critical for high-density control panels in modern PLC System enclosures.
• Built-in Surge Suppression: Integrated coil protection eliminates the need for external RC snubbers, protecting sensitive Control Module inputs from voltage spikes.
• Tool-Free Auxiliary Expansion: Snap-on CAL/CAF series auxiliary contact blocks allow rapid field expansion without rewiring — ideal for EOL legacy system upgrades.
• Heavy-Duty Mechanical Endurance: 10 million mechanical operations ensure long service intervals even in high-cycle automation environments.
• 100% Original and Brand New: Every unit ships factory sealed with full ABB documentation, supporting E-E-A-T compliance for industrial procurement audits.

Typical Application Scenarios

Oil & Gas Processing Plants: Pump and compressor motor starters in hazardous-area control panels require contactors with proven electrical endurance. The AF16-30-10-13 meets the switching demands of continuous-duty pump motors while its wide coil voltage range accommodates both 24V DC safety circuits and 230V AC control buses found in legacy DCS architectures.

Power Generation & Utilities: Auxiliary motor control centers (MCCs) in power plants demand components with traceable Original New certification. This contactor’s IEC and UL dual certification satisfies both international and North American compliance requirements for critical infrastructure projects.

Automotive & Discrete Manufacturing: High-cycle conveyor systems and robotic welding cells benefit from the AF16’s 2-million electrical operation life under AC-3 duty. Integration with PLC System I/O modules is straightforward via the standard 13-14 auxiliary contact output.

HVAC & Building Automation: Fan coil units, chiller pump starters, and air handling unit (AHU) motor circuits are ideal applications. The universal coil eliminates field wiring errors when replacing contactors across multi-voltage building management systems.

Water & Wastewater Treatment: Submersible pump control panels in remote installations benefit from the AF16’s wide operating temperature range and robust enclosure compatibility, reducing maintenance visits to unmanned pump stations.

Logistics & Professional Service

• ✅ 2-Day Express Shipping Available: Priority air freight options to major global hubs — minimizing production downtime for urgent replacement orders.
• ✅ 1-Year Warranty: Full coverage against manufacturing defects under normal operating conditions, with direct technical support from our ABB-certified team.
• ✅ EOL Legacy System Support: We maintain stock of discontinued and hard-to-source ABB AF series components to support long-lifecycle industrial installations.
• ✅ Full Documentation Package: Original ABB datasheet, CE declaration of conformity, and packing list included with every shipment.
• ✅ Global Export Compliance: Export documentation, country-of-origin certificates (Italy), and HS Code 8536.49 classification available upon request.

FAQ — Frequently Asked Questions

Q: What is the price of the ABB 1SBL177001R1310 and do you offer volume discounts?
A: Our listed price reflects current market availability for this Original New ABB spare part. For orders of 5 units or more, please contact sale@ninermas.com directly — volume pricing and blanket order agreements are available for MRO procurement teams and system integrators.

Q: What is the lead time for the AF16-30-10-13 (1SBL177001R1310)?
A: In-stock units ship within 1-2 business days. For larger quantities or consolidated shipments, standard lead time is 3-7 business days depending on destination. Express DHL/FedEx options are available for urgent Industrial Automation maintenance requirements.

Q: Can you provide the official ABB datasheet for 1SBL177001R1310?
A: Yes. The complete ABB AF16-30-10-13 technical datasheet, including dimensional drawings, wiring diagrams, and derating curves, is available upon request. Contact us at sale@ninermas.com with your order reference or inquiry number.

Q: How do I verify this is a genuine ABB Original Spare Part and not a counterfeit?
A: All units are sourced through ABB’s authorized distribution network. Each contactor carries ABB’s original holographic label, batch traceability code, and factory packaging. We provide a Certificate of Conformity and can facilitate ABB’s online product verification for critical procurement audits.

Q: Is the AF16-30-10-13 compatible with ABB’s CAL and CAF auxiliary contact blocks?
A: Yes. The 1SBL177001R1310 is fully compatible with ABB’s CAL18, CAL4, and CAF series snap-on auxiliary contact blocks, allowing expansion up to 4 NO + 4 NC contacts without modifying the base Control Module wiring.

Q: What is the difference between AF16-30-10-13 and AF16-30-10-11?
A: The last two digits indicate the coil voltage specification. The “-13” variant (1SBL177001R1310) features the universal 24-500V AC/DC electronic coil, while the “-11” variant is rated for 24-60V AC/DC only. For most Industrial Automation applications, the “-13” is the preferred choice due to its broader compatibility.
