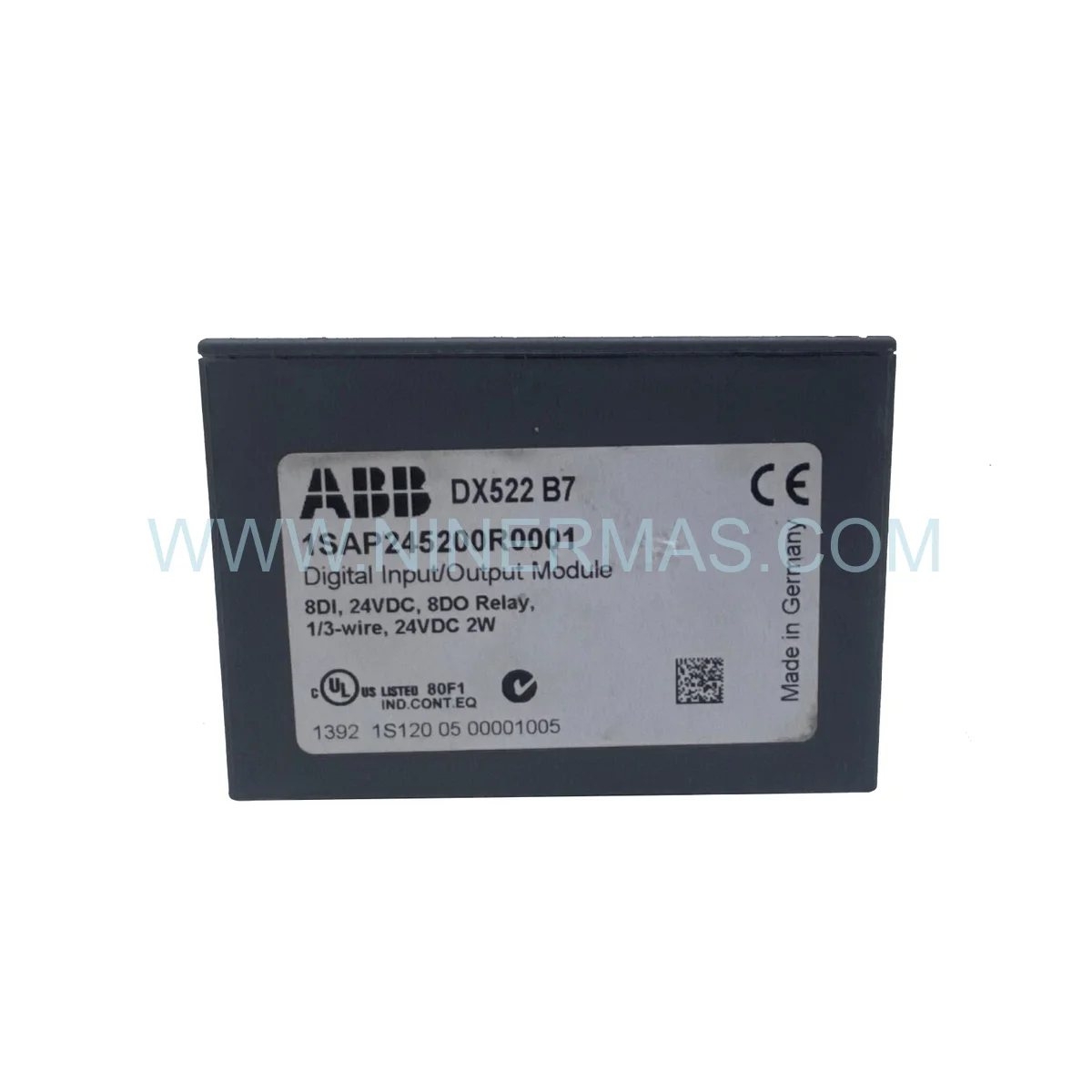

ABB 1SAP245200R0001 DX522 | Retrofit-Ready Digital I/O Module

ABB 1SAP245200R0001 (DX522) – Professional Retrofit & System Upgrade Component

System Modernization & Migration Analysis

As a Retrofit Project Lead working across global manufacturing and process facilities, I consistently identify the ABB 1SAP245200R0001 as a cornerstone component in digital I/O modernization initiatives. This module — the DX522 — plays a decisive role in extending the operational lifespan of aging S500-based control architectures while simultaneously elevating system performance to meet contemporary industrial standards. Whether you are managing a phased migration or executing a full-scale DCS overhaul, the ABB 1SAP245200R0001 delivers the signal integrity and switching reliability that retrofit engineers demand.

One of the most compelling advantages of this module in legacy system environments is its backward compatibility with existing S500 I/O backplanes and communication frameworks. Rather than forcing a disruptive rip-and-replace approach, the DX522 enables a seamless integration strategy — allowing engineers to introduce modern relay-output capability and 24VDC digital input processing without redesigning the entire control cabinet. This makes it an ideal upgrade path component for facilities operating first- or second-generation ABB S500 installations.

From a migration risk and cost perspective, deploying the ABB 1SAP245200R0001 as part of a structured retrofit plan significantly reduces engineering hours, minimizes production downtime, and eliminates the need for custom signal conditioning hardware. The result is a lower total cost of ownership and a faster return on modernization investment — critical metrics for any capital project justification in today’s competitive manufacturing landscape.

Upgrade Highlights & Compatibility

• Drop-in Legacy Compatibility: Fits existing S500 I/O racks without mechanical or electrical modification — zero re-wiring overhead for most retrofit scenarios.
• ✅ Performance Enhancement: 8 — 24VDC digital inputs with high noise immunity replace aging discrete signal cards prone to false triggering in EMI-rich environments.
• Relay Output Flexibility: 8 galvanically isolated relay outputs support both AC and DC load switching — future-proofing mixed-voltage panel designs.
• ✅ Seamless Integration: Compatible with ABB Automation Builder and legacy configuration tools, reducing software migration effort.
• Extended Temperature Range: -25°C to +60°C operating range ensures reliable performance in harsh industrial environments without additional thermal management.
• ✅ Compact Footprint: DIN rail mounting preserves existing cabinet layout — critical for space-constrained retrofit projects in legacy enclosures.

Modernization Use Cases & Success Stories

DCS Digital I/O Expansion in Chemical Processing Plants: Aging distributed control systems often suffer from obsolete discrete I/O cards with limited spare parts availability. Integrating the ABB 1SAP245200R0001 into the existing DCS I/O tier provides a direct performance upgrade — restoring full channel capacity, improving scan cycle reliability, and eliminating the risk of unplanned shutdowns caused by failed legacy cards. Engineers report a measurable reduction in false alarms and nuisance trips following DX522 deployment.

Turbine Supervisory Instrumentation (TSI) System Retrofit: In power generation facilities, TSI systems require absolute signal fidelity for vibration monitoring interlocks and trip relay logic. The DX522’s galvanically isolated relay outputs are particularly valued in these applications, where ground loop interference from legacy wiring can compromise trip accuracy. Replacing end-of-life relay output cards with the ABB 1SAP245200R0001 has enabled plant operators to maintain TSI system integrity while deferring full platform replacement by 5-10 years.

Automotive Assembly Line Modernization: Production facilities upgrading from first-generation PLC-based control to modern S500 architectures leverage the DX522 as a bridge component — maintaining compatibility with existing field wiring and sensor infrastructure while gaining access to contemporary diagnostics, remote I/O capabilities, and predictive maintenance data streams.

Migration Technical Data Sheet

Supply Chain & Deployment Support

Original & Factory Sealed: Every ABB 1SAP245200R0001 unit is sourced as genuine, factory-sealed hardware — ensuring full manufacturer warranty coverage and eliminating counterfeit risk in safety-critical retrofit applications.

Expedited Global Logistics: We maintain strategic inventory positions to support urgent retrofit and emergency replacement scenarios. Expedited air freight options are available to minimize production downtime for facilities worldwide, including remote industrial sites.

Technical Support for Obsolete & Legacy Hardware: Our engineering team provides pre-sales compatibility assessments, retrofit planning guidance, and post-installation technical support. Whether you are replacing an end-of-life card or integrating the DX522 into a multi-phase migration project, we offer the application expertise to ensure a successful deployment.

Retrofit FAQ (Upgrade Guide)

Q1: Can the ABB 1SAP245200R0001 physically replace older S500 digital I/O modules without modifying the existing rack or backplane?
A: In the vast majority of S500 retrofit scenarios, yes. The DX522 is designed to occupy a standard S500 I/O slot, and its DIN rail mounting profile is consistent with legacy module dimensions. However, we recommend verifying the specific backplane revision and slot addressing configuration before deployment to confirm full mechanical and electrical compatibility.

Q2: How does the 1SAP245200R0001 handle communication between new S500 controllers and legacy field devices wired to older I/O standards?
A: The DX522 operates at the physical I/O layer, accepting 24VDC discrete signals from legacy sensors and switches without requiring signal conversion. The relay outputs are voltage-agnostic for the load side, supporting both legacy AC actuators and modern DC devices. This makes it an effective hardware bridge in mixed-generation control architectures.

Q3: What are the recommended spare part substitution options if the 1SAP245200R0001 is temporarily unavailable?
A: For emergency continuity, the ABB DC532 (digital combination module) or DI524 (pure digital input) may serve as interim solutions depending on the specific I/O channel requirements of your application. Our technical team can perform a channel-by-channel compatibility analysis to identify the most appropriate alternative and minimize retrofit scope changes.

Q4: Is the ABB 1SAP245200R0001 compatible with ABB Automation Builder for legacy project migration without full re-engineering?
A: Yes. The DX522 is fully supported within ABB Automation Builder, and existing S500 project configurations can typically be updated to include the 1SAP245200R0001 with minimal re-engineering. Hardware configuration files from older engineering tools (e.g., PS501) can generally be imported and adapted, significantly reducing migration engineering hours.

Q5: What installation space and clearance requirements should retrofit engineers account for when deploying the DX522 in legacy enclosures?
A: The ABB 1SAP245200R0001 requires standard S500 slot width on a DIN rail, with adequate front-access clearance for wiring termination and LED status indicator visibility. In legacy enclosures with tight cable management, we recommend a minimum 80mm front clearance for comfortable field wiring access. Thermal derating should be assessed if the module is deployed in enclosures with limited ventilation.

Q6: Does deploying the 1SAP245200R0001 as a retrofit component affect the overall system safety integrity level (SIL) rating of the existing installation?
A: The DX522 is a standard (non-SIL-rated) digital I/O module. If your existing installation incorporates SIL-rated I/O for safety functions, the 1SAP245200R0001 should be deployed exclusively on non-safety I/O channels. For safety-critical retrofit applications, consult ABB’s functional safety documentation and engage a certified functional safety engineer to validate the modified architecture.
