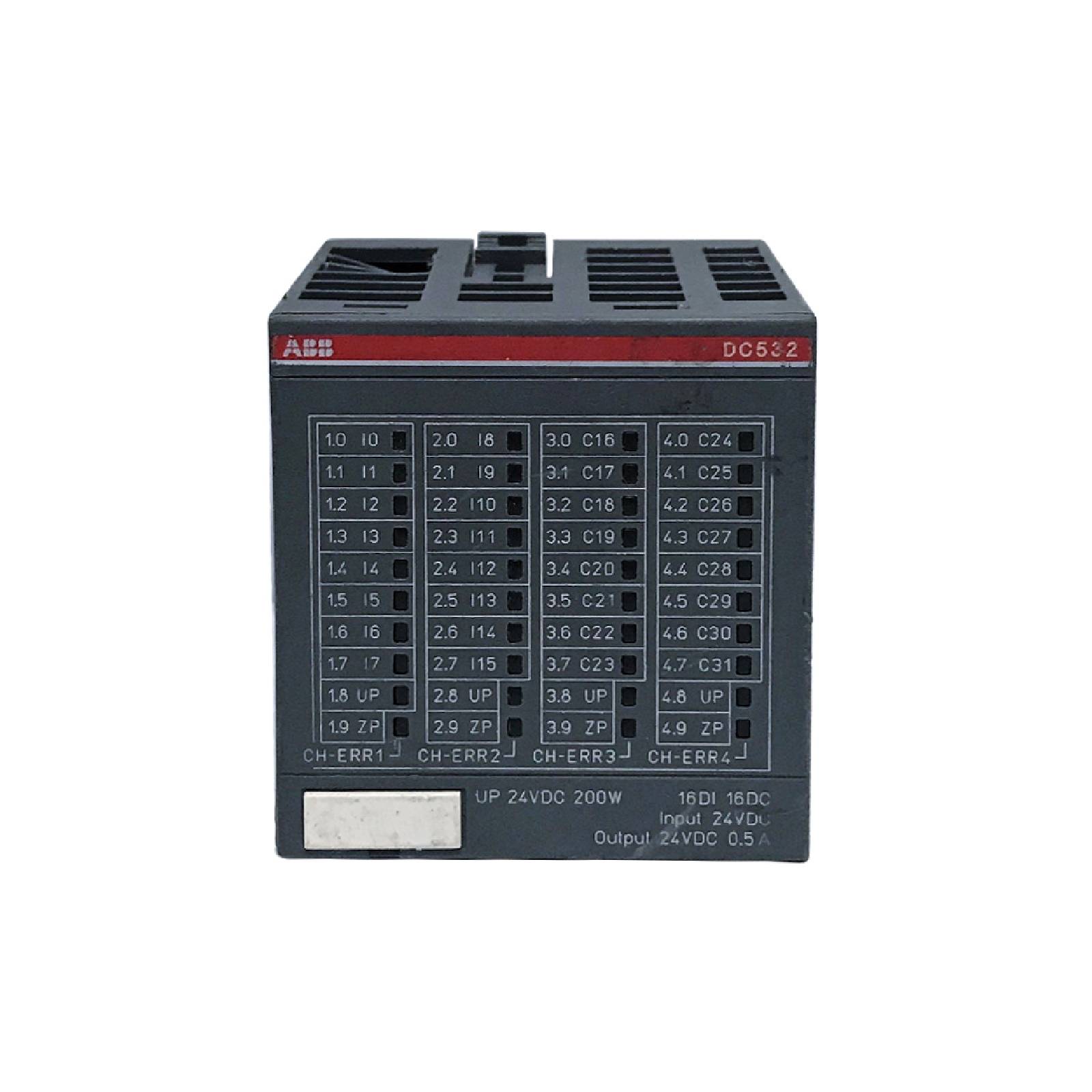

ABB 1SAP240100R0001 (DC532) — Lifecycle Excellence & Technical Performance

Operational Integrity & System Analysis

From the perspective of an Industrial Compliance Consultant, the ABB 1SAP240100R0001 occupies a foundational role in maintaining the operational integrity of distributed control architectures. As a certified digital input/output module within ABB’s S800 I/O platform, the 1SAP240100R0001 delivers deterministic signal processing across 16 digital input channels and 16 configurable digital output channels — a configuration that directly supports Safety Integrity requirements in mission-critical process environments. Its galvanic channel isolation and 24VDC nominal operating voltage ensure that signal fidelity is preserved even in electrically hostile industrial settings, reducing the risk of spurious trips and unplanned shutdowns that compromise system uptime and regulatory compliance.

Within the framework of Industry 4.0 and IIoT-enabled plant architectures, the 1SAP240100R0001 demonstrates long-term compatibility with ABB’s AC 800M controller ecosystem via ModuleBus communication. This backward-compatible design philosophy supports Asset Optimization strategies by extending the productive lifecycle of existing S800 I/O infrastructure without necessitating full platform migration. Engineers responsible for lifecycle planning can integrate this module into phased modernization programs, preserving Original Documentation continuity and minimizing revalidation overhead across certified installations.

As a factory-sealed, certified original component, the 1SAP240100R0001 satisfies the stringent procurement criteria demanded by regulated industries. Its provenance as a genuine ABB product — supported by Original Documentation and traceable manufacturing records — ensures that system safety assessments and third-party audits remain uncompromised throughout the asset’s operational lifespan.

Compliance & Safety Benchmarks

✅ Certified Original Component: Manufactured under ABB’s ISO 9001-aligned quality management system, ensuring full traceability and Compliance Standards adherence from production to installation.

✅ Galvanic Channel Isolation: Provides electrical separation between field devices and control logic, a fundamental requirement for Safety Integrity in hazardous and semi-hazardous process zones.

24VDC Nominal Operation: Designed to operate within tightly controlled voltage parameters, reducing the risk of insulation breakdown and ensuring Standard Adherence to IEC 61131-2 input/output specifications.

✅ Hot-Swap Capability: Supports live module replacement without system shutdown, a critical feature for high-availability installations where Operational Excellence demands continuous uptime.

DIN Rail Mounting Compliance: Conforms to EN 60715 mounting standards, ensuring mechanical stability and compatibility with certified enclosure configurations across global installations.

✅ Environmental Durability: Engineered to withstand the thermal cycling, vibration, and humidity conditions typical of industrial plant environments, supporting long-term System Performance without accelerated degradation.

Vertical Industry Integration & Optimization

Semiconductor Manufacturing: In cleanroom and fab environments where process repeatability is non-negotiable, the 1SAP240100R0001 provides the precise digital I/O interfacing required for wafer handling robotics, vacuum system interlocks, and environmental monitoring loops. Its deterministic response characteristics support the tight process windows demanded by advanced node fabrication.

Pharmaceutical & Life Sciences: GMP-regulated facilities require control components with full documentation trails and validated performance histories. The 1SAP240100R0001’s certified original status and Original Documentation support simplify IQ/OQ/PQ validation activities, reducing time-to-compliance for new installations and system modifications.

Chemical & Petrochemical Processing: In environments where process uptime directly correlates with revenue and safety outcomes, the module’s hot-swap capability and robust isolation architecture enable maintenance interventions without production interruption. Its compatibility with ABB’s AC 800M platform supports integration into Safety Instrumented Systems (SIS) architectures where Lifecycle Management discipline is paramount.

Water & Wastewater Treatment: Municipal and industrial water treatment facilities benefit from the module’s ability to simultaneously monitor field sensors (flow switches, level detectors, pressure transmitters) and actuate control devices (pump starters, valve actuators, dosing systems) within a single, compact I/O footprint — optimizing panel space and wiring complexity.

Comprehensive Engineering Specifications

Fulfillment Strategy & Technical Support

Factory Sealed Condition: Every 1SAP240100R0001 unit is dispatched in its original ABB factory packaging with intact tamper-evident seals, preserving the component’s certified condition from warehouse to installation site. This ensures that the module’s performance characteristics remain fully aligned with ABB’s published specifications upon commissioning.

Rapid Global Logistics: Our fulfillment infrastructure supports expedited international shipping to major industrial regions across Asia-Pacific, Europe, the Middle East, and the Americas. Priority dispatch options are available for urgent maintenance scenarios where extended downtime carries significant operational or financial consequences.

12-Month Quality Guarantee for Legacy Systems: We provide a 12-month quality assurance commitment covering manufacturing defects and performance deviations from published specifications. This guarantee is specifically structured to support legacy S800 I/O installations where sourcing certified replacement components through standard distribution channels may present lead-time challenges.

Technical Documentation Support: Procurement of the 1SAP240100R0001 is supported by access to relevant ABB technical documentation, including datasheet references, installation guidelines, and compatibility matrices — facilitating smooth integration into existing engineering records and validation packages.

Expert Technical FAQ

Q1: Is the 1SAP240100R0001 compatible with all revisions of the ABB AC 800M controller platform?
The DC532 module (1SAP240100R0001) is designed for compatibility across the AC 800M controller family via the S800 I/O ModuleBus interface. However, firmware version alignment between the controller and I/O configuration database should be verified during commissioning. ABB’s Control Builder software provides compatibility validation tools to confirm module recognition prior to live deployment.

Q2: What installation compliance requirements apply when deploying the 1SAP240100R0001 in a hazardous area adjacent zone?
The 1SAP240100R0001 is rated for standard industrial environments and must be installed within appropriately certified enclosures when deployed in proximity to classified hazardous zones. Compliance with IEC 60079 zoning requirements and local electrical installation codes is the responsibility of the system integrator. Galvanic isolation features support safe interfacing with field devices located in adjacent hazardous areas when appropriate barrier or isolator devices are employed.

Q3: How does the module’s hot-swap capability affect system safety certification status?
Hot-swap operations on the 1SAP240100R0001 should be conducted in accordance with ABB’s documented procedures and the site’s Management of Change (MOC) protocol. In Safety Instrumented System (SIS) applications, any module replacement activity must be assessed against the system’s Safety Requirements Specification (SRS) to confirm that the replacement does not invalidate the achieved Safety Integrity Level (SIL) rating of the associated safety function.

Q4: What environmental conditions is the 1SAP240100R0001 qualified to operate within?
The DC532 module is engineered for operation within the environmental parameters defined in ABB’s S800 I/O system documentation, covering operating temperature ranges, relative humidity limits, and vibration/shock resistance levels consistent with IEC 61131-2 industrial control equipment standards. Installations in environments exceeding these parameters require additional protective measures and engineering assessment.

Q5: How can the authenticity of a 1SAP240100R0001 unit be verified prior to installation?
Authentic ABB 1SAP240100R0001 modules carry ABB’s standard product labeling with full model number, serial number, and country of origin markings. Verification against ABB’s official product documentation and, where available, ABB’s product authentication services is recommended for critical installations. Procurement from traceable, documented supply chains — with factory-sealed packaging intact — provides the primary assurance of component authenticity and Compliance Standards conformance.

Q6: What is the recommended approach for integrating the 1SAP240100R0001 into an existing validated pharmaceutical control system?
Integration into a GMP-validated system should follow a formal change control process aligned with GAMP 5 guidelines. This includes impact assessment, updated risk analysis, and execution of appropriate qualification activities (IQ/OQ) to confirm that the replacement or addition of the 1SAP240100R0001 does not adversely affect the validated state of the system. Original Documentation provided with the module supports the documentary requirements of the qualification package.
