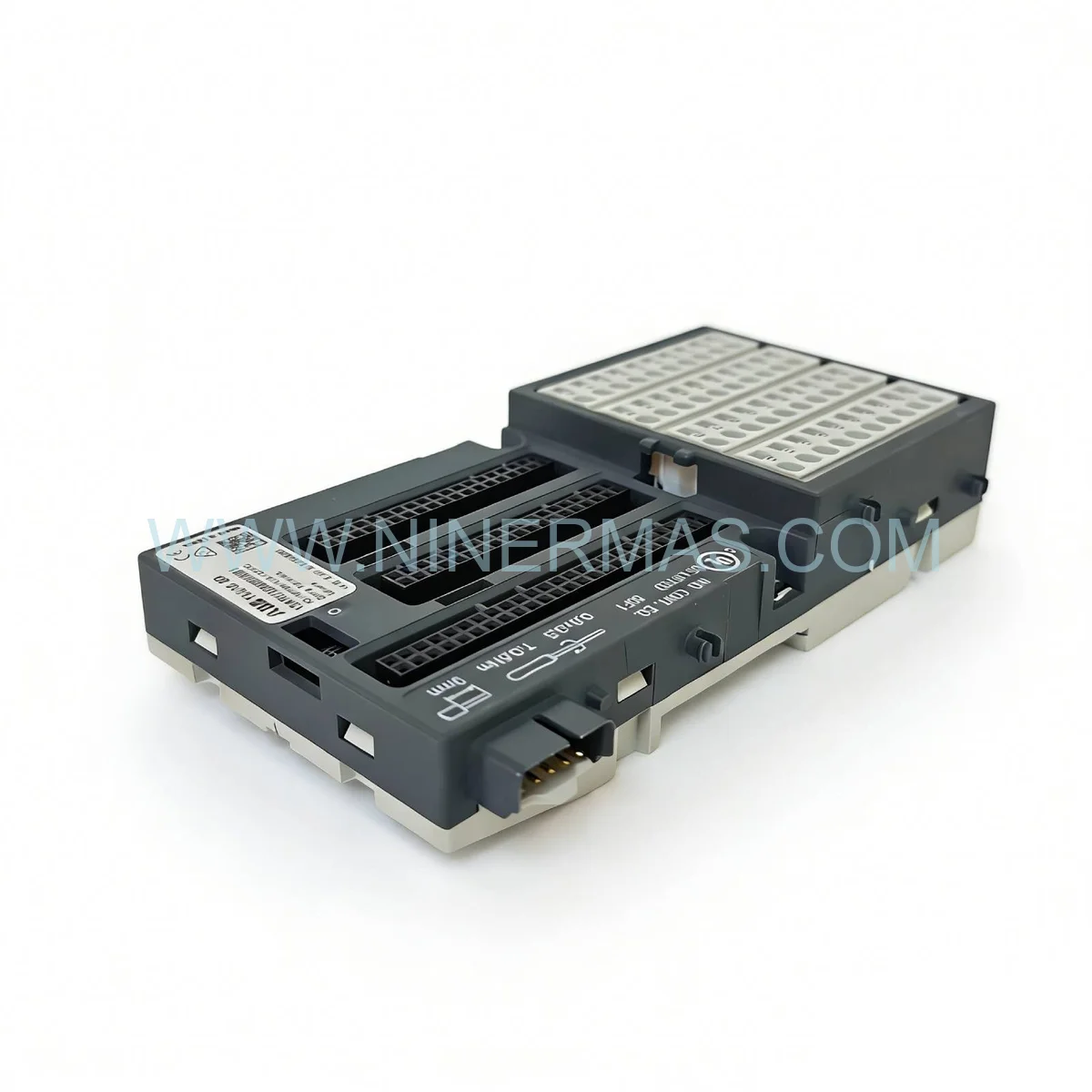

ABB TU516 I/O Terminal Unit (1SAP212000R0001) — Industrial-Grade AC500 PLC Base

The ABB TU516 (part number 1SAP212000R0001) is a plug-in terminal unit designed for use with ABB’s S500 I/O modules within the AC500 programmable logic controller platform. Engineered for demanding industrial environments, the TU516 provides a reliable, DIN-rail-mountable base that simplifies wiring, reduces installation time, and supports hot-swap capability for maximum system uptime.

Whether you’re building a new automation panel or expanding an existing AC500 installation, the TU516 delivers the mechanical and electrical interface your S500 I/O modules need — with the quality and longevity ABB is known for across process, manufacturing, and infrastructure applications.

Core Features & Benefits

• ✅ Universal S500 I/O Compatibility: Accepts a wide range of ABB S500 digital and analog I/O modules without rewiring
• ✅ DIN-Rail Mounting: Standard 35 mm DIN-rail installation for fast, tool-free panel integration
• ✅ 24V DC Operation: Stable low-voltage power supply input aligned with industrial control standards
• ✅ Screw-Terminal Wiring: Robust field-wiring terminals rated for industrial cable gauges, reducing connection errors
• ✅ Hot-Swap Ready: Supports module replacement without full system shutdown, minimizing production interruptions
• ✅ Compact Footprint: Space-efficient design optimized for high-density control cabinet layouts
• ✅ CE & RoHS Compliant: Meets international safety and environmental standards for global deployment

Application Scenarios

The TU516 terminal unit is deployed across a broad spectrum of industrial sectors:

• Discrete Manufacturing: Connects digital I/O modules to machine tools, conveyors, and assembly lines where fast I/O response is critical
• Water & Wastewater Treatment: Provides reliable field-wiring termination for pump control, valve actuation, and level monitoring in wet environments
• Building Automation & HVAC: Interfaces AC500 controllers with HVAC actuators, damper controls, and energy metering systems
• Power Generation & Distribution: Supports protection relay I/O and switchgear control in substation automation panels
• Food & Beverage Processing: Withstands washdown-adjacent environments; simplifies hygienic panel design with clean wiring layouts

Technical Parameters & Selection Guide

Selection Tip: Verify your S500 I/O module’s channel count and signal type (digital/analog) before ordering. The TU516 is compatible with standard S500 modules; for redundant configurations, consider pairing with ABB TU843 Redundant Terminal Block or ABB TU845 Redundant Terminal Block.

Extended Functions & System Integration

The TU516 integrates seamlessly into ABB’s broader AC500 ecosystem. Pair it with digital I/O modules such as the ABB DC523 24-Channel Digital I/O Module for configurable mixed I/O, or with analog output modules like the ABB AO845 Analog Output Module for precision process control. For S800 I/O fiber optic communication, the ABB TB840A ModuleBus Cluster Modem extends your I/O network over long distances.

Power your AC500 system reliably with the ABB CP-C 24/20.0 480W Power Supply, and manage redundant power distribution using the ABB SS832 Power Voting Unit. For controller memory expansion, the ABB MB801V512 512MB CompactFlash Card supports AC 800M controller platforms.

Additional compatible accessories include the ABB TU830V1 16-Channel Module Termination Unit, the ABB DI810 Digital Input Module, and the ABB TU840 Redundant MTU Module for high-availability architectures.

Delivery & Service

• Lead Time: In-stock items typically ship within 1–3 business days; DHL/FedEx international express available
• Warranty: 12 months from date of shipment — covers manufacturing defects and functional failures under normal operating conditions
• Technical Support: Pre-sales compatibility checks and post-sales integration guidance available via email or phone
• Documentation: Datasheet, wiring diagram, and installation manual available upon request
• Returns: 30-day return window for unused items in original packaging

Frequently Asked Questions

Q: What S500 I/O modules are compatible with the ABB TU516 terminal unit?
A: The TU516 is designed as a universal plug-in base for ABB’s S500 I/O module family within the AC500 platform, including digital input, digital output, and mixed I/O modules. Always cross-reference the module’s datasheet to confirm TU516 compatibility for your specific application.

Q: Can the TU516 be used in a redundant AC500 configuration?
A: Yes. For redundant I/O architectures, the TU516 can be combined with redundant terminal blocks such as the TU843 or TU845. Consult ABB’s AC500 system design guide for recommended redundancy topologies.

Q: Is the ABB 1SAP212000R0001 suitable for outdoor or harsh-environment installations?
A: The TU516 is rated for standard industrial environments. For outdoor or high-humidity applications, install within an IP65-rated enclosure. Contact us for guidance on enclosure selection.

Q: What is the supply voltage requirement for the TU516?
A: The TU516 operates at 24V DC, consistent with ABB AC500 system power architecture. Ensure your power supply — such as the ABB SD833 24V DC 240W Power Supply — meets the current requirements of all connected I/O modules.

Q: Does IndCtrlHub provide a warranty on the ABB TU516?
A: Yes. All ABB TU516 units sold by Industrial Control Hub carry a 12-month warranty covering manufacturing defects and functional failures. Warranty claims are processed promptly with replacement or refund options.

Q: How do I verify the TU516 is genuine ABB product?
A: All products sourced by IndCtrlHub are verified against ABB’s part numbering system. The 1SAP212000R0001 part number is ABB’s official catalog reference for the TU516. We provide documentation and can supply test reports upon request.
