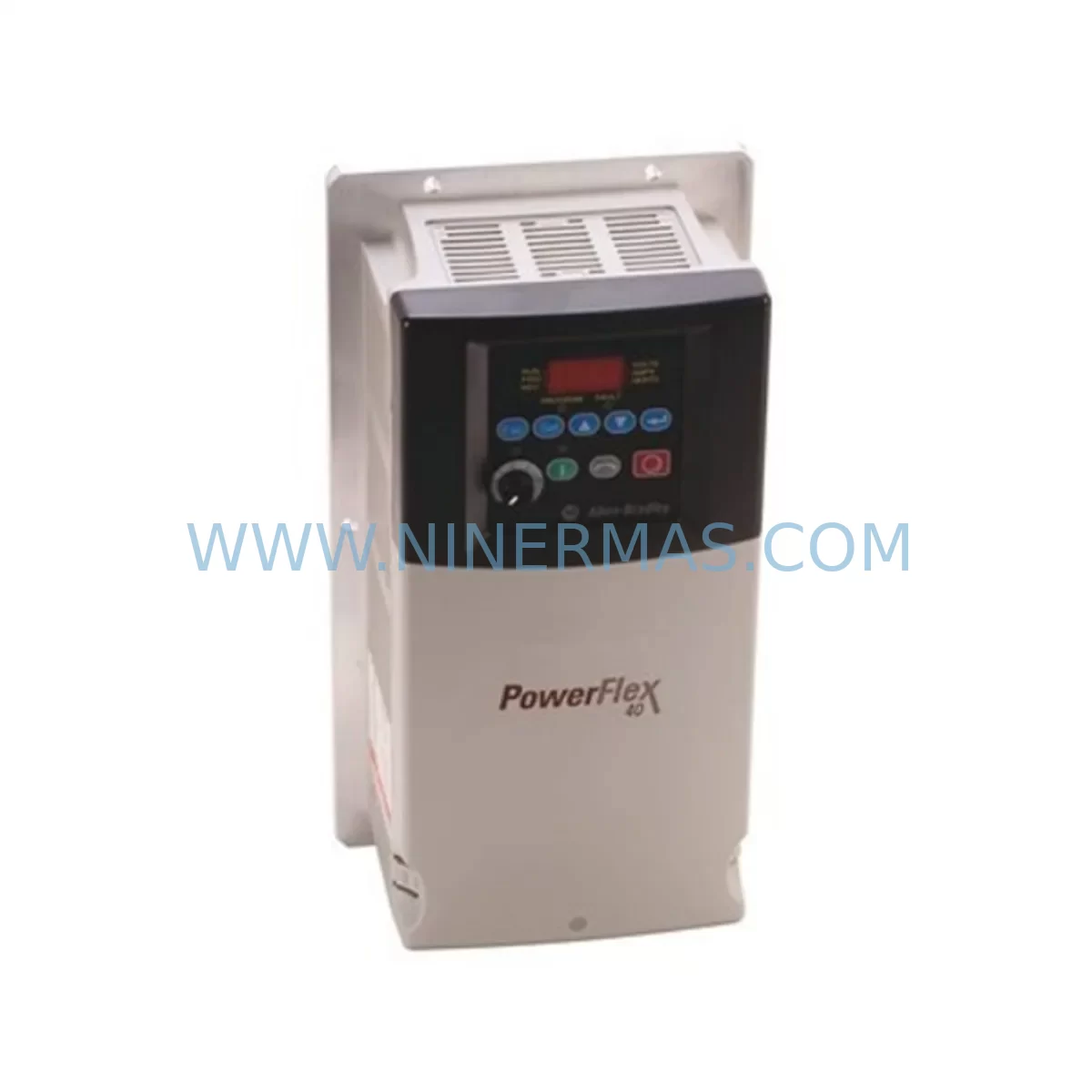

The Allen-Bradley 22B-B024N104 is a PowerFlex 40 series AC variable frequency drive rated at 240V AC, 3-phase input, 24A output current, designed for motor control applications in industrial automation environments. As legacy control systems age and original spare parts become increasingly difficult to source, the 22B-B024N104 serves as a proven retrofit-compatible replacement for discontinued or end-of-life VFD modules across a wide range of legacy production lines, control cabinets, and automated machinery.

Whether you are managing a planned upgrade of an aging conveyor system, responding to an unplanned drive failure on a critical production line, or executing a phased modernization of a multi-axis motion control panel, the 22B-B024N104 provides a reliable, field-verified migration path with minimal disruption to existing wiring infrastructure and control logic.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Successful integration of the 22B-B024N104 into an existing automation system begins well before the physical installation. Engineers and maintenance teams should start by auditing the existing control cabinet layout to confirm available mounting space, since the PowerFlex 40 frame size must match or be accommodated within the existing enclosure footprint. In many legacy installations, the original drive was mounted alongside a 1769-L32E CompactLogix controller or a MicroLogix 1400 series PLC, and the 22B-B024N104 is designed to coexist within these control architectures without requiring changes to the primary control backplane.

Terminal wiring compatibility is a critical checkpoint. The 22B-B024N104 uses standard R/S/T input terminals and U/V/W output terminals consistent with earlier PowerFlex 40 revisions, which means existing motor cable runs and line-side wiring can typically be reused without modification. However, engineers should verify the gauge and insulation rating of existing conductors against the drive’s input current specification before energizing. Control wiring to digital input terminals (TB3) should be mapped against the original I/O assignment sheet, particularly for start/stop, direction, and speed reference signals that may have been wired to a 1734-IB8 POINT I/O module or similar distributed I/O block.

For systems using DSI communication, the existing 22-SCM-232 serial converter or 22-COMM-E EtherNet/IP adapter can be reused with the replacement drive, preserving the communication link to the supervisory controller without requiring new adapter procurement or network reconfiguration. If the legacy system used a 22-HIM-A3 or 22-HIM-C2S remote HIM panel, these accessories remain compatible with the 22B-B024N104 and can be reconnected directly after drive replacement.

Power supply capacity should be confirmed at the panel level. The 22B-B024N104 draws up to 24A at full load, and the upstream circuit breaker or fused disconnect must be rated accordingly. In older installations where a 1606-XLP power supply or similar 24VDC control power supply feeds the I/O and communication modules, verify that the control power budget is not impacted by the drive replacement. If the legacy panel also houses a 1492-SP series supplementary protector for the drive circuit, inspect and replace it as part of the retrofit to ensure protection coordination is maintained.

Before final commissioning, upload the motor nameplate data into the drive parameter set (P031 for motor NP volts, P032 for motor NP amps, P033 for motor NP Hz, P034 for motor NP RPM, P035 for motor NP power). If the original drive parameters were backed up using Connected Components Workbench or DriveExplorer software, the parameter file can be restored directly to the 22B-B024N104, significantly reducing commissioning time and eliminating manual re-entry errors.

Downtime Control During System Migration

Minimizing production downtime during a drive replacement requires a structured pre-outage preparation process. Before the scheduled maintenance window, the existing drive’s full parameter set should be exported using Connected Components Workbench or a compatible HIM device. This backup preserves all custom acceleration/deceleration ramp settings, PID loop configurations, fault response behaviors, and analog input scaling that may have been tuned over years of operation.

During the physical swap, the original motor cable connections should be photographed and labeled before removal. The 22B-B024N104 can be mechanically installed and wired within a typical 30–60 minute window for a single-drive panel, provided all preparatory steps have been completed. Control wiring to the PLC I/O — whether through a hardwired 1769-IQ16 digital input module or a DeviceNet node — should be verified for continuity before power-up.

On first power-up, perform a static motor test (P070 = 2) before enabling the drive under load. This confirms motor wiring integrity and parameter accuracy without requiring the connected machine to run. Once the static test passes, a no-load run at low speed (5–10 Hz) should be performed to verify direction of rotation and speed reference tracking before returning the system to full production speed.

For systems where continuous operation is critical, consider staging a pre-configured spare 22B-B024N104 with parameters pre-loaded, so that the actual swap can be completed within a single shift break or planned micro-outage. This approach is particularly effective in food processing, water treatment, and material handling applications where extended downtime carries significant operational cost. All units supplied by NINERMAS are pre-tested prior to shipment, with a 12-month warranty covering manufacturing defects and operational failures under normal use conditions.

Retrofit Support FAQ

Q1: Is the 22B-B024N104 a direct drop-in replacement for my existing PowerFlex 40 drive?
In most cases, yes. The 22B-B024N104 shares the same terminal layout, mounting footprint, and DSI communication interface as other PowerFlex 40 variants in the same current class. You should verify the input voltage rating (200–240V, 3-phase) and output current (24A) match your existing installation before ordering.

Q2: Can I reuse my existing HIM panel and communication adapter?
Yes. The 22-HIM-A3, 22-HIM-C2S, 22-COMM-E, and 22-SCM-232 accessories are all compatible with the 22B-B024N104. No adapter replacement is required if your existing accessories are in serviceable condition.

Q3: How do I transfer parameters from the old drive to the new unit?
Parameters can be transferred using Connected Components Workbench (CCW) software via the DSI port, or by using a compatible HIM device with the copy/paste parameter function. If no backup exists, parameters must be re-entered manually from the original commissioning sheet or re-tuned on-site.

Q4: What warranty and pre-shipment testing does NINERMAS provide?
All 22B-B024N104 units supplied by NINERMAS are tested for power-on functionality and basic output verification before shipment. Each unit carries a 12-month warranty from the date of delivery, covering manufacturing defects and component failures under normal operating conditions. In-stock units are available for same-week dispatch.
