AB 20G11NC104JA0NNNNN Retrofit-Compatible AC Drive for Legacy Systems

AB 20G11NC104JA0NNNNN Retrofit-Compatible AC Drive for Legacy Systems

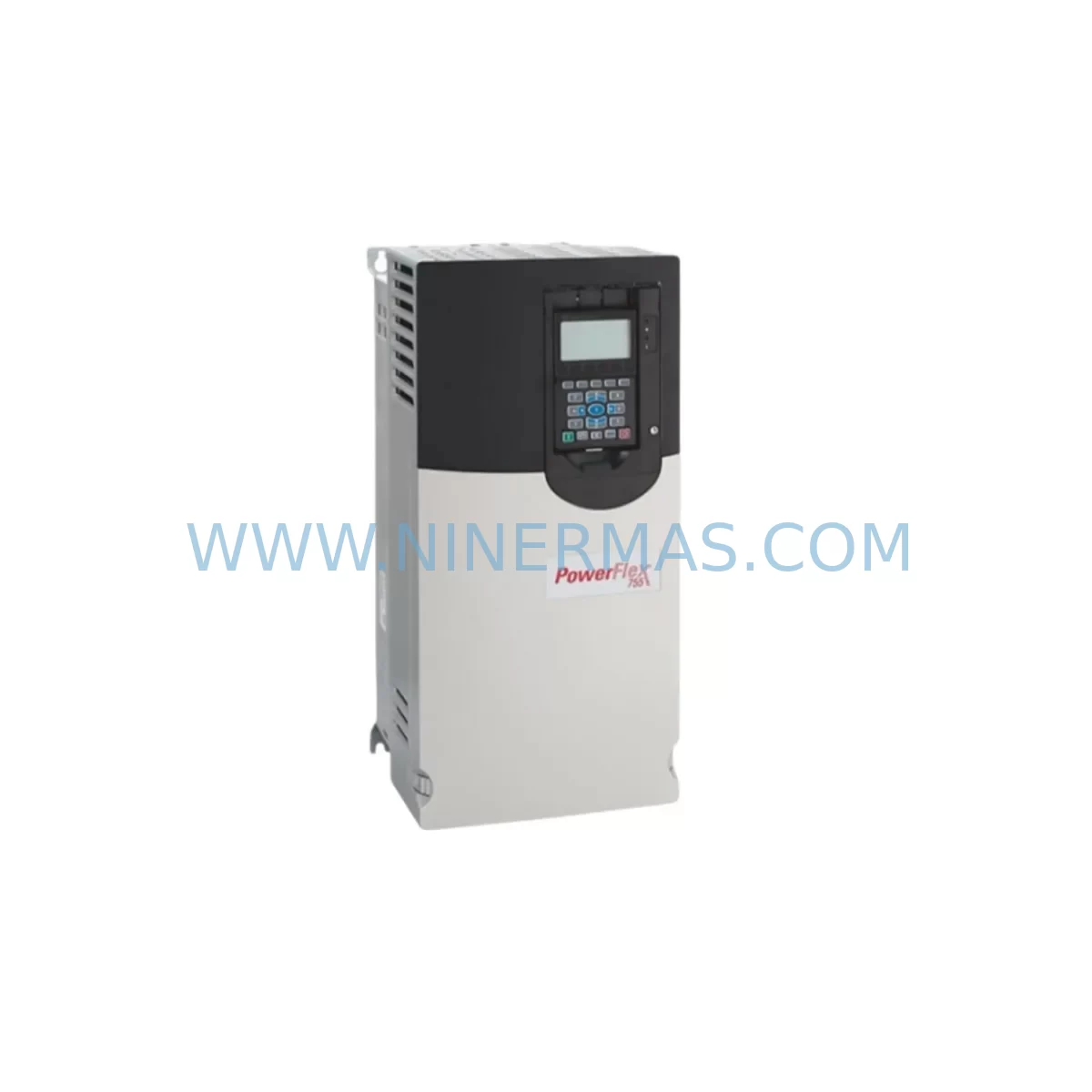

The Allen-Bradley 20G11NC104JA0NNNNN is a ruggedized AC variable frequency drive (VFD) from the PowerFlex 755 series, engineered for demanding industrial environments where vibration, temperature extremes, and continuous-duty cycles are standard operating conditions. As legacy PowerFlex 700 and PowerFlex 400 drives reach end-of-life and spare parts become increasingly scarce, the 20G11NC104JA0NNNNN provides a validated retrofit path that preserves existing motor wiring, control cabinet layouts, and PLC program logic with minimal modification.

For maintenance engineers and system integrators managing aging automation infrastructure, sourcing a direct replacement for discontinued AC drives is one of the most time-sensitive challenges in plant operations. The 20G11NC104JA0NNNNN addresses this by offering compatible terminal block configurations, standard DIN rail or panel-mount installation, and support for EtherNet/IP and DeviceNet communication protocols — enabling seamless integration into existing ControlLogix and CompactLogix control architectures without requiring full program rewrites or HMI screen redesigns.

Before committing to a retrofit, engineers should verify several critical parameters: input power capacity (confirm 480V AC three-phase supply and breaker sizing), output current rating against the connected motor nameplate, terminal block pitch and wire gauge compatibility with existing field wiring, and available mounting depth within the control cabinet. The 20G11NC104JA0NNNNN’s compact ruggedized enclosure is designed to fit within standard 19-inch rack panels and existing drive bays previously occupied by PowerFlex 700 frames, reducing the need for cabinet modifications.

Communication migration is a key consideration during any drive replacement project. The 20G11NC104JA0NNNNN supports the 20-COMM-E EtherNet/IP adapter and is compatible with the 20-COMM-D DeviceNet communication module, allowing existing network topologies to remain intact. If the legacy system used a DPI (Drive Peripheral Interface) communication link to a PanelView Plus HMI or a remote I/O scanner, the drive’s parameter mapping must be verified against the original drive’s tag database to ensure HMI faceplate displays, speed references, and fault code mappings remain accurate after changeover.

I/O expansion during the retrofit phase is often handled through 1734 POINT I/O modules or 1756 ControlLogix I/O cards already present in the control rack. The 20G11NC104JA0NNNNN’s analog input (0–10V / 4–20mA) and digital I/O terminals are compatible with standard signal conditioning wiring, and no additional signal isolators are typically required when replacing a same-generation PowerFlex drive. However, if migrating from an older GV3000 or 1336 PLUS II drive, terminal adapter kits and signal isolators may be needed to bridge legacy wiring standards.

Backplane and rack compatibility should also be confirmed when the drive is installed in a multi-drive system sharing a common DC bus or a PowerFlex 755 drive system with a shared AC/DC precharge module. The 20G11NC104JA0NNNNN is designed for standalone installation and does not require a dedicated system rack, but its DC bus connector must be properly terminated if a common bus configuration is not used. Engineers should also confirm that the existing 1321 line reactor or EMC filter is rated for the replacement drive’s input current.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful retrofit using the 20G11NC104JA0NNNNN begins with a thorough audit of the existing drive installation. Start by documenting the current drive’s parameter file using DriveExecutive or Studio 5000 Drive Configuration tools — this parameter backup becomes the baseline for configuring the replacement unit and significantly reduces commissioning time on-site.

In systems where the legacy drive communicated via a 20-COMM-D DeviceNet module, the existing network node address and baud rate settings must be replicated on the replacement drive’s communication adapter. If the plant network has already migrated to EtherNet/IP, this retrofit is an ideal opportunity to install a 20-COMM-E adapter and consolidate drive monitoring into the existing FactoryTalk View SE SCADA system, eliminating the need to maintain a separate DeviceNet scanner card in the ControlLogix chassis.

Terminal wiring during the swap should be photographed and labeled before disconnection. The 20G11NC104JA0NNNNN uses standard TB1 and TB2 terminal blocks with the same pitch as PowerFlex 755 Frame 5 units, so existing wire ferrules and lug sizes are typically compatible. For systems previously using a 1321-3R line reactor, confirm the reactor’s impedance rating is appropriate for the replacement drive’s input current before reconnecting.

In multi-axis systems, the replacement drive may share a control cabinet with 1756-L8x ControlLogix processors, 1756-EN2T EtherNet/IP communication modules, 1734 POINT I/O distributed I/O nodes, and 1492 terminal block wiring systems. The 20G11NC104JA0NNNNN integrates cleanly into these environments. If the system also includes a 1203-USB programming cable for legacy drive access, note that the PowerFlex 755 series uses a standard USB-B port for local parameter access via Connected Components Workbench, eliminating the need for proprietary programming cables.

For plants running mixed fleets of PowerFlex 523, PowerFlex 525, and PowerFlex 755 drives on a common EtherNet/IP network, the 20G11NC104JA0NNNNN can be added to the existing Add-On Profile (AOP) library in Studio 5000 without disrupting other drive nodes. This is particularly valuable in food processing, water treatment, and material handling applications where multiple drives must remain online during a phased retrofit program.

Downtime Control During System Migration

Minimizing production downtime is the primary constraint in any drive replacement project. For the 20G11NC104JA0NNNNN retrofit, a structured changeover plan should target a total installation and commissioning window of four to eight hours for a single-drive replacement in a well-documented system.

Begin by pre-configuring the replacement drive offline using the parameter backup from the legacy unit. Load the parameter file into Studio 5000 or Connected Components Workbench, adjust any frame-specific parameters (such as motor nameplate data, acceleration/deceleration ramps, and current limit settings), and verify the configuration against the motor’s nameplate before the scheduled maintenance window begins.

During the physical swap, maintain the original PLC program in the ControlLogix processor without modification — the drive’s I/O connection in the controller’s I/O tree should be updated to reflect the new drive’s EtherNet/IP address, but the underlying ladder logic, function block diagrams, and HMI tag bindings can remain unchanged if the replacement drive’s AOP is configured to match the legacy drive’s I/O assembly sizes. This approach protects the original program logic and eliminates the risk of introducing software errors during a time-pressured maintenance window.

After physical installation and wiring verification, perform a no-load motor rotation test at low speed (5–10 Hz) before restoring full process load. Confirm that the drive’s fault log is clear, that the HMI displays correct speed feedback and current readings, and that all digital I/O signals (run, fault, ready) are responding correctly to PLC commands. This structured commissioning sequence, combined with pre-shipment functional testing of the 20G11NC104JA0NNNNN before dispatch, ensures that the replacement unit arrives ready for installation and reduces the risk of unexpected faults during startup.

Retrofit Support FAQ

Q: Is the 20G11NC104JA0NNNNN a direct drop-in replacement for the PowerFlex 700 Frame 5?
A: The 20G11NC104JA0NNNNN (PowerFlex 755 series) is functionally compatible with PowerFlex 700 applications at the same horsepower and current rating. Terminal block layouts and mounting bolt patterns are similar but not identical — a terminal adapter kit may be required for direct wiring reuse. Parameter migration from the PowerFlex 700 to the PowerFlex 755 requires remapping using the drive’s parameter cross-reference guide available from Allen-Bradley.

Q: What commissioning tools are required for the 20G11NC104JA0NNNNN?
A: The drive can be commissioned using Studio 5000 Logix Designer (v24 or later) with the PowerFlex 755 AOP installed, or via Connected Components Workbench for standalone (non-Logix) applications. Local parameter access is available through the drive’s integral HIM (Human Interface Module) or via USB-B connection to a laptop running CCW.

Q: Does the unit ship with pre-shipment testing completed?
A: Yes. Every 20G11NC104JA0NNNNN unit supplied by NINERMAS undergoes full functional testing prior to dispatch, including power-on verification, communication adapter initialization, and I/O signal checks. A 12-month warranty from the date of shipment is included with every unit.

Q: What is the typical lead time and stock availability?
A: NINERMAS maintains inventory of the 20G11NC104JA0NNNNN to support urgent retrofit and breakdown replacement requirements. Contact our team for current stock status and lead time confirmation. Priority dispatch is available for emergency plant breakdown situations.
