AB 1771-WHFB Retrofit-Compatible Field Wiring Arm: Seamless Legacy System Upgrade

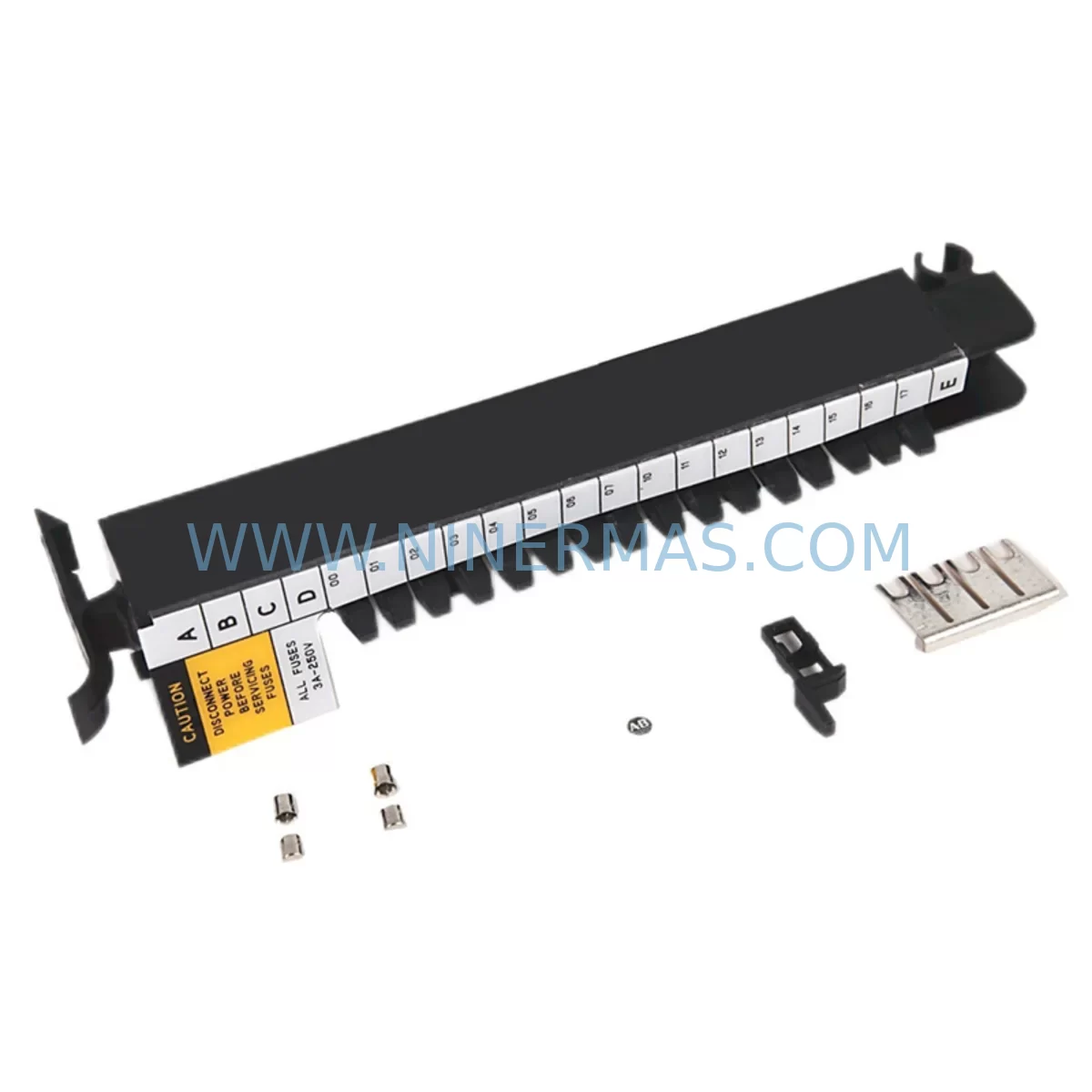

The Allen-Bradley 1771-WHFB is a ruggedized field wiring arm engineered for the 1771 I/O chassis platform — one of the most widely deployed modular I/O systems in industrial automation history. As production lines age and original equipment manufacturers discontinue support for legacy PLC-5 and 1771-series components, the 1771-WHFB remains a critical interface component for facilities that need to maintain, extend, or migrate their existing control infrastructure without a full system overhaul.

NINERMAS COMPANY LIMITED maintains verified inventory of the 1771-WHFB to support customers engaged in brownfield retrofits, spare parts lifecycle management, and phased system modernization programs. Each unit ships with a 12-month warranty and undergoes pre-shipment functional testing to ensure compatibility with your existing 1771 I/O rack environment.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

When planning a retrofit around the 1771-WHFB, the wiring arm is rarely the only component under review. In most legacy PLC-5 and SLC 500 environments, a field wiring arm replacement is part of a broader effort to restore I/O integrity across an aging 1771 chassis. Engineers typically assess the full rack assembly — including the 1771-A2B or 1771-A4B chassis itself, the 1771-P4 or 1771-P7 power supply module, and the backplane bus connectors — before committing to a partial or full I/O migration.

For digital I/O, the 1771-WHFB interfaces directly with modules such as the 1771-IBD 24VDC input module and the 1771-OBD output module. In analog signal chains, it pairs with the 1771-IFE or 1771-OFE analog I/O modules, where terminal accuracy and shielding integrity are critical to signal quality. When the retrofit scope expands to include communication upgrades, facilities often introduce a 1785-L60B PLC-5 processor or transition toward a ControlLogix 1756-L71 platform — in which case the 1771-WHFB serves as a bridge component during the phased cutover, keeping legacy field wiring intact while new control logic is validated in parallel.

In control cabinet upgrades where space is constrained, the compact footprint of the 1771-WHFB allows engineers to retain existing terminal layouts without rewiring field cables — a significant advantage when the panel contains hundreds of individually labeled conductors. For facilities migrating from hardwired relay logic to PLC-based control, the 1771-WHFB provides a structured termination point that simplifies I/O documentation and supports future expansion through additional 1771-series I/O modules.

Signal isolation requirements should also be evaluated during retrofit planning. Where field devices operate at mixed voltage levels or where ground loops are a concern, inline signal isolators or the 1771-IFM field interface module may be introduced alongside the 1771-WHFB to protect the I/O module inputs. Programming cable connectivity — typically via a 1784-U2DHP USB-to-DH+ adapter or a 1747-UIC USB-to-DH485 interface — should be confirmed before on-site commissioning to ensure the programming workstation can communicate with the resident PLC-5 or SLC 500 processor during the cutover window.

Downtime Control During System Migration

Minimizing unplanned downtime is the primary concern in any legacy I/O retrofit. When replacing a 1771-WHFB in an active production environment, the recommended approach is to pre-terminate all field wiring on the new arm in a staging area before the scheduled maintenance window. This allows the physical swap to be completed in minutes rather than hours, with the majority of preparation work done offline.

Before the cutover, engineers should capture a full backup of the resident PLC-5 program using RSLogix 5, including all rung comments, I/O configuration files, and data table values. The I/O module address assignments — slot number, rack number, and I/O group — must be documented and verified against the existing wiring diagrams to ensure the replacement arm does not introduce address conflicts after reinstallation.

Where the control system supports online editing, partial I/O changes can be validated while the processor remains in Run mode, reducing the risk of a full production stop. For systems that require a processor halt, coordinating the swap with a planned shift changeover or scheduled maintenance interval is strongly recommended. Post-installation, a structured commissioning checklist — covering terminal continuity, module seating confirmation, I/O force testing, and HMI screen verification — should be completed before returning the system to automatic operation. NINERMAS provides pre-shipment functional testing on all 1771-WHFB units to reduce the risk of field failures during the commissioning phase.

Retrofit Support FAQ

Q: Is the 1771-WHFB a direct replacement for the standard 1771-WH wiring arm?
A: Yes. The 1771-WHFB is the ruggedized variant of the 1771-WH field wiring arm and is dimensionally and electrically compatible with the same 1771-series I/O modules. It is designed for environments with elevated vibration, moisture, or temperature cycling where the standard arm may not provide adequate mechanical durability.

Q: What commissioning steps are required after installing the 1771-WHFB?
A: After physical installation, verify terminal continuity for all field wiring connections, confirm the I/O module is fully seated on the backplane, and perform an I/O force test from the programming terminal to validate input and output signal paths. If the system uses an HMI, confirm that all associated screen tags are reading correctly before releasing the system to production.

Q: Does NINERMAS provide pre-shipment testing and warranty coverage?
A: Yes. All 1771-WHFB units supplied by NINERMAS undergo pre-shipment functional inspection and are covered by a 12-month warranty from the date of shipment. In-stock units are available for immediate dispatch to support urgent retrofit and breakdown recovery requirements.

Q: Can the 1771-WHFB be used during a phased migration to a ControlLogix platform?
A: Yes. The 1771-WHFB is commonly retained during phased migrations where legacy 1771 I/O racks remain in service alongside a new ControlLogix 1756 chassis. The existing field wiring terminations on the 1771-WHFB can be preserved throughout the migration, with I/O remapping handled at the controller level as new modules are brought online.
