AB 1771-DXPS Service-Ready Spare Part Industrial

AB 1771-DXPS Service-Ready Spare Part for Industrial Maintenance

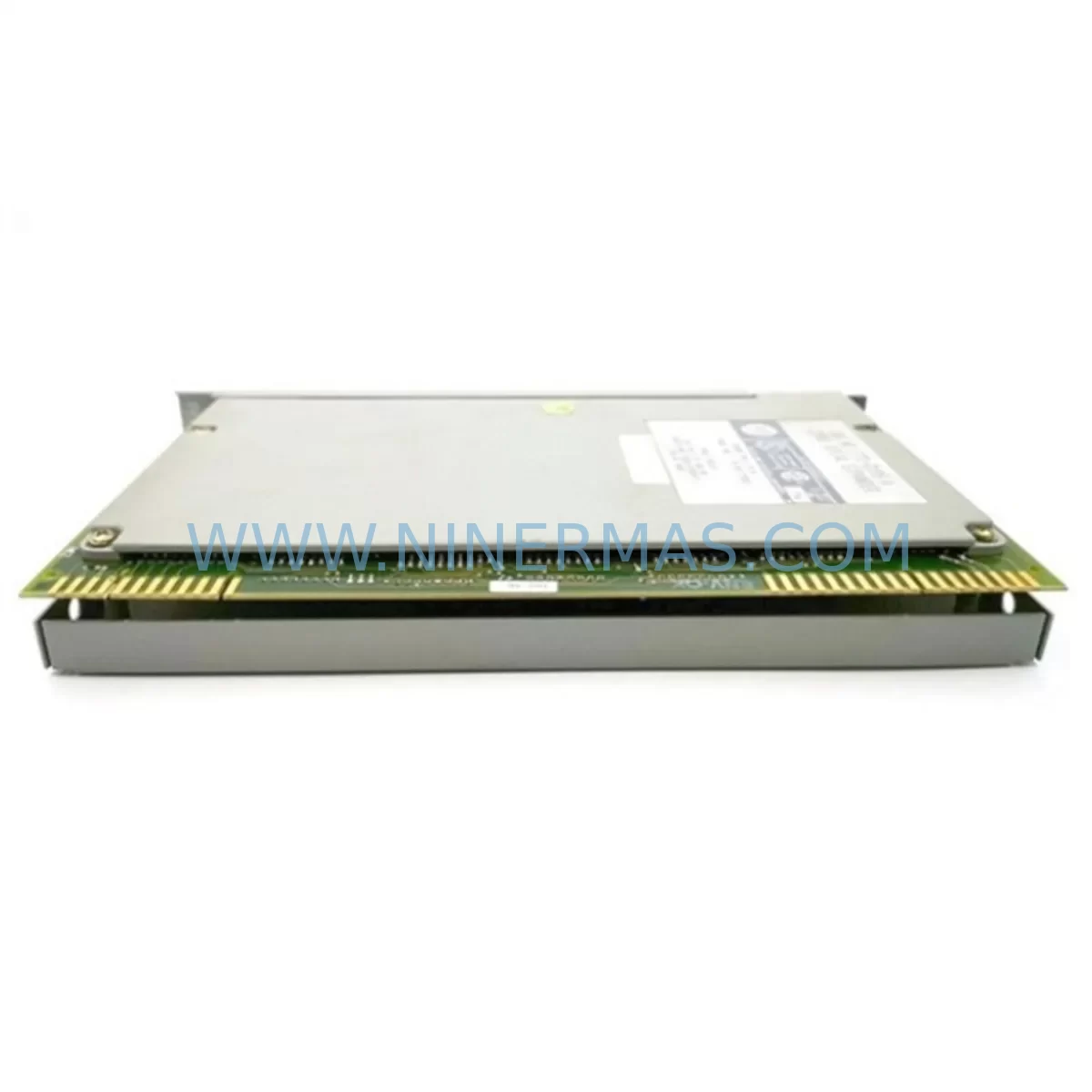

The Allen-Bradley 1771-DXPS is a ruggedized control coprocessor module designed for demanding industrial environments within the Rockwell Automation PLC-5 / 1771 platform. As a critical spare part for maintenance engineers and procurement teams, the 1771-DXPS supports continuous operation of legacy automation systems where downtime carries significant production and financial risk. Whether you are managing a scheduled annual overhaul, responding to an unplanned fault, or building a strategic spare parts inventory, having a verified, tested 1771-DXPS on hand is essential for rapid system recovery.

The 1771-DXPS coprocessor module operates within the 1771 I/O chassis and works in close coordination with the host PLC-5 processor. Its ruggedized design makes it particularly suited for harsh environments — including high-vibration, high-temperature, and electrically noisy plant floors — where standard modules may fail prematurely. Maintenance teams operating in steel mills, chemical processing plants, water treatment facilities, and heavy manufacturing lines have long relied on the 1771-DXPS to extend the operational life of their control infrastructure without requiring a full system migration.

When replacing the 1771-DXPS in the field, maintenance engineers should conduct a thorough pre-replacement inspection of the surrounding system. Begin by verifying the 1771 I/O chassis backplane integrity — a damaged backplane connector can cause intermittent faults that are often misdiagnosed as processor or coprocessor failures. Check the 1771-P4 or 1771-P7 power supply output voltages under load before installing the replacement module, as an under-voltage condition can prevent the coprocessor from initializing correctly. Inspect all I/O module wiring within the same chassis, particularly any 1771-OAD output modules or 1771-IAN input modules sharing the same rack, to rule out wiring faults that may have contributed to the original failure.

From a communications perspective, confirm that the Data Highway Plus (DH+) network link connected to the host PLC-5 processor remains intact. A faulty 1771-KE or 1771-KF communication interface module in the same cabinet can prevent the coprocessor from establishing its expected data exchange with the controller. If the system includes a PanelView HMI terminal communicating over DH+, verify that the HMI program tags and node addresses remain consistent after the module swap to avoid screen faults or alarm suppression issues.

Signal integrity should also be confirmed at the terminal block level. Any 1492-CABLE wiring harnesses or 1492-IFM interface modules connected to I/O modules in the same chassis should be inspected for loose terminations, corrosion, or insulation damage. In environments with high electrical noise, signal isolators installed upstream of analog input modules can degrade over time and should be tested as part of the replacement workflow.

For procurement engineers, the 1771-DXPS represents a long-lifecycle spare that supports installed base systems expected to remain in service for another five to fifteen years. Sourcing a verified replacement from a reliable distributor with documented testing and a 12-month warranty eliminates the risk of receiving counterfeit or refurbished modules without quality assurance. Maintaining at least one 1771-DXPS in your on-site spare parts cabinet — alongside critical companions such as the 1771-P4 power supply, 1771-A4B chassis, and a spare PLC-5/20 or PLC-5/40 processor — significantly reduces mean time to repair (MTTR) during unplanned outages.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

Effective maintenance planning for systems using the 1771-DXPS requires a holistic view of the entire control cabinet and I/O chassis assembly. The coprocessor does not operate in isolation — its performance depends on the health of every component it shares power, backplane bandwidth, and communication resources with.

Start with the power distribution chain. The 1771-P4 power supply feeding the chassis should be load-tested annually. A power supply operating near its rated capacity with aging capacitors can produce voltage sag during module initialization, causing the 1771-DXPS to fault on startup. If the chassis is fully populated, consider whether a higher-capacity 1771-P7 power supply is warranted. Fuse integrity on the power supply input should also be verified — blown or weakened fuses are a common cause of intermittent chassis power faults.

Within the same control cabinet, inspect the 1771-KF2 or 1771-KE serial communication modules that bridge the PLC-5 network to remote I/O drops or SCADA systems. These modules are frequently overlooked during routine maintenance but are critical to the coprocessor’s ability to exchange data with supervisory systems. A degraded communication module can cause the coprocessor to log spurious errors that are incorrectly attributed to hardware failure.

Terminal blocks and wiring harnesses throughout the cabinet should be torqued to specification and inspected for oxidation, particularly in humid or chemically aggressive environments. The 1492-IFM interface modules used to connect field wiring to 1771 I/O modules are a common source of intermittent faults and should be included in any annual inspection checklist. Similarly, any signal isolators installed between field transmitters and analog input modules should be tested for drift, as signal isolation performance degrades over time in high-temperature environments.

For HMI systems connected to the PLC-5 via DH+, ensure that the PanelView terminal firmware and tag database are backed up before any coprocessor replacement. Node address conflicts on the DH+ network can arise if the replacement module initializes with a different default configuration, causing communication timeouts that affect operator visibility during the critical post-replacement commissioning period.

Finally, maintain a documented spare parts list that includes not only the 1771-DXPS but also the associated 1771-A4B chassis, 1771-P4 power supply, a spare PLC-5/40 processor, and key I/O modules such as the 1771-OAD and 1771-IAN. A well-stocked spare parts cabinet reduces emergency procurement lead times from weeks to hours and is the single most effective strategy for minimizing unplanned downtime in legacy PLC-5 installations.

Site Replacement Workflow

Replacing the 1771-DXPS on-site requires careful preparation to minimize downtime and protect existing program logic. Before beginning, obtain a full backup of the PLC-5 processor program using RSLogix 5 or an equivalent programming terminal connected via a 1784-KTX or 1784-U2DHP programming cable. Confirm that the backup is complete and readable before proceeding with any hardware removal.

Power down the 1771 chassis following your site’s lockout/tagout (LOTO) procedure. Remove the faulty 1771-DXPS by releasing the module locking tabs and sliding it out of the chassis slot. Inspect the backplane connector on both the module and the chassis for bent pins or contamination before inserting the replacement unit. Seat the new 1771-DXPS firmly and verify that the locking tabs engage correctly.

After restoring power, monitor the module status indicators during initialization. The coprocessor should complete its self-test sequence within the expected timeframe — an extended initialization or persistent fault LED typically indicates a backplane issue or power supply problem rather than a module defect. Once the module is online, verify communication with the host PLC-5 processor and confirm that all I/O modules in the chassis are reporting correctly before returning the system to automatic operation.

Document the replacement in your maintenance log, including the date, the serial number of the replacement module, and the results of the post-replacement functional test. This record supports warranty claims and provides valuable data for future maintenance planning.

Spare Parts Support FAQ

Q: Is the 1771-DXPS still available as a new or tested spare?
A: Yes. We maintain stock of the 1771-DXPS as a service-ready spare part. Each unit is tested before shipment and supplied with a 12-month warranty. Contact us to confirm current availability and lead time.

Q: How do I verify compatibility before installing the replacement 1771-DXPS?
A: Confirm that your existing 1771 I/O chassis (e.g. 1771-A4B or 1771-A2B) and power supply (1771-P4 or 1771-P7) are in good condition. The 1771-DXPS is designed for the PLC-5 platform and is compatible with standard 1771 chassis configurations. If you are unsure about your specific installation, our technical team can assist with compatibility verification before you place an order.

Q: What testing is performed before shipment?
A: Every 1771-DXPS unit undergoes functional testing prior to dispatch. We verify module initialization, backplane communication, and status indicator behavior. A test report is available upon request. All units are shipped with a 12-month warranty covering manufacturing defects and functional failures under normal operating conditions.

Q: Can you support long-term supply for ongoing maintenance programs?
A: Yes. We specialize in long-term spare parts supply for legacy Allen-Bradley PLC-5 and 1771 series systems. We can support blanket purchase agreements, scheduled delivery programs, and emergency stock reservations to ensure your maintenance team always has critical spares available when needed.
