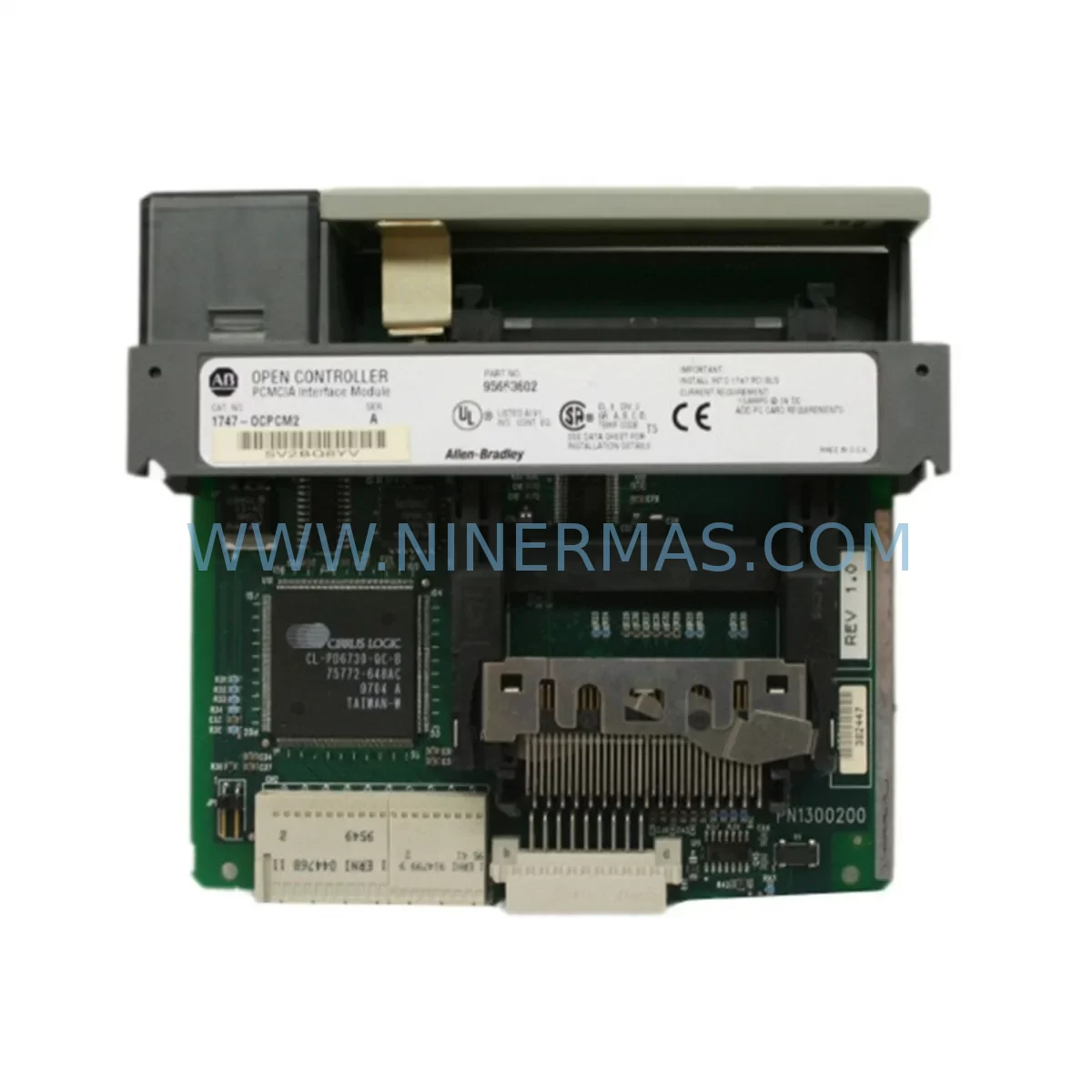

AB 1747-OCPCM2 Retrofit-Compatible PC Card Module for SLC 500

AB 1747-OCPCM2 Retrofit-Compatible PC Card Module for SLC 500: Legacy System Compatibility and Smooth Upgrade

The Allen-Bradley 1747-OCPCM2 is a PC card memory module designed for the SLC 500 programmable controller platform — one of the most widely deployed legacy automation systems in discrete manufacturing, material handling, and process control environments. As original equipment manufacturers discontinue support for aging SLC 500 infrastructure, the 1747-OCPCM2 remains a critical component for engineers and maintenance teams tasked with extending the operational life of existing control panels, upgrading communication links, or executing a phased migration to newer platforms such as the MicroLogix 1100, MicroLogix 1400, or CompactLogix L-series controllers.

At NINERMAS, we maintain verified inventory of the 1747-OCPCM2 to support customers across industries who cannot afford extended downtime during control system transitions. Every unit is subject to pre-shipment functional testing, and all orders are covered by a 12-month warranty.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

When integrating the 1747-OCPCM2 into an existing SLC 500 retrofit project, engineers must account for the full scope of the control architecture. The SLC 500 modular chassis — available in 4-, 7-, 10-, and 13-slot configurations — typically houses a combination of digital and analog I/O modules alongside the CPU. Common modules found in the same rack include the 1746-IB16 (16-point 24VDC input module), 1746-OB16 (16-point transistor output module), and 1746-NI4 (analog input module), all of which must remain addressed correctly after any memory card swap or processor replacement.

Power supply capacity is a frequent oversight during retrofit planning. The 1746-P4 or 1746-P7 power supply modules must be evaluated to confirm they can support the full I/O load of the upgraded rack, particularly when additional communication modules such as the 1747-SDN DeviceNet scanner or 1747-KE DH-485 to RS-232 interface are added to the system. Insufficient power budget is a leading cause of intermittent faults during post-retrofit commissioning.

For facilities migrating from DH+ to Ethernet/IP, the 1761-NET-ENI serial-to-Ethernet interface or a 1747-AENTR EtherNet/IP adapter can bridge legacy SLC 500 processors to modern SCADA and MES platforms without requiring a full controller replacement. This approach preserves existing ladder logic, HMI screen layouts, and tag databases while enabling remote monitoring and data collection over standard TCP/IP infrastructure.

HMI compatibility is another key consideration. Panel View terminals communicating via DH+ — such as the PanelView 550 or PanelView 600 — must be verified against the updated processor configuration to ensure screen navigation, alarm setpoints, and data table references remain intact after the memory card is restored. If the HMI application references specific file numbers or integer tables, these must be confirmed against the restored program on the 1747-OCPCM2 before returning the line to production.

Programming cable access is also essential during commissioning. The 1747-UIC USB-to-DH-485 interface cable allows technicians to connect a laptop running RSLogix 500 directly to the SLC processor for program upload, verification, and online monitoring — a critical step in confirming that the restored program on the 1747-OCPCM2 matches the last known-good backup.

Downtime Control During System Migration

Minimizing production downtime during a memory card replacement or processor swap on an SLC 500 system requires careful pre-migration preparation. Before any hardware is removed, the existing program should be uploaded from the processor and saved to a secure backup location using RSLogix 500. The 1747-OCPCM2 should be pre-loaded with the verified program image and tested offline where possible before the scheduled maintenance window begins.

During the physical swap, I/O modules should remain in place in the chassis to preserve terminal wiring and field device connections. Only the CPU and memory card are typically disturbed in a like-for-like replacement scenario. After reinstalling the processor with the 1747-OCPCM2 installed, the system should be powered up in program mode, and the restored ladder logic verified against the backup before switching to run mode.

Communication links — including DH+ node addresses, DH-485 baud rates, and any Ethernet/IP configurations — must be confirmed in the processor configuration before going online. If the system includes a 1747-SDN DeviceNet scanner, the scanner configuration file stored on the memory card must also be validated against the connected field devices to prevent I/O faults on startup. Keeping a detailed commissioning checklist and assigning a dedicated technician to monitor field I/O status during the first production run significantly reduces the risk of unplanned stoppages.

Retrofit Support FAQ

Q: Is the 1747-OCPCM2 a direct drop-in replacement for the original Allen-Bradley part?
A: Yes. The 1747-OCPCM2 supplied by NINERMAS is a verified replacement compatible with SLC 5/03, 5/04, and 5/05 processors. No hardware modification is required for a like-for-like swap. We recommend uploading and verifying the existing program before replacement and restoring it to the new card using RSLogix 500.

Q: What commissioning steps are required after installing the 1747-OCPCM2?
A: After installation, power the processor in program mode and use RSLogix 500 to verify the restored ladder logic, I/O addressing, and communication configuration. Confirm DH+ node addresses, check analog scaling parameters, and validate HMI data table references before switching to run mode. A full I/O force test is recommended prior to resuming production.

Q: Does NINERMAS provide pre-shipment testing for the 1747-OCPCM2?
A: Yes. All units undergo functional verification before shipment. Each 1747-OCPCM2 is covered by a 12-month warranty from the date of shipment. If you require a specific program pre-loaded onto the card, please contact our technical team prior to ordering.

Q: What is the typical lead time and stock availability?
A: NINERMAS maintains ready stock of the 1747-OCPCM2 to support urgent retrofit and breakdown replacement requirements. Standard orders are processed and shipped within 1–3 business days. For large quantity requirements or project-based procurement, please contact us directly to confirm availability and lead time.
