AB 1746-BTM Retrofit-Compatible Temperature Module

AB 1746-BTM Retrofit-Compatible Temperature Module: Legacy SLC 500 System Upgrade

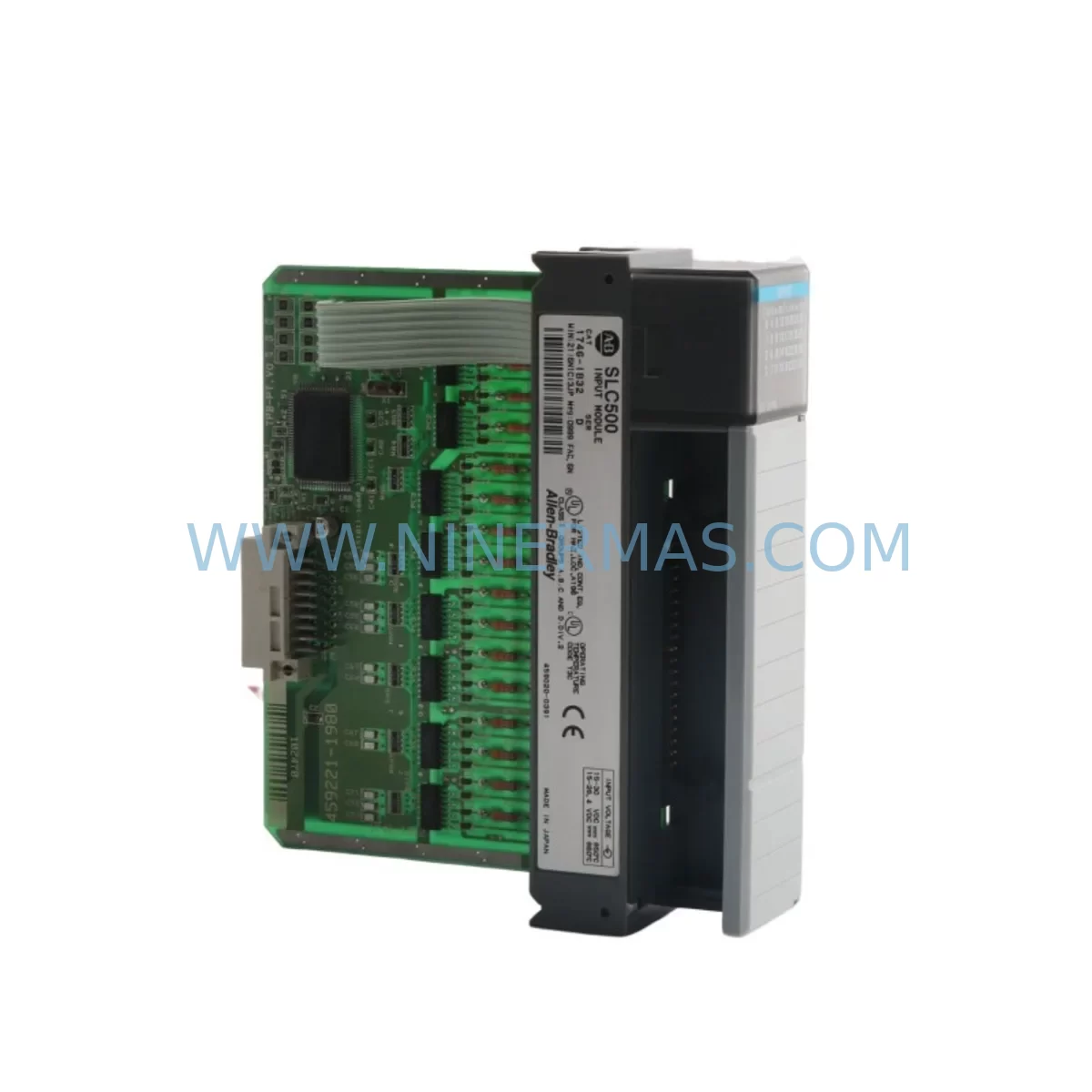

The Allen-Bradley 1746-BTM is a ruggedized barrel temperature input module designed for the SLC 500 platform, offering a reliable retrofit path for aging automation systems operating in harsh industrial environments. Whether you are replacing a failed unit on an active production line, modernizing a legacy control cabinet, or extending the service life of an SLC 500-based system, the 1746-BTM provides a proven, drop-in compatible solution that minimizes engineering risk and reduces unplanned downtime.

As industrial facilities face increasing pressure to maintain aging control infrastructure while deferring full system replacements, the 1746-BTM occupies a critical role in the retrofit toolkit. Its compatibility with the 1746 I/O chassis — including the 1746-A4, 1746-A7, 1746-A10, and 1746-A13 backplanes — means it can be installed directly into existing rack assemblies without mechanical modification. Engineers should verify available slot count and chassis power budget before installation, particularly in densely populated racks where the 1746-P2 or 1746-P4 power supply may already be operating near capacity.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Successful integration of the 1746-BTM into a legacy system requires a structured pre-installation assessment. Begin by documenting the existing I/O map in RSLogix 500 to confirm the module’s slot address and data file assignments. The 1746-BTM occupies a defined slot in the SLC 500 rack and communicates temperature data through the processor’s input image table — any mismatch in slot addressing will cause program faults that must be resolved before resuming production.

Terminal wiring is a common source of commissioning delays. The 1746-BTM uses a removable terminal block, and field wiring from barrel thermocouples must be verified against the module’s pinout diagram. In older installations, wire labeling may be inconsistent or absent, requiring technicians to trace conductors back to the sensor junction. Where the original 1746-NI4 or 1746-NI8 analog input modules were used alongside the BTM for mixed-signal applications, confirm that the wiring segregation between thermocouple and voltage/current inputs is maintained to avoid signal interference.

Power supply capacity is another critical checkpoint. The 1746-BTM draws current from the chassis backplane, and in racks already populated with communication modules such as the 1747-SDN DeviceNet scanner or the 1747-KE DH-485 to RS-232 interface module, the available backplane current may be marginal. Use the chassis power budget worksheet to confirm headroom before installation.

For facilities migrating from older SLC 5/01 or 5/02 processors to a 1747-L553 SLC 5/05 with Ethernet/IP capability, the 1746-BTM remains fully compatible at the I/O level. The processor upgrade path does not require changes to the temperature module itself, though the RSLogix 500 program file will need to be re-verified for any processor-specific instruction differences. HMI screens built on PanelView 550 or PanelView 600 terminals referencing temperature data tags should be audited to confirm data file addresses remain consistent after any processor swap.

In control cabinets where DIN rail space is limited, confirm the physical installation envelope. The 1746-BTM occupies a single slot in the 1746 chassis, but adjacent modules and cable management trays may restrict access to the terminal block. Plan for adequate clearance during wiring and future maintenance access.

Downtime Control During System Migration

Minimizing production interruption during a 1746-BTM replacement requires advance preparation. Before the maintenance window opens, obtain a backup of the SLC 500 processor program using RSLogix 500 or RSLinx Classic, and store the .RSS file in a secure, version-controlled location. Document the current I/O configuration, including module slot assignments, data file numbers, and any custom rung comments that describe the temperature control logic.

During the swap, the existing terminal block can be removed from the failed module and transferred directly to the replacement 1746-BTM, preserving field wiring connections and eliminating the need to re-terminate individual conductors. This approach significantly reduces the risk of wiring errors and shortens the physical installation time to under 15 minutes in most cases.

After installation, power up the chassis and verify that the processor recognizes the module at the correct slot address. Use RSLogix 500 online monitoring to confirm that temperature values are being read correctly and that no I/O fault bits are set. If the system uses a 1747-SCNR remote I/O scanner or communicates temperature data to a supervisory SCADA system via the 1747-L551 processor’s DH+ port, verify end-to-end data integrity before releasing the line back to production.

For facilities with strict change management requirements, prepare a pre-approved work order that documents the replacement procedure, expected downtime, rollback plan, and post-installation verification checklist. This documentation supports both internal audit requirements and any third-party safety assessments associated with the control system.

Retrofit Support FAQ

Q: Is the 1746-BTM a direct replacement for my existing unit without program changes?
A: In most cases, yes. The 1746-BTM is a like-for-like replacement within the SLC 500 platform. However, you should verify the slot address in your RSLogix 500 program and confirm that the module type code matches the original configuration. If the original module was configured with specific thermocouple types or filter settings, these parameters must be re-entered after installation.

Q: What wiring checks are required before powering up the replacement module?
A: Confirm that thermocouple polarity is correct at each input terminal, that the terminal block is fully seated, and that no conductors are cross-terminated. Reference the 1746-BTM installation instructions for the correct pinout. In systems where the original wiring was installed many years ago, inspect for insulation degradation or corrosion at the terminal connections.

Q: Does the 1746-BTM ship tested and ready for installation?
A: Yes. Each unit undergoes functional testing prior to shipment to verify input channel accuracy and backplane communication integrity. Units are supplied with a 12-month warranty covering defects in materials and workmanship under normal operating conditions.

Q: What is the typical lead time and inventory availability?
A: We maintain stock of the 1746-BTM to support urgent replacement requirements. Standard orders ship within 1–3 business days. For large-quantity orders or scheduled maintenance programs, contact our team to confirm availability and arrange priority allocation.
