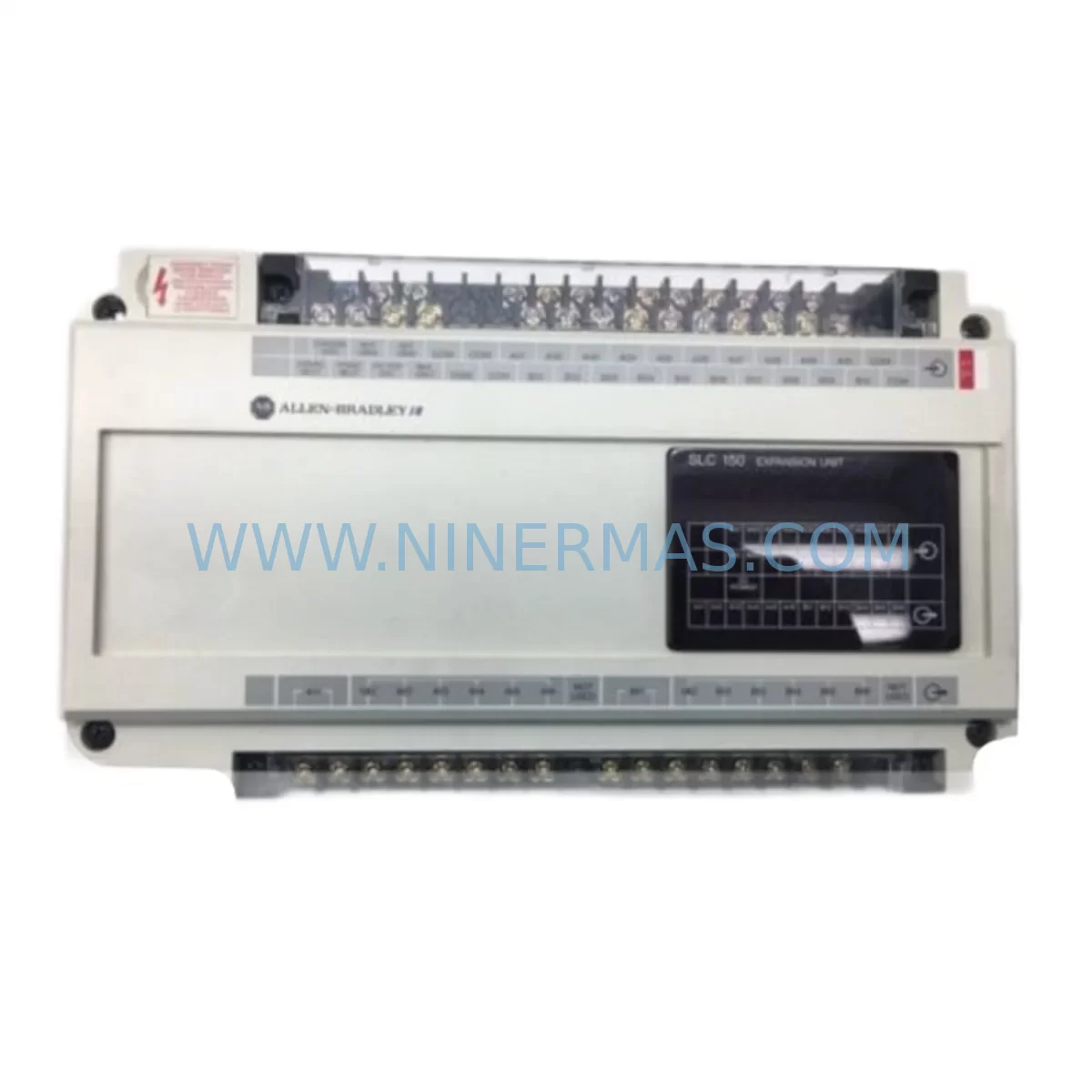

AB 1745-E102 Retrofit-Compatible Expansion Module

AB 1745-E102 Retrofit-Compatible Expansion Module: Seamless Legacy System Upgrade

The Allen-Bradley 1745-E102 is a ruggedized expansion module originally designed for harsh industrial environments within the SLC 500 control platform. As production lines age and original equipment manufacturers discontinue support for legacy components, the 1745-E102 remains a critical retrofit solution for engineers and maintenance teams tasked with keeping older automation systems operational without a full platform migration. Whether you are extending the service life of an existing SLC 500 rack or bridging the gap during a phased upgrade to a ControlLogix or CompactLogix architecture, the 1745-E102 provides a reliable, drop-in compatible path forward.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

When planning a retrofit around the 1745-E102, the first step is a thorough audit of the existing SLC 500 rack configuration. Most legacy installations pair this expansion module with a 1746-A10 or 1746-A13 modular chassis, and slot assignments must be carefully documented before any hardware is removed. The processor — typically a 1747-L40 or 1747-L543 — holds the I/O configuration table in its program file, and any mismatch between the physical module type and the configured slot type will generate a fault on power-up.

Terminal wiring is one of the most time-consuming aspects of a 1745-E102 replacement. Field wiring connected to the original module must be mapped against the new unit’s terminal block layout. In many aging control cabinets, wire labels have faded or been removed entirely, making a point-to-point continuity check essential before reconnection. Where the original installation used a 1492-IFM (interface module) for field wiring termination, confirm that the new module’s I/O density and terminal pitch remain compatible.

Power budget verification is equally critical. The SLC 500 backplane draws power from the 1746-P2 or 1746-P4 power supply, and adding or replacing expansion modules can shift the total current draw. Before installing the 1745-E102, calculate the combined backplane load across all installed modules — including any 1746-OB16 digital output modules, 1746-IB16 digital input modules, or 1746-NI4 analog input modules — to confirm the power supply remains within its rated capacity.

For facilities migrating communications from DH-485 to EtherNet/IP, the 1745-E102 retrofit often coincides with the installation of a 1761-NET-ENI or 1747-AENTR Ethernet adapter to bridge legacy SLC processors onto a modern network backbone. This communication upgrade must be validated against the HMI — typically a PanelView 550 or PanelView Plus 600 — to ensure tag addresses and screen logic remain intact after the network transition.

Where I/O expansion is the primary driver, the 1745-E102 may be supplemented by additional 1746-series I/O modules to meet new signal requirements. Signal isolators, such as those used between field transmitters and analog input cards, should also be inspected and replaced if they show signs of drift or calibration loss. Programming cable access via a 1747-PIC or 1747-UIC USB adapter will be needed for any RSLogix 500 program modifications during commissioning.

Downtime Control During System Migration

Minimizing unplanned downtime during a 1745-E102 replacement requires a structured pre-outage preparation process. Before the maintenance window opens, the existing RSLogix 500 program should be uploaded and archived from the 1747-L series processor using a 1747-UIC programming cable. This backup preserves the original ladder logic, I/O configuration, and data file structure, providing a recovery baseline if commissioning issues arise.

During the physical swap, the replacement 1745-E102 should be bench-tested where possible — verifying LED status indicators, backplane seating, and terminal continuity — before installation into the live rack. Once installed, the module address must be confirmed in the RSLogix 500 I/O configuration tree. If the slot address differs from the original, the program file must be updated accordingly before the processor is returned to Run mode.

To protect field control continuity, consider placing the SLC 500 processor in a controlled fault state rather than a hard power-down, where process conditions allow. This approach preserves output states in memory and reduces the risk of uncontrolled actuator movement during the transition. After the replacement module is seated and wired, a forced I/O test — verifying each input and output point against the field device — should be completed before returning the system to automatic operation. With proper preparation, a 1745-E102 replacement can typically be completed within a two- to four-hour maintenance window.

Retrofit Support FAQ

Q: Is the 1745-E102 a direct drop-in replacement for the original discontinued unit?
A: Yes. The 1745-E102 is designed as a form-fit-function replacement for the original Allen-Bradley unit. Slot addressing, backplane interface, and terminal layout are consistent with the original specification. Verify the I/O configuration in RSLogix 500 matches the module type before returning the processor to Run mode.

Q: What wiring checks are required before installation?
A: Perform a point-to-point continuity check on all field wiring before reconnecting to the replacement module. Confirm wire labels against the original panel drawings, and verify terminal torque specifications match the module’s rated values. Where 1492-IFM interface modules are used, confirm compatibility with the replacement unit’s terminal pitch.

Q: Has this unit been tested before shipment?
A: Yes. All 1745-E102 units are function-tested prior to dispatch. Each module undergoes backplane communication verification and I/O point testing as part of our outgoing quality process. A 12-month warranty is included with every unit.

Q: What is the lead time and stock availability?
A: The 1745-E102 is held in stock and available for immediate dispatch. Standard lead time for in-stock units is 1–3 business days. For urgent requirements, expedited shipping options are available. Contact our team to confirm current inventory levels and delivery timelines.
