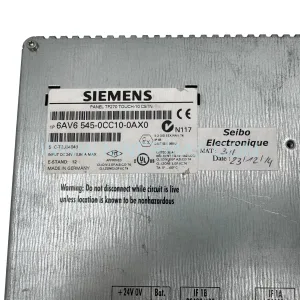

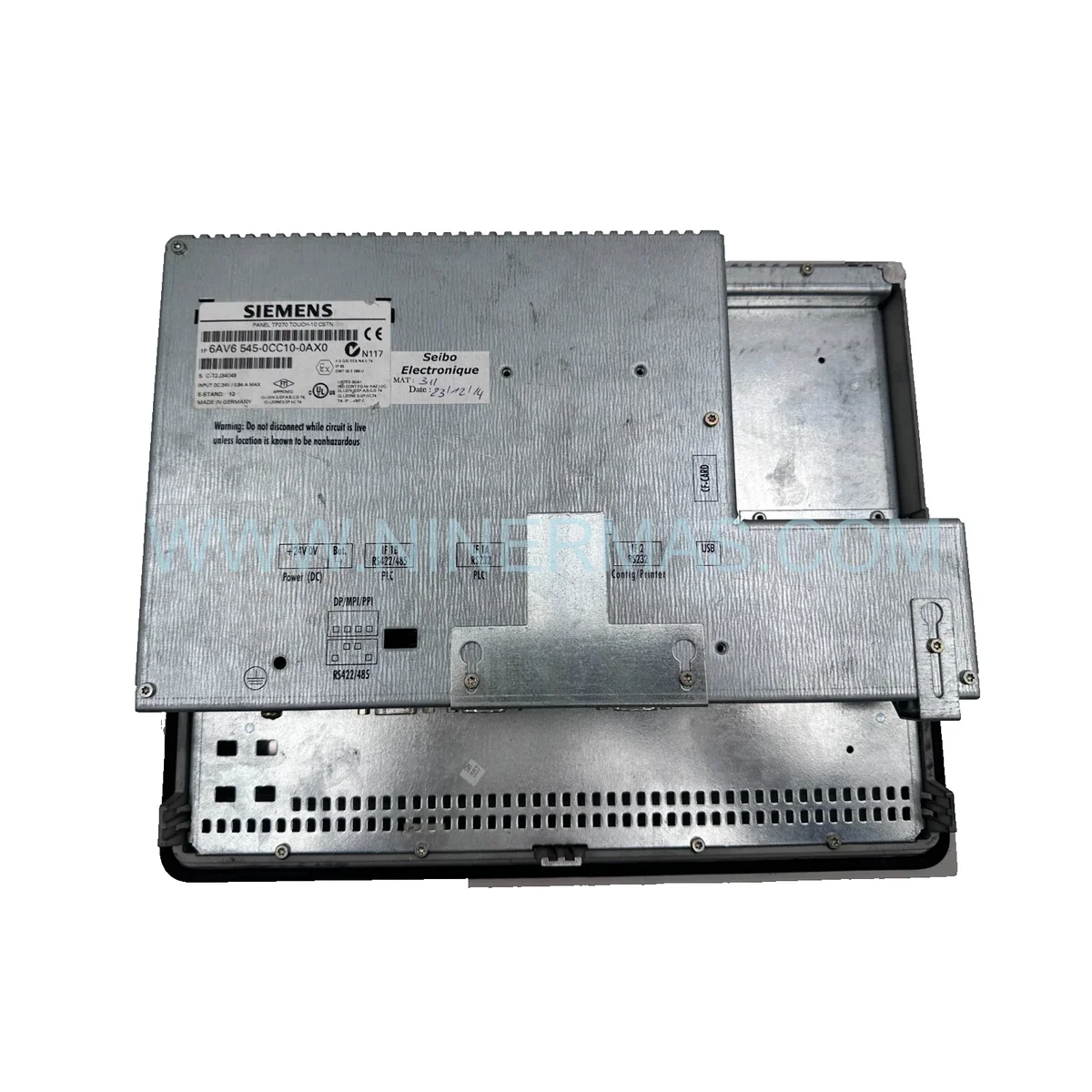

6AV6545-0CC10-0AX0 Siemens SIMATIC TP 270 10″ HMI Touch Panel

6AV6545-0CC10-0AX0 — Siemens SIMATIC TP 270 10″ Touch Panel | Industrial-Grade HMI Spare Parts

As a procurement manager sourcing critical automation components, you need absolute confidence in part authenticity and availability. The 6AV6545-0CC10-0AX0 is a factory-sealed, 100% Brand New and Factory Sealed Siemens SIMATIC TP 270 10″ HMI Touch Panel — a cornerstone of Industrial Automation and PLC System integration across global process industries. This Original New unit ships directly from verified stock, ensuring zero compromise on quality or traceability. The 6AV6545-0CC10-0AX0 delivers a 10.4-inch TFT color display with 640-480 VGA resolution, analog resistive touchscreen, and multi-protocol communication (PROFIBUS DP, MPI, Ethernet), making it one of the most versatile Control Module solutions in the Siemens SIMATIC HMI portfolio.

Downtime in automated production lines is costly. The 6AV6545-0CC10-0AX0 was engineered to address exactly that — providing a reliable, drop-in replacement or new installation HMI for Oil & Gas facilities, pharmaceutical plants, and discrete manufacturing environments where legacy Siemens SIMATIC S7 PLC Systems remain in active service. Whether you are modernizing an aging panel or stocking critical Spare Parts for EOL systems, this unit is your answer.

Backed by a 1-Year Warranty, fast global logistics, and full technical documentation support, this is the HMI solution procurement teams and site engineers trust. Contact us today for pricing and lead time confirmation.

Typical Application Scenarios

The 6AV6545-0CC10-0AX0 serves mission-critical roles across multiple verticals:

• Oil & Gas: Pipeline monitoring and compressor station HMI replacement — where panel failure means production halt. This unit’s IP65 front rating and wide operating temperature range make it field-ready.
• Power Plants: Turbine control visualization and alarm management on legacy SIMATIC S7-300/400 PLC Systems — the TP 270 10 integrates natively via MPI/PROFIBUS without gateway hardware.
• Pharmaceutical Manufacturing: Batch recipe management and FDA-compliant process logging on packaging and filling lines, leveraging WinCC flexible’s audit trail capabilities.
• Food & Beverage: Washdown-resistant front panel (IP65) for hygienic production environments; supports multi-language operator screens for global plant deployments.
• Water & Wastewater Treatment: Remote SCADA visualization node for distributed pump stations — Ethernet connectivity enables VNC-based remote diagnostics without site visits.

Technical Specifications & Selection Guide

| Specification | Value | |—|—| | **Part Number / SKU** | 6AV6545-0CC10-0AX0 | | **Product Family** | Siemens SIMATIC TP 270 10 | | **Display Size** | 10.4″ TFT Color | | **Resolution** | 640 — 480 px (VGA) | | **Touch Technology** | Analog Resistive | | **User Memory** | 12 MB | | **Communication Interfaces** | PROFIBUS DP, MPI, Ethernet (RJ45) | | **Power Supply** | 24V DC | | **Operating Temperature** | 0°C to +50°C | | **Protection Rating** | IP65 (front panel) | | **Configuration Software** | SIMATIC WinCC flexible | | **Condition** | 100% Original and Brand New | | **Warranty** | 1 Year |

Selection Guide: Choose the 6AV6545-0CC10-0AX0 when your application requires a 10.4″ color HMI with native Siemens PROFIBUS/MPI connectivity and WinCC flexible compatibility. For smaller panel cutouts, consider the TP 270 6″ variant. For Ethernet-only environments, confirm firmware version compatibility with your S7 controller.

Core Features & Technical Advantages

1. Robust Industrial Construction: IP65-rated front bezel withstands dust, water jets, and chemical splashes — precision-engineered for heavy-duty factory floor deployment.
2. Native Siemens PLC System Integration: Communicates directly with SIMATIC S7-200/300/400 via MPI, PROFIBUS DP, or Industrial Ethernet — no protocol converters required.
3. High-Visibility TFT Display: 10.4″ color screen with LED backlight ensures clear readability under varying ambient light conditions in industrial environments.
4. Versatile Control Module Functionality: Supports alarm management, trend logging, recipe control, and multi-language operator interfaces within a single compact unit.
5. Remote Diagnostics Ready: Ethernet-enabled VNC access allows engineers to troubleshoot and update screens without physical presence — reducing maintenance costs significantly.
6. 100% Original and Brand New: Every unit is factory-sealed with full Siemens traceability documentation, meeting E-E-A-T standards for industrial procurement compliance.

Logistics & Professional Service

• ✅ 2-Day Express Shipping available to major global destinations (DHL / FedEx / UPS)
• ✅ 1-Year Warranty covering manufacturing defects — replacement or full refund guaranteed
• ✅ EOL Legacy System Support: We specialize in sourcing discontinued and hard-to-find Siemens SIMATIC Spare Parts for systems no longer in active production
• ✅ Full Documentation: Datasheet, CE Declaration of Conformity, and country-of-origin certificate available upon request
• ✅ Global Export Compliance: All units shipped with proper HS code classification and commercial invoice for customs clearance

FAQ — Frequently Asked Questions

Q1: What is the price of the 6AV6545-0CC10-0AX0 and are volume discounts available?
A: Our listed price reflects current market availability for this Original New unit. For orders of 3+ units, we offer tiered volume pricing. Please contact sale@ninermas.com with your required quantity and delivery location for a formal quotation within 24 hours.

Q2: What is the lead time for the 6AV6545-0CC10-0AX0?
A: In-stock units ship within 1-2 business days. For larger quantities or special configurations, lead time is typically 5-7 business days. We maintain safety stock of high-demand Siemens SIMATIC HMI Spare Parts to support urgent industrial shutdowns.

Q3: Can you provide the official Datasheet and technical documentation?
A: Yes. The Siemens SIMATIC TP 270 10 Datasheet, hardware installation manual, and WinCC flexible compatibility guide are available upon request. Email sale@ninermas.com with your project details and we will send the full documentation package.

Q4: Is this unit compatible with SIMATIC S7-300 and S7-400 PLC Systems?
A: Confirmed. The 6AV6545-0CC10-0AX0 communicates natively with S7-300 and S7-400 via MPI and PROFIBUS DP. Ethernet connectivity also supports S7 controllers with CP modules. No additional hardware or gateways are required.

Q5: How can I verify the unit is 100% Original and Brand New?
A: Each unit ships with original Siemens factory packaging, serial number label, and a Certificate of Authenticity. We provide full traceability documentation including purchase records from authorized distribution channels — fully compliant with industrial procurement audit requirements.

Q6: Do you support returns or exchanges if the unit is incompatible with my system?
A: Yes. We offer a 30-day return policy for unused, factory-sealed units. Our pre-sales engineering team can verify compatibility with your existing PLC System and control architecture before purchase — simply share your system configuration details.
