1764-28BXB1 Allen-Bradley MicroLogix 1500 Base Unit | Original Spare Parts

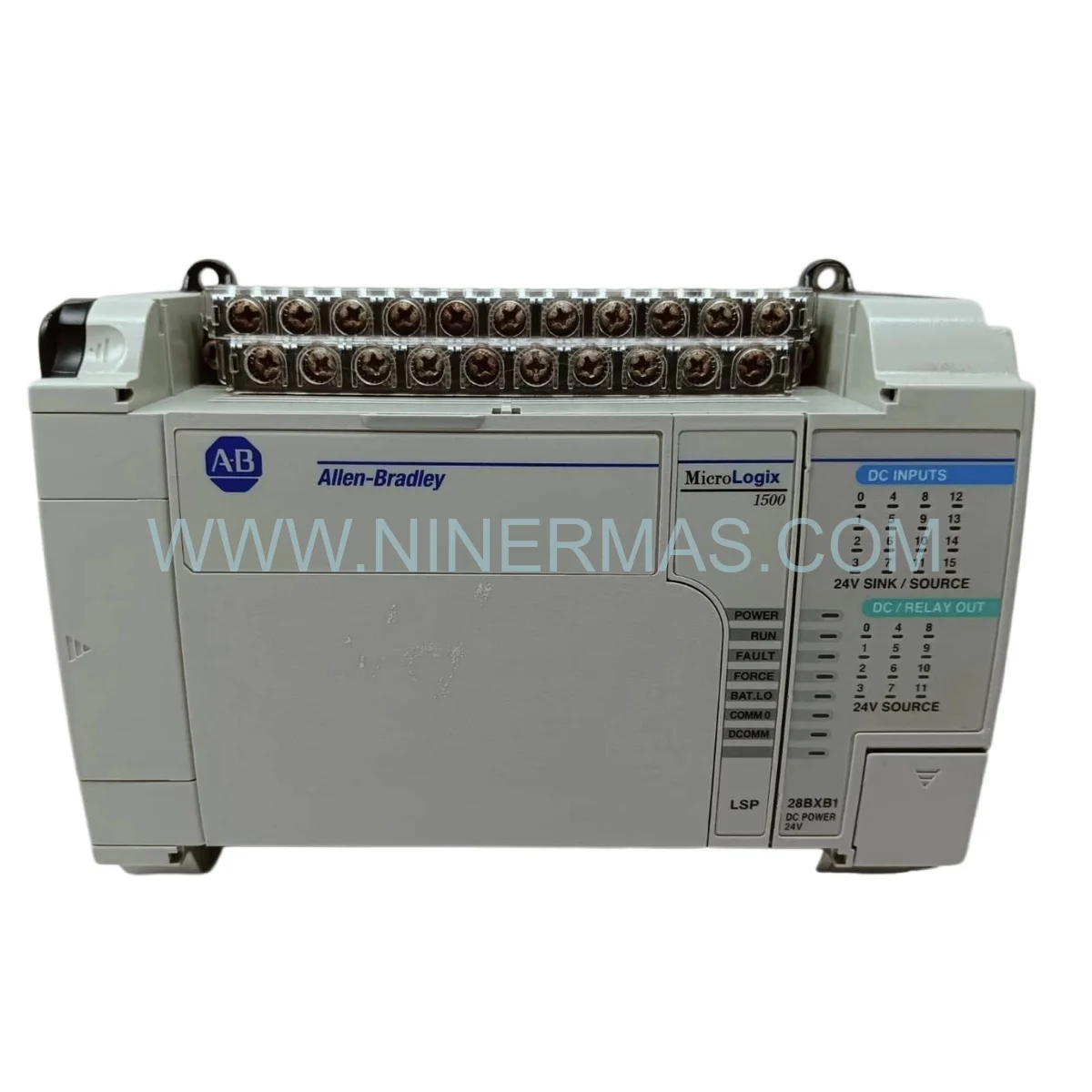

1764-28BXB1 Allen-Bradley MicroLogix 1500 Base Unit — Industrial-Grade PLC Control Module

As a procurement manager sourcing critical automation components, you need parts that are 100% Brand New and Factory Sealed — no compromises. The 1764-28BXB1 is a 28-point base unit engineered for the Allen-Bradley MicroLogix 1500 PLC System, delivering 16 DC inputs and 12 relay outputs in a compact, DIN-rail-mountable form factor. This Original New Control Module is built to meet the rigorous demands of Industrial Automation environments where uptime is non-negotiable.

Facilities running legacy or active MicroLogix 1500 architectures frequently face the challenge of sourcing authentic Spare Parts without extended lead times. The 1764-28BXB1 addresses this directly — stocked as a 100% Original and Brand New unit, it integrates seamlessly into existing PLC System configurations without re-engineering or compatibility risk. Whether you’re replacing a failed base unit or building out a redundant control panel, this module delivers factory-spec performance from day one.

Backed by Allen-Bradley’s proven engineering heritage, this module supports RSLogix 500 programming, DH-485 multi-drop networking, and hot-swap I/O expansion — making it the preferred choice for engineers who demand precision and reliability. Contact us today for pricing and availability.

Core Features & Technical Advantages

• 100% Original and Brand New — Factory sealed, traceable to Allen-Bradley origin; meets E-E-A-T standards for industrial procurement
• 28-Point I/O Architecture — 16 x 24V DC sinking/sourcing inputs + 12 x relay outputs (2A per point) for robust mixed-signal control
• Dual Communication Ports — Onboard RS-232 and DH-485 interfaces enable seamless integration into existing PLC System networks (up to 32 nodes)
• 12K User Program Memory — Sufficient for complex ladder logic, function block, and structured text programs in mid-scale automation
• Hot-Swap I/O Expansion — Add or replace MicroLogix 1500 expansion modules without powering down the base unit, minimizing maintenance windows
• Wide Operating Range — 0°C to 60°C (32°F to 140°F); rated for Class I Division 2 hazardous locations when properly installed
• RSLogix 500 Compatible — Industry-standard programming environment with online editing and run-mode changes for rapid commissioning

Technical Specifications & Selection Guide

Selection Guide: The 1764-28BXB1 is the relay-output variant of the MicroLogix 1500 28-point base. If your application requires transistor (DC) outputs for high-speed switching or PWM control, consider the 1764-28BXB series alternatives. For applications requiring more than 28 I/O points, this base unit supports up to 6 expansion modules via the local I/O bus.

Typical Application Scenarios

Oil & Gas Processing: Wellhead control panels and pipeline monitoring stations demand heavy-duty relay outputs capable of switching motor starters and solenoid valves under harsh environmental conditions. The 1764-28BXB1’s Class I Div 2 rating and robust relay outputs make it a proven fit for upstream and midstream automation.

Power Plants & Utilities: Auxiliary control systems for cooling towers, pump stations, and switchgear automation require deterministic scan times and reliable network communication. The DH-485 port enables integration into plant-wide SCADA architectures without additional gateways.

Food & Beverage Manufacturing: Batch processing lines, conveyor sequencing, and CIP (Clean-in-Place) systems benefit from the MicroLogix 1500’s compact footprint and hot-swap I/O capability, reducing changeover downtime in high-throughput facilities.

Automotive Assembly: Fixture control, end-of-line testing stations, and material handling systems leverage the 1764-28BXB1’s precision logic execution and RSLogix 500 compatibility for rapid program deployment across multiple production cells.

Water & Wastewater Treatment: Pump sequencing, level control, and chemical dosing applications in municipal treatment plants rely on the module’s wide temperature tolerance and proven reliability in continuous-duty cycles.

Logistics & Professional Service

• ✅ 2-Day Express Shipping Available — Global logistics network covering North America, Europe, Asia-Pacific, and Middle East regions
• ✅ 1-Year Warranty — Every 1764-28BXB1 unit ships with a full 12-month warranty against manufacturing defects
• ✅ EOL & Legacy System Support — Specializing in End-of-Life Allen-Bradley components; we maintain stock of discontinued MicroLogix 1500 Spare Parts that are no longer available through standard distribution channels
• ✅ Full Documentation Package — Certificate of Conformance, packing list, and original Allen-Bradley datasheet available upon request
• ✅ Pre-Shipment Inspection — Each unit undergoes visual and packaging integrity checks before dispatch to ensure 100% Original and Brand New condition

FAQ (Frequently Asked Questions)

Q: What is the current price and MOQ for the 1764-28BXB1?
A: Pricing for the 1764-28BXB1 is available upon request and varies based on order quantity and delivery timeline. We offer competitive pricing for both single-unit emergency replacements and bulk procurement orders. Contact our sales team at sale@ninermas.com with your required quantity and target delivery date for a formal quotation within 24 hours.

Q: Is this 1764-28BXB1 unit genuinely original Allen-Bradley, or a third-party compatible?
A: Every unit we supply is 100% Original and Brand New Allen-Bradley product — not a clone, refurbished, or third-party compatible. We source directly from authorized channels and can provide a Certificate of Conformance and original manufacturer packaging as proof of authenticity.

Q: What is the lead time for the 1764-28BXB1?
A: In-stock units ship within 1-2 business days via express courier. For large-quantity orders or special configurations, lead time is typically 3-7 business days. We maintain safety stock of critical MicroLogix 1500 Spare Parts to support urgent plant maintenance requirements.

Q: Can you provide the official datasheet and technical documentation for the 1764-28BXB1?
A: Yes. The Allen-Bradley MicroLogix 1500 Base Unit datasheet, installation instructions (publication 1764-IN001), and user manual are available upon request. Contact us with your inquiry and we will provide the complete documentation package at no charge.

Q: Is the 1764-28BXB1 compatible with all MicroLogix 1500 expansion modules?
A: Yes. The 1764-28BXB1 base unit is fully compatible with all Allen-Bradley MicroLogix 1500 expansion I/O modules (1769 series), analog modules, and specialty function cards. It supports up to 6 expansion modules on the local I/O bus, providing scalability for growing Industrial Automation applications.

Q: Do you ship the 1764-28BXB1 internationally?
A: Absolutely. We provide Fast Global Shipping to over 80 countries via DHL, FedEx, and UPS express services. Export documentation, commercial invoices, and country-of-origin certificates are prepared for all international shipments to facilitate smooth customs clearance.
