YASKAWA SGMSS-20A2A-YR12 Retrofit Servo Motor for Legacy Systems

YASKAWA SGMSS-20A2A-YR12 Retrofit-Compatible Servo Motor for Legacy Systems

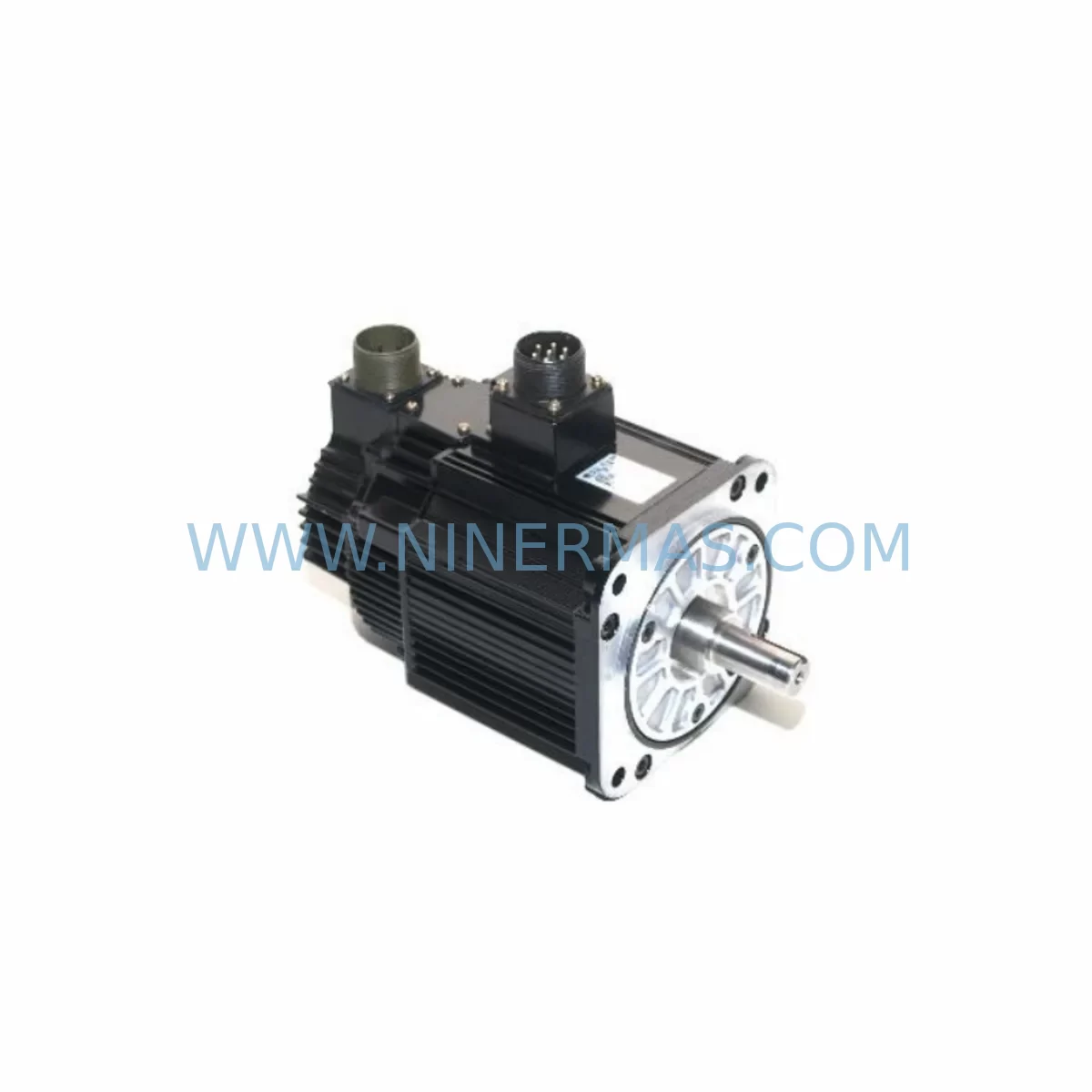

The YASKAWA SGMSS-20A2A-YR12 is a high-performance AC servo motor from the SGMSS series, widely deployed in legacy CNC machining centers, automated assembly lines, and precision motion control platforms. As original SGMSS-series units approach end-of-life or become increasingly difficult to source through standard distribution channels, the SGMSS-20A2A-YR12 remains a critical retrofit-compatible replacement for facilities committed to extending the operational life of their existing automation infrastructure without undertaking a full system overhaul.

This unit delivers 2.0 kW rated output with an absolute encoder interface (17-bit), making it directly compatible with YASKAWA SERVOPACK drives in the SGDV and SGDH series. Engineers planning a controlled migration from aging motion axes will find that the SGMSS-20A2A-YR12 preserves the original mechanical envelope, shaft dimensions, and flange mounting pattern — minimizing installation downtime and eliminating the need for custom adapter brackets or motor-mount modifications in the control cabinet.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Successful integration of the SGMSS-20A2A-YR12 into a legacy production line requires a structured pre-retrofit assessment. Before removing the existing motor, maintenance engineers should document the current SERVOPACK parameter file using SigmaWin+ software, capturing all axis tuning data including inertia ratio, speed loop gain, and position loop gain. This parameter backup is essential — it allows rapid restoration of motion performance after the motor swap without requiring a full re-commissioning cycle from scratch.

On the drive side, confirm that the installed SGDV-200A SERVOPACK (or equivalent SGDH-20AE unit in older installations) is configured for absolute encoder operation. If the existing system was running an incremental encoder variant of the SGMSS series, the transition to the 17-bit absolute encoder in the YR12 suffix requires updating the encoder selection parameter (Pn002.2) and performing a multi-turn absolute encoder initialization sequence. This is a critical step that is frequently overlooked during rushed maintenance windows and can result in homing errors or axis runaway on first power-up.

Wiring adaptation is typically straightforward. The SGMSS-20A2A-YR12 uses the standard YASKAWA encoder connector (CN2) and motor power connector (CN1) pinout consistent across the SGMSS-20 frame family. However, engineers should inspect the existing JZSP-CMP00-03 encoder cable for connector wear, particularly at the SERVOPACK end, as aged connectors are a common source of encoder communication faults (A.810 or A.820 alarms) that are misdiagnosed as motor failures. Replacing the encoder cable alongside the motor is strongly recommended as a preventive measure.

For installations where the SGMSS-20A2A-YR12 is being integrated into a multi-axis MECHATROLINK-II network alongside other servo axes — such as a gantry system running SGMSS-15A2A-YR12 and SGMSS-10A2A-YR12 units on secondary axes — verify that the ML-II station address (Pn006) is correctly assigned and does not conflict with adjacent nodes. The SGDV SERVOPACK’s built-in MECHATROLINK-II interface eliminates the need for a separate communication module, but the host controller (typically a YASKAWA MP2300 or MP3300 machine controller) must be updated with the correct axis definition if the motor capacity changes.

In control cabinet retrofit scenarios, space planning is equally important. The SGMSS-20A2A-YR12 shares the same 130 mm flange footprint as predecessor models, but engineers should verify the available cable bend radius behind the motor terminal box, especially in compact servo cabinets where the SGDV SERVOPACK, a JVOP-182 digital operator panel, and associated I/O terminal blocks from a YASKAWA SI-T3 I/O module may already occupy significant rail space. If the cabinet layout requires rerouting power cables, use shielded servo power cable rated for the motor’s continuous current draw to prevent EMI interference with adjacent signal wiring.

For facilities running hybrid control architectures — where the SGMSS-20A2A-YR12 operates under supervisory control from a YASKAWA CP-9200SH or CP-9300MS programmable controller — confirm that the ladder logic addressing the servo axis motion commands (MOVE, POSING, ZRET) remains valid after the motor replacement. In most cases, the program logic is transparent to the motor hardware change, but any axis-specific electronic gear ratio settings (Pn20E/Pn210) must be verified against the new motor’s encoder resolution to ensure accurate positioning.

Downtime Control During System Migration

Minimizing production downtime during an SGMSS-20A2A-YR12 swap requires advance preparation rather than reactive maintenance. The recommended approach is to pre-stage the replacement motor, encoder cable, and any required connector hardware at least 48 hours before the planned maintenance window. Pre-shipment testing at our facility includes a no-load run-in test, insulation resistance check, and encoder communication verification — providing confidence that the unit is field-ready before it arrives on site.

During the swap, the original SERVOPACK parameter file (backed up via SigmaWin+) should be restored immediately after the motor is mechanically installed and before any power-on attempt. This eliminates the risk of the drive operating with default parameters, which could cause unexpected axis movement or drive fault conditions. Following parameter restoration, perform the absolute encoder setup (Fn008 in the SERVOPACK utility functions) to establish the zero-point reference before returning the axis to automatic operation.

For critical production axes where even a brief unplanned stoppage carries significant cost, consider maintaining a pre-configured spare SGMSS-20A2A-YR12 unit with the encoder already initialized to the machine’s home position offset. This hot-spare strategy, combined with a pre-saved parameter file on a dedicated USB drive stored in the control cabinet, can reduce unplanned downtime from several hours to under 30 minutes in the event of an unexpected motor failure.

Throughout the migration, preserve the original program logic in the host controller without modification. The SGMSS-20A2A-YR12’s compatibility with the existing MECHATROLINK-II command set means that no changes to motion program blocks, cam profiles, or synchronization logic are required. Field continuity is maintained, and the risk of introducing software-related faults during a hardware maintenance event is eliminated.

Retrofit Support FAQ

Q1: Is the SGMSS-20A2A-YR12 a direct drop-in replacement for the SGMSS-20A2A-YR11?
A: Yes, with one important step. The YR12 suffix denotes the 17-bit absolute encoder generation, which is mechanically and electrically compatible with the YR11 installation. However, after installation you must perform an absolute encoder initialization (Fn008) via the SERVOPACK digital operator or SigmaWin+ to establish the encoder’s multi-turn reference. Failure to complete this step will result in an A.810 encoder backup alarm on power-up.

Q2: What commissioning steps are required after replacing the motor?
A: Restore the backed-up SERVOPACK parameter file, perform absolute encoder setup (Fn008), verify electronic gear ratio parameters (Pn20E/Pn210), and run a slow-speed jog test before returning the axis to full automatic operation. If the system uses a YASKAWA MP-series machine controller, confirm the axis home position offset in the motion program matches the new encoder reference.

Q3: How do I confirm wiring compatibility before installation?
A: The SGMSS-20A2A-YR12 uses the standard YASKAWA SGMSS-20 frame connector pinout. Cross-reference the existing encoder cable part number (typically JZSP-CMP00-03 or JZSP-CVP00-03 for absolute encoder) against the motor’s CN2 connector specification. Motor power wiring (U/V/W/PE) follows the standard SGMSS terminal box layout and is compatible with existing SGDV or SGDH drive output wiring without modification.

Q4: What does the 12-month warranty cover, and is stock available for immediate shipment?
A: The 12-month warranty covers manufacturing defects in materials and workmanship from the date of shipment. Each unit undergoes a pre-shipment functional test including no-load rotation, insulation resistance measurement, and encoder communication verification. Stock availability is maintained for the SGMSS-20A2A-YR12 and related SGMSS-series frame sizes. Contact our team for current lead time and quantity availability before placing a critical-path order.
