Yaskawa JZRCR-YPU01C-1 Retrofit Teach Pendant for Legacy Systems

Yaskawa JZRCR-YPU01C-1 Retrofit Teach Pendant for Legacy Systems

The Yaskawa JZRCR-YPU01C-1 is a retrofit-compatible teach pendant engineered for seamless integration with Yaskawa DX100 robot controllers deployed across legacy automation lines. As manufacturing facilities face increasing pressure to extend the operational life of installed robot systems while avoiding full-scale replacement, the JZRCR-YPU01C-1 provides a direct, field-verified path to restore or upgrade human-machine interaction on DX100-based cells without disrupting existing program logic or communication architecture.

Originally paired with MOTOMAN robot series including the MA1400, MA1900, HP20, and UP series, the DX100 controller platform remains widely deployed in automotive body shops, arc welding stations, material handling lines, and assembly cells. When the original teach pendant fails due to cable damage, display degradation, keypad wear, or internal board failure, sourcing a compatible replacement becomes critical to minimizing unplanned downtime. The JZRCR-YPU01C-1 addresses this need directly, offering full compatibility with the DX100 controller’s pendant interface port and communication protocol stack.

Before installation, engineers should verify the pendant cable connector type and confirm that the DX100 controller firmware version supports the JZRCR-YPU01C-1 hardware revision. In parallel, the JZRCR-YPU01-1 — an earlier pendant variant — may be present in mixed-fleet environments, and both models share the same physical mounting bracket and cable routing path, simplifying the swap procedure. The YRC1000 controller platform, Yaskawa’s successor to the DX100, uses a different pendant interface (JANCD-ABB04-E), so cross-platform compatibility must be confirmed before ordering.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

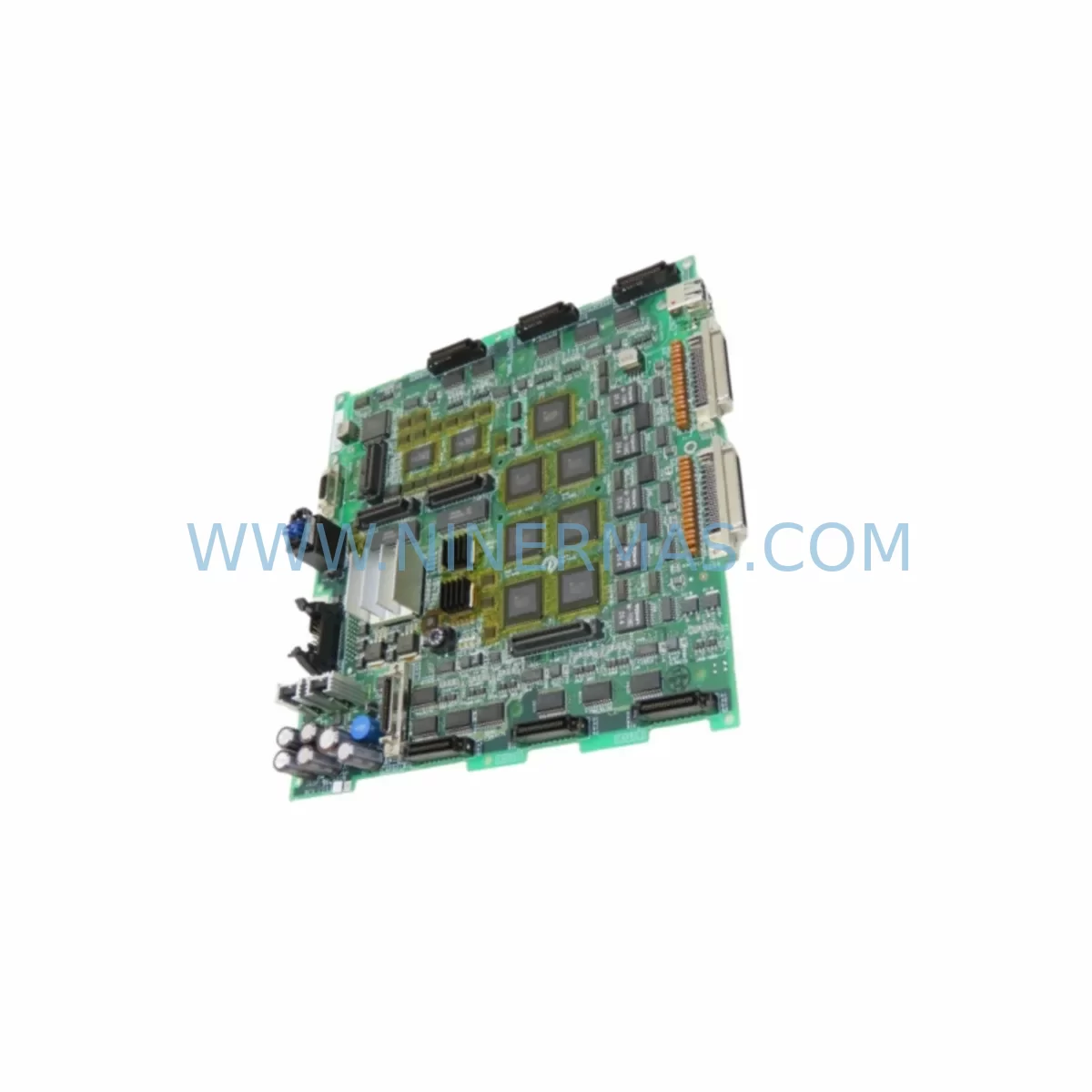

A successful JZRCR-YPU01C-1 retrofit begins with a thorough audit of the existing DX100 control cabinet. Technicians should document the current pendant cable routing, inspect the SRDA-SDB14A01A-E servo drive interface boards for any fault codes that may have contributed to pendant communication errors, and verify that the JANCD-XCP01 CPU board is operating within normal parameters. In many DX100 installations, the pendant failure is symptomatic of a broader power supply issue — the JZNC-NRK01-1 power unit should be load-tested before the new pendant is connected to rule out voltage instability on the pendant supply rail.

For cells where the DX100 is integrated with external safety PLCs or vision systems via DeviceNet or Ethernet/IP, the JZRCR-YPP01-1 I/O expansion board configuration should be reviewed to ensure that pendant-triggered I/O signals remain mapped correctly after the swap. If the facility is also planning a partial migration toward the YRC1000 platform, the JANCD-ABB04-E pendant for the new controller should be staged separately, as the two pendant types cannot be interchanged between controller generations.

Servo drive health is another critical checkpoint. SGDR-SDA710A01B and SGDV-2R8A01B servo amplifiers connected to the DX100 axis boards should be inspected for alarm history, as unresolved servo faults can prevent the replacement pendant from completing its initialization sequence. The CACR-SR series servo packs used in older MOTOMAN installations may also require parameter backup via the programming cable (JZRCR-NPP01B-1) before any pendant replacement is attempted, ensuring that axis calibration data is preserved.

HMI screen mapping should be validated post-installation. If the facility uses an external operator panel linked to the DX100 via the teach pendant’s relay logic, the panel I/O assignments must be re-verified after the pendant swap. Wiring terminal assignments on the DX100 I/O base unit should be cross-referenced against the original wiring diagram to confirm that no signal re-mapping is required.

Downtime Control During System Migration

Minimizing downtime during a teach pendant replacement on a live production line requires a structured pre-swap checklist. Before removing the JZRCR-YPU01C-1’s predecessor, all active job files stored in the DX100 controller should be backed up to an external USB device using the controller’s file management menu. This step protects against accidental job loss if the controller performs a cold restart during the pendant swap.

The physical swap itself — disconnecting the old pendant cable, routing the new cable, and connecting the JZRCR-YPU01C-1 — typically takes under 15 minutes on a DX100 cell with standard cable management. However, the post-swap initialization and screen calibration may require an additional 10–20 minutes depending on the controller firmware version and the number of user-defined display pages that need to be verified.

To maintain field control continuity during the swap window, the DX100’s external auto mode input can be held active via the safety PLC, allowing the cell to remain in a safe hold state without triggering an upstream line stop. Once the JZRCR-YPU01C-1 is connected and the controller confirms pendant communication, a test cycle in teach mode should be run to verify all axis jog functions, speed override controls, and emergency stop relay response before returning the cell to production mode.

For facilities managing multiple DX100 cells, maintaining one JZRCR-YPU01C-1 unit as a hot spare in the control room significantly reduces mean time to repair (MTTR). NINERMAS maintains reserved inventory of this pendant model to support rapid dispatch requirements, with standard lead times of 3–5 business days for in-stock units.

Retrofit Support FAQ

Q1: Is the JZRCR-YPU01C-1 a direct drop-in replacement for the JZRCR-YPU01-1?
A: In most DX100 installations, yes. Both pendants share the same cable connector and mounting bracket. However, firmware compatibility should be confirmed with the controller’s software version label before installation, as some early DX100 revisions may require a firmware update to support the C-1 hardware revision.

Q2: Can this pendant be used with the YRC1000 controller?
A: No. The YRC1000 uses a different pendant interface and requires the JANCD-ABB04-E pendant. The JZRCR-YPU01C-1 is designed exclusively for the DX100 platform. Cross-platform use will result in a communication fault at controller startup.

Q3: What pre-shipment testing is performed on the JZRCR-YPU01C-1?
A: Each unit undergoes a functional power-on test and communication verification against a DX100 controller before shipment. Display, keypad response, emergency stop relay, and pendant cable continuity are all verified. A test report is available upon request.

Q4: What warranty and inventory support does NINERMAS provide?
A: All JZRCR-YPU01C-1 units supplied by NINERMAS carry a 12-month warranty covering hardware defects from the date of shipment. Reserved inventory programs are available for facilities requiring guaranteed stock levels. Contact our team to discuss long-term supply agreements and lead time commitments.

—
