YAMAHA LCC140-10 LCM100 Service-Ready Spare Part for Industrial Maintenance

YAMAHA LCC140-10 LCM100 Service-Ready Spare Part for Industrial Maintenance

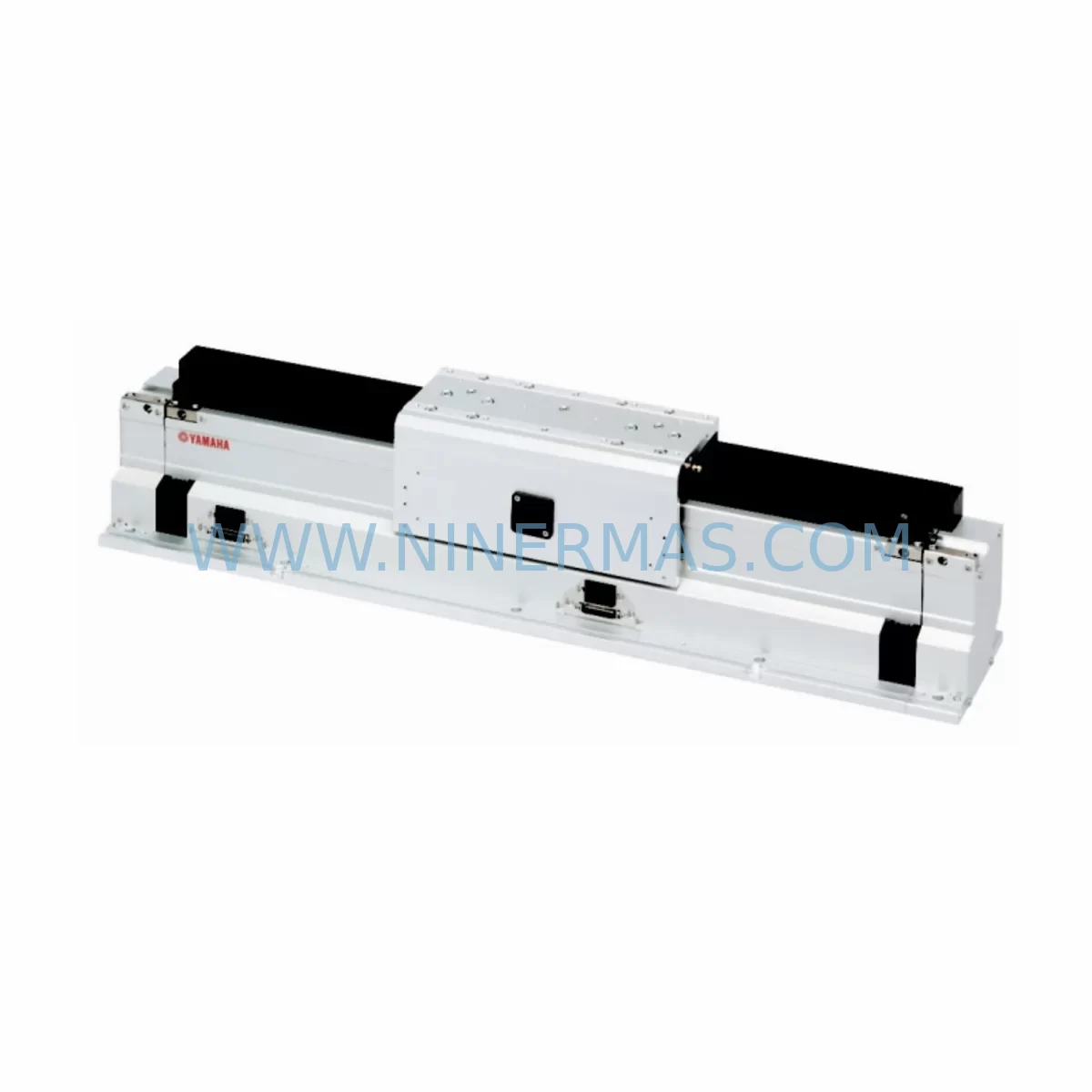

The YAMAHA LCC140-10 LCM100 is a ruggedized linear conveyor module engineered for high-precision, high-throughput assembly and transfer applications in industrial automation environments. As a critical motion component within the YAMAHA LCM100 series linear conveyor system, the LCC140-10 carrier unit is responsible for transporting workpiece pallets along the conveyor track with repeatable positioning accuracy. When this module fails or reaches end-of-service life, the entire conveyor line is at risk of unplanned downtime — making rapid access to a verified, original spare part essential for maintenance engineers and procurement teams alike.

At NINERMAS, we supply the YAMAHA LCC140-10 LCM100 as an original spare part, sourced through established industrial distribution channels and subject to full pre-shipment functional inspection. Each unit is backed by a 12-month warranty covering manufacturing defects and operational failures under normal industrial use conditions. Our global logistics network supports urgent dispatch to minimize line stoppage duration for facilities operating in automotive, electronics, semiconductor, and precision assembly sectors.

Whether you are responding to an emergency breakdown, executing a scheduled annual overhaul, or building a strategic spare parts buffer for a multi-line facility, the LCC140-10 LCM100 is available for immediate quotation and fast-track delivery. Our technical team can assist with compatibility verification against your existing LCM100 conveyor configuration, including track pitch, carrier stroke, and pallet interface dimensions.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

Replacing the YAMAHA LCC140-10 LCM100 carrier module is rarely an isolated task. In a well-structured preventive maintenance program, the carrier replacement should be coordinated with a broader inspection of the conveyor system and its associated control infrastructure. Maintenance engineers working on LCM100-based conveyor lines should simultaneously evaluate the condition of the YAMAHA LCM100 linear motor stator track sections, as wear or contamination on the stator surface directly affects carrier positioning accuracy and service life.

The conveyor controller — typically a YAMAHA RCX340 or RCX240 multi-axis controller — should be inspected for axis alarm history, communication errors, and firmware version compatibility with the replacement carrier. If the controller has logged repeated positioning faults or overcurrent alarms on the conveyor axis, the YAMAHA SRCD series servo driver cards or the dedicated linear motor drive amplifier module should be tested and potentially replaced as part of the same maintenance window.

Power supply integrity is equally critical. The YAMAHA LCM100 system power supply unit (PSU) and associated 24VDC control power rail should be load-tested before the new carrier is commissioned. Unstable supply voltage is a common root cause of premature carrier failure and positioning drift. Inline DIN-rail mounted fuse holders and circuit protection modules feeding the conveyor drive circuit should be inspected and replaced if showing signs of thermal stress or contact oxidation.

For facilities integrating the LCM100 conveyor with upstream or downstream equipment, the I/O interface modules connecting the conveyor controller to the plant PLC — such as YAMAHA’s own I/O expansion units or third-party Weidmüller or Phoenix Contact terminal block assemblies — should be checked for loose connections and signal integrity. Signal isolation barriers protecting the conveyor’s position feedback signals from electrical noise should also be verified, particularly in environments with variable-frequency drives or welding equipment nearby.

If the facility uses an HMI panel for conveyor monitoring, the YAMAHA touchscreen operator panel or compatible Proface/Hakko HMI should be checked for communication link status with the RCX controller after the carrier swap. Finally, the YAMAHA LCM100 pallet stopper solenoid valves and proximity sensors at each station should be tested for correct operation, as these components interact directly with the carrier and are subject to mechanical wear over the same service interval.

Site Replacement Workflow

Replacing the LCC140-10 LCM100 carrier on-site follows a structured sequence designed to minimize conveyor downtime and ensure full system compatibility before resuming production. Begin by placing the conveyor axis in a safe, de-energized state via the RCX controller’s servo-off command, then physically lock out the linear motor power supply in accordance with your facility’s LOTO procedure.

Remove the worn or failed carrier by sliding it off the LCM100 track end, taking care not to damage the linear motor coil assembly or the track guide rails. Before installing the replacement LCC140-10, verify that the carrier serial number and hardware revision are compatible with your current LCM100 track configuration. YAMAHA has released multiple hardware revisions of the LCC140 carrier; confirm the revision level matches your system’s firmware and parameter set in the RCX controller.

After mechanical installation, re-initialize the carrier position reference using the RCX controller’s homing routine. Run a slow-speed test traverse across the full track length to confirm smooth motion, absence of mechanical interference, and correct position feedback. Gradually increase speed to the production setpoint while monitoring motor current and position error values in the controller’s diagnostic display. Only after a clean full-speed test cycle should the conveyor be returned to automatic production mode.

This systematic approach — rather than a rushed swap — eliminates the risk of secondary failures caused by incompatible hardware revisions, incorrect parameter settings, or undetected mechanical damage to the track, and ensures the replacement LCC140-10 delivers its full rated service life from day one.

Spare Parts Support FAQ

Q1: Is the YAMAHA LCC140-10 LCM100 an original part or a compatible replacement?
The LCC140-10 LCM100 supplied by NINERMAS is an original YAMAHA spare part sourced through established industrial supply channels. We do not supply remanufactured, refurbished, or compatible aftermarket substitutes for this model. Each unit undergoes pre-shipment functional inspection and is shipped with documentation confirming its original manufacture status.

Q2: How do I confirm compatibility with my existing LCM100 conveyor system before ordering?
Compatibility depends on your LCM100 track configuration, carrier stroke length, pallet interface type, and RCX controller firmware version. Please provide your existing carrier part number, hardware revision (if visible on the carrier label), and RCX controller model when requesting a quotation. Our technical team will cross-reference these details against YAMAHA’s LCM100 compatibility matrix before confirming the order.

Q3: What is the warranty coverage and what does it include?
All LCC140-10 LCM100 units supplied by NINERMAS are covered by a 12-month warranty from the date of shipment. The warranty covers manufacturing defects and operational failures occurring under normal industrial operating conditions as specified in the YAMAHA LCM100 technical manual. Damage resulting from incorrect installation, electrical overstress, or operation outside rated parameters is not covered. Warranty claims are processed with priority to minimize your facility’s downtime exposure.

Q4: Can NINERMAS support long-term supply for facilities with multiple LCM100 conveyor lines?
Yes. NINERMAS specializes in long-term spare parts supply for industrial automation systems, including end-of-life and hard-to-source YAMAHA components. For facilities operating multiple LCM100 lines or planning multi-year maintenance contracts, we offer reserved stock arrangements, scheduled delivery programs, and priority allocation during periods of market shortage. Contact our procurement team to discuss a tailored supply agreement aligned with your annual maintenance calendar.
