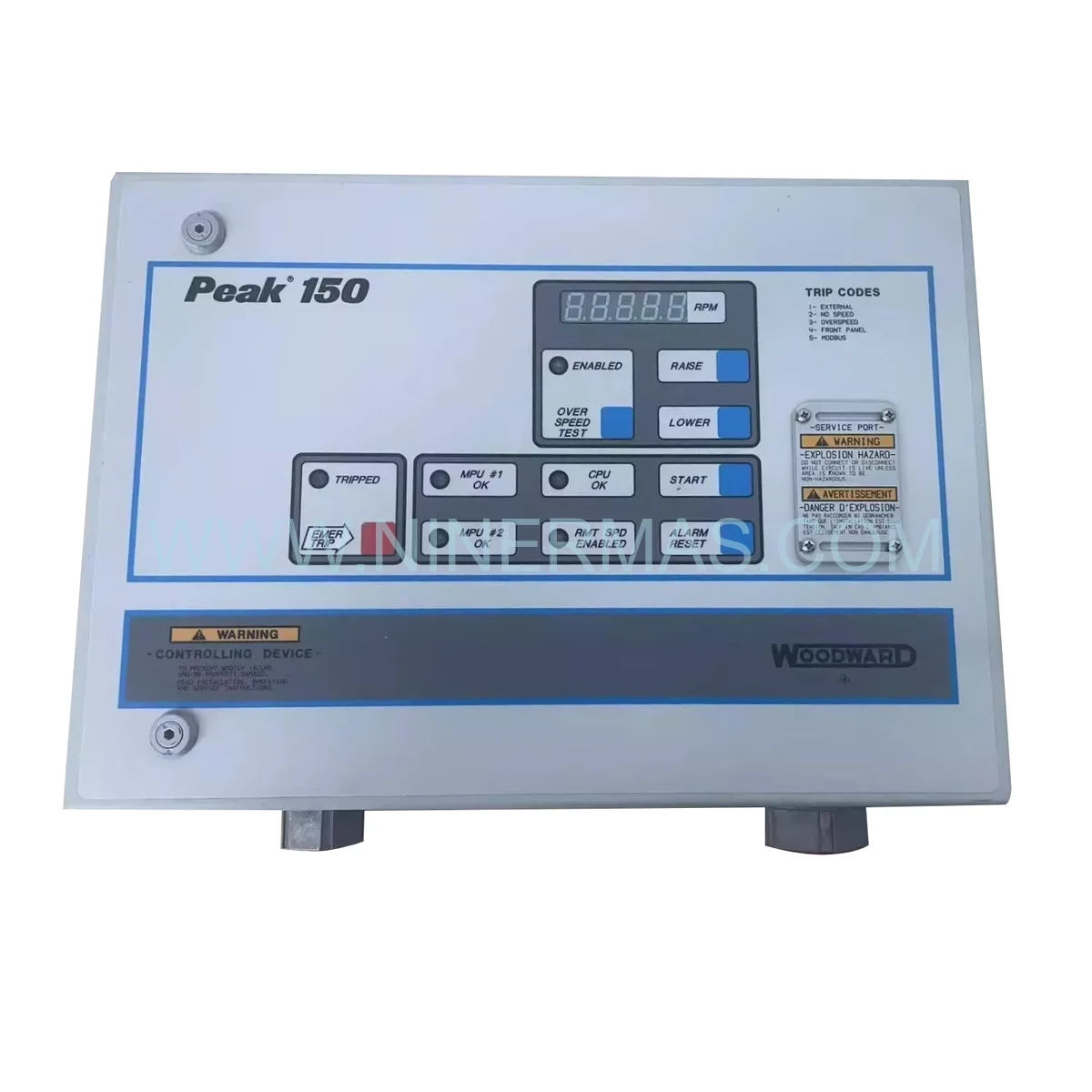

Woodward 9905-860 | Peak 150 Steam Turbine Digital Control System

Woodward 9905-860 – Lifecycle Excellence & Technical Performance

Operational Integrity & System Analysis

From the perspective of an Industrial Compliance Consultant, the Woodward 9905-860 occupies a foundational role in maintaining the operational integrity of critical turbomachinery systems. As a microprocessor-based digital control platform engineered to API611 standards, the Woodward 9905-860 delivers deterministic speed regulation, certified overspeed protection, and fail-safe relay logic — attributes that are non-negotiable in environments where system failure carries significant safety and financial consequences. Its architecture is designed not merely for performance, but for sustained compliance across the full asset lifecycle.

Within the framework of Industry 4.0 and digital plant transformation, this control system demonstrates long-term compatibility with modern DCS and SCADA architectures via Modbus RTU/ASCII protocol. Its configurable I/O structure accommodates evolving process requirements without necessitating hardware replacement, thereby extending asset service life and reducing total cost of ownership. This adaptability positions the unit as a strategic component in any Asset Optimization program targeting operational continuity and capital efficiency.

As a certified Original Equipment component, the Woodward 9905-860 carries the full weight of the manufacturer’s quality assurance protocols — including factory calibration records, Original Documentation packages, and traceability to international manufacturing standards. Deploying authenticated original parts is the cornerstone of any credible Safety Integrity strategy, ensuring that system behavior remains predictable, auditable, and defensible under regulatory scrutiny.

Compliance & Safety Benchmarks

✅ API611 Certified Architecture: Engineered to meet American Petroleum Institute Standard 611 for general-purpose steam turbines, ensuring regulatory acceptance in refinery and petrochemical installations.

✅ Dual-Channel Overspeed Protection: Independent relay outputs with configurable trip setpoints and self-diagnostic testing cycles — a critical Standard Adherence requirement for rotating machinery safety systems.

NEMA 4 / IP65 Enclosure Rating: Validated for operation in wash-down, dust-laden, and moisture-exposed industrial environments, supporting Durability benchmarks across harsh deployment scenarios.

✅ EMC & Electrical Isolation: Designed with electromagnetic compatibility measures to maintain signal integrity in electrically noisy plant environments, a prerequisite for Certification in power generation facilities.

Extended Temperature Range: Operational from -40°C to +70°C, meeting the thermal resilience requirements of offshore, arctic, and high-ambient industrial sites.

✅ Factory Sealed & Traceable: Each unit ships in factory-sealed condition with full Original Documentation, supporting audit trails required under ISO 9001 and IEC 61511 compliance frameworks.

Vertical Industry Integration & Optimization

Petroleum Refining & Petrochemical Processing: The Woodward 9905-860 is a proven solution for API611-compliant steam turbine drives powering critical compressors and pumps. Its deterministic control response and certified overspeed protection directly address the process safety requirements mandated by OSHA PSM and IEC 61511 in high-hazard environments.

Pharmaceutical & Fine Chemical Manufacturing: In GMP-regulated facilities, process consistency and equipment traceability are paramount. The 9905-860’s configurable control parameters and Original Documentation support validation activities (IQ/OQ/PQ), enabling compliant integration into FDA-regulated production environments.

Semiconductor & Electronics Fabrication: Cleanroom utility systems — including precision steam-driven HVAC and process cooling turbines — demand ultra-stable speed regulation. The ±0.25% steady-state accuracy of this platform ensures the environmental stability that semiconductor yield optimization requires.

Power Generation & Cogeneration: For auxiliary steam turbine generator sets in industrial cogeneration plants, the 9905-860 provides the speed governing precision and grid-synchronization support necessary for reliable parallel operation and System Performance under variable load conditions.

Offshore & Marine Applications: The NEMA 4/IP65 rating and extended temperature tolerance make this controller suitable for platform generator sets and marine propulsion auxiliary systems, where environmental exposure and Compliance Standards for marine classification societies must be simultaneously satisfied.

Comprehensive Engineering Specifications

Fulfillment Strategy & Technical Support

Factory Sealed Condition: Every Woodward 9905-860 unit dispatched from our inventory is maintained in its original factory-sealed packaging, preserving the integrity of internal components and ensuring that calibration states remain unaltered from the point of manufacture. This practice is essential for installations requiring documented chain-of-custody records under ISO and IEC compliance frameworks.

Rapid Global Logistics: Leveraging established freight partnerships across Asia-Pacific, Europe, the Middle East, and the Americas, we provide expedited international shipping with full export documentation, commercial invoices, and customs classification support. Lead times are optimized to minimize system downtime for critical asset replacement scenarios.

12-Month Quality Guarantee for Legacy Systems: Recognizing that many industrial facilities operate aging turbomachinery infrastructure, our 12-Month Quality Guarantee is specifically structured to support legacy system continuity. Coverage encompasses manufacturing defects, component failures attributable to production quality, and performance deviations from published specifications — providing the long-term assurance that Lifecycle Management programs demand.

Technical Support & Application Engineering: Our engineering team provides pre-sale configuration consultation, commissioning guidance, and post-installation troubleshooting support. Application-specific parameter recommendations and compatibility assessments are available upon request, ensuring that each deployment achieves its intended System Performance objectives.

Expert Technical FAQ

Q1: What installation compliance requirements apply to the Woodward 9905-860 in API611-governed facilities?
A: The Woodward 9905-860 is designed in conformance with API Standard 611, which governs general-purpose steam turbines in petroleum, chemical, and gas industry services. Installation must follow the manufacturer’s commissioning manual, with particular attention to grounding requirements, cable shielding specifications, and overspeed trip setpoint verification procedures. Facilities subject to IEC 61511 (functional safety) should conduct a Safety Integrity Level (SIL) assessment to confirm that the control system’s architecture meets the required risk reduction factor for the specific application.

Q2: How does this unit perform under extreme environmental conditions, and what certifications support its environmental adaptability?
A: The 9905-860 is rated for operation across a -40°C to +70°C temperature range with NEMA 4/IP65 environmental protection, qualifying it for deployment in offshore platforms, arctic installations, and high-humidity tropical environments. The enclosure rating is validated against ingress of water jets and dust, supporting Compliance Standards for marine and hazardous area classifications. Users in ATEX or NEC Class I Division 2 zones should verify local regulatory requirements for additional enclosure or installation provisions.

Q3: Is firmware version compatibility a concern when integrating the 9905-860 into existing Woodward control networks?
A: Firmware version alignment is a critical consideration in multi-controller Woodward installations. The 9905-860 should be configured with firmware versions compatible with the existing network’s communication parameters and any connected Woodward auxiliary modules. Original Documentation supplied with each unit includes firmware revision history and compatibility matrices. Our technical support team can assist in verifying firmware compatibility prior to installation to prevent communication conflicts and ensure system-wide certification integrity.

Q4: Can the Woodward 9905-860 replace legacy analog governors without significant panel modifications?
A: Yes. The Peak 150 platform was specifically architected to facilitate retrofit installations. Its flexible I/O configuration — supporting both analog (4-20 mA, voltage) and digital signal types — allows direct interfacing with existing sensor and actuator wiring in most legacy panel configurations. The compact form factor minimizes enclosure space requirements, and the Modbus communication capability enables integration with plant DCS systems that previously relied on hardwired signal transmission. A pre-retrofit wiring audit is recommended to confirm signal level compatibility and identify any necessary signal conditioning requirements.

Q5: What documentation is provided to support regulatory audits and asset management records?
A: Each Woodward 9905-860 unit is supplied with its Original Documentation package, which typically includes the product datasheet, installation and operation manual, factory test records, and firmware revision documentation. This documentation set supports IQ (Installation Qualification) activities in regulated industries and provides the traceability records required under ISO 9001 quality management systems and IEC 61511 functional safety lifecycle documentation requirements. Additional certification copies or country-specific compliance declarations can be requested through our technical support channel.

Q6: What is the recommended preventive maintenance interval for the 9905-860 to sustain long-term Asset Optimization?
A: Woodward recommends periodic functional verification of overspeed trip circuits, relay output integrity checks, and communication link diagnostics as part of a structured Lifecycle Management program. Typical inspection intervals align with the host turbine’s scheduled maintenance outages — commonly 12 to 24 months for refinery and power generation applications. The unit’s built-in self-diagnostic and event logging capabilities facilitate condition-based maintenance strategies, enabling maintenance teams to identify performance trends before they escalate into unplanned outages.
