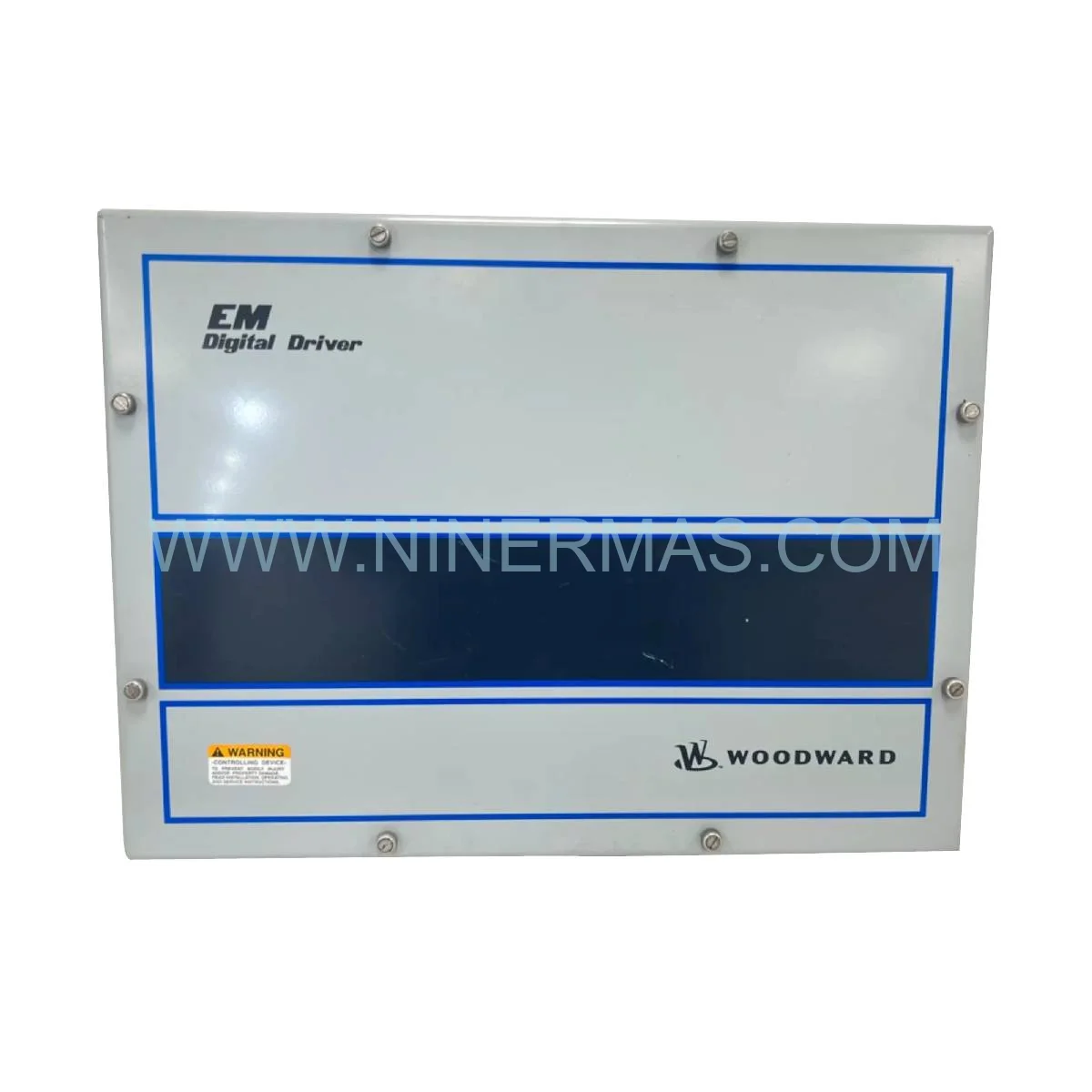

Woodward 8200-177 — Professional Retrofit & System Upgrade Component

System Modernization & Migration Analysis

As a Retrofit Project Lead overseeing turbine control infrastructure upgrades across global power generation facilities, the Woodward 8200-177 stands as a cornerstone component in any serious system modernization initiative. This digital driver module plays a decisive role in elevating the performance ceiling of aging turbine valve control architectures — replacing sluggish analog signal chains with a high-accuracy, closed-loop digital positioning system that delivers measurable gains in fuel efficiency, response latency, and operational stability. The Woodward 8200-177 is not merely a replacement part; it is the performance bridge between yesterday’s control philosophy and tomorrow’s operational demands.

One of the most compelling advantages of this module in a retrofit context is its backward compatibility with legacy Woodward control frameworks. Whether your facility is running aging 505 governors, first-generation MicroNet controllers, or transitional NetCon platforms, the 8200-177 integrates without requiring a full panel redesign. Its configurable 4-20 mA / 0-10 VDC input interface mirrors the signal conventions of older analog drivers, enabling a hardware upgrade path that minimizes re-engineering scope and preserves existing wiring infrastructure wherever possible.

From a migration risk and cost perspective, deploying the 8200-177 as part of a phased retrofit strategy dramatically reduces the financial exposure associated with full DCS overhauls. By selectively modernizing valve driver layers while retaining functional upstream controllers, facilities can achieve a 30-50% reduction in retrofit project costs compared to wholesale system replacement — all while extending operational asset life by 8-15 years.

Upgrade Highlights & Compatibility

• Drop-in Legacy Replacement: Directly substitutes aging analog valve drivers with zero panel modification in most configurations
• ✅ ±0.5% Positioning Accuracy: Delivers precision fuel metering that legacy analog systems cannot match
• Sub-50ms Full-Stroke Response: Eliminates valve lag during turbine load transients and startup sequences
• ✅ Multi-Platform Compatibility: Validated for use with Woodward 505E, MicroNet, NetCon, and third-party DCS via standard analog interfaces
• Built-in Fault Diagnostics: Integrated status reporting enables predictive maintenance and reduces unplanned downtime
• ✅ Future-Proof Architecture: Digital closed-loop design supports incremental integration with modern SCADA and IIoT monitoring layers
• Wide Environmental Tolerance: Rated -40°C to +85°C, IP54, with vibration resistance for harsh power plant environments

Modernization Use Cases & Success Stories

DCS Modernization in Combined-Cycle Power Plants:
In combined-cycle facilities transitioning from legacy Woodward analog control panels to modern distributed control systems, the 8200-177 serves as the critical interface layer between new DCS output cards and existing pneumatic valve actuators. By retaining the physical valve hardware while upgrading the driver electronics, project teams have achieved full DCS integration timelines of under 72 hours per turbine unit — compared to 2-3 weeks for full actuator replacement programs.

TSI System Performance Enhancement:
Turbine Supervisory Instrumentation (TSI) upgrades frequently expose the performance gap between modern vibration and temperature monitoring systems and aging valve response hardware. Deploying the 8200-177 as part of a TSI-linked control loop upgrade eliminates this bottleneck, enabling the TSI system’s protective trip signals to actuate valves within the sub-50ms window required by modern turbine protection standards.

Dual-Fuel Engine Retrofit Programs:
Industrial facilities converting reciprocating engines from single-fuel to dual-fuel operation rely on the 8200-177 to manage the precise, coordinated actuation of both gas and liquid fuel valves during fuel-switching sequences. Its configurable output characteristics allow fine-tuning of valve response curves to match the specific actuator dynamics of each engine model — a critical requirement for seamless integration in fuel flexibility upgrade projects.

Compressor Station Anti-Surge Modernization:
Natural gas transmission operators upgrading compressor anti-surge control systems have deployed the 8200-177 to replace slow-responding pneumatic relay drivers. The result is a measurable improvement in surge margin protection, with recycle valve response times reduced by up to 60% compared to legacy relay-based systems.

Migration Technical Data Sheet

Supply Chain & Deployment Support

Original & Factory Sealed: Every Woodward 8200-177 unit supplied through our network is sourced as genuine OEM hardware — factory sealed, fully traceable, and accompanied by original documentation. No refurbished, reconditioned, or third-party substitute components are offered.

Expedited Global Logistics: Recognizing that retrofit and emergency replacement projects operate under compressed timelines, we maintain strategic inventory positions to support same-day dispatch for in-stock units. International freight coordination covers major industrial hubs across Asia-Pacific, the Middle East, Europe, and the Americas — with DDP (Delivered Duty Paid) options available to simplify customs clearance for time-critical deployments.

Technical Support for Obsolete & Legacy Hardware: Our engineering support team specializes in legacy Woodward system architectures. Whether you need configuration guidance for integrating the 8200-177 into a 1990s-era control panel or require cross-reference analysis to confirm compatibility with your specific actuator model, our team provides pre-installation consultation, commissioning support, and post-deployment troubleshooting — at no additional charge for qualified retrofit projects.

Retrofit FAQ — Upgrade Guide

Q1: Does the Woodward 8200-177 fit into the same panel space as the analog driver it replaces?
A: In the majority of retrofit scenarios, yes. The 8200-177 is designed with a form factor compatible with standard Woodward driver mounting positions. DIN rail mounting provides additional flexibility for installations where the original driver used a different panel footprint. A dimensional comparison against your existing driver datasheet is recommended prior to ordering.

Q2: How does the 8200-177 communicate with older DCS or PLC systems that lack digital output cards?
A: The module accepts industry-standard 4-20 mA and 0-10 VDC analog command signals, which are universally supported by legacy DCS and PLC analog output modules. No digital communication protocol upgrade is required on the controller side, making this a true hardware upgrade with seamless integration into existing control architectures.

Q3: Are there alternative or substitute part numbers that can replace the 8200-177 if it becomes unavailable?
A: While the 8200-177 is currently an Active lifecycle product, our team maintains cross-reference data for functionally equivalent Woodward driver modules. In scenarios where lead times are critical, we can advise on validated substitute configurations — however, any substitution must be reviewed against your specific actuator and controller specifications before implementation.

Q4: What is the recommended procedure for calibrating the 8200-177 after installation in a retrofit application?
A: Post-installation calibration follows the standard Woodward driver commissioning procedure: zero and span adjustment via the module’s trim potentiometers, followed by a full-stroke valve travel verification under controlled conditions. For systems where the original calibration records are unavailable, our technical team can provide a retrofit-specific calibration protocol based on your actuator model and control system configuration.

Q5: Can the 8200-177 be integrated with modern IIoT monitoring platforms without replacing the upstream controller?
A: Yes. The 8200-177’s analog output interface allows its valve position feedback signal to be tapped and fed into IIoT gateway devices or condition monitoring systems in parallel with the existing control loop — enabling real-time performance data collection without disrupting the primary control architecture. This approach supports a phased digital transformation strategy.

Q6: What fail-safe behavior should be configured for a steam turbine overspeed protection application?
A: For overspeed protection circuits, the 8200-177 should be configured to drive the steam admission valve to the fully closed position upon loss of control signal or power supply. This fail-closed behavior is the standard safety configuration for turbine trip applications and aligns with IEC 61511 functional safety requirements for SIL-rated protection loops.
