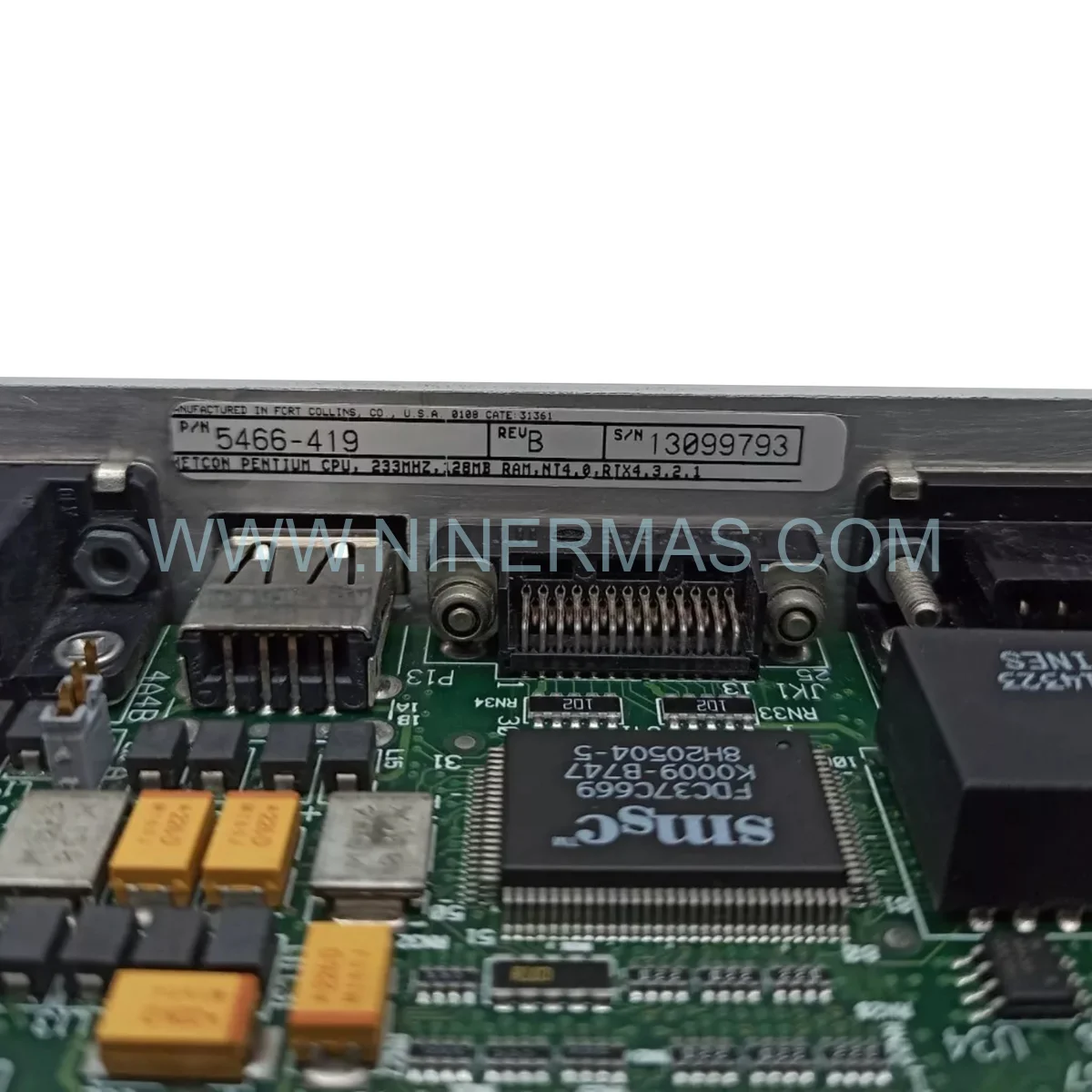

Woodward 5466-419 MicroNet CPU Module | New & Original in Stock

Woodward 5466-419 MicroNet Pentium CPU Module | Reliable Automation Component

Field Application & Operational Analysis

From the perspective of a Site Reliability Engineer managing continuous-process facilities, the Woodward 5466-419 stands as a cornerstone of system availability. The 5466-419 functions as the central processing unit within Woodward’s MicroNet distributed control architecture, executing deterministic real-time control logic that governs turbine governors, load-sharing networks, and multi-loop PID sequences. Its NT-class processor core delivers the computational throughput required to sustain Operational Excellence across high-demand automation environments — making it an indispensable automation component for any mission-critical installation.

Engineered to withstand the rigors of industrial deployment, the 5466-419 operates reliably across an extended temperature envelope of 40 °C to +70 °C, with tolerance for vibration, humidity, and electromagnetic interference typical of power generation and oil & gas facilities. During installation, engineers should verify DIN-rail torque specifications, confirm 24 VDC supply stability within ±10%, and validate firmware revision compatibility with the existing MicroNet backplane before energizing the module. Proper grounding and shielded cabling on communication ports are non-negotiable for sustained signal integrity.

As production lines age and OEM supply chains tighten, maintaining a certified spare of the 5466-419 in your critical-parts inventory is a proactive reliability strategy. End-of-life and legacy module availability is finite; securing a verified original unit now eliminates the risk of unplanned downtime caused by procurement delays during an emergency shutdown event.

Key Operational Features

High-Throughput NT Processor Core — Sustains real-time control cycle execution for complex, multi-axis automation sequences without latency drift.
Hot-Swap Capability — Supports live module replacement in compatible MicroNet racks, minimizing mean time to repair (MTTR) during corrective maintenance windows.
Redundancy-Ready Architecture — Pairs with Woodward redundancy modules for hot-standby failover, delivering High Availability in fault-intolerant process environments.
Seamless Integration with MicroNet I/O Modules — Native compatibility across the full MicroNet I/O Modules ecosystem enables rapid System Integration without custom engineering overhead.
Built-In Diagnostics & Self-Test — Onboard health monitoring continuously validates processor status, memory integrity, and communication link quality.
Backward Compatibility — Drop-in replacement for legacy MicroNet CPU variants, protecting existing capital investment in control infrastructure.

Maintenance & Performance Benchmarks

The 5466-419 is architected to adapt across diverse industrial network topologies — from compact single-rack turbine control panels to large-scale distributed control systems spanning multiple substations. Its Ethernet and Modbus communication stack supports both flat and hierarchical network designs, enabling Process Optimization through centralized supervisory control while preserving local autonomous operation during network partitioning events.

Benchmark data from field deployments indicates mean time between failures (MTBF) exceeding 100,000 hours under nominal operating conditions. Scheduled preventive maintenance intervals typically align with annual outage windows: inspect connector pins for oxidation, verify firmware version against the current Woodward release matrix, and execute a full self-test cycle post-reinstallation. For facilities pursuing IEC 61511 functional safety compliance, the module’s deterministic scan cycle supports SIL-rated logic execution when integrated within a validated safety instrumented system.

Comprehensive Data Sheet

Professional Logistics & Sourcing Excellence

Every Woodward 5466-419 unit dispatched from our facility ships in Original Factory Packaging with full traceability documentation, ensuring authenticity and protecting against transit damage. For urgent operational requirements, same-day dispatch is available on confirmed in-stock units when orders are placed before the daily cut-off time — contact our team to verify real-time availability.

We specialize in global supply of EOL (End-of-Life) and legacy automation components, maintaining strategic inventory buffers specifically for MicroNet-series modules that are no longer in active OEM production. Our worldwide express logistics network covers North America, Europe, Southeast Asia, and the Middle East, with DHL, FedEx, and UPS priority freight options to meet the tightest plant turnaround schedules. All units undergo pre-shipment functional verification and are accompanied by a certificate of conformance.

Engineering Support & FAQ

Q1: What are the step-by-step installation requirements for the 5466-419 in an existing MicroNet rack?
A: Power down the rack or confirm hot-swap authorization. Align the module with the backplane connector, seat firmly until the locking tabs engage, and restore power. Launch Woodward GAP software, perform a hardware scan to confirm module recognition, then download the validated application program. Verify scan cycle timing and I/O mapping before returning the system to automatic control.

Q2: Which firmware versions are compatible with the 5466-419?
A: Firmware compatibility depends on the MicroNet system version and GAP software release in use at your site. Woodward publishes a firmware compatibility matrix in the MicroNet technical manual (document 26839). Always cross-reference your existing backplane firmware and I/O module revisions before upgrading to avoid communication mismatches.

Q3: Can the 5466-419 be used as a direct replacement for earlier MicroNet CPU variants?
A: In most configurations, yes. The 5466-419 maintains backward compatibility with legacy MicroNet racks. However, engineers should confirm backplane revision and power supply capacity, as some early-generation racks may require a firmware update or power module upgrade to support the Pentium-class processor’s peak current draw.

Q4: How does the warranty claim process work?
A: Units exhibiting defects in materials or workmanship within the 1-year warranty period are eligible for replacement or repair at no charge. Initiate a claim by contacting sale@ninermas.com with the order reference, serial number, and a description of the fault. Our technical team will issue an RMA number and arrange return freight. Replacement units are dispatched upon receipt and inspection of the returned module.

Q5: Is the 5466-419 suitable for SIL-rated safety system applications?
A: The module supports deterministic scan-cycle execution compatible with safety instrumented system architectures. However, SIL certification requires a complete system-level validation per IEC 61511. Consult your functional safety engineer and Woodward’s application team to confirm suitability for your specific safety loop design.

Q6: What diagnostic tools are available for troubleshooting the 5466-419 in the field?
A: The module’s onboard self-test routine reports processor health, memory status, and communication link integrity via the GAP software diagnostic interface. LED status indicators on the module faceplate provide immediate visual feedback on power, run, and fault states. For deeper analysis, Woodward’s service tool suite supports real-time variable monitoring and event log extraction without interrupting control execution.
