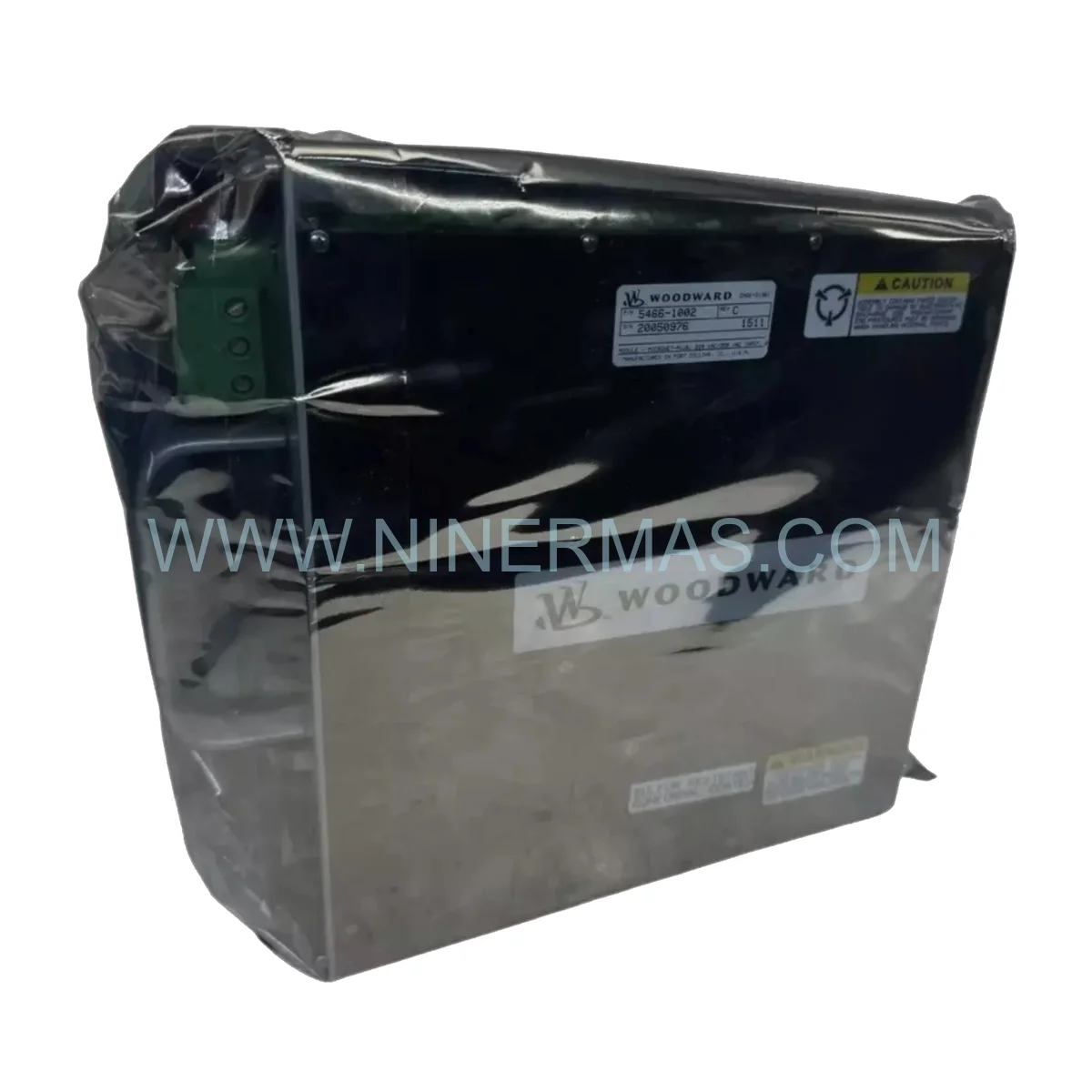

Woodward 5466-1002 MicroNet TMR CPU5200 Module – Industrial Process Solution

Technical Overview & First Impression

As a seasoned Industrial Solution Architect, I can state with confidence that the Woodward 5466-1002 MicroNet TMR CPU5200 Module occupies a uniquely critical position within modern Distributed Control System (DCS) and turbine governor architectures. This component is not merely a processor — it is the cognitive core of a Triple Modular Redundant control platform, executing deterministic scan cycles and cross-channel voting logic that keeps compressors, turbines, and safety-critical process loops running without interruption. In environments where Process Control integrity is non-negotiable, the Woodward 5466-1002 delivers the computational backbone that engineers trust.

From a technical compatibility standpoint, this CPU5200 module integrates natively within the MicroNet TMR Fieldbus architecture, supporting redundant Ethernet backplane communication and legacy I/O expansion racks. Its firmware is backward-compatible with earlier MicroNet generations, making it an ideal Legacy Component for system upgrades where full platform replacement is cost-prohibitive. Engineers managing aging DCS Hardware will find that this module bridges the gap between legacy infrastructure and modern control demands — without requiring a full system overhaul.

Original Factory Sealed units of the Woodward 5466-1002 are increasingly scarce on the global market. As OEM production cycles shift and End-of-Life (EOL) timelines approach, securing a genuine, unmodified module becomes a strategic priority for any maintenance team. Our inventory is sourced directly from authorized channels, stored under controlled conditions, and verified for authenticity before dispatch.

Key Technical Highlights

Triple Modular Redundant (TMR) Architecture — Three independent processing channels vote on every output, masking single-point failures without process interruption or switchover delay.
32-Bit High-Speed Processing — Deterministic scan cycles under 10ms ensure real-time responsiveness for turbine governor and compressor anti-surge control loops.
IEEE 1588 Precision Time Synchronization — Maintains microsecond-level clock alignment across distributed control nodes for coordinated system response.
128MB Onboard Memory — Supports complex GAP (Graphical Application Programmer) logic with ample headroom for advanced control algorithms.
Industrial Temperature Range: -40°C to +70°C — Engineered for harsh environments including offshore platforms, desert installations, and arctic facilities.
Hot-Swap Capability — Module replacement without system shutdown, dramatically reducing planned maintenance windows and unplanned downtime risk.
Protocol Support — Modbus TCP/IP, OPC UA, DNP3 — enabling seamless SCADA integration and remote diagnostics across Factory Sealed system configurations.

Vertical Industry Applications

Petrochemical & Refining: The Woodward 5466-1002 governs compressor anti-surge sequences and reactor feed control in high-hazard process units. Its TMR redundancy eliminates single-point failure risk, directly reducing unplanned shutdowns that cost refineries upwards of $500,000 per hour.

Power Generation (Gas & Steam Turbines): Deployed as the primary governor controller in utility-scale turbine systems, this module manages load sharing, synchronization, and overspeed protection — functions where milliseconds of latency translate to catastrophic equipment damage.

Mining & Mineral Processing: In conveyor drive control and crusher automation, the CPU5200’s Stability and Redundancy features ensure continuous ore processing throughput, even during partial hardware degradation events.

Marine Propulsion & Offshore Platforms: Classification societies mandate redundant control for vessel propulsion and dynamic positioning systems. The 5466-1002’s TMR design satisfies these requirements while its compact form factor suits space-constrained marine control cabinets.

Chemical & Pharmaceutical Manufacturing: Safety Instrumented System (SIS) integration and deterministic process loop execution make this module a trusted component in batch reactor control and critical interlock systems, where regulatory compliance demands documented hardware reliability.

Data Sheet & Specifications

Quality Assurance & Supply Chain

Every unit of the Woodward 5466-1002 dispatched from our facility undergoes a rigorous multi-stage verification process. We source exclusively from authorized distributors and OEM-certified channels, ensuring 100% Original authenticity with no counterfeit risk. Each module is inspected for physical integrity, firmware version consistency, and seal condition prior to packaging.

Our 12-Month Comprehensive Warranty covers all manufacturing defects, firmware anomalies, and workmanship issues — with direct technical support from our engineering team throughout the coverage period. For Emergency Repair scenarios, we offer priority dispatch via DHL Express, FedEx International Priority, and UPS Worldwide Express, with same-day shipping available for in-stock units. Global customs documentation, including commercial invoices and certificates of origin, is prepared to minimize clearance delays at destination ports.

Maintenance Stock procurement programs are also available for facilities requiring guaranteed buffer inventory of this Critical Part for Industry Safety. Contact our team to discuss consignment or blanket purchase order arrangements tailored to your planned maintenance schedule.

Buyer’s FAQ — Selection & Sourcing Guide

Q1: How do I verify that a Woodward 5466-1002 unit is 100% original and not a counterfeit or refurbished substitute?
A: Genuine units carry Woodward’s factory holographic label on the module housing, with a traceable serial number that can be cross-referenced against Woodward’s OEM database. The PCB silkscreen will display the full part number Woodward 5466-1002 without alteration. We provide a Certificate of Authenticity with every shipment, and our technical team can assist with serial number verification upon request.

Q2: Where can I obtain the official Datasheet and technical documentation for this module?
A: The official Woodward 5466-1002 product manual and technical datasheet are available through Woodward’s authorized distributor network. Upon purchase, we supply all available technical documentation including installation guides, wiring diagrams, and firmware release notes as part of our standard delivery package.

Q3: Is the Woodward 5466-1002 compatible with older MicroNet TMR system versions?
A: Yes. The CPU5200 platform maintains backward compatibility with earlier MicroNet TMR rack generations. However, firmware version alignment between the CPU module and I/O expansion cards is critical. Our engineers can advise on version matching based on your existing system configuration to ensure seamless integration without control logic modification.

Q4: What is the lead time for emergency orders, and which shipping carriers do you use?
A: For in-stock units, same-day dispatch is available for orders confirmed before 14:00 CST. We ship via DHL Express, FedEx International Priority, and UPS Worldwide Express. Typical transit times range from 1-3 business days to major industrial hubs in Europe, the Americas, and Southeast Asia.

Q5: Can this module be used as a direct replacement in a Safety Instrumented System (SIS) application?
A: The MicroNet TMR platform, including the 5466-1002, is designed for high-availability control applications. For SIS deployments requiring IEC 61511 compliance, consult your system integrator to confirm SIL rating alignment and functional safety documentation requirements specific to your installation.

Q6: Do you offer long-term Maintenance Stock programs for this EOL-risk component?
A: Absolutely. Given the increasing scarcity of Legacy Components like the Woodward 5466-1002 in the global DCS Hardware market, we offer blanket purchase order agreements and consignment stock programs. These arrangements guarantee your facility access to verified original units at locked pricing, protecting your operations against future supply chain disruptions.
