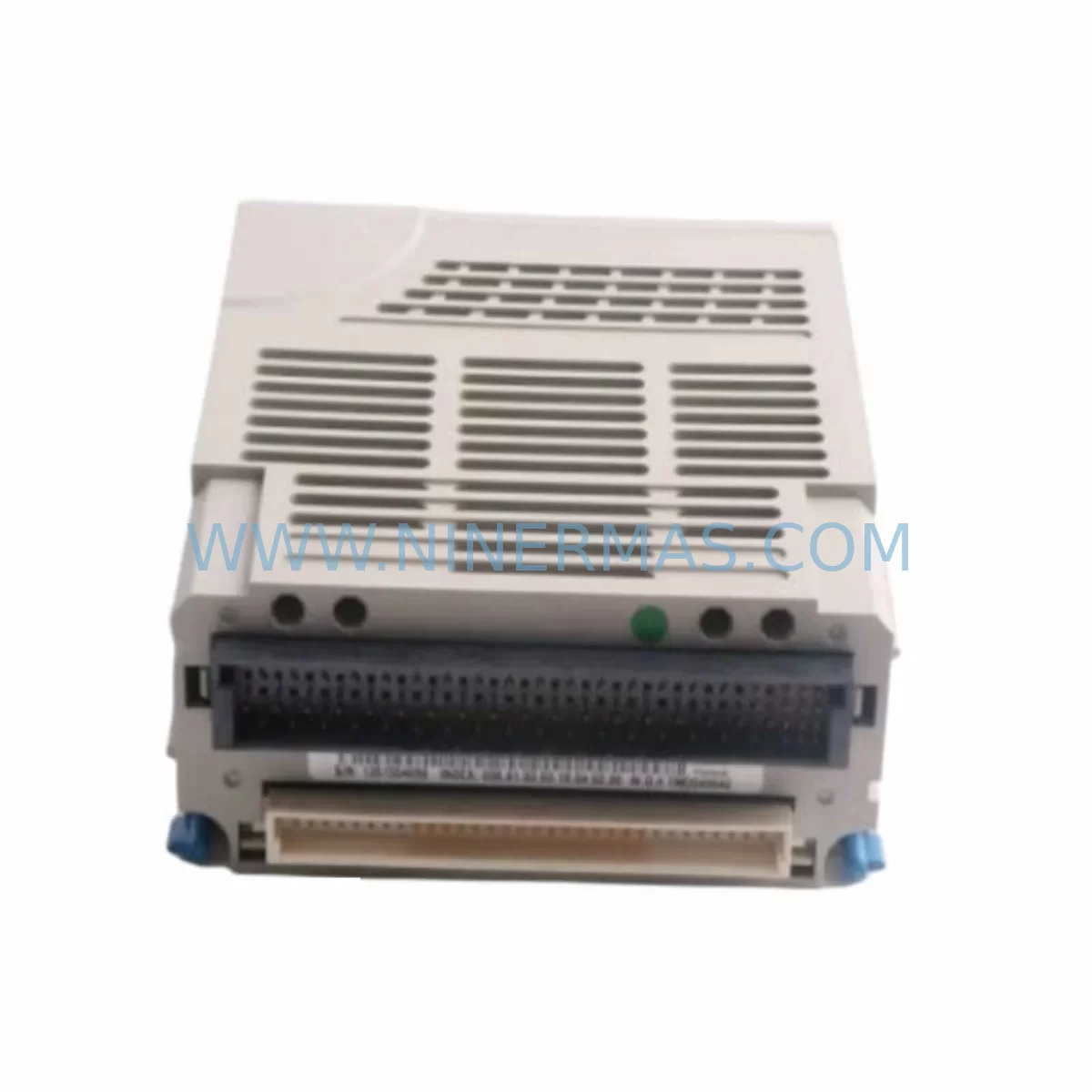

The Westinghouse 5X00594G01 is a ruggedized analog input module engineered for demanding industrial control environments. Designed for deployment within Westinghouse Ovation and WDPF distributed control system architectures, this module delivers reliable signal acquisition from field transmitters, thermocouples, RTDs, and 4–20 mA process loops. As aging Ovation and WDPF installations continue to operate across power generation, petrochemical, and water treatment facilities worldwide, maintaining a verified stock of the 5X00594G01 is a critical element of any proactive spare parts program.

When a 5X00594G01 fails in service, the consequences extend beyond a single I/O channel. Analog input faults can cascade into process alarms, forced manual operation, and unplanned shutdowns that cost far more than the module itself. NINERMAS supplies the 5X00594G01 as a service-ready spare — pre-tested, fully inspected, and shipped with a 12-month warranty — so your maintenance team can execute a confident, rapid replacement without extended lead times or procurement uncertainty.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

Replacing the 5X00594G01 in an Ovation or WDPF cabinet is rarely an isolated task. Maintenance engineers conducting a thorough inspection should treat the module swap as an opportunity to audit the surrounding control infrastructure. The Ovation OCR400 or OCR1100 controller module that governs the I/O bus should be checked for firmware currency and connector integrity — a degraded controller can cause intermittent read errors that mimic a faulty analog input card. Similarly, the Ovation backplane assembly (5X00095G01 or equivalent) should be inspected for bent pins, corrosion, or cracked PCB traces before the replacement module is seated.

On the field wiring side, the marshalling terminal blocks and field termination assemblies (FTAs) connected to the 5X00594G01 should be verified for correct torque, insulation integrity, and shield grounding. Loose or corroded terminations are a leading cause of analog signal drift and are frequently misdiagnosed as module failure. If the process loop uses HART-capable transmitters, confirm that the replacement module’s HART pass-through configuration matches the original to avoid communication loss with asset management software.

The 24 VDC I/O power supply module feeding the analog input rack — commonly a Westinghouse 5X00119G01 or equivalent redundant power supply — should be load-tested during the outage window. A power supply operating near its rated capacity can cause marginal voltage conditions that degrade analog accuracy without triggering a hard fault. Redundant power supply switchover should also be verified at this time.

For facilities running mixed Ovation and legacy WDPF hardware, the Ovation network interface card (NIC) or WDPF data highway interface should be confirmed operational, as communication faults at the network layer can prevent the replacement module from being recognized by the controller after installation. Where signal isolators or signal conditioners are installed between field devices and the 5X00594G01 input channels, their calibration dates should be reviewed — an out-of-tolerance isolator will introduce offset errors that persist after the module is replaced.

Annual cabinet inspections should also include the Ovation operator workstation (OWS) or engineering workstation (EWS) to confirm that the I/O configuration database reflects the correct channel assignments for the 5X00594G01. Mismatched configuration files are a common source of post-replacement alarms. Finally, fuse holders and branch circuit protection within the I/O cabinet should be inspected and any discolored or thermally stressed fuses replaced as a matter of course during the outage.

Site Replacement Workflow

Step 1 — Pre-replacement verification: Confirm the failed module’s slot address and channel assignments in the Ovation configuration database. Download the current I/O configuration to a portable engineering terminal before removing the module. Verify that the replacement 5X00594G01 carries the same hardware revision suffix (G01) to ensure firmware and backplane compatibility.

Step 2 — Safe isolation: Place the affected controller in manual or fallback mode per your site’s MOC procedure. De-energize the I/O rack segment if required by your site safety plan. Label all field wiring at the FTA before disconnection.

Step 3 — Module removal and installation: Extract the failed 5X00594G01 using the module ejector levers. Inspect the backplane connector for damage. Seat the replacement module firmly until the locking tabs engage. Reconnect field wiring at the FTA, verifying polarity and shield grounding.

Step 4 — Commissioning and verification: Restore power to the I/O rack. Confirm that the Ovation controller recognizes the replacement module and that all channel diagnostics clear. Perform a live signal check against known process values before returning the loop to automatic control. Document the replacement in your CMMS with the module serial number and warranty start date.

Step 5 — Spare stock replenishment: After consuming a spare 5X00594G01 from inventory, initiate a replenishment order immediately. For critical process loops, a minimum of one cold spare per installed module is recommended; for high-criticality applications, consider a hot-standby redundant configuration if the system architecture supports it.

Spare Parts Support FAQ

Q: Is the NINERMAS 5X00594G01 an original Westinghouse module or a third-party replacement?
A: NINERMAS supplies original Westinghouse 5X00594G01 modules sourced from authorized channels and decommissioned industrial sites. Each unit undergoes functional testing and visual inspection before shipment. We do not supply counterfeit or reverse-engineered substitutes.

Q: What does the 12-month warranty cover?
A: The warranty covers functional failure under normal operating conditions for 12 months from the date of shipment. It includes free replacement or full refund at NINERMAS’s discretion. Damage caused by incorrect installation, overvoltage, or environmental conditions outside the module’s rated specification is excluded.

Q: Can NINERMAS support long-term supply agreements for the 5X00594G01?
A: Yes. NINERMAS offers long-term spare parts supply programs for Ovation and WDPF components, including the 5X00594G01. Contact our team to discuss annual volume commitments, reserved stock arrangements, and priority lead times tailored to your maintenance schedule.

Q: How do I verify compatibility before ordering?
A: Provide your Ovation or WDPF system model, controller revision, and backplane assembly number to our technical team at sale@ninermas.com. We will confirm hardware revision compatibility and advise on any configuration considerations before shipment.
