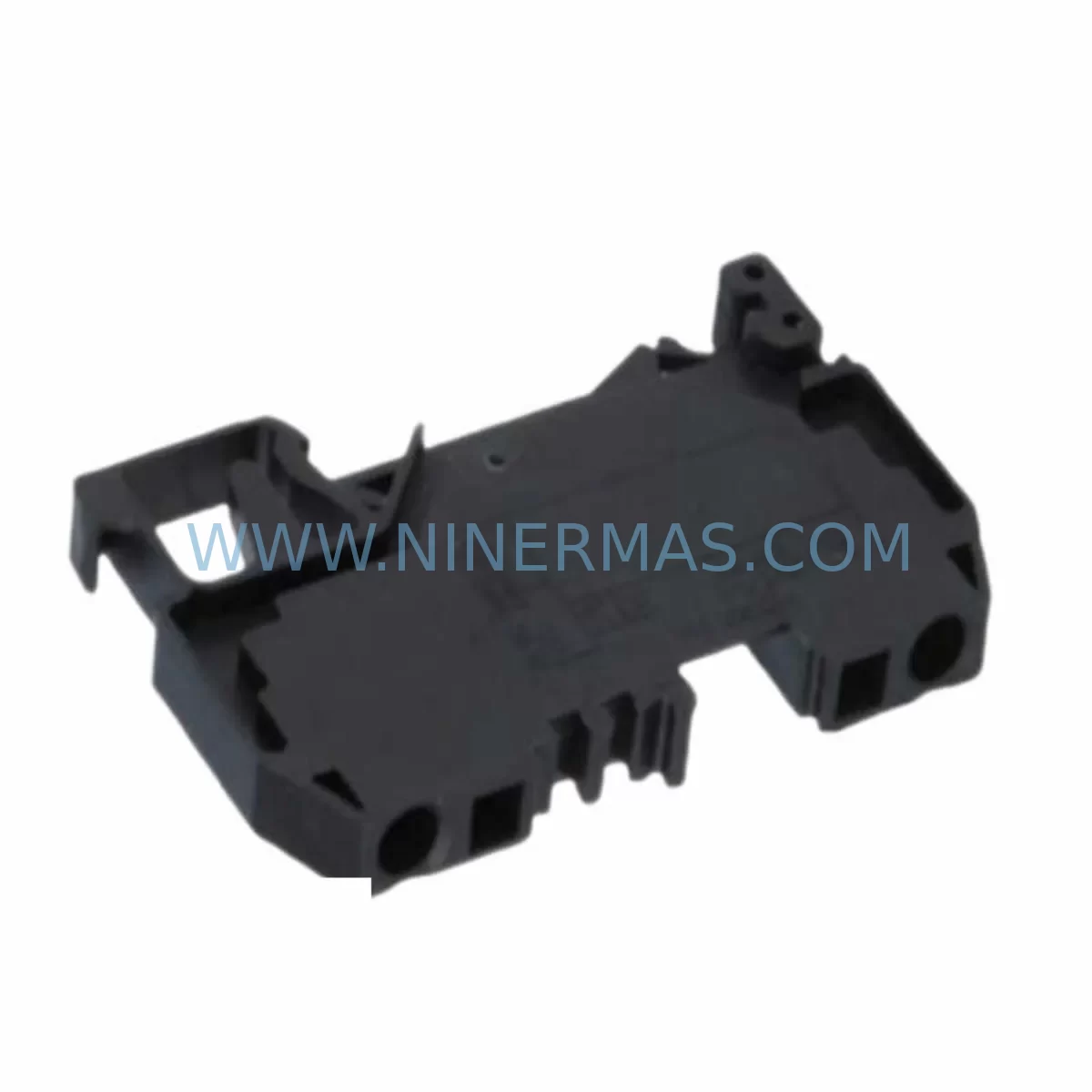

WAGO 280-905 Retrofit-Compatible Through Terminal Block

WAGO 280-905 Retrofit-Compatible Through Terminal Block: Legacy System Compatibility and Smooth Upgrade

The WAGO 280-905 is a ruggedized through terminal block engineered for demanding industrial environments where legacy wiring infrastructure must be preserved, extended, or systematically replaced. As automation engineers and maintenance teams face the growing challenge of sustaining aging control cabinets built around discontinued WAGO 280-series components, the 280-905 provides a direct, retrofit-compatible solution that eliminates the need for full panel redesigns. Its robust construction supports reliable signal continuity across harsh operating conditions including elevated vibration, wide temperature swings, and chemically aggressive atmospheres — making it a preferred choice for process industries, energy facilities, and heavy manufacturing plants.

When planning a spare parts lifecycle extension or a phased control cabinet upgrade, the 280-905 integrates seamlessly into existing DIN rail assemblies without requiring modifications to adjacent terminal positions. Engineers replacing worn or cracked 280-series blocks can maintain original wiring layouts, preserving conductor labeling, ferrule sizing, and terminal pitch spacing. This compatibility is critical in facilities where documentation gaps or aging schematics make full rewiring impractical during scheduled maintenance windows.

In retrofit projects involving WAGO 280-series terminal strips, the 280-905 is commonly deployed alongside the WAGO 280-901 end stop bracket, WAGO 280-907 jumper bar, and WAGO 280-411 through terminal block to maintain mechanical and electrical continuity across the full terminal assembly. Where I/O expansion is required, engineers frequently integrate WAGO 280-502 or 280-504 disconnect terminal blocks into the same rail section to enable circuit isolation without disturbing adjacent wiring — a key requirement during partial shutdowns in continuous process environments.

For control systems migrating from relay-based logic to PLC-driven architectures, the 280-905 supports structured wiring transitions where field signal cables are re-terminated at the terminal block level before routing to new I/O modules. In such projects, the terminal block layer acts as a stable interface between legacy field wiring and modern PLC I/O cards — whether the target platform is a Siemens S7-300 series, an Allen-Bradley MicroLogix, or a Schneider Electric Modicon M340. Maintaining the existing terminal block rail during this transition reduces the risk of wiring errors and shortens commissioning time significantly.

Power supply compatibility is another key consideration during 280-series retrofit work. The 280-905 supports standard 24 VDC control voltage wiring configurations, and its conductor cross-section range accommodates both legacy solid-core and modern stranded wire terminations. When upgrading power distribution within the same cabinet, engineers should verify that the existing WAGO 787-series or 288-series power feed-through terminals remain compatible with the updated load profile, particularly when adding new communication modules or signal conditioners to the rail.

Communication protocol migration projects — such as transitioning from Profibus DP to PROFINET or from Modbus RTU to EtherNet/IP — often require parallel wiring changes at the terminal block level. The 280-905 supports clean separation of analog signal, digital I/O, and communication shield wiring within the same cabinet section, reducing cross-talk risk during the transition period when both legacy and new communication links may be active simultaneously. Proper grounding of cable shields at the terminal block rail, using WAGO 280-series shield clamping accessories, is recommended during this phase.

Installation space confirmation is essential before ordering replacement terminal blocks for legacy panels. The 280-905 maintains the standard 5 mm pitch of the WAGO 280-series, ensuring that existing DIN rail sections, end brackets, and marker carrier systems remain usable without modification. In cabinets where space is constrained, this dimensional compatibility allows engineers to replace individual failed blocks without disturbing neighboring components — a significant advantage over cross-brand substitutions that may require rail section removal.

Pre-shipment testing is performed on all WAGO 280-905 units supplied by NINERMAS to verify contact resistance, insulation integrity, and mechanical clamping force prior to dispatch. Each unit is covered by a 12-month warranty against manufacturing defects, supporting procurement teams that require documented quality assurance for critical spare parts programs. Stock availability is maintained to support both emergency replacement orders and scheduled maintenance procurement cycles.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

A structured retrofit plan for WAGO 280-series terminal block replacement should begin with a full audit of the existing terminal rail population. Engineers should identify all 280-905 through terminal blocks, 280-502 disconnect terminals, 280-907 jumper bars, and 280-901 end stop brackets currently installed in each cabinet section. This audit establishes the exact replacement quantity and accessory requirements before any procurement order is placed.

Where the control system includes a WAGO 750-series fieldbus coupler or I/O module rack, the terminal block layer interfaces directly with the field wiring side of the I/O assembly. Replacing worn 280-series blocks in this zone requires careful attention to conductor routing and shield grounding to avoid introducing noise into analog input channels — particularly in applications involving 4–20 mA process signals or thermocouple inputs. Signal isolators or WAGO 857-series signal conditioners may be added to the rail during the retrofit to improve signal integrity in electrically noisy environments.

For cabinets that also house a WAGO 288-series or 787-series power supply module, engineers should confirm that the power feed-through terminal blocks adjacent to the 280-905 replacement zone are rated for the updated load. If the retrofit includes adding new communication modules — such as a WAGO 750-306 PROFINET coupler or a 750-315 Modbus TCP gateway — the additional current draw must be factored into the power budget before finalizing the terminal block layout.

Programming cable access and HMI screen updates are also part of a complete retrofit plan. When the PLC program references I/O addresses tied to the terminal block wiring layout, any changes to conductor routing or terminal position must be reflected in the program documentation and, where applicable, in the HMI tag database. Maintaining a one-to-one mapping between physical terminal numbers and PLC I/O addresses minimizes the risk of commissioning errors after the physical replacement is complete.

Downtime Control During System Migration

Minimizing unplanned downtime during a WAGO 280-series terminal block replacement requires a phased approach that preserves original program logic and field wiring continuity throughout the migration. The recommended strategy is to replace terminal blocks section by section within a single cabinet, completing each section before moving to the next, rather than removing all blocks simultaneously.

Before beginning any physical work, engineers should photograph the existing wiring layout, record all conductor labels and terminal assignments, and verify that the replacement 280-905 units are on-site and pre-tested. Where the control system supports hot-standby or redundant I/O configurations, the migration can be performed with the system in a reduced-capacity operating state rather than a full shutdown — significantly reducing production impact.

For systems where a full shutdown is unavoidable, the replacement sequence should prioritize safety-critical circuits — emergency stop loops, interlock wiring, and alarm signal terminals — to ensure these are restored and verified before any other circuits are re-energized. After physical replacement, a point-to-point continuity check using a calibrated loop tester confirms that all conductors are correctly seated in the new 280-905 clamps before the PLC is returned to RUN mode.

Post-replacement commissioning should include a functional test of all I/O points associated with the replaced terminal section, verification of communication link status on any fieldbus or Ethernet segment routed through the cabinet, and a review of the HMI alarm log to confirm no spurious faults were generated during the migration. Documenting the completed replacement in the plant maintenance management system closes the work order and supports future spare parts planning.

Retrofit Support FAQ

Q: Is the WAGO 280-905 a direct replacement for other discontinued 280-series through terminal blocks?
A: Yes. The 280-905 maintains the same 5 mm pitch, screw clamp connection method, and DIN rail footprint as other WAGO 280-series through terminal blocks, making it a direct mechanical and electrical replacement for most discontinued variants in the same series. Confirm conductor cross-section and rated current requirements against your specific application before ordering.

Q: What wiring and termination checks are required before commissioning the replacement blocks?
A: After installing the 280-905 units, perform a point-to-point continuity check on all replaced terminals, verify that conductor ferrules are fully seated and clamp screws are torqued to the specified value, and confirm that shield grounding connections are intact. For analog signal circuits, measure loop resistance and compare against baseline values recorded before the replacement.

Q: Can the 280-905 be used in systems with active Profibus DP or PROFINET communication segments?
A: Yes. The 280-905 is a passive wiring terminal and is protocol-agnostic. It can be installed in cabinets with active Profibus DP, PROFINET, Modbus RTU, or EtherNet/IP communication segments without affecting network performance, provided that cable shield grounding and conductor routing practices are maintained according to the original wiring design.

Q: What warranty and stock availability does NINERMAS provide for the WAGO 280-905?
A: All WAGO 280-905 units supplied by NINERMAS are covered by a 12-month warranty against manufacturing defects from the date of shipment. Pre-shipment testing is performed on each unit prior to dispatch. Stock is maintained to support both emergency replacement orders and scheduled maintenance procurement. Contact sale@ninermas.com or +0086 187 5021 5667 for current availability and lead times.
