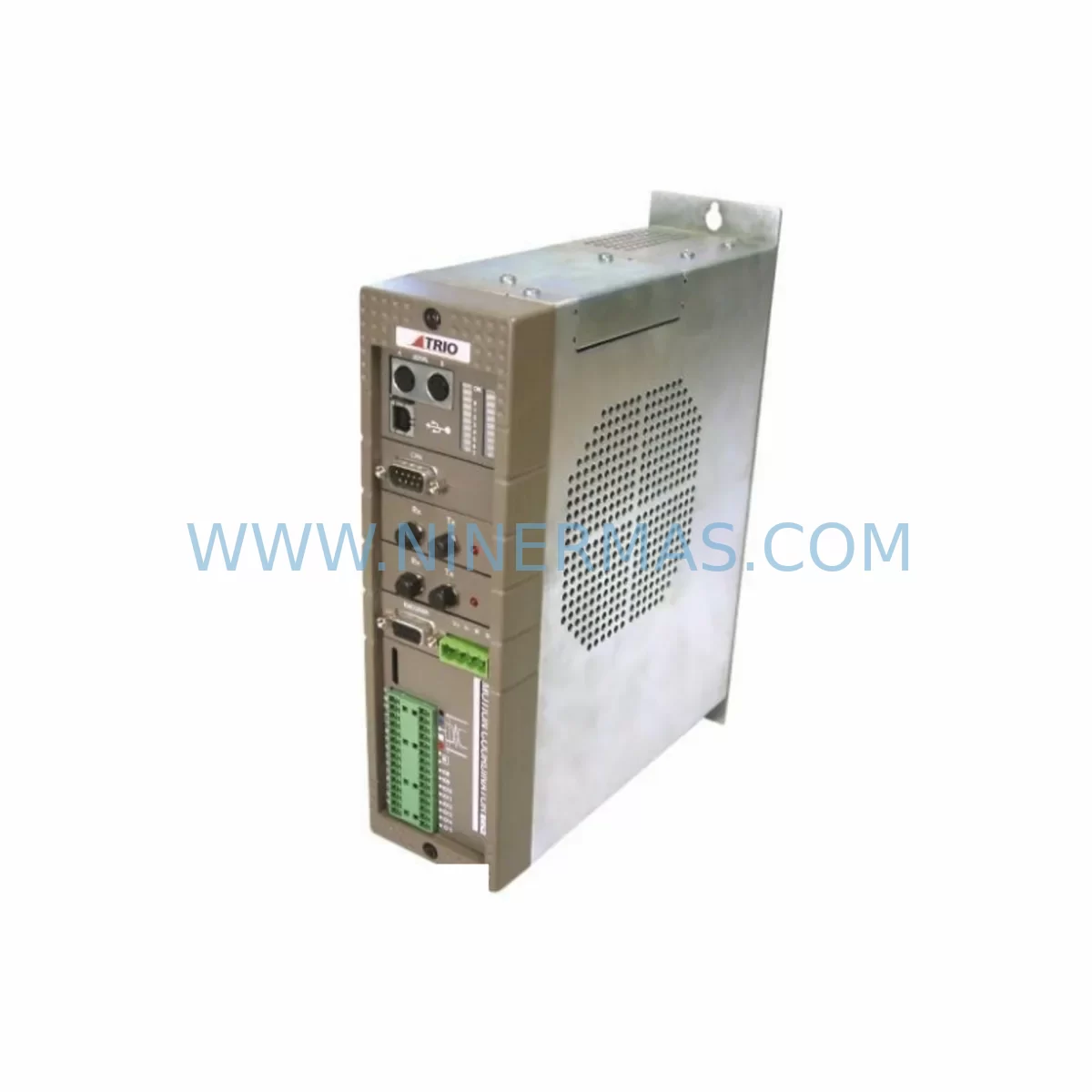

The Trio Motion Technology MC2/216 is a high-performance motion controller module designed for multi-axis coordinated motion in demanding industrial automation environments. As a service-ready original spare part, the MC2/216 is a critical component for maintenance engineers managing legacy and active Trio Motion MC2 series control systems. Whether you are responding to an unplanned axis fault, executing a scheduled annual overhaul, or building a strategic spare parts inventory to protect against extended lead times, sourcing a verified original MC2/216 is the first step in minimising production downtime and restoring system integrity.

The MC2/216 supports up to 16 axes of coordinated motion and is engineered for integration into high-throughput manufacturing lines, packaging machinery, semiconductor handling equipment, and precision assembly systems. Its compatibility with the broader Trio Motion MC2 platform means that replacement is straightforward when the correct firmware version and system configuration are maintained — a key consideration for maintenance teams managing multi-generation control architectures.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When a Trio Motion Technology MC2/216 motion controller fails or is flagged during a routine control cabinet inspection, the replacement process rarely ends with the controller alone. Experienced maintenance engineers understand that a motion controller fault is often symptomatic of broader electrical stress within the control loop. A thorough site assessment should accompany any MC2/216 swap-out.

Begin by inspecting the 24 VDC power supply module feeding the MC2 backplane. Voltage sag, ripple, or intermittent dropout is a leading cause of controller resets and corrupted motion programs. If the power supply is original to the machine and has accumulated significant operating hours, proactive replacement alongside the MC2/216 is strongly recommended. Similarly, the MC2 backplane or rack assembly should be checked for connector wear, oxidation on the bus contacts, and any signs of thermal stress — a degraded backplane can cause the replacement controller to exhibit the same fault behaviour as the failed unit.

Review the EtherCAT or fieldbus communication cabling connecting the MC2/216 to servo drives and I/O nodes. Shielding integrity, connector seating, and cable routing away from high-voltage conductors are all critical. Faulty communication cables are frequently overlooked during emergency replacements and can cause intermittent axis faults that are difficult to diagnose after the controller has been swapped. Inspect servo drive units on each controlled axis — particularly the enable signal wiring, encoder feedback cables, and drive parameter settings, which must be re-verified after a controller replacement to ensure correct axis mapping.

The I/O expansion modules connected to the MC2/216 — including digital input cards, digital output cards, and any analogue signal modules — should be tested for correct response. A failed I/O module can prevent the replacement controller from completing its initialisation sequence, creating a misleading fault indication. Check terminal blocks and wiring looms within the control cabinet for loose connections, insulation degradation, and correct labelling, particularly on the motion enable, home sensor, and limit switch circuits.

If the system includes a Trio HMI panel or operator interface communicating with the MC2/216 over serial or Ethernet, verify that the communication parameters — baud rate, IP address, protocol — are correctly restored after the controller replacement. Firmware version mismatches between the HMI and the replacement controller can cause display errors or loss of operator control. Where the system uses signal isolators or relay output modules to interface the motion controller with external safety circuits or third-party equipment, these components should be tested for correct isolation resistance and switching response.

For sites operating multiple MC2/216 units across a production line, maintaining a minimum of one cold-standby spare per line is considered best practice. Extended lead times for discontinued or low-volume motion controller SKUs make reactive procurement a significant operational risk. A structured spare parts inventory — covering the MC2/216 alongside associated fuse assemblies, 24 VDC DIN rail power supplies, EtherCAT communication cables, and servo drive spare boards — provides the fastest path to production recovery when an unplanned fault occurs.

Site Replacement Workflow

Replacing a Trio Motion Technology MC2/216 in a live production environment requires a structured approach to minimise downtime and avoid secondary faults. The following workflow reflects best practice for maintenance engineers performing a like-for-like controller swap on an MC2 series system.

Step 1 — Pre-replacement documentation: Before powering down the system, capture the current motion program from the MC2/216 using Trio Motion’s PC-based programming software (Motion Perfect or equivalent). Save the full project file, including axis parameters, cam tables, and I/O assignments. If the controller is non-responsive, retrieve the last known-good backup from your site documentation system. Confirm the firmware version installed on the failed unit so the replacement can be loaded with a matching or compatible version.

Step 2 — Safe isolation: Follow your site’s lockout/tagout (LOTO) procedure. Isolate the main power feed to the control cabinet and verify zero-energy state on all servo drive DC bus capacitors before opening the cabinet. Allow adequate discharge time — typically 5 minutes minimum for high-capacity drive systems.

Step 3 — Physical replacement: Remove the failed MC2/216 from the backplane, noting the slot position and any external wiring connections. Install the replacement unit in the same slot. Verify that all backplane connectors are fully seated and that any external communication or I/O cables are reconnected to the correct terminals.

Step 4 — Firmware and program restore: Power up the system and connect to the replacement MC2/216 via USB or Ethernet. Load the correct firmware version, then download the saved motion program. Verify axis parameter tables, encoder resolution settings, and I/O assignments before enabling drives.

Step 5 — Commissioning verification: Run each axis through a low-speed manual jog cycle to confirm correct direction, encoder feedback, and limit switch response. Verify communication with all connected servo drives and I/O nodes before returning the system to automatic mode. Document the replacement in your site maintenance log, including the serial number of the replacement unit and the date of installation.

This structured approach ensures that the MC2/216 replacement restores full system functionality while protecting against secondary faults caused by overlooked wiring or configuration issues — the most common cause of repeat failures following an emergency controller swap.

Spare Parts Support FAQ

Q1: Is the MC2/216 still available as a new original spare part, or is it end-of-life?
The MC2/216 is a mature product within the Trio Motion Technology MC2 series. Availability as a new original spare depends on current stock levels and supplier network access. NINERMAS maintains sourcing relationships across authorised and specialist industrial spare parts channels to support customers requiring MC2/216 units for both active systems and legacy installations. Contact our team to confirm current availability and lead time before committing to a procurement schedule.

Q2: How is the MC2/216 tested before shipment?
All MC2/216 units supplied by NINERMAS are function-verified prior to dispatch. Testing includes power-on confirmation, communication interface check, and basic motion program execution where test infrastructure permits. Units are shipped with appropriate anti-static and protective packaging to prevent transit damage. A 12-month warranty from the date of shipment covers manufacturing defects and functional failures under normal operating conditions.

Q3: Can the MC2/216 replace an older MC2 series controller variant directly?
Compatibility between MC2 series variants depends on firmware version, axis count, and I/O configuration. In many cases, the MC2/216 can serve as a functional replacement for earlier MC2 controllers with appropriate firmware alignment and parameter re-configuration. NINERMAS recommends providing your existing controller’s full part number and firmware version when enquiring, so our technical team can confirm compatibility before shipment and reduce the risk of a non-compatible unit being installed on site.

Q4: What is the recommended spare parts strategy for sites running multiple MC2/216 units?
For production environments with two or more MC2/216 controllers, maintaining at least one cold-standby spare on site is strongly recommended. Given the potential for extended lead times on specialist motion controller SKUs, reactive procurement after a failure can result in days or weeks of production loss. A proactive inventory strategy — reviewed annually during scheduled maintenance shutdowns — should include the MC2/216 alongside associated power supplies, communication cables, and servo drive spare boards. NINERMAS supports long-term supply agreements and can provide volume pricing for customers building structured spare parts inventories.
