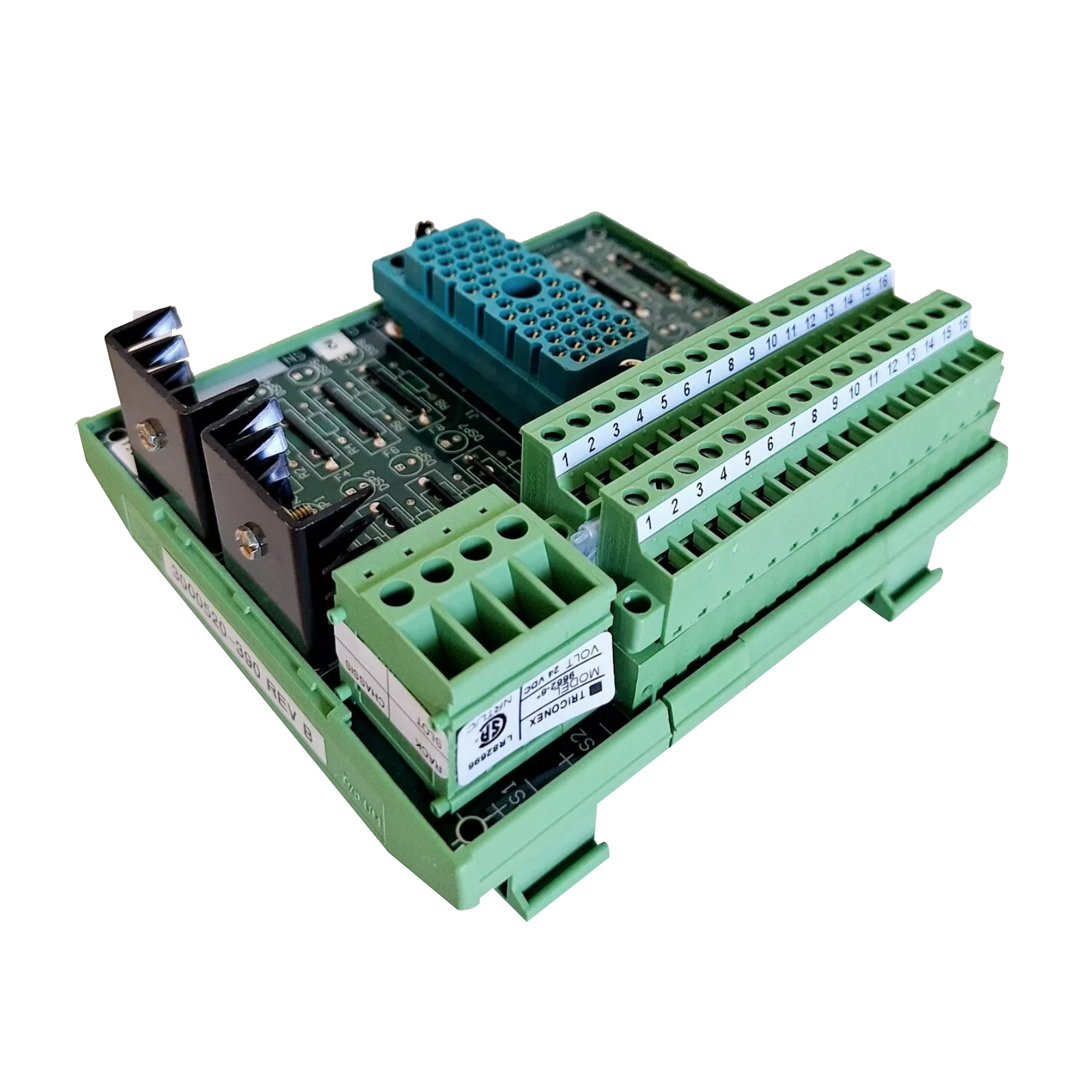

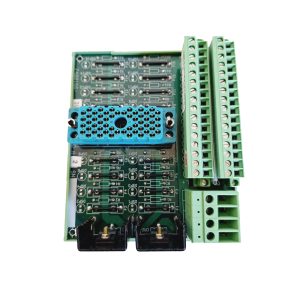

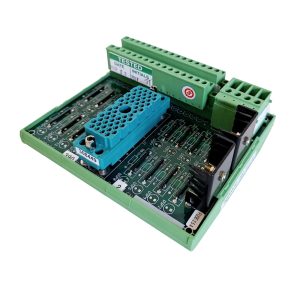

Triconex 9562 Digital Output Termination Panel 3000520-390 | Original & New Spare Parts

Triconex 9562 Digital Output Termination Panel 3000520-390 – Industrial Process Solution

Technical Overview & First Impression

As a Global Sourcing Manager with over a decade of experience in critical infrastructure procurement, I can confirm that the Triconex 9562 Digital Output Termination Panel (Part No. 3000520-390) occupies an irreplaceable role in Triple Modular Redundant (TMR) Safety Instrumented Systems. This component serves as the hardwired bridge between Triconex safety controllers and field-level actuators — a function that, if compromised, can cascade into full process shutdowns. In Process Control environments where uptime is measured in millions of dollars per hour, this panel is not optional; it is foundational.

The Triconex 9562 (3000520-390) is engineered to maintain signal integrity across all three redundant legs of a TMR architecture, ensuring that no single-point failure can propagate to the output layer. Its compatibility extends across multiple generations of Triconex controllers — including Tricon, Trident, and TriStation-configured systems — making it a preferred Legacy Component for engineers managing DCS Hardware upgrades without full system replacement. The Fieldbus-compatible terminal layout further reduces integration complexity in mixed-protocol environments.

Factory Sealed units of the 9562 are increasingly scarce on the global market. As Triconex (now under Schneider Electric’s Safety Systems division) transitions its portfolio, original-condition 3000520-390 panels represent a finite and diminishing supply. Securing verified, factory-sealed stock now is the most cost-effective strategy for long-term maintenance planning.

Key Technical Highlights

TMR Architecture Support: Full Triple Modular Redundant signal path — zero single-point failure exposure at the output termination layer.
SIL 3 Certified: Compliant with IEC 61508 and IEC 61511, meeting the highest Safety Integrity Level for Distributed Control System deployments.
High-Speed Signal Stability: Engineered for deterministic output response, critical in Emergency Shutdown (ESD) and Fire & Gas (F&G) applications.
Redundancy-Ready Wiring: Terminal blocks support 14-22 AWG (0.5-2.5 mm²) solid or stranded copper conductors with ferrule terminations for maximum connection reliability.
DIN Rail Mounting: Tool-minimal installation with clearly labeled terminal blocks reduces commissioning time by up to 40%.
Wide Operating Range: Rated 0°C to 60°C (32°F to 140°F), suitable for both climate-controlled control rooms and semi-exposed field cabinets.
Factory Sealed Condition: Each unit ships in original manufacturer packaging, preserving component integrity and enabling immediate deployment.

Vertical Industry Applications

Petrochemical & Refining: In high-pressure distillation and catalytic cracking units, the 9562 termination panel provides the reliable digital output interface required for emergency depressurization valves and safety interlock systems — directly reducing unplanned downtime caused by wiring faults.

Offshore Oil & Gas (Marine): Subsea and topside control systems demand components rated for vibration, humidity, and salt-air exposure. The 9562’s robust construction and TMR compatibility make it a standard specification in FPSO and platform SIS architectures.

Mining & Mineral Processing: Conveyor shutdown systems, crusher interlocks, and ventilation safety circuits in underground mining operations rely on SIL-rated output panels to prevent catastrophic equipment failures and protect personnel.

Power Generation (Nuclear & Thermal): Turbine trip systems and reactor protection circuits require IEC 61508 SIL 3-compliant hardware. The 9562 is a qualified component in multiple power plant safety system configurations globally.

Pharmaceutical & Fine Chemical Manufacturing: FDA-regulated batch processes and ATEX-zone installations benefit from the 9562’s deterministic output behavior, ensuring that critical process deviations trigger immediate, verifiable safety responses.

Data Sheet & Specifications

Quality Assurance & Supply Chain

Every Triconex 9562 (3000520-390) unit supplied through our network undergoes a rigorous multi-stage verification process before dispatch. We source exclusively from authorized distribution channels and decommissioned-but-unused plant inventories, ensuring 100% original components — no refurbished, remarked, or counterfeit parts.

Emergency Repair Scenario: When a safety system trips and the root cause is traced to a failed output termination panel, every hour of downtime in a petrochemical plant can cost $500,000 or more. Our emergency delivery protocol — activated within 2 hours of order confirmation — routes your 9562 via DHL Express, FedEx International Priority, or UPS Worldwide Express, with real-time tracking and customs pre-clearance documentation included. This is not a standard logistics service; it is a mission-critical supply chain response designed for industrial emergencies.

All units are shipped with full traceability documentation, including manufacturer date codes, batch records, and inspection certificates. A 12-Month Comprehensive Warranty covers all manufacturing defects and material failures from the date of delivery — not the date of manufacture.

Buyer’s FAQ — Selection Guide

Q1: How do I verify that a Triconex 9562 (3000520-390) is genuinely factory-sealed and not refurbished?

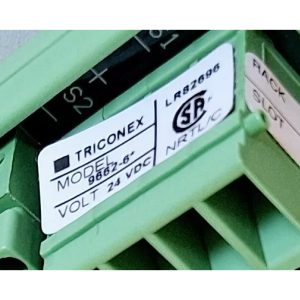

A: Authentic factory-sealed units will have intact Triconex/Schneider Electric tamper-evident labels on all seams, original anti-static packaging with manufacturer lot codes, and no evidence of terminal block use (no wire marks, no torque tool impressions). Request a high-resolution photo of the label and packaging before purchase. We provide full photographic documentation with every order.

Q2: How do I obtain the official Datasheet for the 9562 (3000520-390)?
A: The official Triconex 9562 datasheet is available through Schneider Electric’s Safety Systems documentation portal. We can also provide the technical specification sheet directly upon request — contact our engineering team with your inquiry and we will supply the relevant documentation within 24 hours.

Q3: Is the 9562 compatible with both older Tricon v9 and newer TriStation 1131 v4.x configurations?
A: Yes. The 3000520-390 termination panel maintains backward compatibility across Tricon v9.x, Trident v2.x, and current TriStation 1131 v4.x controller generations. However, always cross-reference your system’s I/O module revision with the compatibility matrix in your site’s SIS documentation before installation.

Q4: What is the lead time for standard vs. emergency orders?
A: For in-stock units, standard international shipping takes 3-7 business days. Emergency orders are dispatched within 2-4 hours of payment confirmation and typically arrive within 24-72 hours depending on destination country and customs clearance. We maintain pre-prepared export documentation for major industrial regions including the EU, Middle East, Southeast Asia, and the Americas.

Q5: Can the 9562 be used as a direct replacement for a failed panel without reconfiguring the TriStation software?
A: In most cases, yes — the 9562 is a passive termination panel and does not contain programmable firmware. Physical replacement requires only proper wiring reconnection per the original as-built drawings. No TriStation software changes are required unless the replacement involves a different I/O module type. Always consult your site’s SIS engineer before performing hot-swap operations on live safety systems.

Q6: Why is the Triconex 9562 considered a Critical Part for Industry Safety?
A: The 9562 is the final hardwired interface between the TMR controller’s digital output signals and the field devices that physically execute safety actions — valve closures, pump trips, damper actuations. If this panel fails or is incorrectly wired, the safety system cannot execute its protective function, regardless of how correctly the logic is programmed. In SIL 3-rated systems, this component is classified as a Critical Part for Industry Safety with zero tolerance for substitution with non-certified alternatives.
