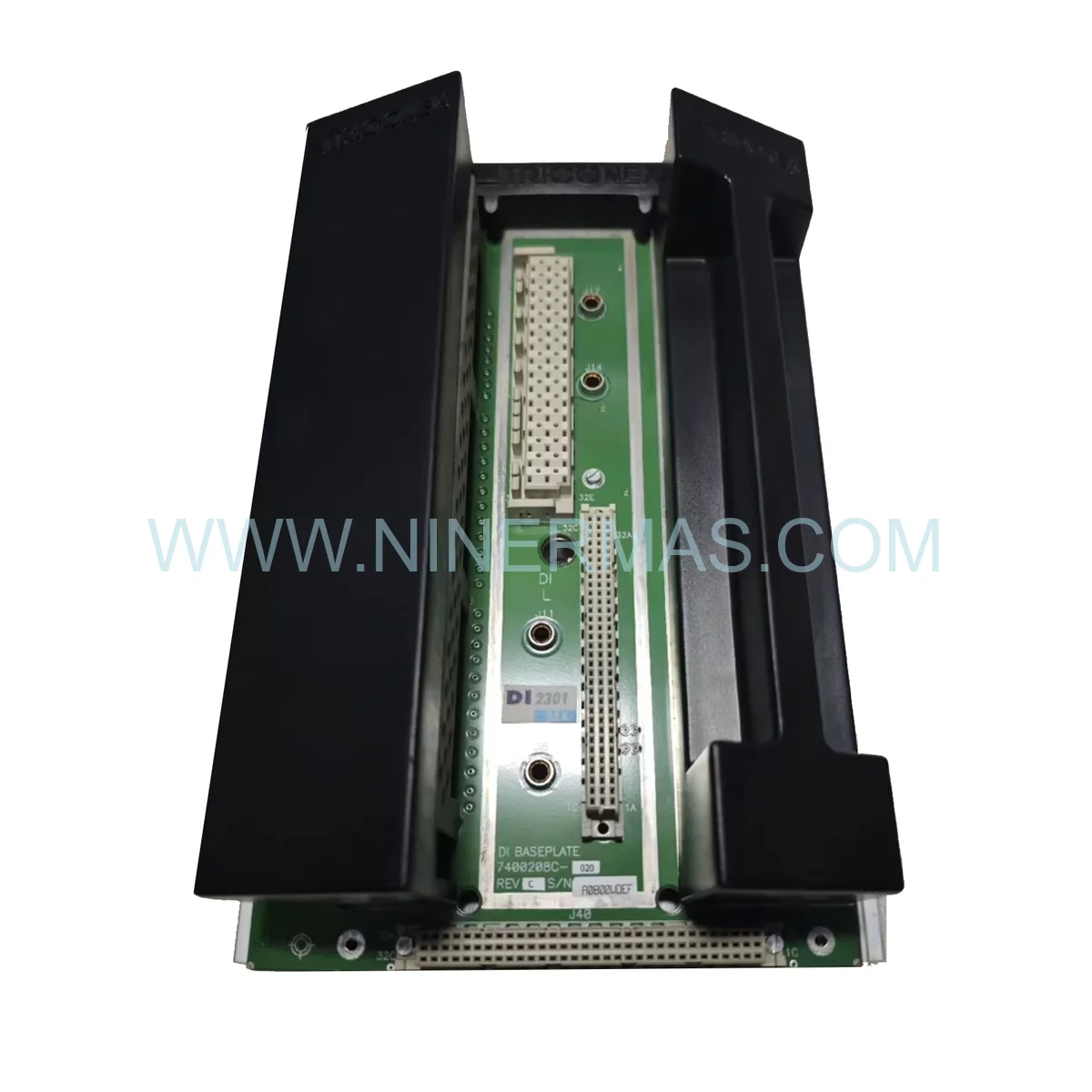

Triconex 7400208B-020 DI2301 Digital Input Baseplate — New & Original

Triconex DI2301 Digital Input Baseplate 7400208B-020 | Reliable Automation Component

Field Application & Operational Analysis

From a Site Reliability Engineer’s perspective, the Triconex 7400208B-020 is not merely a passive mounting platform — it is the backbone of signal integrity within a Safety Instrumented System (SIS). The 7400208B-020 enables fault-tolerant digital input routing through its Triple Modular Redundancy (TMR) voting architecture, directly elevating system availability in mission-critical process environments such as emergency shutdown (ESD) loops, fire & gas detection grids, and turbine control interlocks. Its role in process optimization cannot be overstated: by ensuring continuous, validated signal paths between field sensors and the Tricon controller, it eliminates single-point failures that could otherwise trigger unplanned production halts.

Operational durability is a defining characteristic of the 7400208B-020. Rated for ambient temperatures from 0°C to 60°C with humidity tolerance up to 95% non-condensing, this baseplate withstands the thermal cycling and vibration loads common in offshore platforms, petrochemical reactors, and power generation facilities. During installation, engineers must ensure proper chassis seating and verify backplane connector alignment to maintain the low-resistance signal paths that TMR voting depends upon. Grounding discipline and cable segregation from high-voltage runs are equally critical to preserving signal fidelity.

As a strategic spare part, the 7400208B-020 belongs in every plant’s critical inventory buffer. End-of-life (EOL) risk for legacy Triconex I/O infrastructure is real — securing original factory stock now prevents costly production interruptions when field replacements become urgent. Operational excellence demands proactive sourcing, not reactive scrambling.

Key Operational Features

Triple Modular Redundancy (TMR): Three independent signal channels with automatic fault voting — system continues operating through single-channel failures without operator intervention.
SIL 3 Certified (IEC 61508): Validated for the highest safety integrity level in process industry applications, supporting full functional safety compliance.
High Availability Design: Hot-swap capable module interface allows DI2301 card replacement under live system conditions, eliminating maintenance windows.
Seamless Integration: Direct plug-in compatibility with Triconex Tricon, Trident, and TriStation controller platforms — zero custom wiring adapters required.
Scalable I/O Expansion: Multiple baseplates can be deployed within a single chassis to grow digital input capacity in line with system integration requirements.
Onboard Diagnostics: Integrated LED status indicators deliver real-time visual feedback on module health, communication link status, and fault conditions.

Maintenance & Performance Benchmarks

The 7400208B-020 is engineered to adapt across diverse industrial network architectures — from compact single-chassis SIS installations to large-scale distributed control environments spanning multiple process units. Its backplane communication protocol maintains deterministic scan times regardless of I/O load, a critical requirement for time-sensitive safety functions such as high-integrity pressure protection systems (HIPPS) and burner management systems (BMS).

Preventive maintenance cycles for this baseplate are minimal by design. Periodic inspection of backplane connector pins for oxidation, verification of chassis grounding continuity, and firmware compatibility checks with the host Tricon controller constitute the primary maintenance touchpoints. Mean Time Between Failures (MTBF) data for Triconex TMR components consistently exceeds industry benchmarks, reflecting the platform’s engineering pedigree in automation components for mission-critical applications.

For facilities operating mixed-vintage Triconex infrastructure, the 7400208B-020 provides a stable interface layer that bridges legacy field wiring with current controller firmware revisions — a key advantage for brownfield modernization projects where full system replacement is cost-prohibitive.

Comprehensive Data Sheet

Professional Logistics & Sourcing Excellence

Every 7400208B-020 unit dispatched from our inventory is sourced directly from authorized Triconex distribution channels and ships in original factory packaging with full traceability documentation. For in-stock orders, same-day dispatch is available upon order confirmation before the daily cut-off, ensuring your maintenance team receives critical components with minimal lead time.

We specialize in global supply for EOL and legacy Triconex modules — a segment where standard distribution channels frequently fall short. Our worldwide express logistics network covers North America, Europe, the Middle East, Southeast Asia, and beyond, with DHL, FedEx, and UPS priority freight options. Export documentation, customs clearance support, and certificate of conformance (CoC) are provided as standard for all international shipments.

For plant operators managing aging Triconex infrastructure, our sourcing team maintains dedicated stock buffers for high-demand I/O modules and baseplates, reducing your exposure to extended lead times on obsolete automation components.

Engineering Support & FAQ

Q1: What is the correct installation sequence for the 7400208B-020 baseplate in a Tricon chassis?
A: Begin by powering down the affected chassis slot if hot-swap is not required. Align the baseplate guide rails with the chassis tracks and slide firmly until the backplane connector seats fully. Secure the retention screws to the specified torque. Re-enable the slot via TriStation software and verify module recognition before restoring field signal connections.

Q2: Which firmware versions are compatible with the DI2301 baseplate and 7400208B-020 hardware revision?
A: The 7400208B-020 is compatible with Tricon controller firmware versions 9.x and 10.x. For TriStation 1131 v4.x and later, no additional configuration is required. Always cross-reference the hardware revision suffix (B-020) against the Triconex Product Compatibility Matrix before firmware upgrades to avoid version mismatch faults.

Q3: Can the 7400208B-020 be used in a Trident system, or is it exclusive to Tricon?
A: The 7400208B-020 DI2301 baseplate is designed for the Tricon platform. Trident systems use a different baseplate form factor and backplane pinout. Consult your system architecture documentation or contact our technical team to confirm the correct part number for Trident applications.

Q4: How is the warranty claim process handled for this module?
A: In the event of a warranty claim, contact our support team with the unit serial number, purchase order reference, and a description of the observed fault. We will issue a Return Merchandise Authorization (RMA) within 24 business hours. Replacement units are dispatched upon receipt and inspection of the returned module, with express shipping prioritized to minimize your system downtime.

Q5: Is it possible to verify the authenticity of the 7400208B-020 upon receipt?
A: Yes. Each unit includes Triconex factory labeling with a traceable serial number. Customers may request a certificate of conformance (CoC) and, where available, original factory test records. Our sourcing process excludes gray-market and refurbished stock — all units are verified new and original prior to dispatch.

Q6: What are the lead times for out-of-stock orders of the 7400208B-020?
A: For units not immediately available in our primary warehouse, our global sourcing network typically locates and ships verified stock within 3-7 business days. Expedited sourcing for urgent plant maintenance scenarios is available — contact our team directly to initiate a priority procurement request.
